Acrel Smart Busway Monitoring Solution
General
It is necessary to real-time monitor the energy consumption and power quality of end load in a smart track busway. Data can be uploaded to the monitoring system by local touch screen through RS485 and it can realize real-time monitoring of the whole power distribution system. At the same time, it can monitor real-time temperature at the busway connector and plug-in box interface to ensure the safe and reliable operation of the busway.
Application Scenario
• Connection between low voltage cabinet
• Incoming line system at voltage transformer connection
• Power distribution in factory
• Power supply in high buildings
• Device with big current
Structure
Main Functions
• AMB100 or AMB110 is usually installed in the busbar start box and plug-in box
• Measurement: AC or DC busbar voltage, current, harmonics and other parameters
• Realize temperature monitoring of the busbar plug interface
• AMB200 is usually installed at the connector of the dense AC busbar, and can monitor temp. And humidity at the connector
• Communication: LoRa or RS485
Interface
On-site Pictures
Product Selection
| Picture | Model | Main Function |
 |

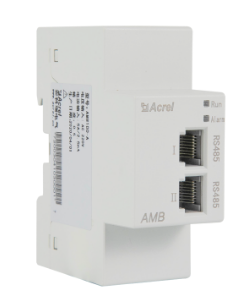

AMB100-A-P1 AC Start Box Monitoring Module | DIN 35 mm;
Measurement: 3 phase electrical parameters,2DI2DO,8 temp.,1 leakage current,1 temp. and humidity;
Communication: 1 in 1 out type RJ45 interface(Modbus protocol). |
 |

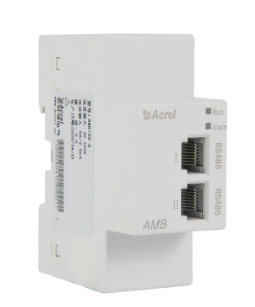

AMB110-A-P1 AC Plug-in Box Monitoring Module | DIN 35 mm;
Measurement: 3 phase electrical parameters,2DI2DO,4 temp.,1 leakage current,1 temp. and humidity;
Communication: 1 in 1 out type RJ45 interface(Modbus protocol). |
 |
AMB100-D-P1 DC Start Box Monitoring Module | DIN 35 mm;
Measurement:1 DC circuit electrical parameters,4DI2DO,8 temp.,1 leakage current,1 temp. and humidity;
±12V output to power hall current sensor;
Communication: 1 in 1 out type RJ45 interface(Modbus protocol). |
 |
AMB110-D-P1 DC Plug-in Box Monitoring Module | DIN 35 mm;
Measurement:3 DC circuits electrical parameters,4DI2DO,4 temp.,1 leakage current,1 temp. and humidity;
±12V output to power hall current sensor;
Communication: 1 in 1 out type RJ45 interface(Modbus protocol). |
 |

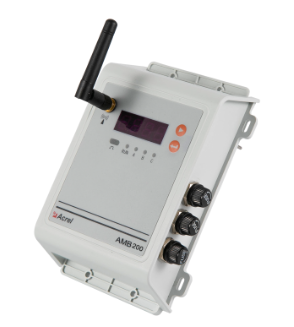

AMB200-LR or AMB200-C AC Bus Connector Temp. Measurement Device | Installation: Fixed on the cover of the busbar connection;
Contact temp. measurement,measure and display temp. of 4 AC busbars;
Communication:RS485 or LoRa. |
 |
AHKC-BS DC Outgoing Line Hall Effect Current Sensor | Current ratio：100A/5V;
Common Specification: 100A/5V. |
 |

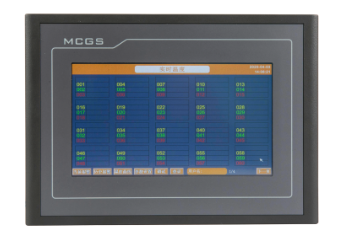

ATP010kt HMI | 10 inch touch screen;
Real-time monitoring and display voltage,current,power,energy,power quality,switch status,wave curve,etc. of the busbar;
Monitoring device alarm,communication and other parameters can be configured on the screen;
2 RS485 and 1 Ethernet,and data can uploaded by RS485 or RJ45. |
