Acrel Energy Efficiency Management System
Application Scenario
• Office Building
• Scientific, Educational, Cultural and Healthy Architecture
• Commercial Building
• Communication Architecture
• Transportation Building
• Tourist Building
Structure
Main Functions
• Platform Overview
• Remote Data Monitoring
• Energy Report
• Historical record and report
• Energy Efficiency Analysis
• Web/APP
Typical Cases
Acrel Wireless Temperature Monitoring System Applied in Beijing Daxing International Airport - view more
Acrel Wireless Temperature Monitoring System Applied in Project in Italy - view more
Acrel Wireless Temperature Monitoring System Applied in Project of Lotte Mart in Hanoi Vietnam - view more
Product Selection
| Picture | Model | Main Function |
 |

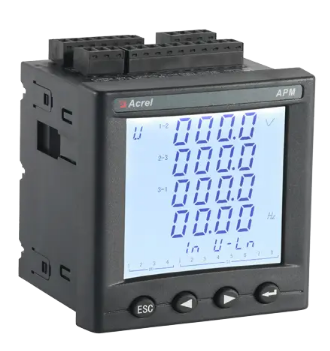

APM810 Multifunction Meter | True RMS Measurements;
THD with 63rd Harmonics;
K-Factor and Crest Factor;
Unbalance & Phase Angles;
Demands and Multi-Tariff energy;
Max/Min Log with Timestamp.
|
 |

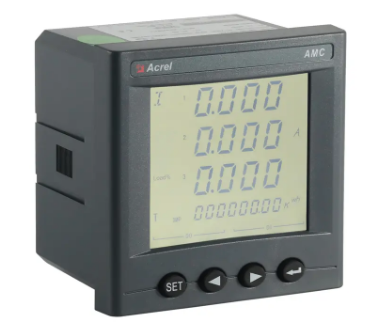

AMC96L-E4/KC Multifunction Meter | True RMS Measurements;
THD with 2-31st Harmonics;
Max/Min Log with Timestamp;
Internal Optional 4DI&2DO or 2DI&2DO&2AO;
Standard one Energy Pulse Output.
|
 |

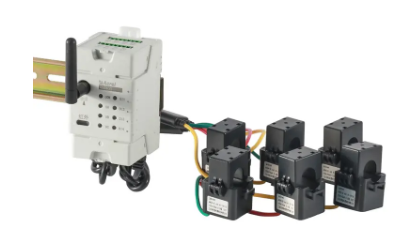

ADW400 Power Cabinet | Measurement: Maximum 4 circuits 3 phase U、I、P、Q、S、PF、kWh、kvarh;
3×220/380V,3*380V,3*57.7/100V,3*100V;
3×1(6)A,3×20(100)A,3×80(400)A,3×120(600)A;
Communication: RS485 or LoRa.
|
 |

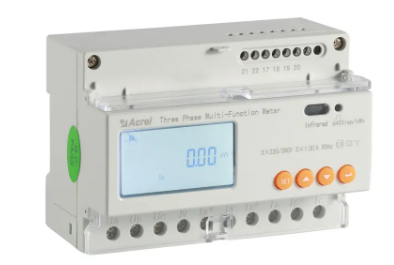

ADL3000-E Three Phase Multi-function Energy Meter | AC 3×220/380V，3×380V，3×57.7/100V，3×100V;
3×1（6）A，3×10（80）A;
U、I、P、Q、S、PF、kWh、kvarh;
RS485(MODBUS-RTU);
LCD display;
Frozen data;
2-31st Harmonics;
kWh Class 0.5S,kVarh Class 2.
|
 |

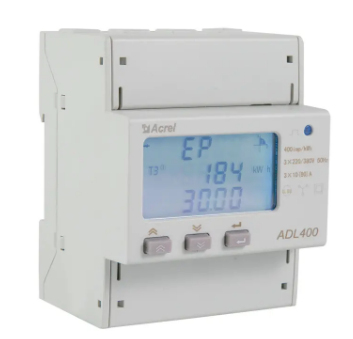

ADL400 Din Rail Energy Meter | AC220V;
3×1(6)A,3×10(80)A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 0.5;
DIN 35 mm.
|
 |
ADL100-ET Single Phase Multi-function Energy Meter | AC220V;
10（60）A，20（100）A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 1;
DIN 35 mm.
|
 |

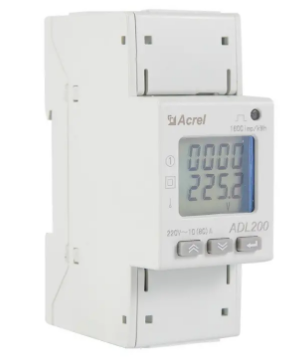

ADL200 Din Rail Energy Meter | AC220V;
3×10(80)A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 1;
DIN 35 mm.
|
 |

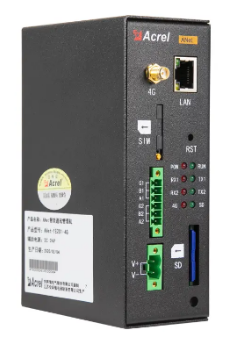

Anet-1E2S-4G Gateway | Downlink:2* RS485;
Uplink:4G.
|
