Acrel Wireless Temperature Monitoring System
General
Remote reading of energy consumption (water, gas, electricity) of course, but in general, the remote measurement of any parameter available on a machine, in a room, an indoor or outdoor environment. Such as substation，building，telecommunication base station，industrial energy consumption，intelligent lighthouse，operation and maintenance of power.
The Internet of Things saves time and money by automating remote data collection. In addition, the analysis of these data makes it possible to identify problems or anomalies, the preventive treatment of which significantly improves the operational processes.
Application Scenario
• Substation
• Building
• Telecommunication base station
• Industrial energy consumption
• Intelligent lighthouse
• Operation and maintenance of power
Structure
System Value
Advantage
1. Centralized monitoring: Remote devices upload data 24 hours a day.
2. Self-registration: Users can register their own accounts and add devices through the mobile app.
3. Energy Analysis: Get the energy consumption of the devices anytime, anywhere.
4. Alarm: Once an alarm occurs on the device, the alarm data will be uploaded in real time and pushed by the app to relevant person.
Main Functions
• Alarm Analysis
• Energy situation
• Details of electrical parameters
• Equipment status
• APP
Typical Cases
Acrel Wireless Temperature Monitoring System Applied in Beijing Daxing International Airport - view more
Acrel Wireless Temperature Monitoring System Applied in Project in Italy - view more
Acrel Wireless Temperature Monitoring System Applied in Project of Lotte Mart in Hanoi Vietnam - view more
Product Selection
| Picture | Model | Main Function |
 |

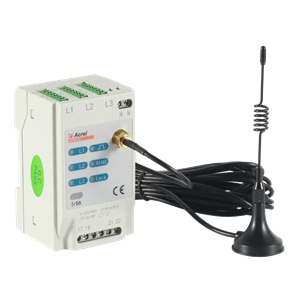

AEW100 Wireless Energy Meter | RS485 and Infrared communication;
Lora communication on 470MHz;
Rated I: 1.5(6)A,20(100)A,40(200)A,80(400)A,120(600)A;
Rated U: 3×220/380V,3*380V,3*57.7/100V;
kWh Class 1;
DIN 35mm.
|
 |

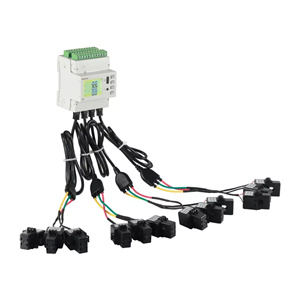

ADW210 IOT meter | Measurement: 4 circuits 3 phase voltage,current,power,power factor ,etc.;
Max demand;
Communication: RS485 or LoRa.
|
 |

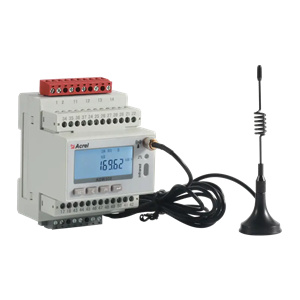

ADW300 wireless meter | Measurement:3 Phase voltage,current,power,power factor,etc.;
Communication: RS485,LoRa,4G,NB or LoRaWan;
Max demand;
Accuracy:Class 1.
|
 |

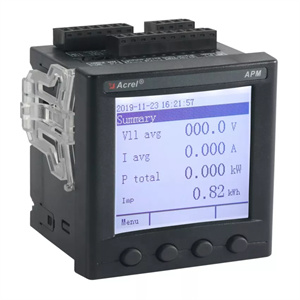

APM830 Multifunction Meter | Measurement:current,voltage,energy,SOE,etc.;
DI/DO,AI/AO,TF card,etc.;
Communication: 2*RS485,Ethernet and Profibus-DP.
|
 |

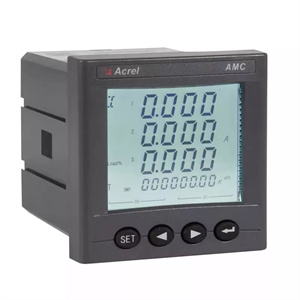

AMC96L-E4/KC Multifunction Meter | True RMS Measurements;
THD with 2-31st Harmonics;
Max/Min Log with Timestamp;
Internal Optional 4DI&2DO or 2DI&2DO&2AO;
Standard one Energy Pulse Output.
|
 |

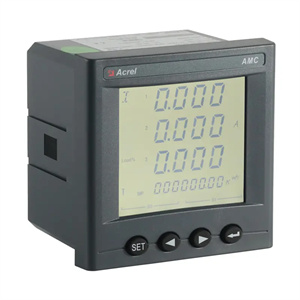

AMC72L-E4/KC Multifunction Meter | Measurement: 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc.;
Rated Voltage: 400V AC L-L (direct connect); 100V AC L-L (via PTs);
Rated Current: 5A AC or 1A AC (via CTs);
Harmonic Measurement: 2~31st and total Harmonic;
Analog Output: 4~20mA DC or 1~5V DC;
DI/DO Function: 2/4-channel DI&2-channel DO.
|
 |

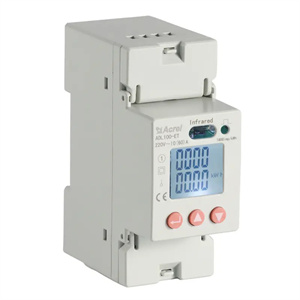

ADL100-ET Single Phase Multi-function Energy Meter | AC220V;
10（60）A，20（100）A;
RS485(MODBUS-RTU);
Set parameters;
LCD display;
kWh Class 1;
DIN 35mm.
|
 |

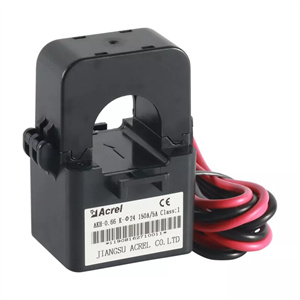

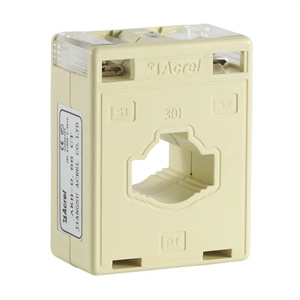

AKH-0.66/K series current transformer |
General Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment. Standards IEC/EN61869-1, IEC/EN61869-2.
|
 |
AKH-0.66/I series closed-loop current transformer |
General Current Transformer (CT) is used to transform the high AC current to small easily manageable values. They are connected with the panel meter or relay and they can help to measure the current or protect the equipment. Standards IEC/EN61869-1, IEC/EN61869-2
|
 |
AKH-0.66/K series split core open C | Current ratio: up to 5000/5A;
Accuracy: 0.5, 0.2. |
 |
AF-GSM300-HW868 gateway | Downlink: LoRa or RS485;
It is used with AEW100-HW868;
Uplink: 4G;
Protocol: MQTT. |
 |
AF-GSM500-4G gateway | Lora wireless meter reading, RS485 meter reading.
4G wireless communication, Ethernet port communication; support Modbus-TCP, MQTT and other protocols, protocols can be customized and developed, support breakpoint transfer, local data storage, local display and key setting. 1. Meter reading by LoRa or RS485 2. Uplink Communication: 4G or Ethernet 3. Protocol: Modbus-TCP, MQTT, etc, the protocol can be customized 4. Support breakpoint transmission, local data storage, local display and button set. |
 |
Anet-1E2S-4G gateway | Downlink: 2* RS485;
Uplink: 4G. |
 |
AWT100-4GHW gateway | AWT100-4GHW, 1 way downstream 485, upstream optional GSM 4G/WIFI/network port/lorawan868/lorawan923/lora868
1. Downlink: RS485 2. Uplink:4G, WiFi or Ethernet |
