Acrel ABAT100 Lead-acid Battery Monitoring System
General
Acrel ABAT100 series battery online monitoring system is an online battery monitoring product that can provide early warning and battery balancing for failed batteries, and meets the requirements of ANSI/TIA-942 standard.
The system has the function of monitoring the voltage, internal resistance, and internal temperature of the battery with convenient installation, maintenance, and connection. The system mainly consists of ABAT100-S module, ABAT100-C module, ABAT100-HS collector, ATP010KT touch screen. It can check alarms and real-time data, set parameters, etc. through the collector, and can optionally be equipped with a monitoring platform to achieve networked centralized management.
Application Scenario
• Base Station / BTS / Cell Tower Monitoring
• Petroleum
• Metallurgical Industry
• Data Centre
• Chemical Industry
• Industrial and Mining Enterprise

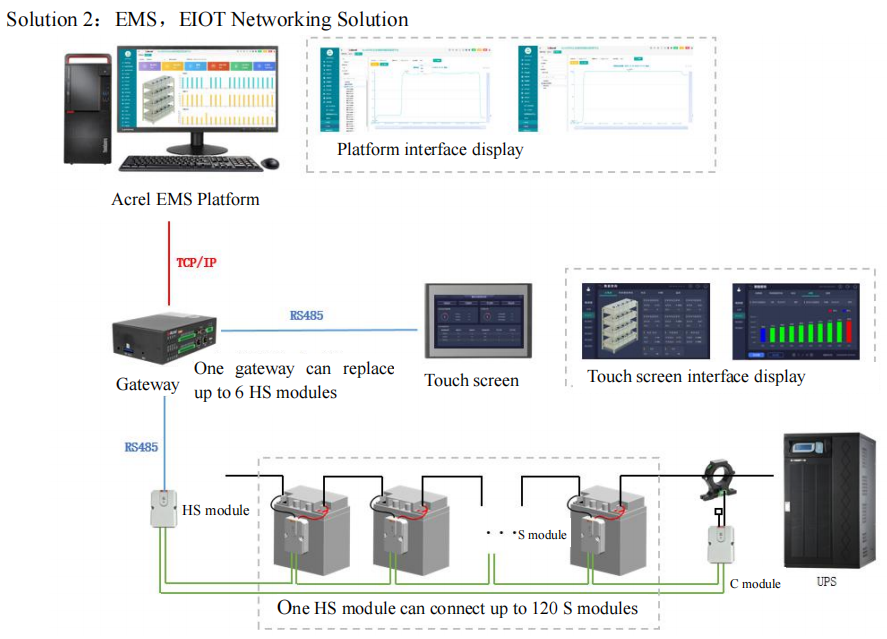

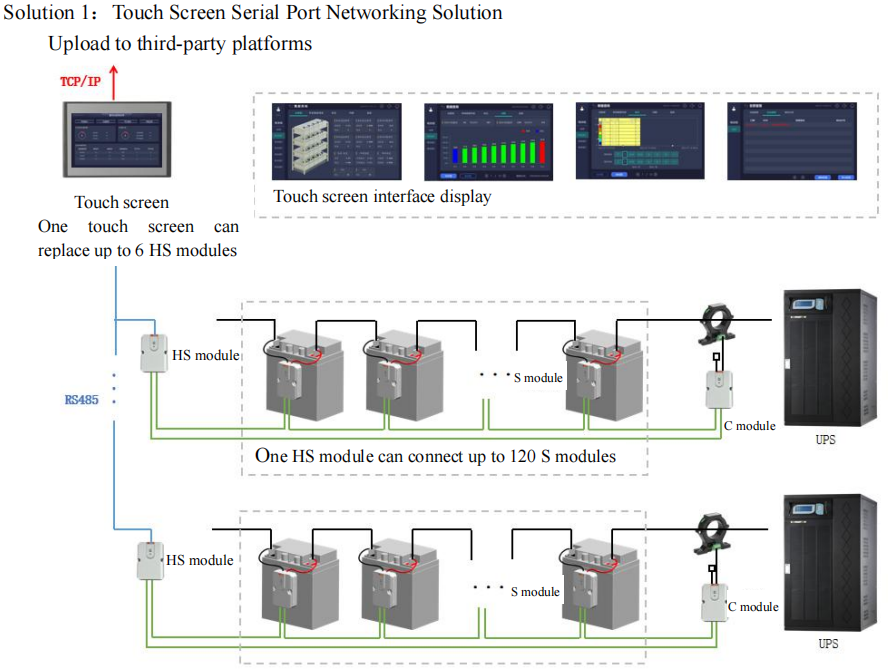

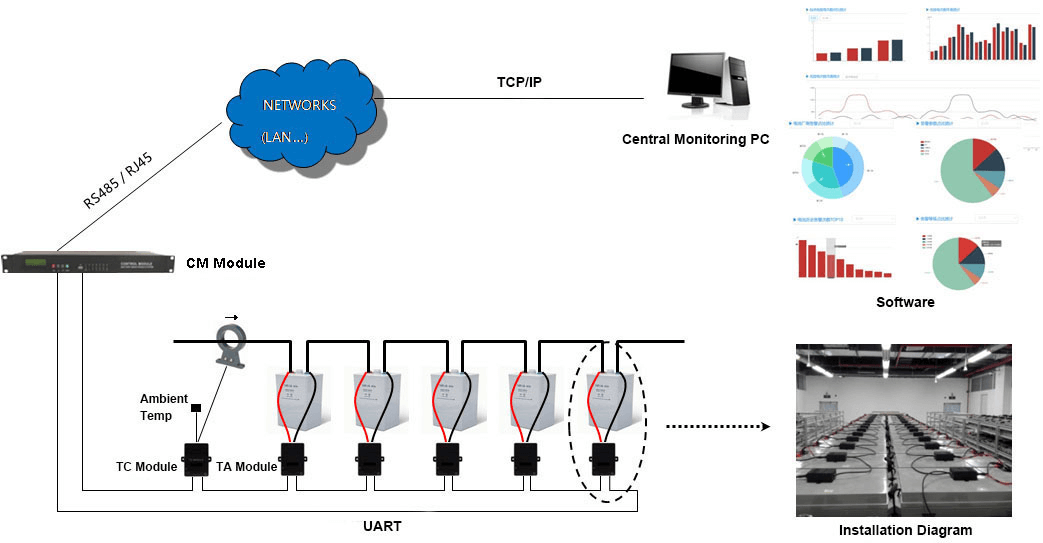

Structure
Hardware Functions

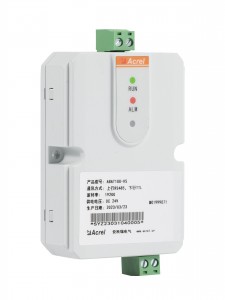

• ABAT100-HS Data Collector
• Used to manage and collect data from the front-end distributed single battery monitoring module, and perform data processing, parsing, alarm generation, saving, and uploading;
• One collector can manage one group of 120 batteries;
• Automatic data analysis and processing can estimate the remaining capacity of the battery;
• Supports MODBUS protocol and can be connected to third-party monitoring systems.

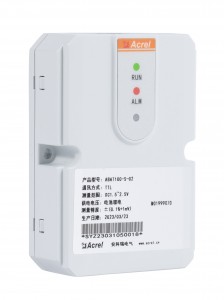

• ABAT100-S Single Battery Monitoring Module
• 24-hour online monitoring every day to detect batteries with deteriorating performance at any time;
• Divided into three detection ranges of 2V, 6V, and 12V, it meets the requirements of the vast majority of batteries;
• Each module monitors one battery, including voltage, internal resistance, and negative electrode temperature;
• Easy to install, connect one wire to each positive and negative pole, and can be installed without specialized training.

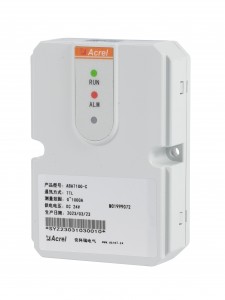

• ABAT100-C Single Battery Group Monitoring Module
• 24-hour online monitoring of charging and discharging current and temperature every day;
• Equipped with photoelectric isolation, supporting MODBUS protocol, and easy to connect to third-party monitoring systems;
• High performance, reliability, and stability
• C Module Matching Hall Current Sensor
• Used to measure the charging and discharging current, with an inner diameter of 40.5, one for each battery group.
• ATP007KT & KDYA-DG1502-12K
• 7-inch touch screen for local data display.
• Power supply to ABAT100-HS and ABAT100-C modules and touch screen, input AC220V and output DC24V.

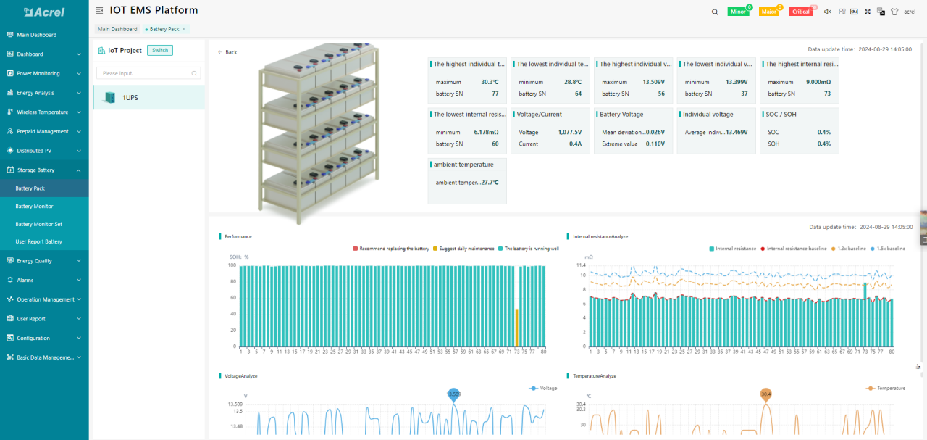

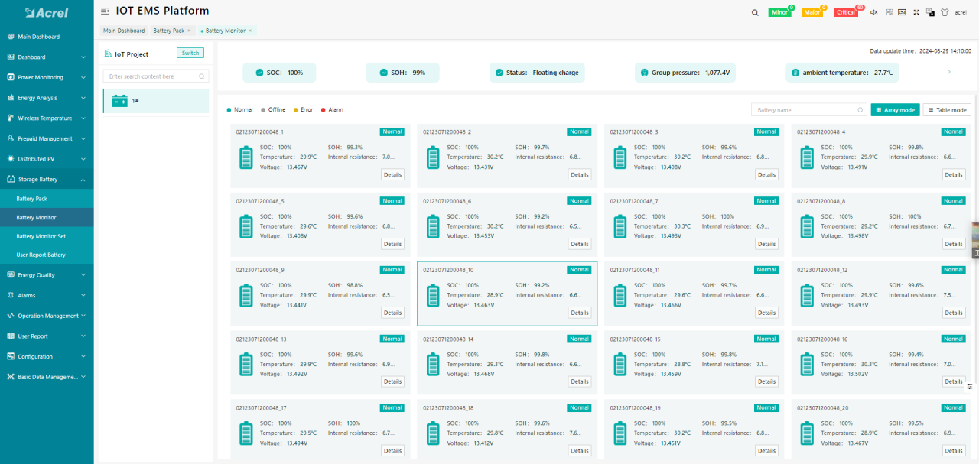

• Web / APP

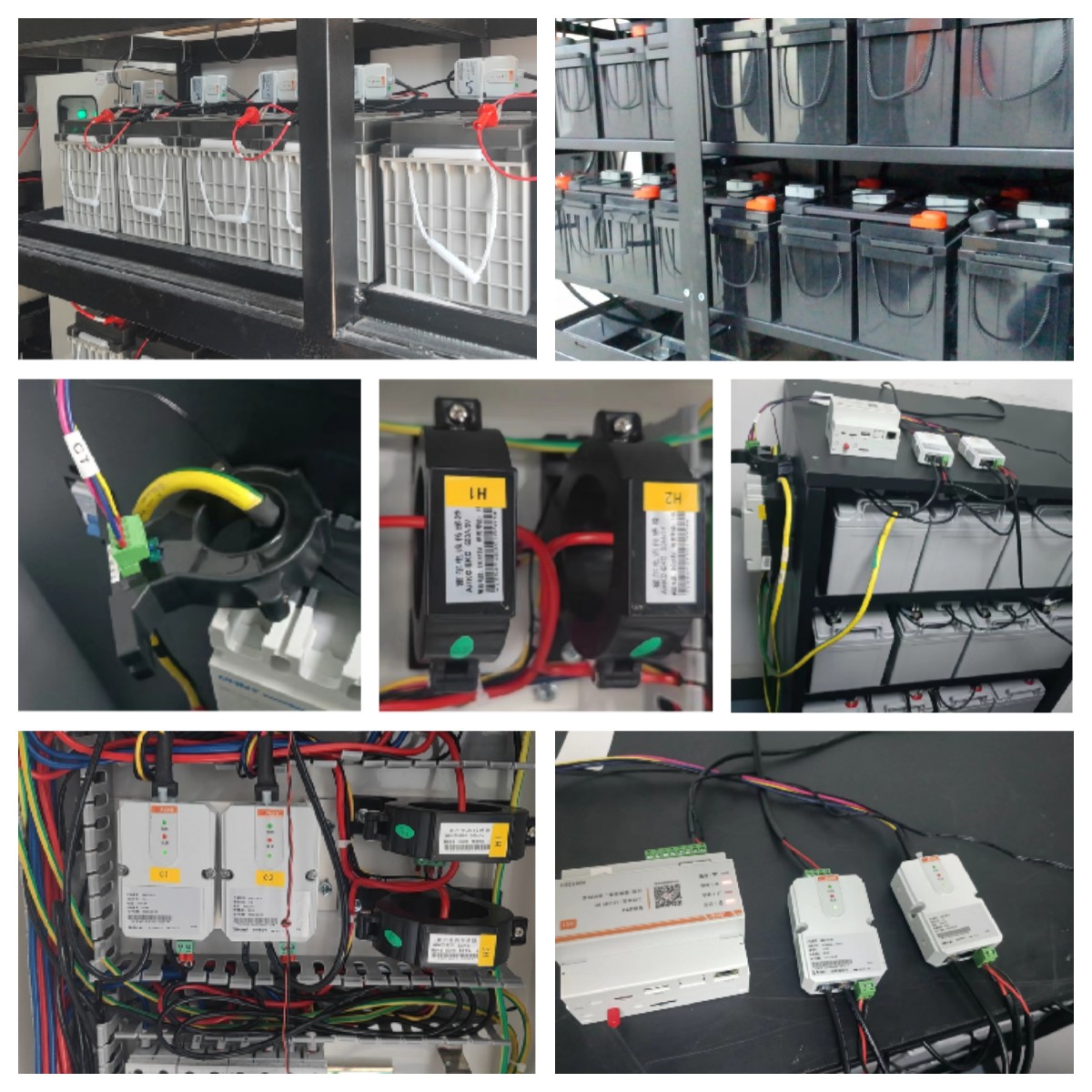

On-site Pictures
