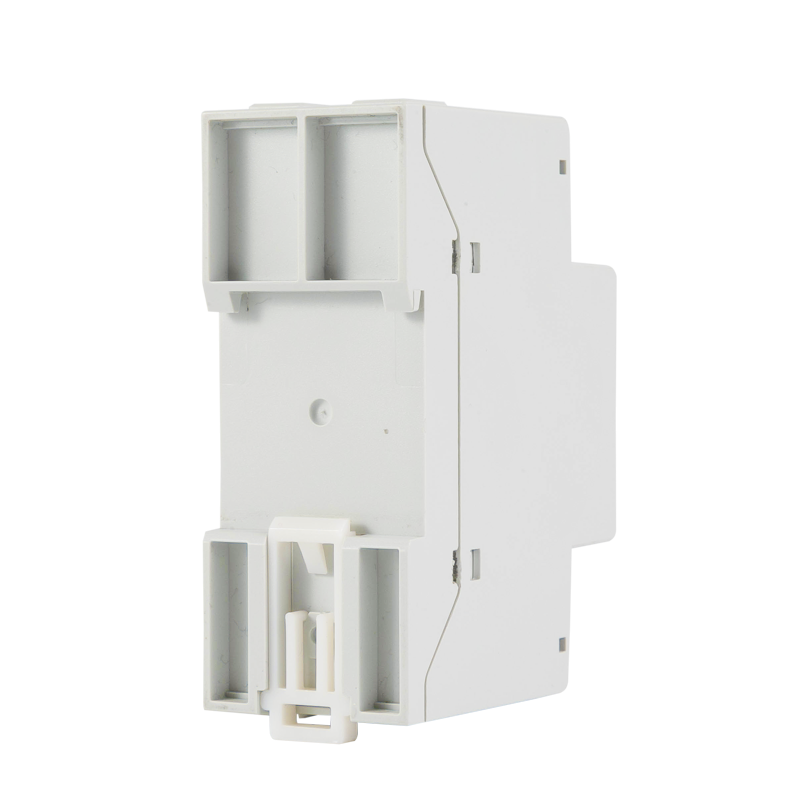

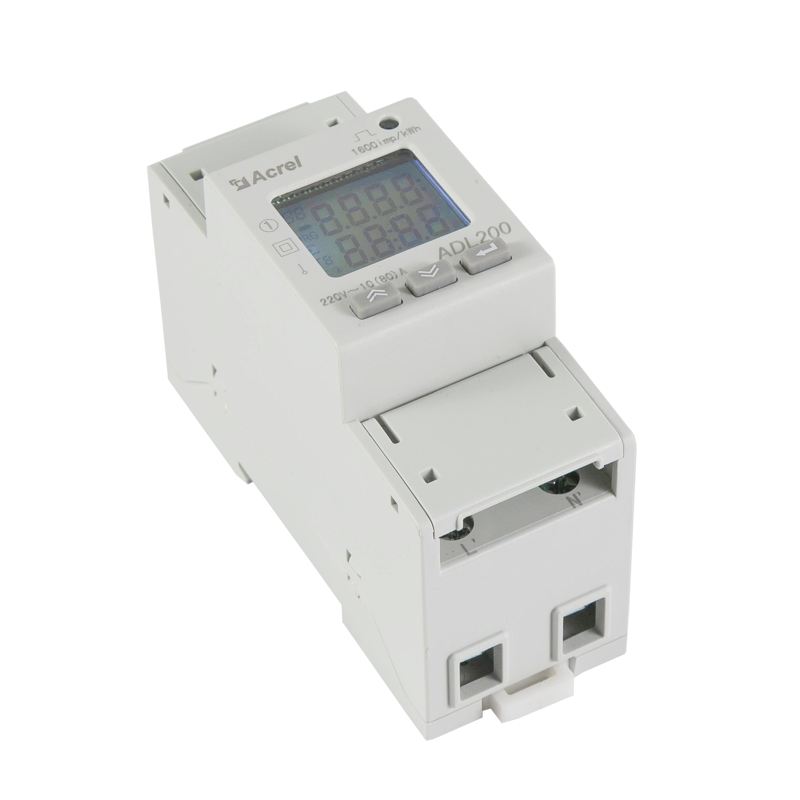

Acrel ADL200 Single Phase Din Rail Energy Meter
Acrel ADL200 Single Phase Din Rail Energy Meter
Acrel ADL200 Single Phase Din Rail Energy Meter
General
Acrel ADL200 single phase energy meter is mainly used to measure single phase active energy of low-voltage network, and can measure voltage, current, power and other electricity at the same time, and can be equipped with RS485 communication function, which is convenient for users to monitor, collect and manage electricity consumption.
It can be flexibly installed in the distribution box to achieve sub-item energy measurement, statistics and analysis for different areas and different loads.
Functions
Measurement 1: 1-phase AC kWh, kVarh
Measurement 2: U,I,P,Q,S,PF,F and etc
Display: LCD Display
HMI: Keypads Programming
Communication: RS485(MODBUS-RTU)
Multi-rate/tariff: 4 Tariff Rates and etc
Pulse Output: Active Pulse Output
Parameters
Rated Voltage: 220~264Vac L-N
Rated Current: 10(80)A AC
Frequency: 45~65 Hz
Wiring: 1-phase 2-wire
Accuracy: 1.0%(kWh)
Temperature: -25°C~+55C
Humidity: <95% RH
Altitude: ≤2500m

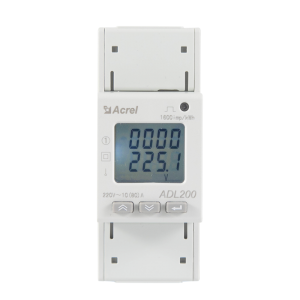

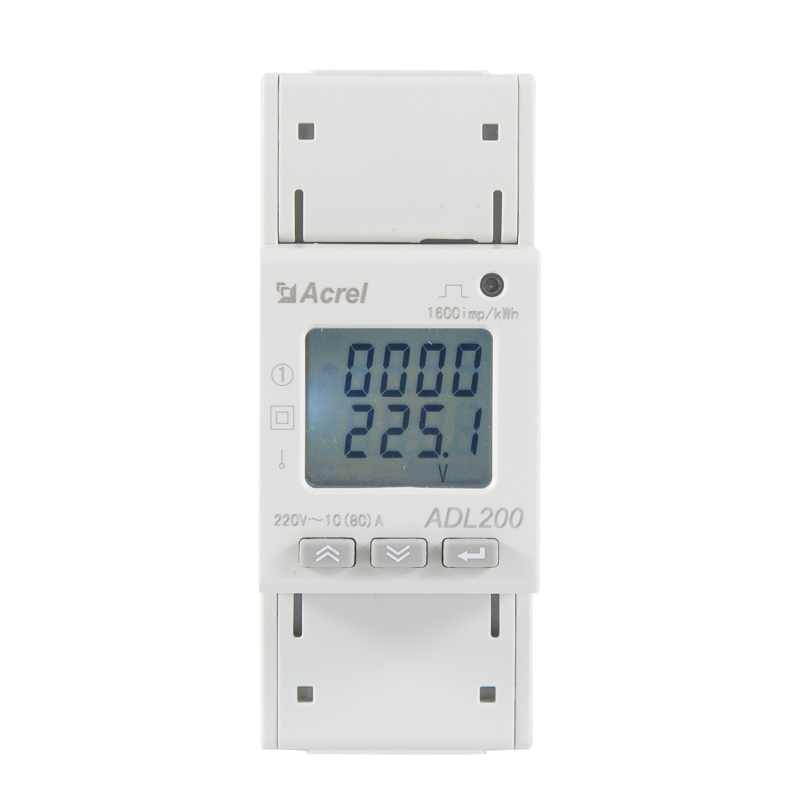

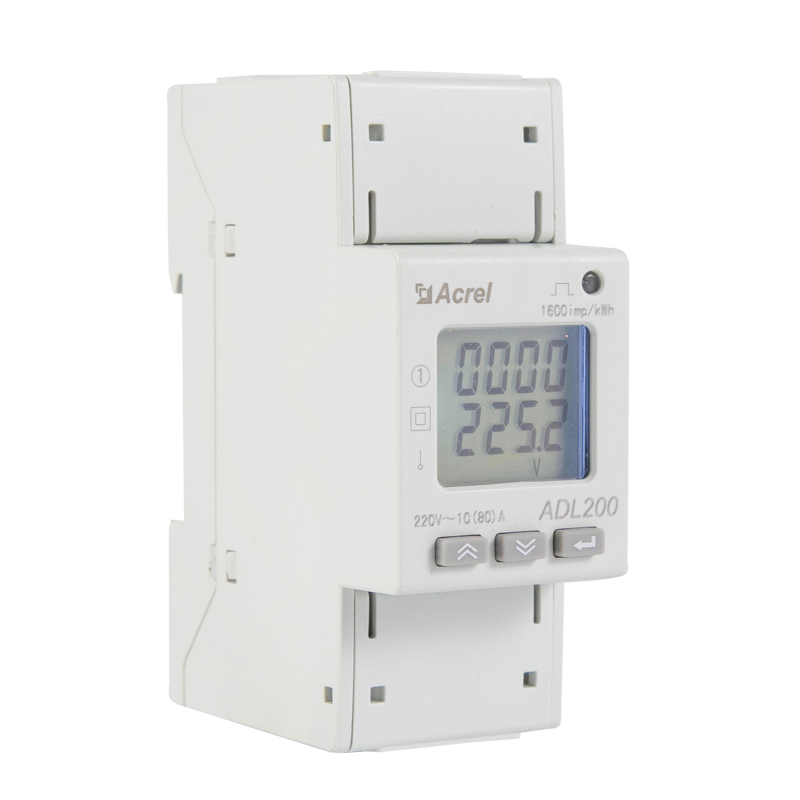

Front Panel
Features
Diverse Electricity Parameters Measurement
● U (Voltage)
● I (Current)
● P (Power)
● Q (Reactive power)
● S (Apparent power)
● PF (Power factor)
● kWh (Kilowatt-hours)
● kVarh (Kilovar-hours)
Multi-rate/Flexible Tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
HMI for Parameters Setting
● Code
● Protocol
● Address
● Baud rate
● Parity
● All Display
Diagram of ADL200 Single Phase Din Rail Energy Meter
ADL200 single phase energy meter current specification is 10 (80) A, directly access. The wiring torque for direct access should be 1.8N·m. The overall size of the meter is L*W*H: 90*36*65mm, the front panel has the corresponding silk screen, including Enter-wire,Out-wire, auxiliary function port number, LOGO, LCD display, buttons, etc.
PIN Overview
PIN/Terminal Overview of ADL200
Wiring
Power Wiring: 1-phase 2-wire via direct connect
Communication Wiring: RS485 wired Communication with IoT Gateway
Network

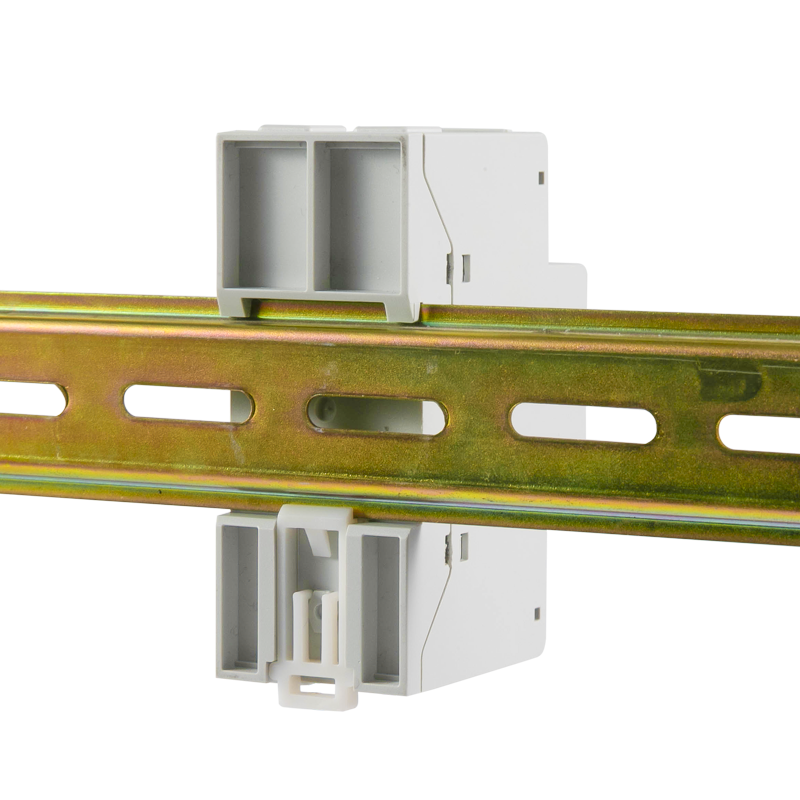

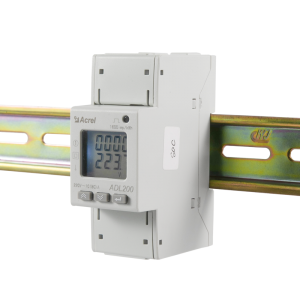

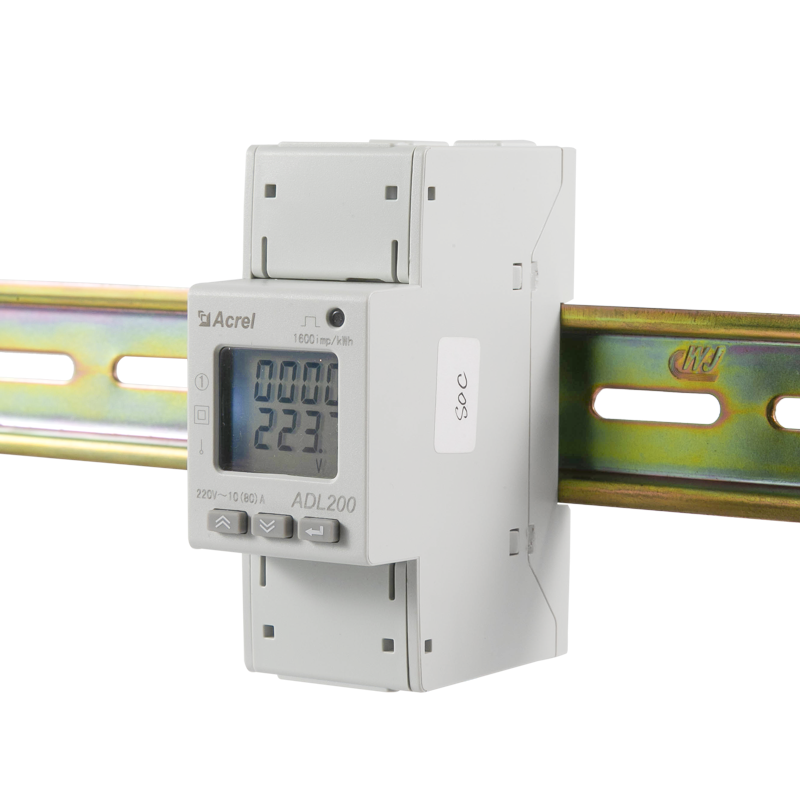

Installation
Application
• Installed in the distribution room and distribution cabinet
• Used for measuring electrical energy in a domestic meter box
• Measurement of electrical energy in school buildings
• Electricity measurement of shopping malls, supermarkets and other buildings
Benefits and Advantages
• High precision, CE and MID certification
• Small size, light weight, easy to install
• Diverse functions,full electric parameter measurement
• Can realize wireless communication with gateway module
Outline and Dimension

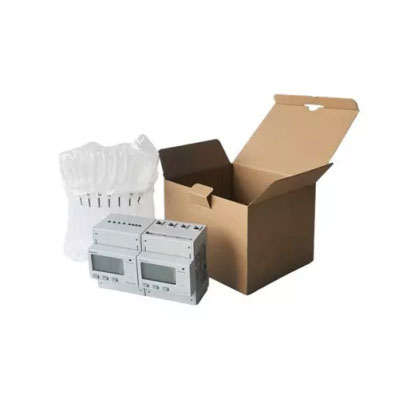

Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pcs ProductsDimension: 170mm*150mm*130mm
|
Total N.W. (4 pcs) 0.136 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension:460mm*260mm*200mm
|
Total N.W. (36 pcs) 2.304 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
ADL200 Single Phase Din Rail Energy Meter FAQs
ADL200 has standard RS485 interface and MODBUS-RTU communication protocol which allow it to be integrate with our IoT Energy Monitor Solution that can enable our users to remotely check all the data collect by energy meters like ADL200 on their mobile phone or PC. For more information, please Contact us or check in IoT Energy Monitoring Solution Introduction.
Check if the wiring was correct according to the wiring diagram of ADL200. The installation direction need to be according to the actual current direction.
First,multi-rate/tariff function was designed to be used for billing system. Second, the electricity price of different time duration in a day is different in some country.
Energy meter with this function can measure the kwh data and assign them to several time duration in a day and put a label of spike/peak/flat/valley kwh on them respectively. And if such energy meter was connected to the billing system by using a IoT gateway, it can send the kwh data of different time duration which was with the label of spike/peak/flat/valley kwh to the billing system for calculating the electricity bill of different time duration in a day.
For example, the electricity price of spike kwh is 5 USD/1 kwh, and time duration of from 9:00 am to 11:30 am was labeled as spike kwh.
Then, if energy meter record 3 kwh used in total during 9:00 am to 11:30 am, it will send the data of 3 kwh with the label of spike kwh to the billing system, and the system calculate the electricity cost of 3x5=15USD in total from 9:00 am to 11:30 am.
Acrel ADL400 Three-phase AC Din Rail Energy Meter
Functions
| Function | Function description |
Function provide
|
|
Measurement of kWh
|
Single-phase active kWh (positive and negative)，3 months historical energy data frozen storage
|
■ |
|
Measurement of electrical parameters
|
Voltage, Current, Active power, Reactive power, Apparent power, Power factor and Frequency
|
■ |
|
LCD Display
|
8 bits section LCD display
|
■ |
|
Key programming
|
3 keys to set parameters like code, address, baud rate, multi-tariff and communication protocol
|
■ |
|
Pulse output
|
Active energy pulse output
|
■ |
|
Multi-tariff
|
Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates
|
□ |
|
Communication
|
Communication interface: RS485, Communication protocol: MODBUS-RTU
|
■ |
Technical Parameters
|
Input voltage
|
Reference voltage
|
AC 220V
|
|
Voltage range
|
AC 75~260V
|
|
| Reference frequency |
50Hz
|
|
|
Power consumption
|
<10VA
|
|
| Input current |
Basic current
|
10A
|
|
Maximum current
|
80A | |
| Starting current |
4‰Ib
|
|
| Consumption |
<4VA
|
|
| Measurement performance |
Accuracy of measuring
|
1 class
|
|
Range of measuring
|
000000.00~99999999kWh | |
|
Time accuracy
|
Error≤0.5s/d
|
|
| Active pulse |
Pulse width
|
80±20ms
|
|
Pulse constant
|
1000imp/kWh | |
| Communication |
Interface
|
RS485(A+、B-) |
|
Connection mode
|
Shielded twisted pair conductors
|
|
|
Protocol
|
MODBUS-RTU | |
| Outline |
Length × Width × Height
|
90mm×36mm×65mm
|
|
Strong current terminal Torque
|
<1.8Nm | |
|
Temperature range
|
Work temperature
|
-25℃~55℃
|
|
Storage Temperature
|
-40℃~70℃
|
|
|
Relative humidity
|
≤95%(No condensation)
|
|
|
Altitude
|
<2000m
|
|
