Application of Acrel Programmable Power Meter in Lao PDR

Background

This article introduces the application of the multi-function energy meter in a project in Lao PDR. AMC series AC multi-function meter is a smart meter designed for power monitoring needs of power systems, industrial and mining enterprises, utilities, and intelligent buildings.

Project Overview

A project in Lao PDR required a batch of multi-function and programmable power meters. After comparing various aspects, Denmark customers thought that our AMC series programmable power meters are rich in functions, easy to install, and cost-effective, so they decided to use our power meters.

Product presentation

AMC series meters integrate the measurement of full-electric parameters, such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor. It also has functions of energy statistics, event records, harmonic measurement and network communications.

Model Description

application-of-acrel-programmable-power-meter-in-lao-pdr

Function

Type Function Optional Option Group
AMC96L-E4/KC Three-phase power meter

Display: LCD

I, U, kW, kvar, KVA, kWh, kvarh, Hz, cos中

4DI2DO

1Ep pluse output

/H: THDi, THDu, 2-31st harmonic

/SOE: Event record

/2M: 2 analog output

(When 2M is selected, the switching function is 2DV2DO)

H+SOE+2M

Technical Parameters

Technical Parameter Value
Input Connection 3 phase 4 wire
Frequency 45~65Hz
Voltage Rating: AC 100V,400V
Overload: 1 2 times rated value(continuous); 2 times rated value(1 second)
Power consumption: < 0.5VA
Current Rating: AC 1A,5A
Overload: 1.2 times rated value(continuous); 10 times rated value (1 second)
Power consumption: < 0.5VA
Output Energy Pulse width: 80±20ms
Pulse constant: 10000, 40000, 160000 imp/kWh
Communication RS485(Modbus-RTU)
Function Switching input 2 channels or 4 channels passive contact input mode
Switching output Output mode: 2 channel relay NO contact output
Analog output Contact capacity: 3A/30V DC, 3A/250V AC, 0~5V,0~20mA, 4~ 20mA programmable
Accuracy Frequency: 0.05Hz, current, voltage: class 0.2, reactive power: class 1.0, reactive energy: class 1.0, other: class 0.5, 2~31st harmonic±1%
Auxiliary power supply AC/DC 85~265V
Power consumption ≤10VA
Insulation resistance ≥100MQ
Environment Temperature Operating: -10°C~+55°C Storage: -25°C ~+75°C
Humidity ≤93%(no condensation)
Altitude ≤2500m

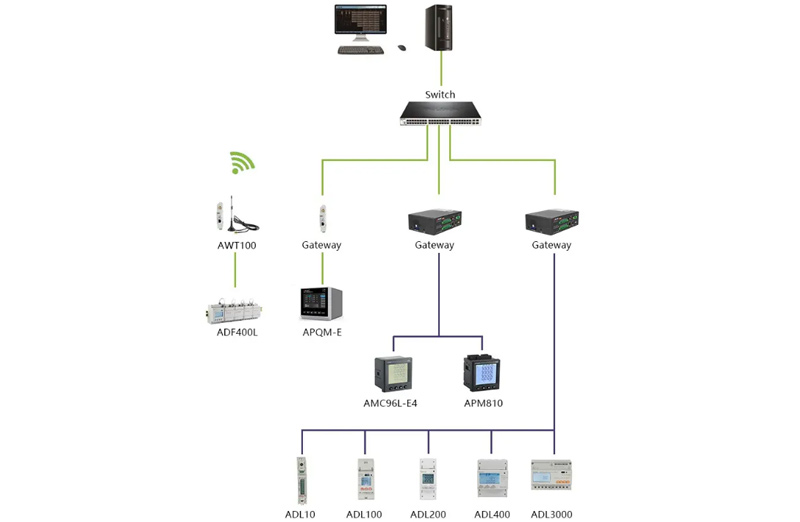

Network Topology

application-of-acrel-programmable-power-meter-in-lao-pdr-1

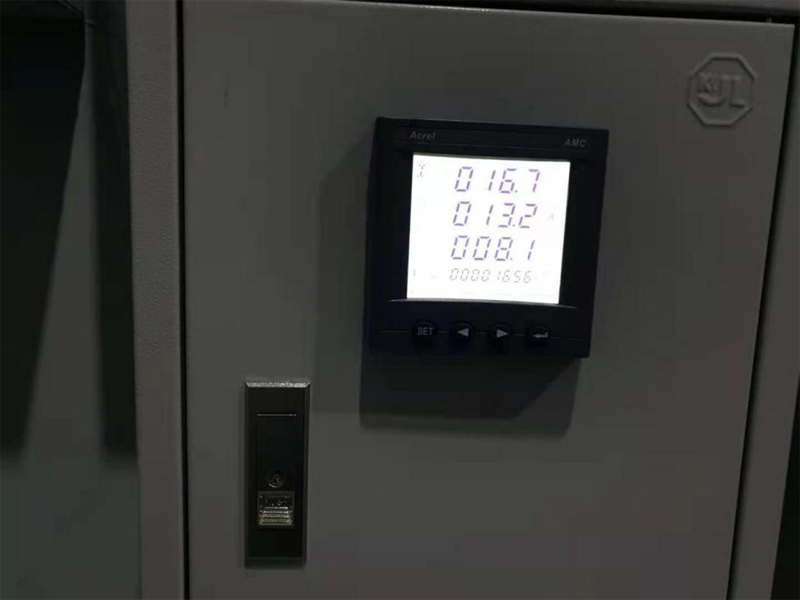

Installation Pictures
