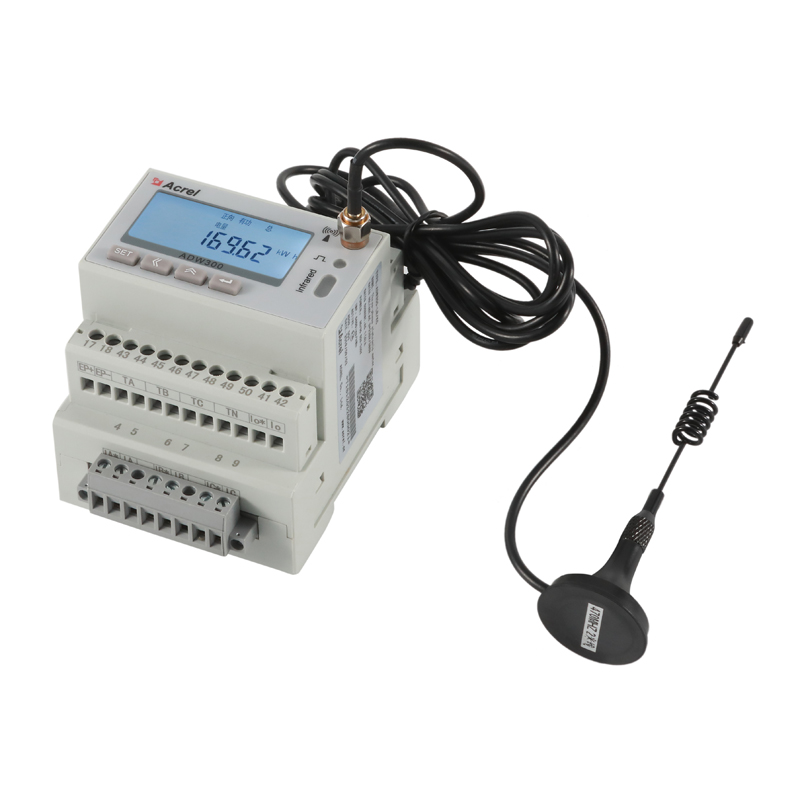

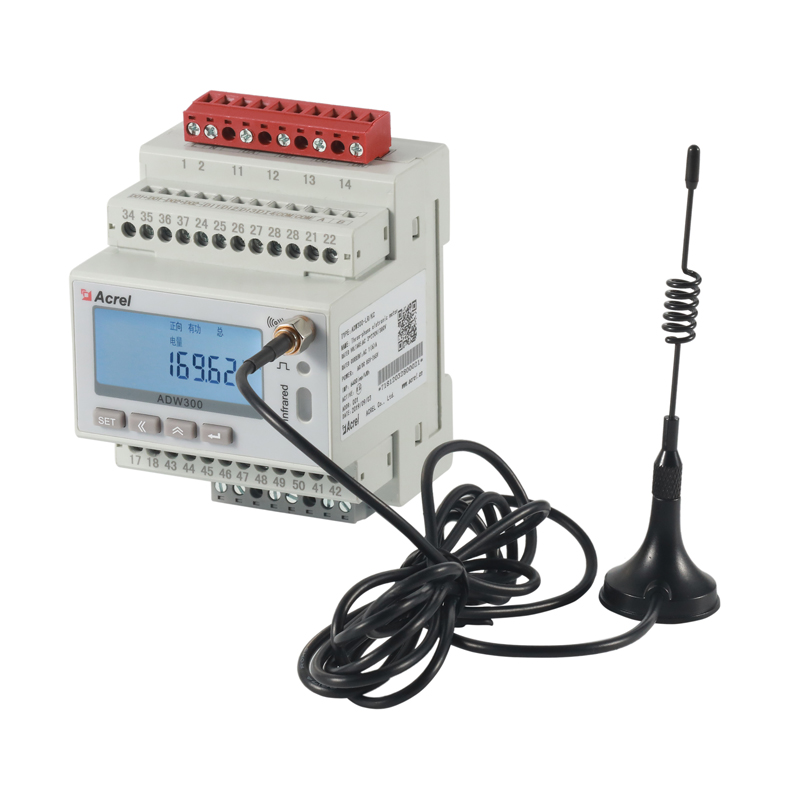

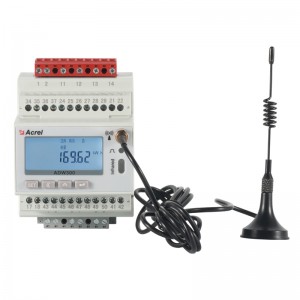

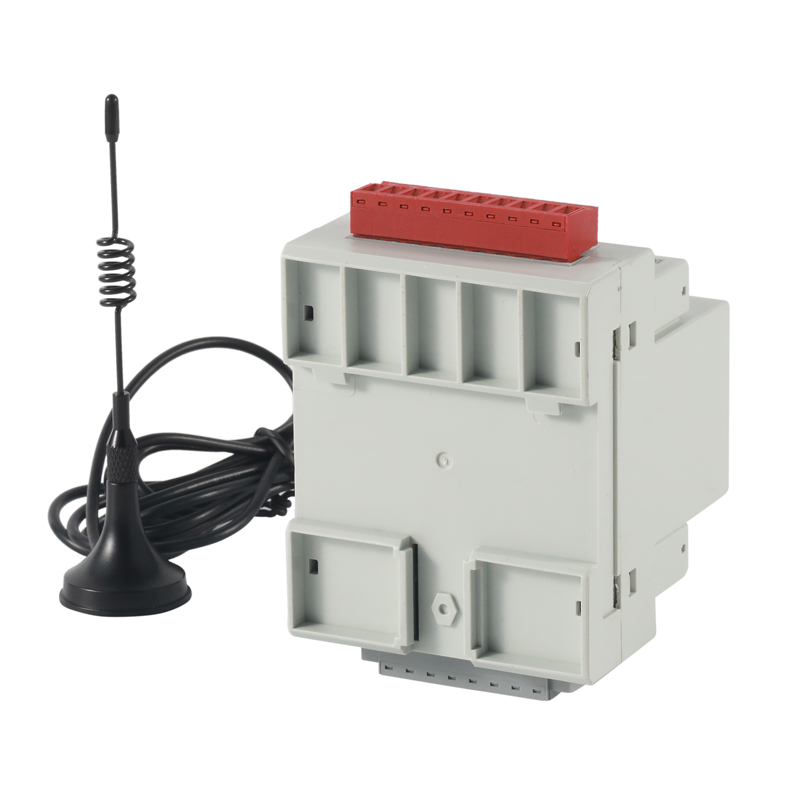

Acrel ADW300 Three-phase Wireless Smart IoT Energy Meter
Acrel ADW300 Three-phase Wireless Smart IoT Energy Meter
● Communication: 4G, WiFi, LoRa, LoRaWAN, RS485
● Measurement: 3 Phase voltage, current, power, power factor, etc.
● Application: Building, Factory, Smart Grids, DB Room and etc.
● Rated Voltage: AC 3*220/380V,3*230/400V
● Rated Current: AC 3×1(6)A
● Standard&Certificate: CE,IEC,LVD
Acrel ADW300 Three-phase Wireless Smart IoT Energy Meter
General
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 470MHZ wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
Functions
Accuracy
Active power: Class 0.5S
Reactive power: Class 2
Pulse Output
Constant: 6400imp/kWh
Consumption
<10VA(Single phase)
Dimension (L*W*H)
Panel size (L×W)：82*87.8*71.5 mm
Wireless
Transmission on 470MHz and maximum distance
in open space is 1km; 2G; NB
Frequency: Range: 50~60Hz
Starting current: 2‰ln
Features
Multiple Communication Methods
● 4G LTE
● NB-IoT
● WiFi (2.4GHz&5GHz)
● LoRa
● LoRaWAN
● RS485 (MODBUS-RTU)
● Paired with IoT Energy Monitoring System
Power Quality Analysis
● Total Harmonic
● 2nd~31st Harmonic
● Voltage Unbalance
● Current Unbalance
Expanded Function
● 2-channel DO (Digital Ouput)
● 4-channel DI (Digital Input)
● 4-channel Cable Temperature Monitoring
● 1-channel Residual Current Measurement
Alarm Function
● Over/Under Current
● Over/Under Voltage
● Over/Under Power
● Phase Loss
PIN Overview
Wiring
3-phase 3-wire CT operated
3-phase 4-wire CT operated

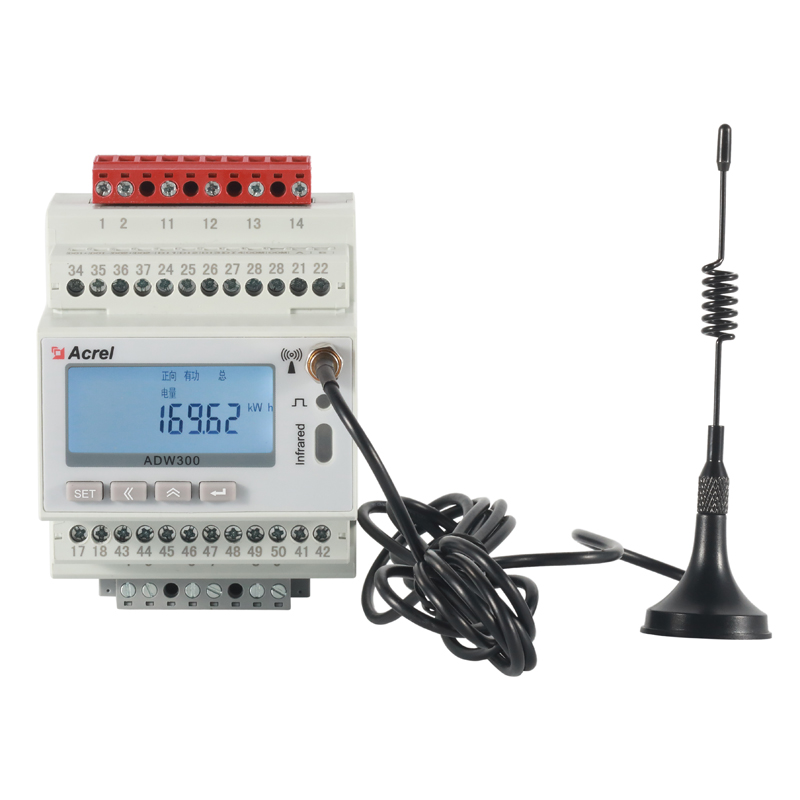

Front Panel
Network
Installation and Use
Step ①: Correctly install&wire meters
1. 35mm DIN-rail installation
2. 3-phase 4-wire or 3-phase 3-wire methods
3. Voltage signal input via direct connect or PTs
4. Current signal input via CTs or Rogowski Coils
5. Power supplied by 85~265Vac L-N power source
Step ②: Download&Register IoT APP
1. Download of IoT EMS APP
2. Register your account with 3-month Free Trial
3. Or contact us to get Test Account
Step ③: Add Meters to your Account
1. Acrel ADW300 smart energy Meters are recognized by a unique SN code
2. Scan QR code to add the wireless power consumption meter to your account
3. Edit CT&PT ratio according to paired CT&PT
4. If voltage input via direct connect, PT ratio set to 1 (Actual Power System Voltage = Voltage Signal Input of Meter)
5. If current input via 250A/5A CTs for example, CT ratio set to 50 (250÷5=50)
Step ④: Start your 3-month Free Trial
1. After 3 months, host service&buy-out service will be available for account renewal.
2. Contact us for more information about system charge item&meter quotation.
3. Before we send you the quotation, we will set a solution according to your request.
4. Provide full technical support for installing Acrel ADW300 3-phase wireless energy monitors and connecting meters to our system.
Application
• Remote meter reading of the power-distribution box
• Matched with IoT energy management system
• This wireless power consumption meter can connect to power operation and maintenance cloud platform
• Acrel ADW300 smart meter wireless series is suitable for electricity monitoring of reconstruction projects
Benefits and Advantages
• 4G, LoRa, WIFI wireless communication
• Small volume, easy installation
• Switch, temperature function optional
• External open-type current transformer
Outline and Dimension

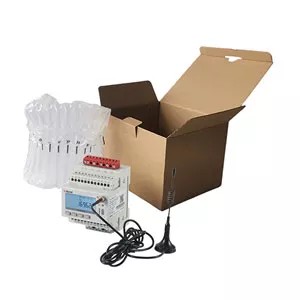

Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) |
Minimum Package Contain 1 pcs ProductsDimension: 170mm*150mm*130mm
|
Total N.W. (1 pcs) 0.233 KG |
| Packing Dimension and Weight(Large) |
Large Package Contain 36 pcs ProductsDimension: 540mm*530mm*490mm
|
Total N.W. (48 pcs) 10 KG |
| Average Lead Time |
Manufacturing: 3~4 days (If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
|
Product HS Code
|
9028301400 | |
|
Country of Origin
|
China | |
Acrel ADW300 Series 3-Phase Wireless Energy Monitor FAQs
ADW300 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi, NB-IoT, LoRa upstream communication without using extra IoT gateways. For the application scenarios when the meters can't be of centralized installation, ADW300 will usually be the best option for monitor 3-phase circuits that were far from each other.
First, check if the wiring of RS485 communication line was loosen or wired incorrectly.(like reversely wiring the A,B terminal).
Next,inspect if the meter’s setting of address, baud rate, check bit was correct by using keypads on the meter.
First, use USB to RS485 serial converter to connect the meter with computer. Then use adjustment software to check if setting of meter is on consensus with the setting of master station.(setting of channel and spreading factor--SF)
If setting remain the same, then it might be due to large interference of work site or the excessively far range between meter and host. In that case, it’s recommended to use chuck antenna or set a new master station nearby.
ADW300 has internal current transformers and can select compatible current transformer according to the site current to realized a secondary connection via CTs.
ADW300W on the other hand, has external current transformers.(non-detachable or it will damage the meter) This kind of design extremely ease the wiring and installation if the work-site already has CTs.
The meter’s spec of 3*100V,3*57.7/100V is suitable for high voltage power system while pairing with PT(potential transformer or voltage transformer). Beside, 3*100V represent 3-phase 3-wire and 3*57.7/100V represent 3-phase 4-wire.
The meter’s spec of 3*220/380V,3*380/660V,3*380V,3*660V is suitable for low voltage power system(directly connect with meter). Meanwhile,3*380V,3*660V represent 3-phase 3-wire and 3*220/380V,3*380/660V represent 3-phase 4-wire.
Other Question? Please contact us and we will get back to you as soon as possible.
Acrel ADW300 Three-phase Wireless Smart IoT Energy Meter
Functions
| Functions | Description |
| Display mode | LCD |
| Energy metering |
Active kWh (positive and negative)，quadrant reactive power energy
|
| Electrical measurement |
U、I、 P、Q、S、PF、F
|
| Harmonic function |
THDv、Harmonic on 2nd-31st
|
| Pulse output |
Active pulse output
|
| Three-phase unbalance degree |
Voltage unbalance,current unbalance
|
|
Temperature measurement
|
Temperature of A/B/C/N（Alternate configuration:T）
|
| DI/DO |
4DI,2DO（Alternate configuration:K）
|
| Aftercurrent |
One-way aftercurrent（Alternate configuration:L）
|
|
LED display
|
Pulse LED display
|
| External current transformer |
External open type current transformer
（Alternate configuration:W）
|
| Electrical parameter |
Undervoltage, undercurrent, overcurrent, underload, etc
|
|
Communication
|
Infrared communication
|
|
RS485（Alternate configuration:C）
|
|
| Wireless transmission on 470MHz
（Alternate configuration:LR）
|
|
| GPRS（Alternate configuration:2G） | |
| NB-IOT（Alternate configuration:NB） | |
|
4G（Alternate configuration:4GHW）
|
|
| WIFI（Alternate configuration:WF） | |
| LORAWAN(Alternate
configuration:LW915(AU915),LW868(EU868))
|
Technical Parameters
| Electrical Performance | ||
| Voltage input |
Rated voltage
|
3×57.7/100V，3×220/380V，3×380/660V，3×100V, 3×380V，3×660V |
| Reference frequency |
50Hz
|
|
| Consumption | <0.5VA (Each phase) | |
| Current input | Input current |
3×1(6)A ；3×1(6)A（ADW300W）, 3×20(100)A（ADW300W）
-HJ：（3×1.5(6)A（D10）、3×20(100)A（D16）、3×80(400)A（D24）、
3×120(600)A（D36））、1000A/200mV（Rogowski Coil）、100A/333mV
|
| Start current |
1‰ Ib (Class 0.5S)，4‰ Ib (Class 1)
|
|
| Consumption |
<1VA (Each phase)
|
|
| Auxiliary power |
Power Supply
|
AC 85~265V
|
| Power consumption |
<2W
|
|
| Measurement
performance
|
Standard
|
IEC 62053-22:2003，IEC 62053-21:2003
|
| Active energy accuracy |
Class 0.5S（ADW300），Class 1（ADW300W）
|
|
| Temperature accuracy |
±2℃
|
|
| Pulse |
Width of pulse
|
80±20ms
|
|
Pulse constant
|
6400imp/kWh , 400imp/kWh
-HJ（6400imp/kWh（D10） 、400imp/kWh（D16）、100imp/kWh（D24）、60imp/kWh（D36））
|
|
| Communication |
Wireless
|
Transmission on 470MHz and maximum distance in open space is 1km;
2G；NB；4G; WIFI
|
| Infrared
communication
|
The constant baud rate is 1200
|
|
| Interface |
RS485(A、B)
|
|
| Protocol |
MODBUS-RTU
|
|
|
Work Environment
|
||
| Temperature range |
Operating temperature
|
-20℃~55℃ |
| Storage temperature |
-40℃~70℃
|
|
| Humidity |
≤95% (No condensation)
|
|
| Altitude | <2000m | |
|
LORAWAN Parameters
|
||
|
Type Specification
|
Standard
|
Channel Plan
|
|
LW915
|
AU915
|
AU915~928
|
|
LW868
|
EU868
|
EU863~870
|
|
AS923
|
AS923
|
|
|
CN470
|
CN470
|
470~510
|
