Acrel PZ72L-DE Multifunction DC Energy Meter
Acrel PZ72L-DE Multifunction DC Energy Meter
General
PZ72L-DE Multifunction DC Energy Meter can be used for local display, and connected with industrial control equipment, computers, form a measurement and control system. And it has a variety of external excuse functions for the user to choose.
Acrel PZ series intelligent DC energy meter is designed for applications such as DC panels, solar power, telecommunications base stations, and charging posts. This series of instruments can measure voltage, current, power, forward and reverse power in DC system.
Main Functions
Parameters

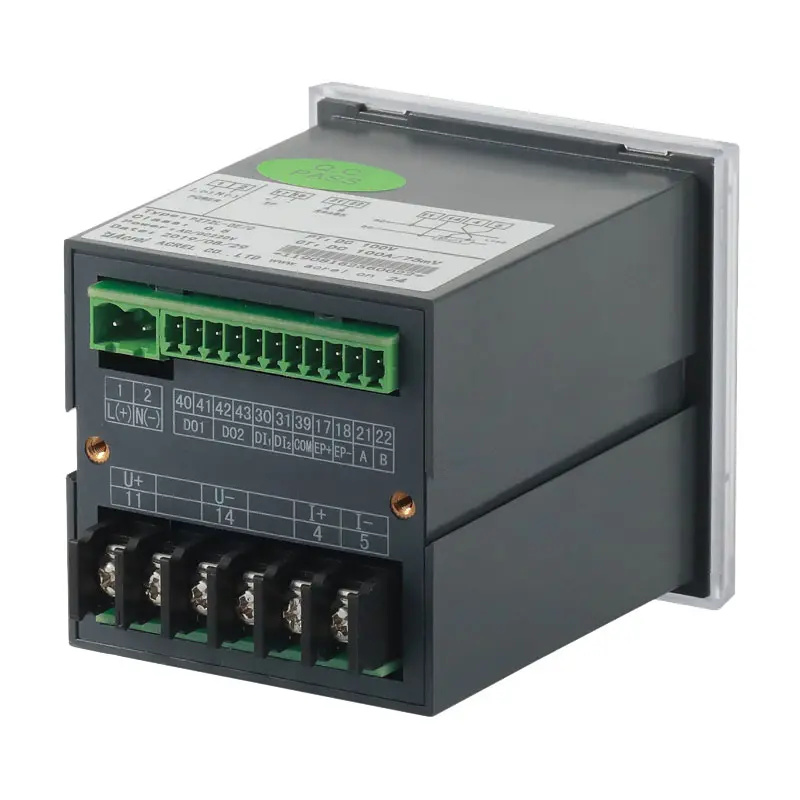

Wiring
DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (75mV DC) input via -/75mV Shunts
DC Voltage Signal (1000V DC) Input via direct Connection & DC Current Signal (0~20mA or 4~20mA DC) input via Hall Sensors

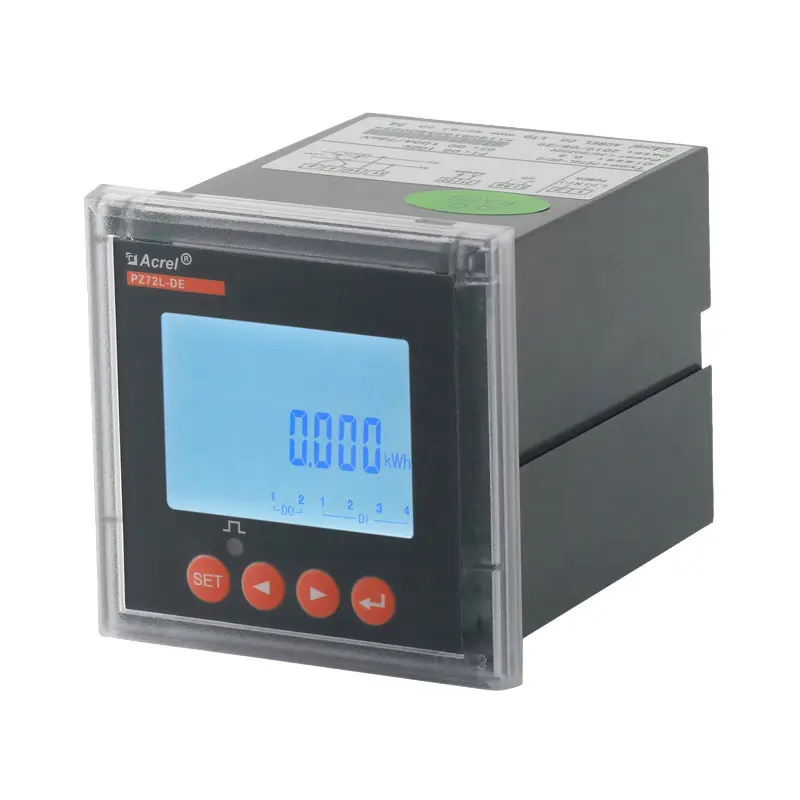

Front Panel
Network
Installation
Outline and Dimension
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 2 pcs Products Dimension: 230*145*120mm | Total N.W. (2 pcs) 0.398 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension: 620*480*400mm | Total N.W. (36 pcs) 11.592 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
Acrel PZ72L-DE Multifunction DC Energy Meter
Type Description
|
Model
|
Display
|
Dimension |
Basic functions
|
Optional functions |
|
PZ72L-DE
|
LCD display
|
72 Square
|
DC voltage, current, power and energy
|
1、RS485 communication (/C)
2、12V power output○ 1 (/V)
3、RS485 communication+switch 2DO (/KC)
4、RS485 communication+switch 2DI2DO (/KC)
5、RS485 communication+switch 4DI2DO ② (/KC)
6、RS485 communication+switch 2DO+12V power output (/KVC)
7、RS485 communication+12V power output (/VC)
8、Auxiliary power supply 20-60V (/ZD)
9、Compound rate (/F)
|
|
PZ72-DE
|
LED display
|
72 Square
|
||
|
PZ96L-DE
|
LCD display
|
96 Square
|
||
|
PZ96-DE
|
LED display
|
96 Square | ||
|
Note：①Switch input function and 12V power supply function choose one from the other.
②Only PZ96（L）-DE has the function of switch 4DI2DO.
|
||||
Technical Parameters
|
Technical parameter
|
Value
|
||
|
Signal
|
DC voltage
|
input range
|
0～100V,0～500V,0～1000V,1500V(only PZ96(L))
|
|
Input impedance
|
≥6kΩ/V
|
||
|
DC current
|
input range
|
0～9999A(External shunt or Hall element, programmable range)
|
|
|
Shunt
|
The support output are 50mV and 75mV
|
||
|
Hall sensor
|
The support output are 0 ~ 20mA, 0 ~ 5V,4～20mA(unipolar) ,etc
|
||
|
Consumption
|
≤1mW
|
||
|
Overload
|
1.2 times continuous normal operation, 2 times continuous 1 second
|
||
|
Accuracy class
|
0.5 class
|
||
|
Pulse constant
|
Voltage and current specifications：750V、 300A ，default pulse constant：100imp/kWh
|
||
|
Voltage and current specifications：1000V、300A ，default pulse constant：100imp/kWh
|
|||
|
Voltage and current specifications：1000V、200A ，default pulse constant：100imp/kWh
|
|||
|
Functions
|
Measurement
|
measure DC voltage U, current I and power P,When the current input is hall sensor(4~20mA output),
the current only support unipolar metering.
|
|
|
Metering
|
measure current combined energy, forward energy and reverse energy,When the current input is hall sensor(4~20mA output),
the electric energy only support unipolar metering.
|
||
|
Time sharing
function
|
Each year can be divided into 4 time zones. Each time zone table can be set with 12 daily time periods and 4 rates (F1, F2, F3, F4 are
SHARP,PEAK,SHOULDER and OFF-PEAK).
The minimum interval of time periods is 15 minutes. Time periods can be set across zero（LCD Meter only)
|
||
|
Historical
data statistics
function
|
Count historical energy of last 12 months (energy of each rate)（LCD Meter only)
|
||
|
Switch input/output
function
|
PZ72 has two switch output and two switch input. PZ96 has two switch output and four switch input.
The switch output is relay output, which can realize remote control and alarm output.
The switch input can not only collect and display the local switch status information, but also realize the
remote transmission function through the RS485 of the instrument, namely the remote signaling function.
|
||
|
Display
|
LCD（backlight delay time adjustable）or LED
|
||
|
Communication
|
RS485 interface; half duplex, photoelectric isolation; Modbus-RTU protocol;
baud rate 1200, 2400, 4800, 9600, 19200, 38400bps optional, modulation infrared fixed 1200bps.
|
||
|
Switch input/output
|
DI
|
Dry contact input, built-in power supply, photoelectric isolation
|
|
|
DO
|
Two relay output, normally open contact, capacity 2A /30VDC or 2A/250VAC
|
||
|
Operating
voltage
|
Voltage
range
|
85～265VAC、50/60Hz; 20～60VDC; 12VDC; 100～350VDC(declare in order)
|
|
|
consumption
|
≤2W
|
||
|
Insulation resistance
|
≥100MΩ
|
||
|
Withstand voltage
|
3KV / 1min between power supply terminal group and signal input / output terminal group（RMS）
|
||
|
Environment
|
temperature
|
Operating temperature：-40℃～+60℃；
Storage temperature：-40℃～+70℃
|
|
|
humidity
|
≤ 93%RH，no condensation，no corrosive gas
|
||
|
altitude
|
≤ 2500m
|
||
|
Note：It is recommended to select LED display instrument when the temperature is lower than – 20 ℃.
|
|||
1. Manual for Acrel PZ72L-DE Multifunction DC Energy Meter
2. Installation and Use for PZ72L-DE Multifunction DC Energy Meter
3. Debugging Software for PZ72L-DE Multifunction DC Energy Meter
