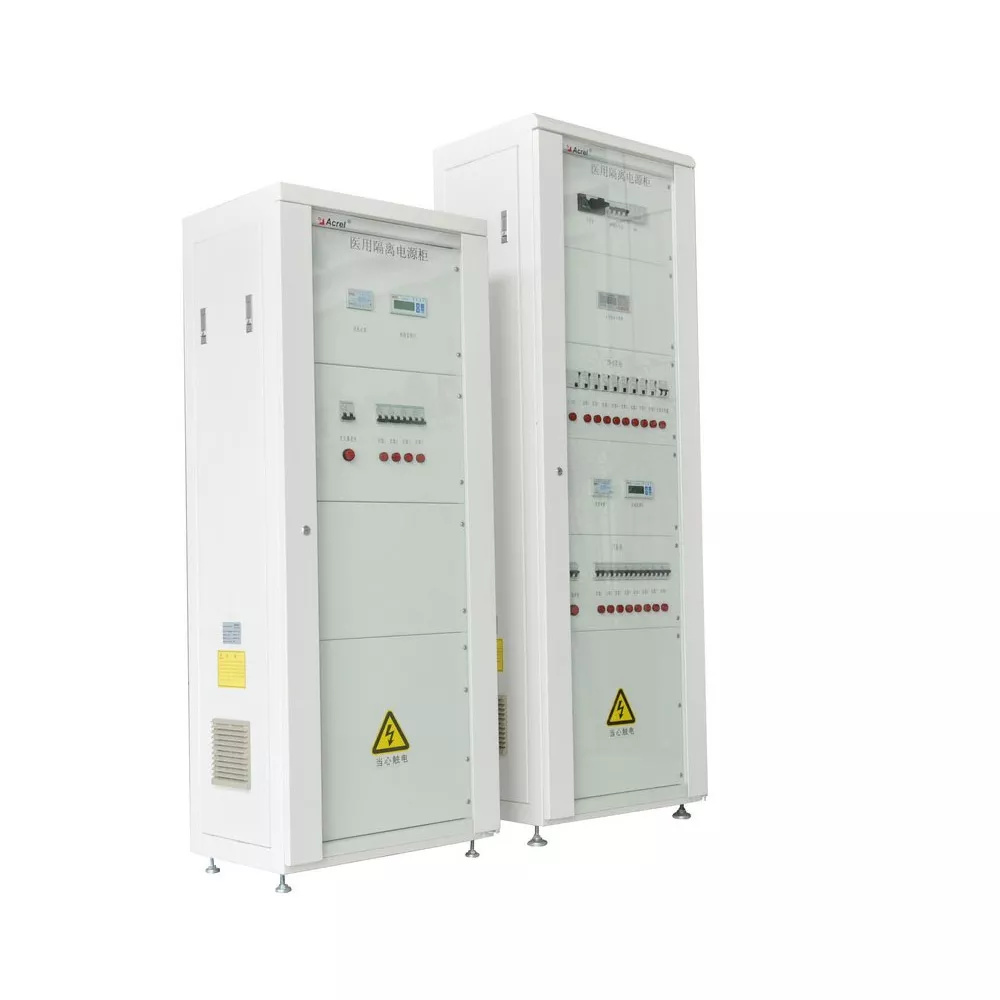

Acrel Medical isolation power panels is designed for medical group 2 power supply requirements .Insulation monitoring device installed in IT system. Each output circuit has a circuit breaker with short circuit protection function; the output circuit in TN-S system has a circuit breaker with leakage protection, Products are divided into GGF-O series three-phase isolated power panels,GGF-I series single-phase isolated power panels, according to the number of input voltage phases. the products meet IEC60364-7-710:2016 Electrical installations of buildings—Part 7-710：Requirements for special installations or locations—Medical locations and IEC 61439-2:2011 Low-voltage switchgear and control gear assemblies—Part 2：Power switchgear and control gear assemblies.
Outline and Dimension
Diagram
Typical Connection
Related Products
● Insulation monitoring for medical IT systems
● Load and temperature monitoring of isolation transformer
● Device disconnection monitoring
● LED indicators: On, Insulation, Overload, Overtemp
● Alarm relay output
● Test button
● Insulation fault location
● RS485 (MODBUS-RTU) + CAN

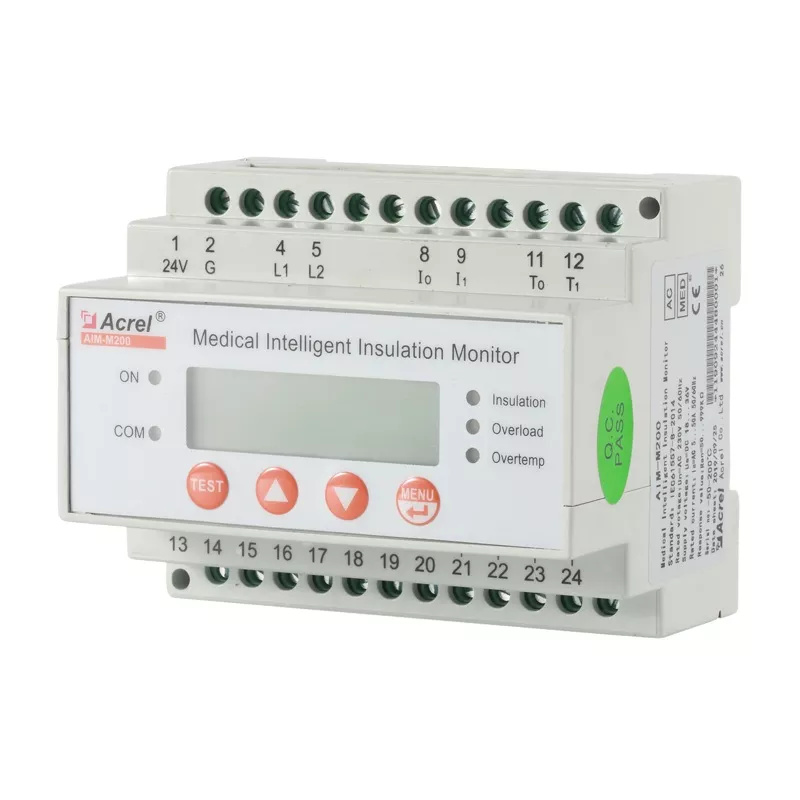

AIM-M200 Medical Intelligent Insulation Monitor
● Remote monitoring
● LED indicators：On, Insulation, Overload, Overtemp
● Mute button
● Test button
● Auxiliary power supply: DC24V
● RS485(MODBUS-RTU)
AID150 Alarm and Display Device
● Generating Fault Location Signal
● Detection of L1 and L2 disconnection
● LED indicators: On, Comm, Test
● CAN bus
● Auxiliary power supply: DC24V
ASG150 Signal Generator
● Auxiliary power supply to AID series
● AC 220V input, DC 24V output
● Completely Isolated Linear Transformer
● Power-on indicator

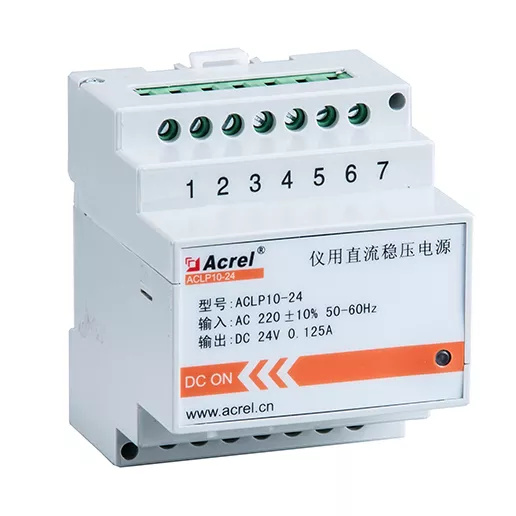

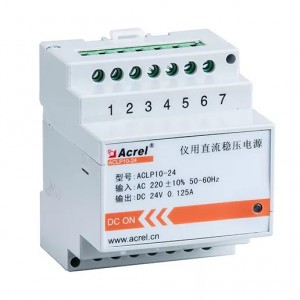

ACLP10-24 Auxiliary Power Supply
● Insulation fault location in AC IT systems
● AIL150-4: 4 measuring channels
● AIL150-8: 8 measuring channels
● LED indicators: On, Comm
● CAN bus
● Auxiliary power supply: DC24V

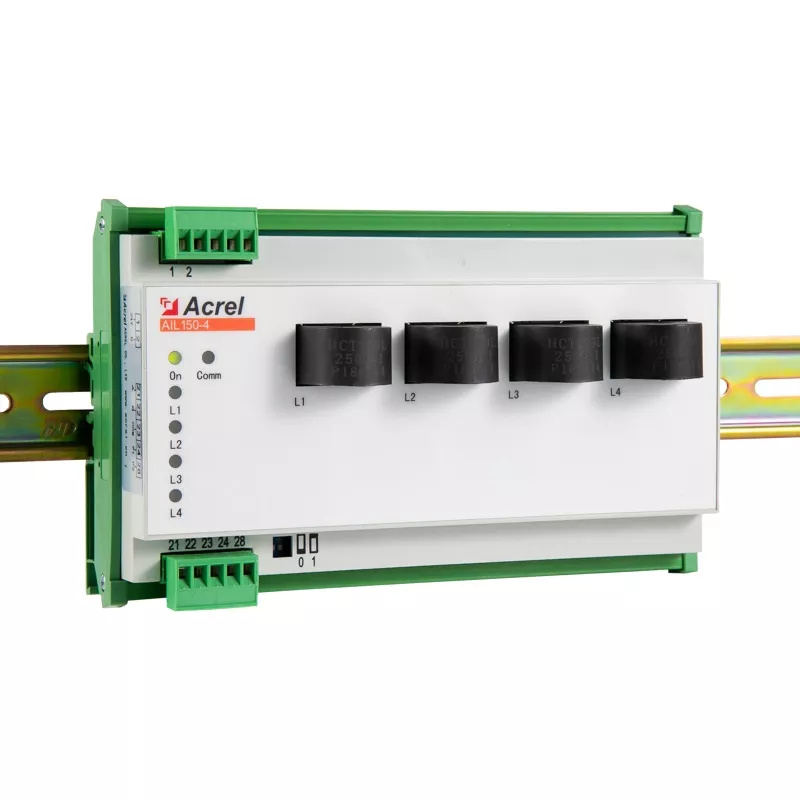

AIL150-4/-8 Insulation Fault Locator
● Matching with AIM-M Series Insulation Monitor
● Maximum Current: 50A
● Transformation ratio: 2000:1
AKH-0.66P26 Protective Current Sensor
● Isolating transformers for medical IT systems
● Double insulation treatment, Electrostatic shielding layer
● PT100 temperature sensor
● Rated power: 3.15…10KVA
● CE

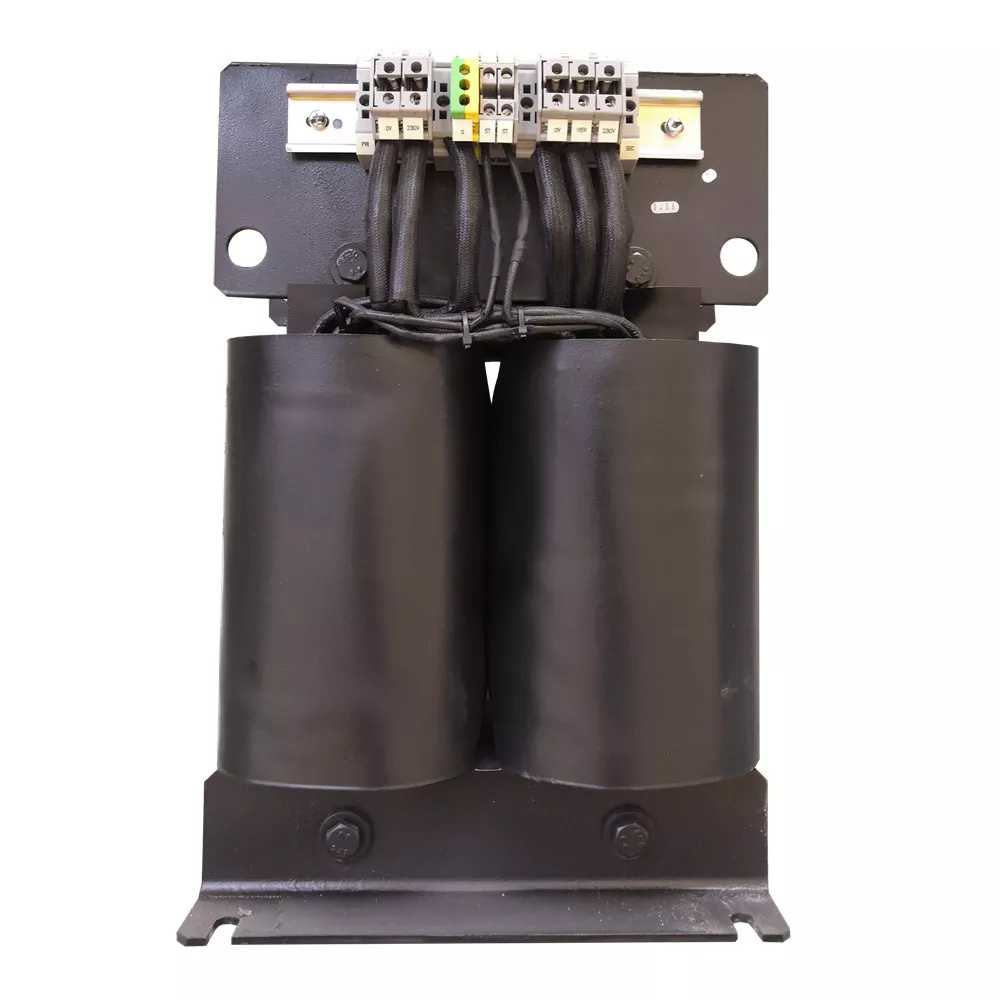

AITR Series Medical isolation transformer
Advantages of Hospital Isolated Power System
Medical isolated power panels provide safe, reliable and continuous power distribution for the important equipment at these locations:
• Used for the transformation of TN system into IT system (ungrounded system)
• Functions of real-time monitoring and fault alarming of the ground insulation resistance, transformer load current and transformer winding temperature of the monitored IT system
• When the monitored IT system has an insulation fault, the hospital isolation panel can initiate and generate the fault location signal to the system, and realize fault locating function with the help of the fault locator
• Acrel hospital isolated power systems can remotely monitor the real-time operating conditions of up to 16 pieces of systems, and the main interface intuitively displays whether the access system communication is intact
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
Acrel Medical Isolation Power Panels
Technical Parameters
| Parameters | GGF-IXG |
GGF-IXQ
|
GGF-OXF
|
GGF-OXG
|
GGF-OXQ
|
GGF-OXF
|
|
Rated voltage
|
220V AC
|
380V/220V AC | ||||
|
Rated Capacity
|
3.15/5/6.3/10 KVA
|
— | 3.15/5/6.3/10 KVA | |||
|
Rated frequency
|
50/60 Hz
|
|||||
|
Distribution circuit
|
IT System:4 or 5 AC220V(can be customized)
|
IT System:8 AC220V(can be customized) | ||||
|
—
|
TN-S Systems | |||||
|
Protection level
|
IP31
|
IP34D
|
IP31 | IP34D | ||
|
Installation
|
Floor-standing
|
Embedded
|
Floor-standing | Embedded | ||
|
Inlet and outlet
|
Bottom
|
Both bottom and top have access lines
|
Bottom | Both bottom and top have access lines | ||
1. Manual for Acrel Medical Isolation Power Panels
2. Installation and Use for Acrel Medical Isolation Power Panels
3. Debugging Software for Acrel Medical Isolation Power Panels
