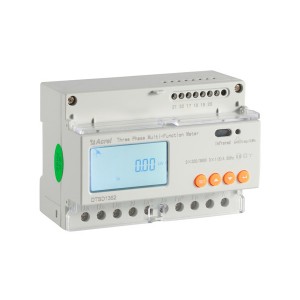

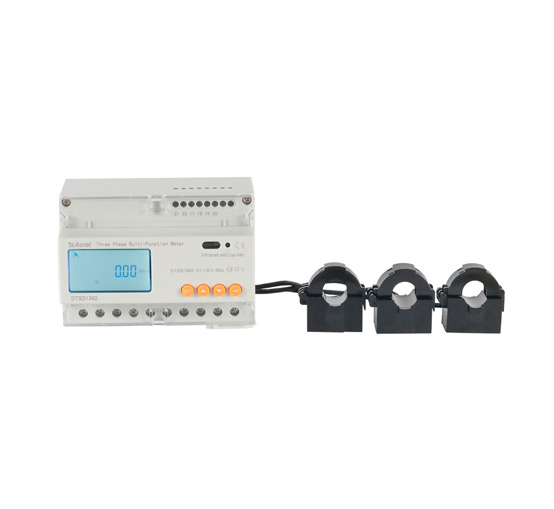

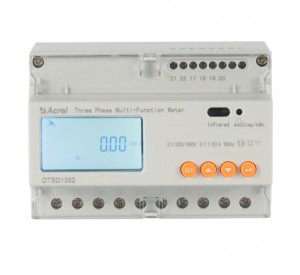

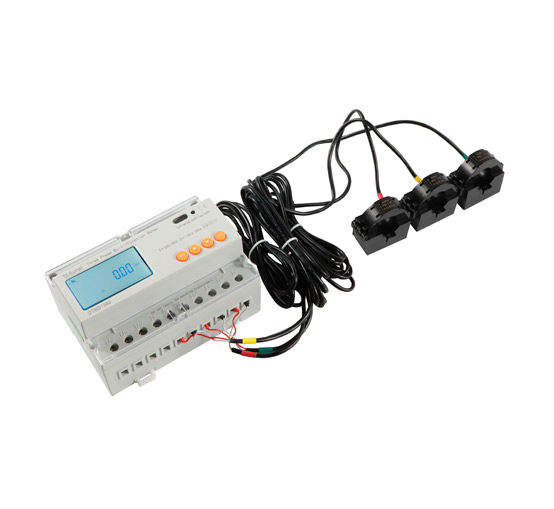

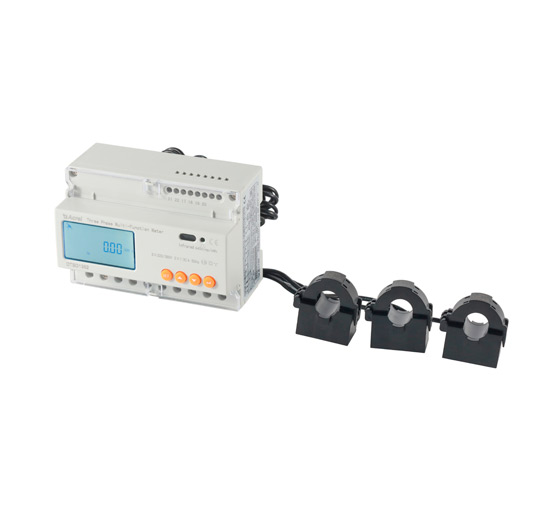

Acrel DTSD1352-C Solar Inverter Smart Meter
Acrel DTSD1352-C Solar Inverter Smart Meter
Acrel DTSD1352-C Solar Inverter Smart Meter
General
Acrel Sungrow/Solis smart meter DTSD1352 din rail type multi-function energy meter is an intelligent instrument designed mainly for energy statistics and management needs of power systems, industrial and mining enterprises, and public facilities. Integrate common power parameter measurement and power metering and assessment management, and provide various power data statistics for the past 48 months. DTSD1352 has 2~31 times sub-harmonic and total harmonic content detection, with switch input and switch output, it can realize "remote signal" and "remote control" functions, and has alarm output.
DTSD1352-C Solar inverter smart meter is designed for PV solar system, which already have configured with several inverter like Sungrow, Solis etc. It can be directly used together with these inverter through RS485 communication. realize the measure and monitor function.
Functions
Communciation: RS485(Modbus-RTU)
Rated U and I: AC 3*100V,3*380V,3*57.7/100V,3*220/380V; 3*1(6)A,3*10(80)A
Accuracy: kWh: Class0.5S; kVrah: Class 2
Frequency: 45~65Hz
Display: 8 digits LCD display U, I, P, Q, PF, kWh and other energy consumption, Power measure (999999.99kWh)
Pulse output: Pulse output kWh/kvarh
Consumption: <10VA(Single phase)
Installation: DIN 35mm
Dimension(L*W*H): 126.5*88*69.5 mm
Installation: DIN 35mm
Clock: ≤0.5s/d
Starting Current: Direct connect:0.004lb
Connect via CT: 0.001ln
Diagram of Acrel DTSD1352-C Solar Inverter Smart Meter

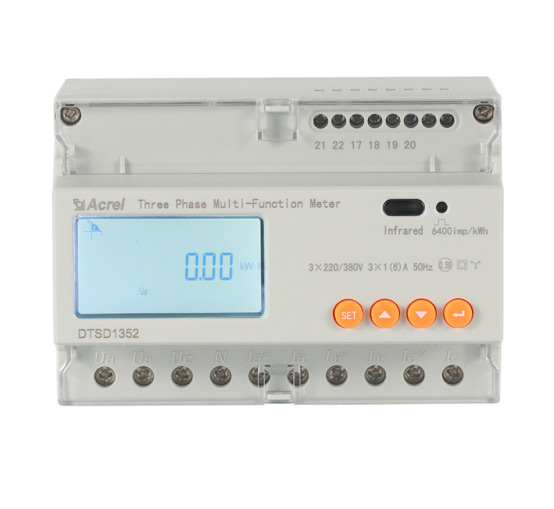

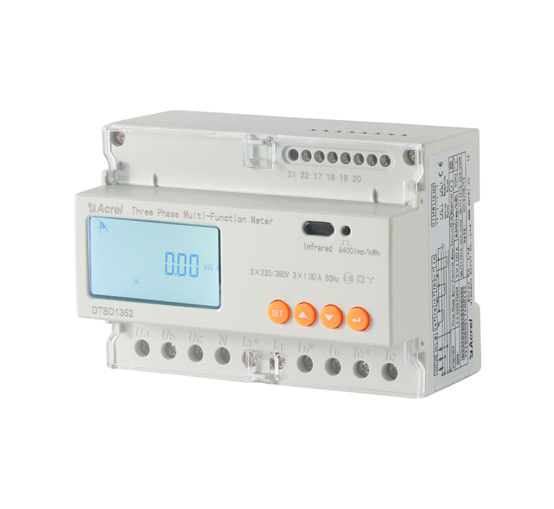

DTSD1352-C Solar inverter smart meter interface Ua/Ub/Uc is A/B/C phase voltage input, interface N is the neutral wire, interface Ia*/Ia is A phase current inlet/outgoing wire, interface Ib*/Ib is B phase current inlet/outgoing wire, interface Ic*/Ic is C phase current inlet/outgoing wire, interface 21/21 is RS485 A/B, interface 17/18 is Active energy,19/20 is reactive energy.
Installation
Benefits and Advantages
• 0.5S High precision, CE certification
• Full electrical parameters measurement
• Record last 48 months or last 90 days history energy
• Switching input/output and Temperature measurement
Applications
• Connected to solar inverter in PV solar system
• Industrial and mining enterprises's kwh measurement
• Calculate the electricity consumption in power supply system
• Measurement of electrical energy in large public buildings
Outline and Dimension
Dimension of DTSD1352-C (Current Input via Direct Connect)

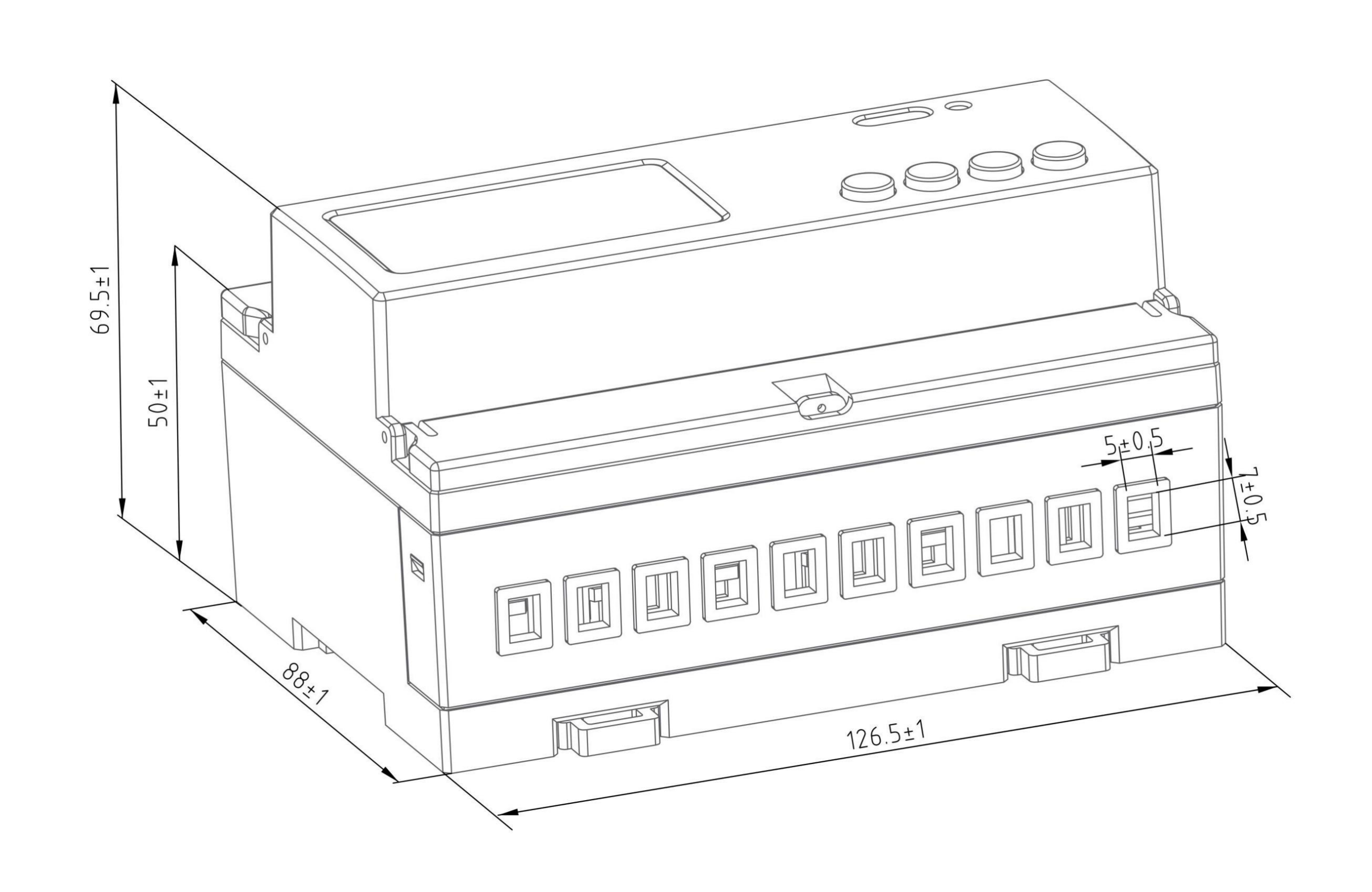

Dimension of DTSD1352-C (Current Input via CTs)

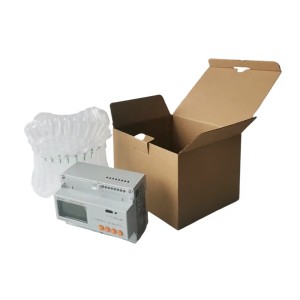

Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pc Product Dimension: 170mm*150mm*130mm
|
Total N.W. (1 pcs) 0.254 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products Dimension:540mm*530mm*480mm
|
Total N.W. (36 pcs) 11.836 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shipment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
DTSD1352-C Solar Inverter Smart Meter FAQs
Yes, press the key to set the meter to three-phase three-wire mode.
Ordinary secondary meter could access the ratio XXX/5(1)A of the CTs which could be actual current on-site, the -CT model comes with an external transformer will be convenient for installation(It cannot be disassembled, otherwise it will burn the meter). There are CTs available on site to facilitate with No stitch removal.
3*100V, 3*57.7/100V are used for high voltage, used in conjunction with voltage transformers, where 3*100V represents 3P3W,3*57.7V/100V represents 3P4W; 3*380V, 3*220V/380V are used for low voltage, direct voltage input, among them3*380V represents 3P3W, 3*220V/380V represents 3P4W.
Yes, only need PLC to support RS485 interface, Modbus RTU, or DL/T645 protocol.
Acrel DTSD1352-C Solar Inverter Smart Meter
Functions
| Functions | Function description |
Function provide
|
|
Measurement of kWh
|
Active kWh (positive and negative)
|
■ |
|
Reactive kWh (positive and negative)
|
■ | |
|
A, B, C phase positive active kWh
|
■ | |
| Measurement of electrical parameters |
U、IP、Q、S、PF、F
|
■ |
|
Measurement of harmonic
|
2~31st Voltage and current harmonic
|
■ |
|
LCD Display
|
8 bits section LCD display, background light
|
■ |
|
Key programming
|
4 keys to communication and set parameters
|
■ |
|
Pulse output
|
Active pulse output
|
■ |
|
Reactive pulse output
|
□Note 1
|
|
|
Clock pulse output
|
□Note 1
|
|
|
Multi-tariff and functions
|
Active switch input
|
□Note 2
|
| Switch output |
□Note 2
|
|
|
Adapt 4 time zones, 4 time interval lists, 14 time interval by day and 4 tariff rates
|
□ | |
|
Max demanded kWh and time happened
|
□ | |
|
Frozen data on last 48 months, last 90 days
|
□ | |
|
Date, time
|
□ | |
|
Communication
|
Infrared communication
|
■ |
|
The first communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
|
□ | |
|
The second communication path:
Communication interface: RS485,
Communication protocol: MODBUS-RTU
|
□Note 2
|
|
|
Temperature measurement
|
Support 3 outlay NTC temperature
|
□Note 3
|
Technical Parameters
| Specification |
3 phase 3 wires, 3 phase 4 wires
|
|
|
Voltage
|
Reference voltage
|
3×100V、 3×380V、3×57.7/100V、 3×220/380V
|
|
Consumption
|
<10VA(Single phase)
|
|
|
Impedance
|
>2MΩ
|
|
|
Accuracy class
|
Error±0.2%
|
|
|
Current
|
Input current
|
3×1(6)A，3×1(6)A(Outlay transformer)，3×10(80)A，3×10(100)A(Outlay transformer)
|
|
Consumption
|
<1VA(Single phase rated current) | |
| Accuracy class |
Error±0.2%
|
|
| Power |
Active, reactive, apparent power, error±0.5℅
|
|
| Frequency |
45～65Hz， Error±0.2%
|
|
| Temperature |
-40℃～99℃
|
|
| Energy |
Active energy(Accuracy class:0.5, 1), reactive energy(Accuracy class 2)
|
|
| Clock |
≤0.5s/d
|
|
| Energy pulse output |
1 active optocoupler output, 1 reactive optocoupler output
|
|
| Switching output |
1 Switching output, Maximum allowed voltage: DC/AC 220V
|
|
|
Switching input
|
1 optocoupler input,Maximum allowed voltage: DC/AC 220V
|
|
|
Width of pulse
|
80±20ms
|
|
|
Pulse constant
|
6400imp/kWh,400imp/kWh(Correspond with the basic current)
|
|
|
Interface and communication
|
RS485：Modbus RTU
|
|
| Range of communication address |
Modbus RTU:1~ 247
|
|
|
Baud rate
|
1200bps~19200bps
|
|
|
Relative temperature
|
-25℃~+55℃
|
|
|
Relative humidity
|
≤95℅(No condensation)
|
|
