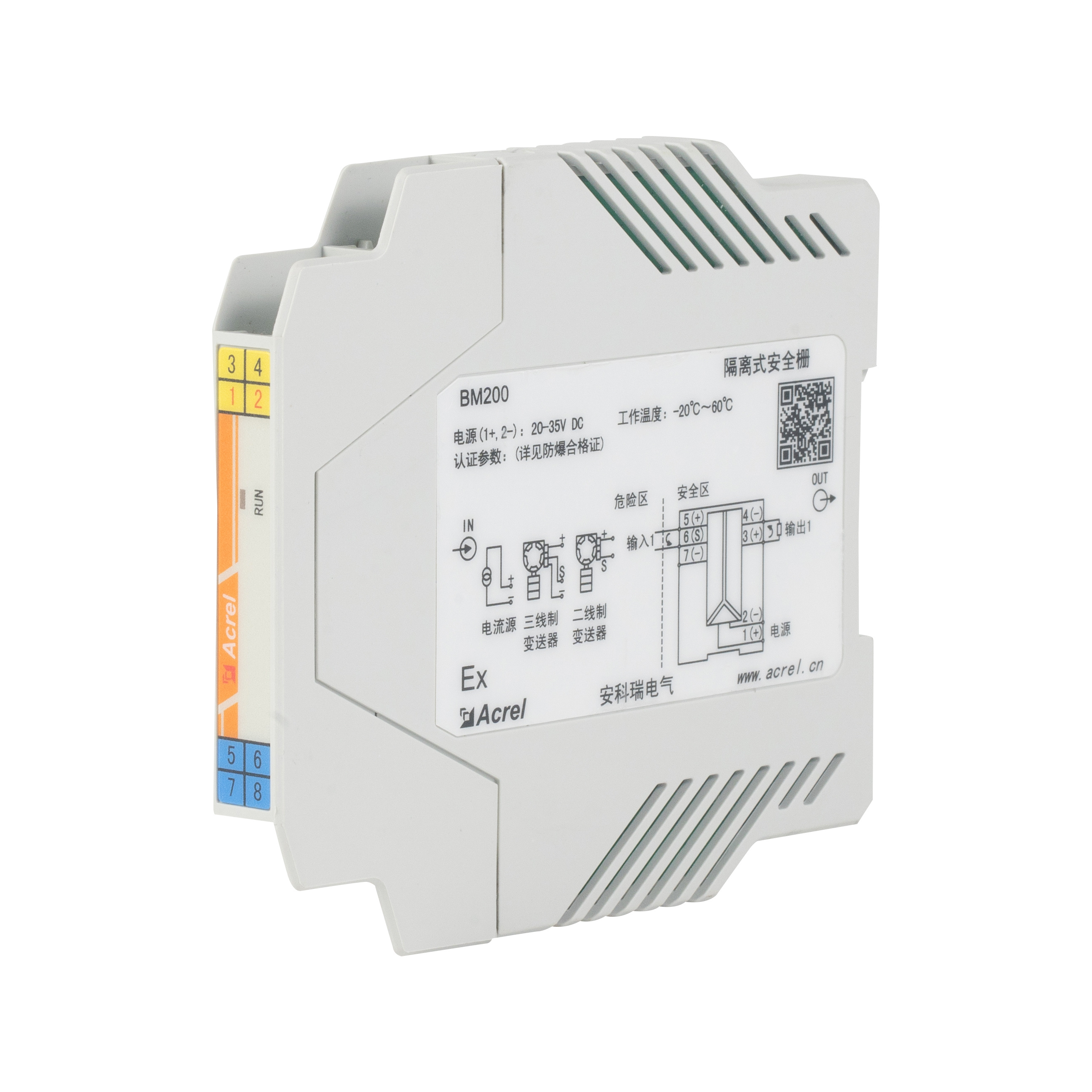

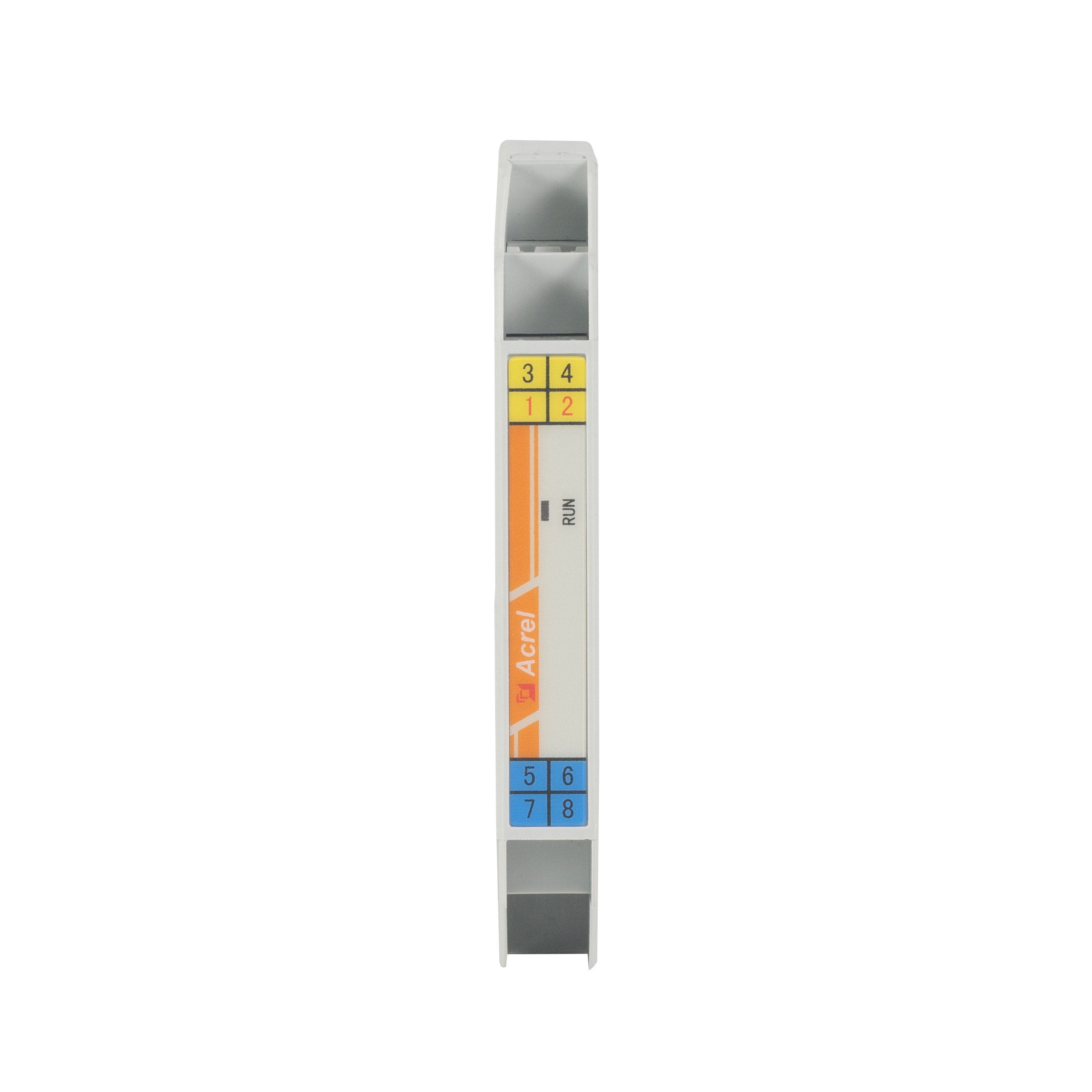

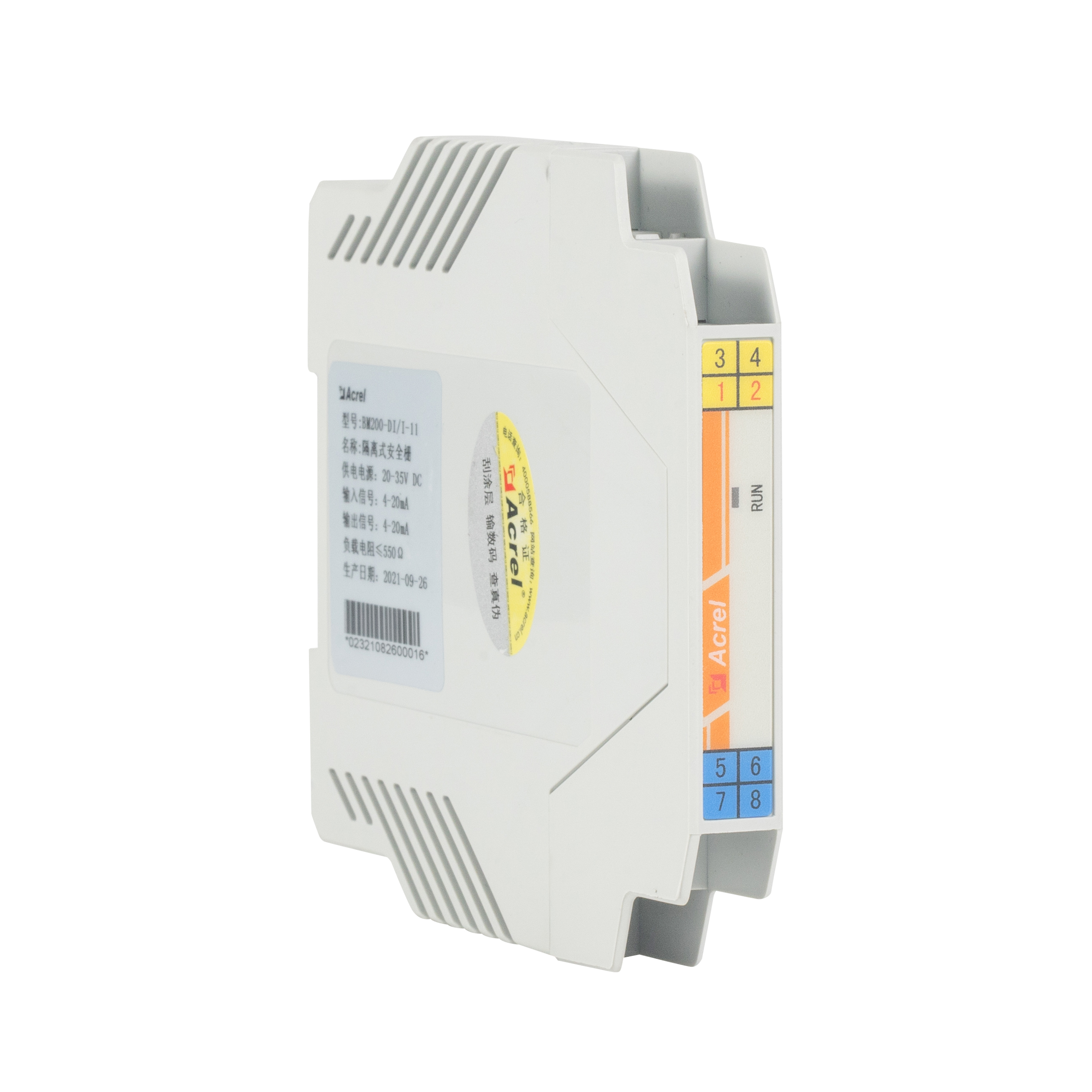

Acrel BM200 Isolated Safety Barrier
Acrel BM200 Isolated Safety Barrier
General
Acrel BM200 isolated safety barrier can transmit signals between the safe area and the dangerous area, and limit the energy transfer from the safe area to the dangerous area caused by the fault. The voltage, current, temperature, resistance signals generated by the equipment (transmitter) on the dangerous side are isolated and converted into corresponding linear voltage and current signals outputting to the safe area. The product requires independent power supply, and the input/output/power supply is isolated. It can be used in current source, two-wire, three-wire transmitter equipment.
Features
① DC voltage/current input
② Using magnetic isolation technology
③ Response time <400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level
Types
Wiring
Outline and Dimension
Structure
Application
Date Center
Building
Industrial Automation
Seaport
Acrel BM200 Isolated Safety Barrier
Technical Parameters
| Channel type | Single-way input and single-way output, single-way input and double-way output, double-way input and double-way output |
| Input type | Current/Voltage/Thermal resistance Pt100/Resistance/Thermocouple |
| Input signal | 0~20mA /4~20mA
0~5V /0~10V /1~5V (Distribution voltage: 12V/20mA) PT100 /0~10K/K、E、T、J、N、R、S、B |
| Output signal |
0~20mA /4~20mA (Safe side input); Load resistance: ≤550Ω 0~5V /1~5V (Safe side input); Load resistance: ≥330K 0~10V (Safe side input); Load resistance: ≥500K |
| Transmission accuracy |
0.2%
|
| Temperature modulus |
50ppm/℃ (The output signal is current)
|
| Response time | 5ms to reach 90% of final value (RTD Pt100/resistance/thermocouple input: 1s to reach 90% of final value） |
| Power supply |
20~35V DC
|
| Work temperature |
-20℃～+60℃
|
| Fix mode |
Rail installation
|
| Dielectric strength |
Intrinsically Safe and Non-Intrinsically Safe ≥2500V AC; Power supply and Non-Intrinsically Safe ≥500V AC Note：Intrinsically Safe is input, Non-Intrinsically is output |
