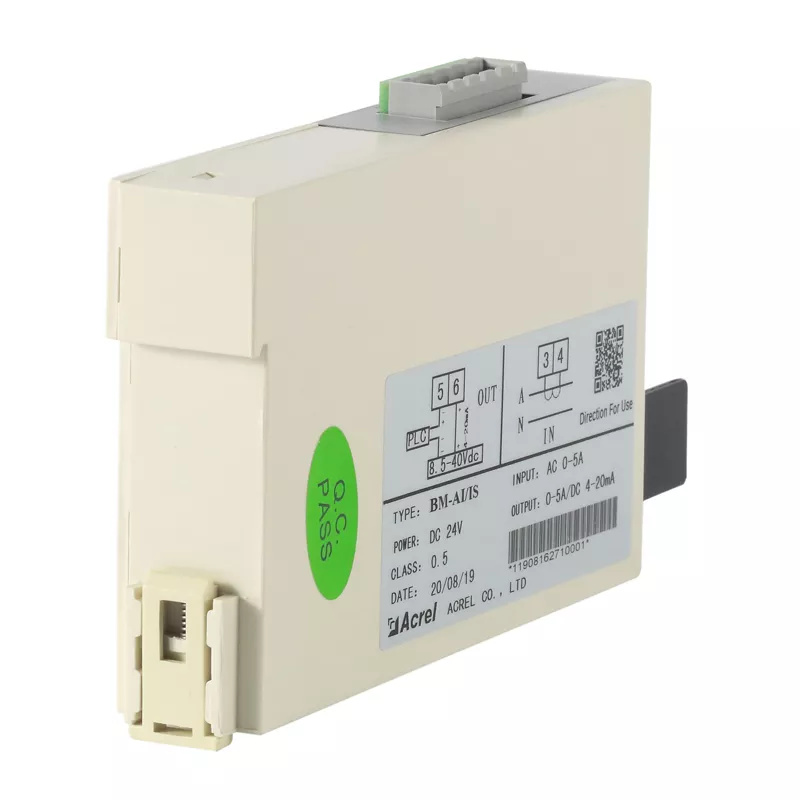

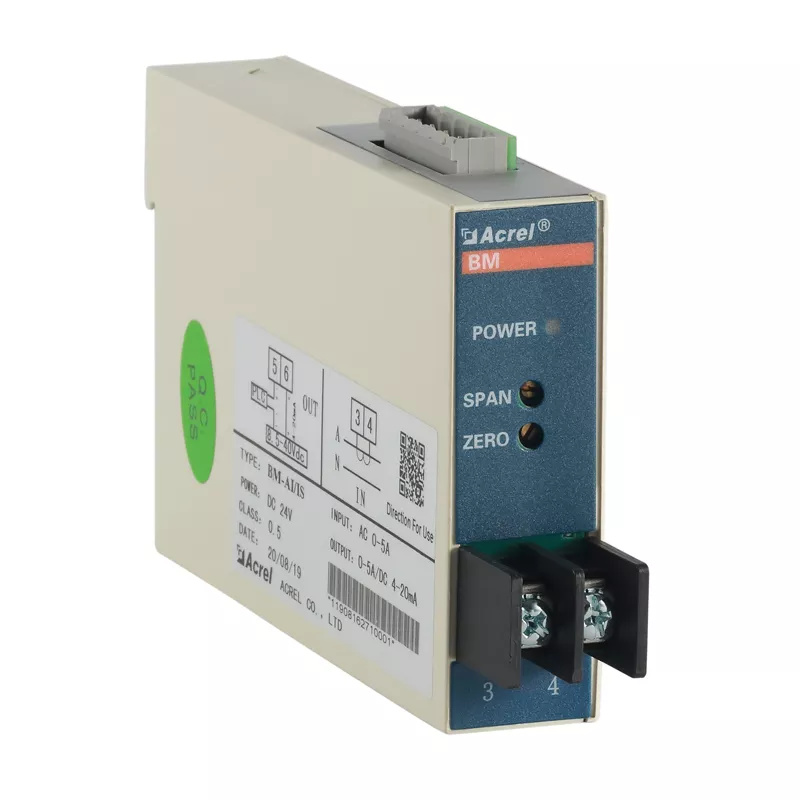

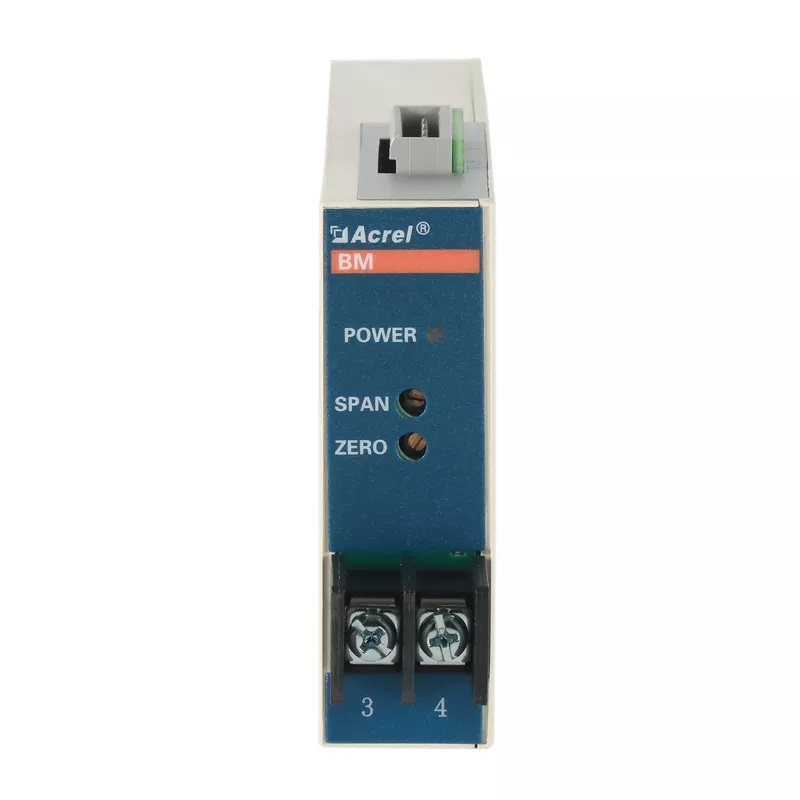

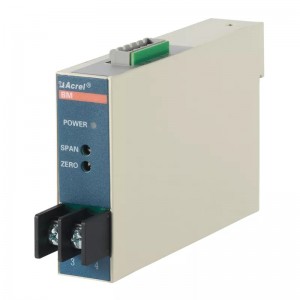

Acrel BM-AI/IS AC Current Analog Signal Isolator
Acrel BM-AI/IS AC Current Analog Signal Isolator
General
Acrel BM-AI / IS AC current input analog signal isolator can modulate maximum 5A AC or CT current directly and output the isolated 4-20mA signal. The working status and output level of circuit are indicated with LED. The module is equipped with surge protection circuit so that it is suitable under severe conditions.
Features
① DC voltage/current input
② Using magnetic isolation technology
③ Response time <400ms
④ TS35 rail installation
⑤ Plug-in terminal
⑥ Temperature drift coefficient: ≤200ppm/℃ at 0.5 level
Types and Specifications
Wiring
Outline and Dimension
Structure
Application
Date Center
Building
Industrial Automation
Seaport
BM Series Analog Signal Isolator FAQs
4-20mA signal isolator is a signal amplifying instrument that isolates/amplifies/converts DC (analog) current and voltage signals and outputs proportionally.
It is used in the automation system of electric power, railway, petrochemical, metallurgy, chemical, food, storage and other industries.
A passive isolator is an instrument that isolates the input DC current signal and outputs it. The input/output of the transmitter is fully isolated and resistant to industrial field interference; it can work without external power supply.
The difference between an isolator and a switch is that a switch in the usual sense should be able to make and break current under working conditions (including overload conditions), while an isolator has no arc extinguishing capability.

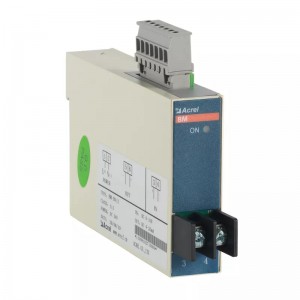

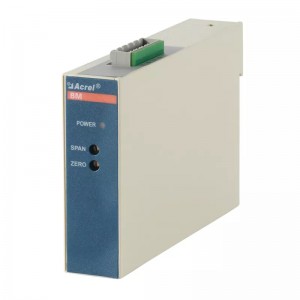

Acrel BM Series Signal Isolator
Technical Parameters
| Technical Parameters |
Index | |||
|
Input
|
Range
|
Current: 4-20mA, 0-1mA, 0-20mA
Voltage: 0-1V, 0-5V, 0-10V, 0-75mV, etc
|
||
|
Impedance
|
Current: 0(4)-20mA, 100Ω
0-1mA, 1kΩ, voltage≥100Ω
|
|||
|
Overload
|
Current: 100mA or 1W
Voltage: 50V at 0-10V
|
|||
|
Output
|
Range
|
DC4~20mA
|
||
|
Load
|
<500 Ω
|
|||
|
Zero adjustment
|
5%
|
|||
|
Span adjustment
|
5%
|
|||
|
Protection
|
Short circuit protection
|
|||
|
Power supply
|
Range
|
Direct voltage: 8.5-40VDC, normally 24VDC/2W
|
||
|
Max. current
|
24mA
|
|||
|
Other
|
Accuracy/linearity
|
Max. 0.5% of full span
|
||
|
Temperature effect
|
≤200ppm/℃
|
|||
|
Response time
|
≤400ms
|
|||
|
Isolation voltage
|
2kV between input and output
|
|||
|
Operating/storage temperature
|
-10℃ ~+55℃/-25 ~+70℃
|
|||
|
Installation method
|
With guide rail TS35
|
|||
Types and Specifications
|
Input form
|
Input range
|
Output range
|
Auxiliary supply
|
Isolation voltage
|
Output settings
|
Other features
|
Model
|
|
Direct current
|
0-1mA
0-20mA
4-20mA
0-5A
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-DI/IS
|
|
Alternating current
|
0-1A
0-5A
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-AI/IS
|
|
Direct current
|
4-20mA
|
4-20mA
|
/ |
2kV
|
Self-powered
by input circuit
|
BM-DIS/I
|
|
|
4-20mA
0-5V
|
4-20mA
|
24VDC
|
2kV
|
Independent
two circuits
|
BM-DI/II
BM-DV/II
BM-DI/IV
BM-DV/IV
|
||
|
4-20mA
0-20mA
|
4-20mA
0-20mA
|
24VDC
|
2kV
|
4-wire
|
BM-DI/I
|
||
|
0-10V;0-5V
|
BM-DI/V
|
||||||
|
0-20mA
|
Two relays
controlled
by setting point
|
110/220V
AC, DC
|
2kV
|
2 NO contact
groups
|
BM-DI/J
|
||
|
Direct voltage
|
0-10V； 0-5V
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-DV/IS
|
|
0-10V;0-5V
|
4-20mA
0-20mA
|
24VDC
|
2kV
|
4-wire
|
BM-DV/I
|
||
|
0-10V;0-5V
|
BM-DV/V
|
||||||
|
0-10V
|
Two relays
controlled
by setting point
|
110/220V
AC, DC
|
2kV
|
2 NO contact
groups
|
BM-DV/J
|
||
|
Alternating voltage
|
0-125V AC
0-250V AC
0-450V AC
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-AV/IS
|
|
Thermocouple
Thermal resistance
|
K,J graduation 0-250℃;
0-500℃ 1- 0-1000℃；
0-1200℃
|
4-20mA
|
24VDC
|
2kV
|
4-wire
|
RS485
communication
output
|
BM-TC/I
BM-TC/V
|
|
Thermal resistance
|
Pt100
0-50℃ ;0-100′C 0-150
℃; 0-200℃ 0-250℃；
0-300℃
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-TR/IS
|
|
24VDC
|
2kV
|
4-wire
|
BM-TR/I
|
||||
|
Resistance
|
0-100Ω; 0-lkΩ
0-5kΩ; 0-10kΩ
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-R/IS
|
|
Potentiometer
|
0 ~350Ω(~10kΩ)
|
4-20mA
|
/ |
2kV
|
2-wire
8.5-40VDC
|
Powered by
output circuit
|
BM-VR/IS
|
