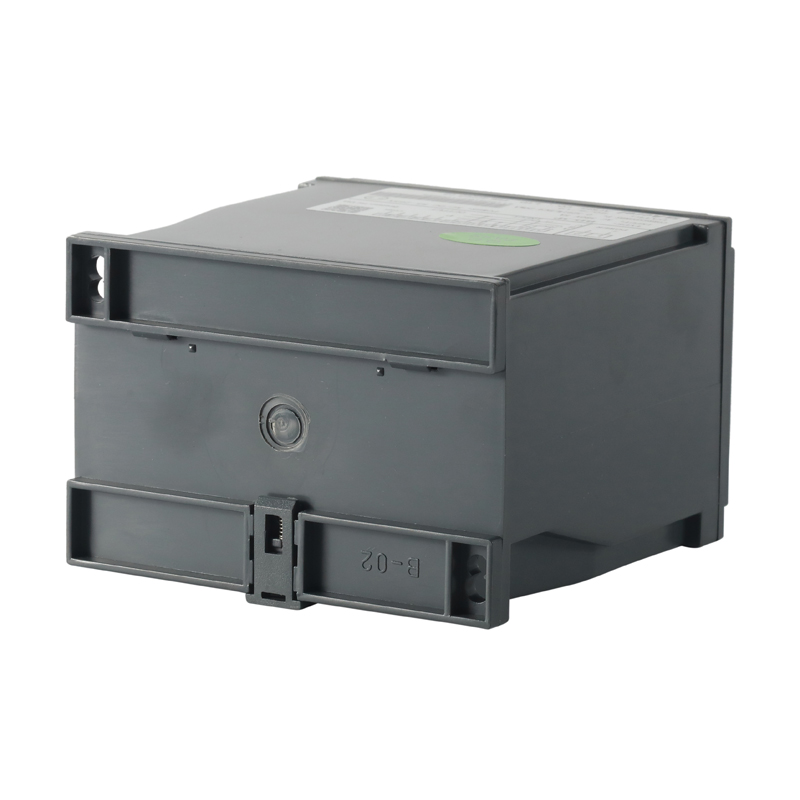

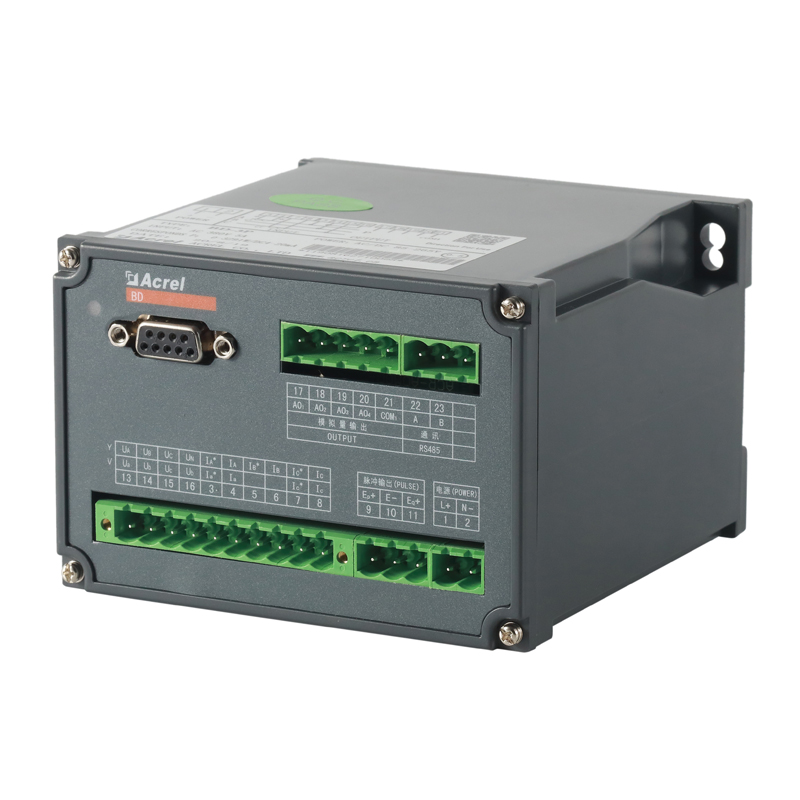

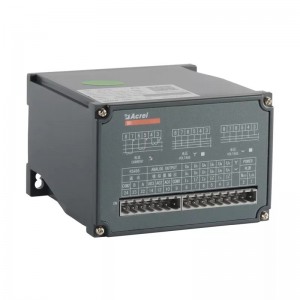

Acrel BD-3P Series Three Phase Power Transducer
Acrel BD-3P Series Three Phase Power Transducer
General
Acrel BD-3P series Electricity Transducer can measure Voltage, Current, Power, Power factor, Frequency; 1.2 times of rated value overload; DC 0-5V/0-10V/0-20mA/4-20mA all can be choosed as analog output.
Matching Devices
• Record storage analog output record
• Provide analog output signal to PLC
• Provide analog output to frequency converter
• Provide analog output for digital display meter
Features
• The measuring transmitter is designed to convert AC electric signal into analog signal or digital signal in accordance with GB / T 13850
• High accuracy class: 0.5
• Full electric parameter measurement, freely combined transmission output type
• The true RMS measurement is suitable for occasions with large harmonics, voltage and current waveform distortion and other harsh environments
• It can be worked with RS485 communication interface and connect on the same 485 bus with the control module of other manufacturers, which is convenient for computer programming. Users can easily build their own measurement and control system
Types and Specifications
Outline and Dimension
Wiring
Application
Date Center
Building
Industrial Automation
Seaport
BD Series Power Transducer FAQs
A device that converts the measured power parameters (such as current, voltage, power, frequency, power factor and other signals) into DC current, DC voltage and isolates and outputs analog or digital signals.
Widely used in electric power, petroleum, coal, metallurgy, railway, municipal government and other departments of electrical measurement, automatic control and scheduling system.
All type of our BD power transducer need a power supply AC85~265V, DC100~350V, DC24V48V.
Current, voltage transmitters, Three-phase current, voltage transmitters, RTD transmitters, Intelligent temperature transmitters, Power transmitters, Frequency transmitters etc.
Acrel BD Series Power Transducer
Technical Parameters
| Technical Parameters | Value | ||||||||||
| Type |
Class 0.5
|
BD-Dl
BD-DV |
BD-TR
BD-TRA |

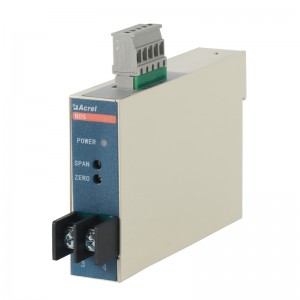

BD-Al
BDAV |
BD-3I3
BD-3V3 BD-4V3 |
BD-3P
BD3Q BD-3P/Q1 |
BD-4P
BD4Q BD-4P/O |
BD-3E
BD4E BD4EA |
BD-PF
BD-F |
||
| Accuracy |
0.5cass,02cass
|
||||||||||
| Input | Signal | DC 4~20mA 0~20 mA DC0~10V 0~75mV DC 0~300V |
PT100 | AC0~1A,0~5A AC 0~120V,0~300V, 0-~500V |
AC 1A,5A AC 100v,220v,380v |
||||||
| Overload | Cumrent: contnuous 1.2 times, instant current 10 times per second Voltage: continuous 1.2 imes, instant Voltage 10 times per second |
||||||||||
| Frequency | 45Hz~65Hz | ||||||||||
| Output | Signal | DC 4~20mA,0~20mA,0~5V,0~10V | |||||||||
| Load | Cument output<600Ω,Voltage outpue1000Ω | ||||||||||
| Optional function | / | / | RS485 | / | RS485 | ||||||
| Power Supply | AC 85~265V DC 100V~350V DC 24V |
AC 85~265V DC 100-350V |
AC85~265V DC 100~350V DC24V |
AC 85~265V DC 100V~350V DC 24V/48V |
AC 85~265V DC 100-350V |
||||||
| Temperature drift coefficient | 0.2class≤100ppm℃,0.5class≤200ppm℃ | ||||||||||
| Response time | <400ms | ||||||||||
| Power frequency withstand voltage | Auxiliary power supply/Input / Output 2kV/1min,50Hz | ||||||||||
| Environment | Temperature | Work;-10℃~55℃ Store:-25℃~70℃ | |||||||||
| Humidity | ≤93%RH, places without condensation and corrosive gas | ||||||||||
| Altitude | ≤2500m | ||||||||||
| Installation mode | TS35mm din rail or screw fixng | ||||||||||
