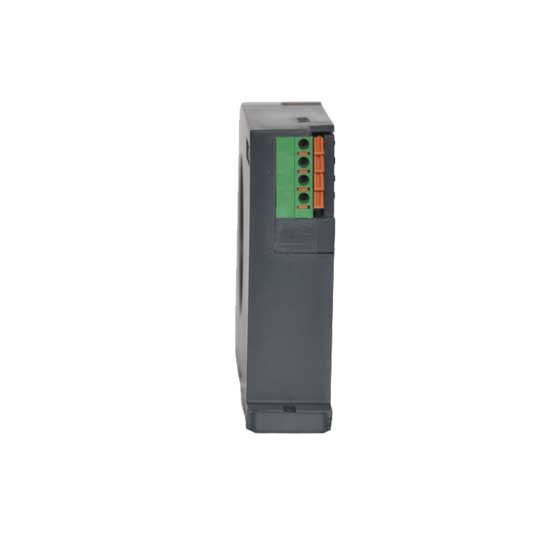

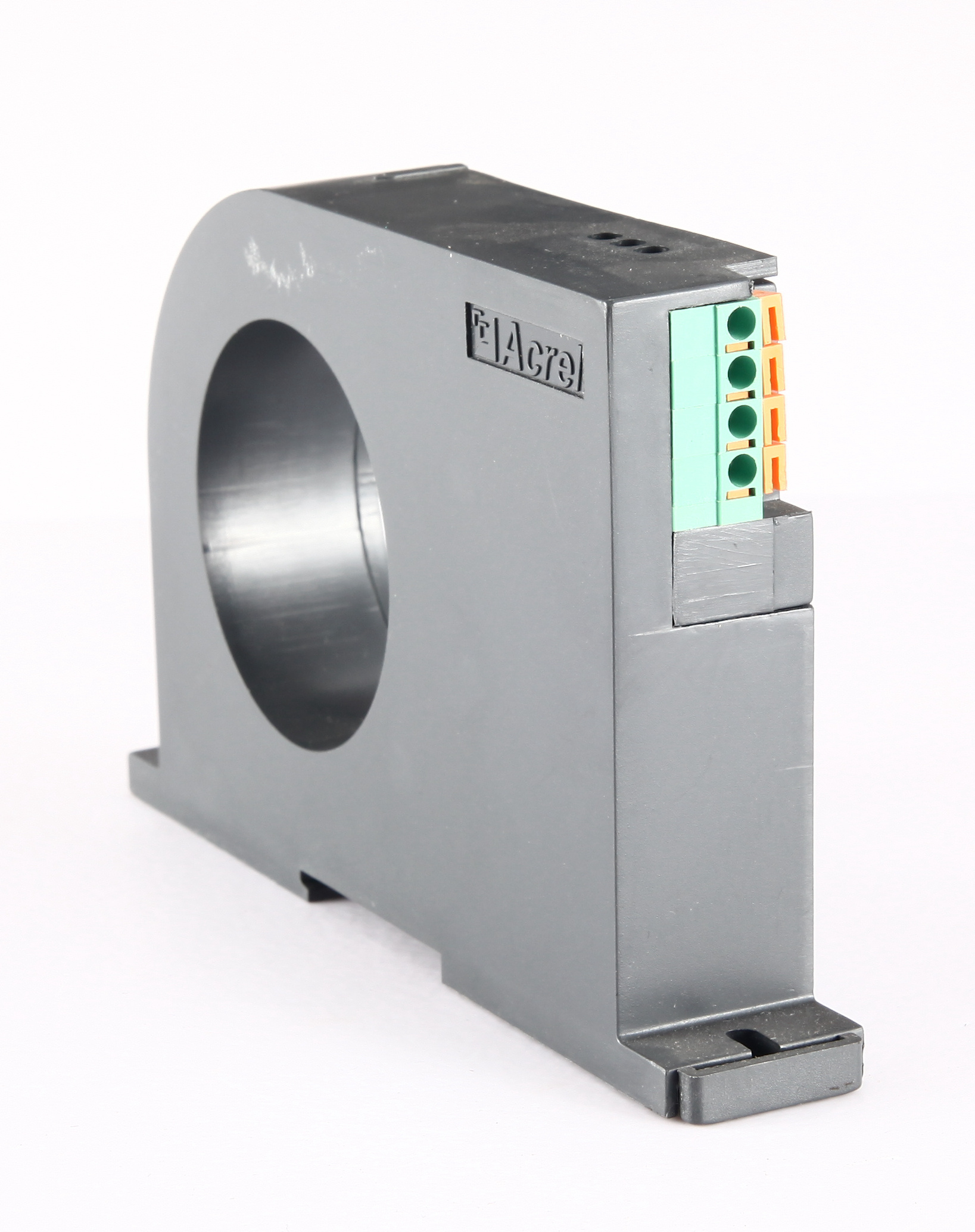

Acrel BA50L-AI/I AC 0-1A Leakage Current Transducer

Acrel BA50L-AI/I AC 0-1A Leakage Current Transducer

● Aperture: 50mm

● Input: 0-1A leakage current

● Output: DC 4-20mA or DC 0-5V, 0-10V

● Overload: 1.2 times of rated value

● Power supply: DC12V/DC24V

Send email to us

Product Detail

Technical Parameters

Download

Product Tags

Acrel BA50L-AI/I AC 0-1A Leakage Current Transducer

General

Acrel BA series conduct the real-time measurement on the alternating current in the power grid according to the electromagnetic induction theory. They utilize the precise constant current technology and the linear temperature compensation technology to isolate and convert the measured current into the DC signal.They adopt the 24V or 12V power supply. They feature the large overload capacity, high accuracy, isolation and safety and low power consumption. Applications cover the industrial automation sector.

Appearance

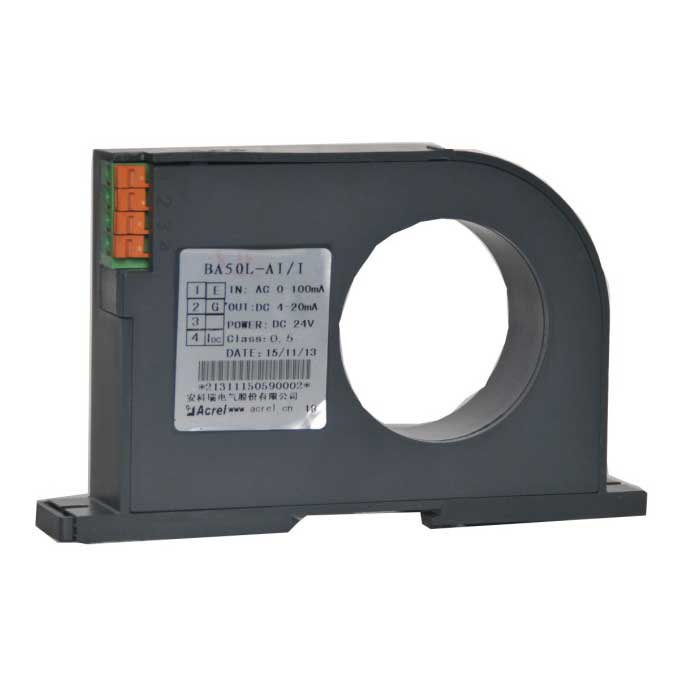

BA50L - leakage current transducer panel

Parameters

Wiring

Installation

Screw fixed installation

On the bottom panel of the cabinet, choose a suitable place to open
two threaded holes corresponding to the position of the fixed hole of
the installed sensor; After placing the sensor, install the positioning
screw

BA50L - leakage current transducer installation - 2

Din Rail installation

Choose a suitable place to install the standard DIN35mm rail,

and install the BA sensor on the rail

Dimension

Application

Cement Building

BA series current transducer application - 2

Petrochemical Industry

BA series current transducer application - 3

Iron and Steel Metallurgy

BA series current transducer application - 4

Rail Traffic

BA Series AC Current Transducer FAQs

What is the different between current transducer and current transducer?

The transformer is a large current and a small current (1A or 5A) for measurement and protection circuits. The transducer converts the input current into a weak current communication signal (0-20mA or 0-5V) and transmits it to the subsequent circuit for processing.

How does a AC current transducer work?

Apply the principle of electromagnetic induction to measure the AC current in the power grid in real time, and convert it into a standard DC signal output.

What are voltage and current transducer?

Convert industrial high current and high voltage into analog signals that can be measured, which is safer and more accurate.

How to choose a right current transducer?

It depends your input current and output signal you need, including power supply and cable size.

Packaging

Packaging Overview(Minimum)
Packing Dimension and Weight(Minimum)	Package dimensions(1 PC) 1612.57.5cm	Package Weight(1 PC) 0.23Kg
Packing Dimension and Weight(Large)	Package dimensions(25 PCS) 45.52619.5cm	Package Weight(25 PCS) 6.75kG
Product HS Code	8504311000
Country of Origin	China

Previous: Acrel AM5SE-IS Anti-islanding Protection Relay for Renewable Energy EMS

Next: Acrel BA50-AI/I, BA50-AI/V AC 0-600A Current Transducer

Acrel BA50L-AI/I AC 0-1A Leakage Current Transducer

Technical Parameters

Technical Parameters		Value
Accuracy class		0.5 class、0.2 class
Input	Nominal value	Current AC 0.1A、1A etc.AC 0~(0.1~1)A
	Overload	Continuous 1.2 times, instantaneous current 10 times/1 second
	Absorbed power	S1VA
	Frequency response	25~5kHz(true RMS),specially suitable for power frequency application
Output	Nominal value	DC4~20mA,or 0~20mA,0~5V,0~10V etc.
	load resistance	Current output ≤500 Ω, Voltage output>1kΩ
Response time		≤100ms
Method measuring		True RMS measurement
