Acrel AWT100 Series IoT Smart Gateway

Acrel AWT100 Series IoT Smart Gateway

● Various Upstream Communication Methods
● Collect Data from up to 30 Devices
● Easy Installation
● Optional Power Supply

Product Detail

Technical Parameters

Download

Product Tags

Acrel AWT100 Series IoT Smart Gateway

General

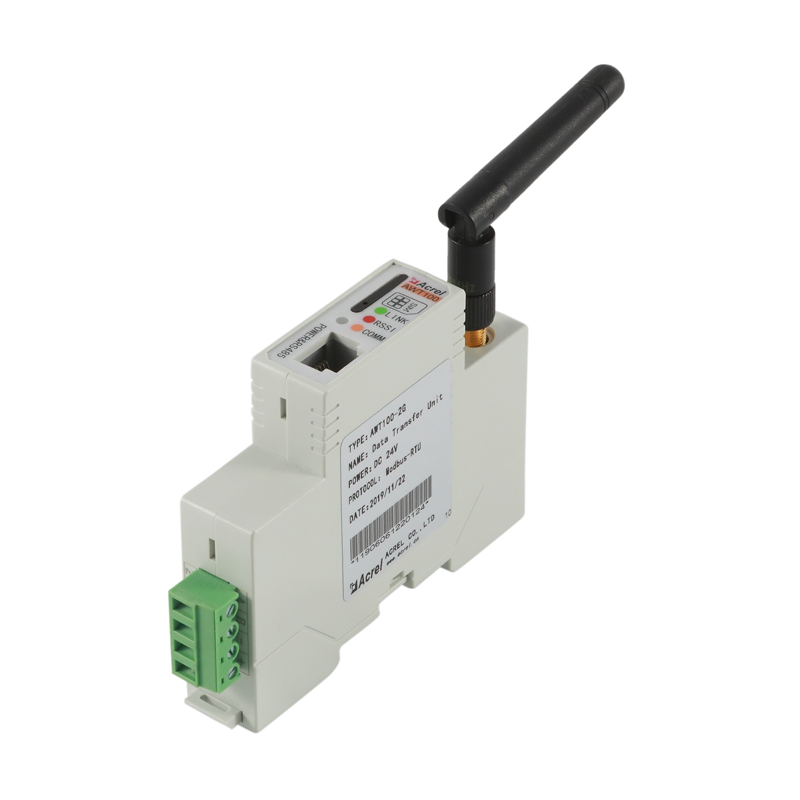

Acrel AWT100 Gateway Communication Terminal has 2G, 4G, NB, LoRa, LoRaWAN, GPS, WiFi, CE, DP and other communication methods. The downlink interface provides a standard RS485 data interface, which can be easily connected to power meters, RTUs, PLCs, industrial computers and other equipment. Only It is necessary to complete the initialization configuration at one time, and then the data collection of the MODBUS device can be completed; at the same time, the AWT100 series wireless communication terminal adopts a powerful microprocessor chip, combined with the built-in watchdog technology, the performance is reliable and stable.

Feature

AWT100 - feature

Various Upstream Communication Methods

● 4G (Support Global Frequency Bands)

● WiFi

● LoRa

● LoRaWAN

● Ethernet

● NB-IoT

● ProfiBus-DP

● GPS

AWT100 - feature - 1

Collect Data from up to 30 Devices

● Downstream Communication: RS485

● Downstream Protocol: MODBUS-RTU

● Data acquisition of 5 register address fields each device

AWT100 - feature - 2

Easy Installation

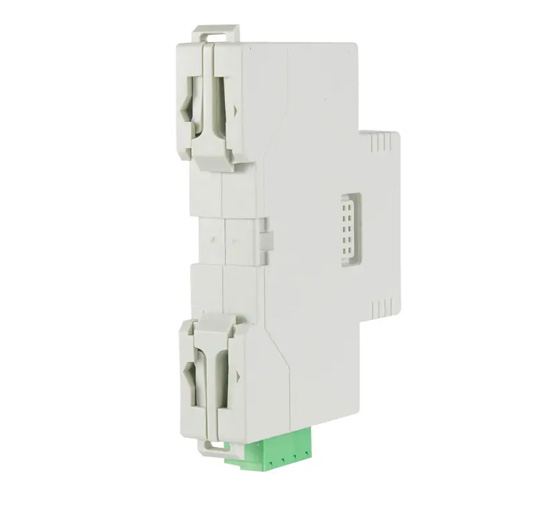

● RJ45 Interface

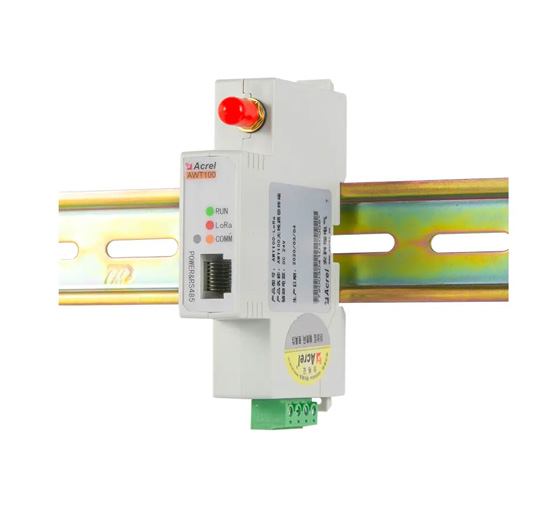

● 35mm standard DIN Rail

AWT100 - feature - 3

Three Optional Power Supply

● DC 12V

● DC 24V

● AC/DC 220V→DC 5V (paired with AWT100-POW)

● 3 types of Power Supply can’t co-exist

AWT100 - feature - 4

Panel

AWT100 - panel

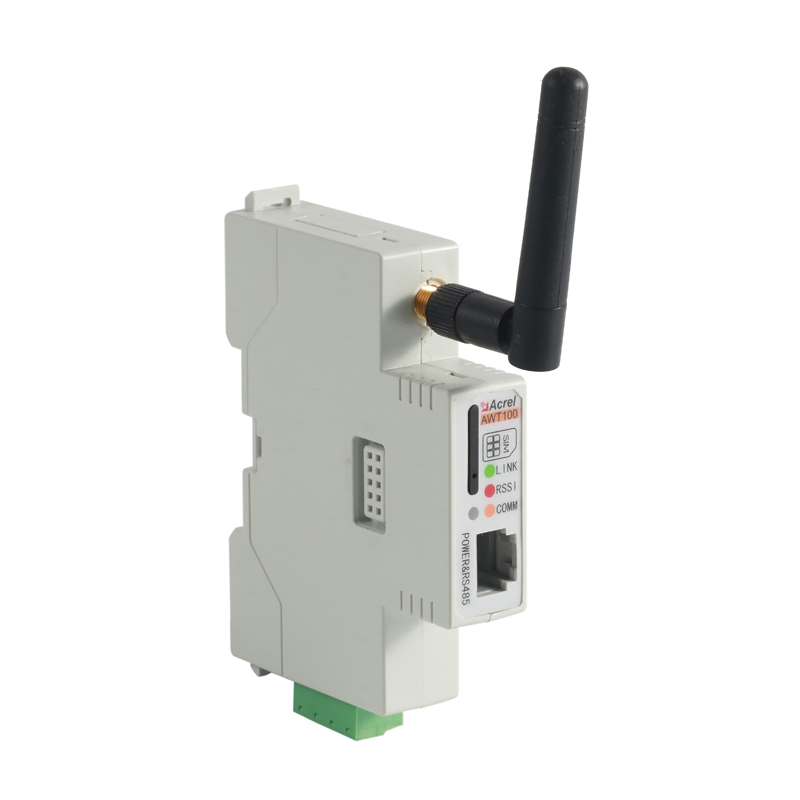

①35mm Din Rail Installation

②Antenna: signal enhancement and reception

③RJ45 interface:Used to connect a power module AWT100-POWER

④Uplink communication:4G/WIFI/CE/LORA communication to Cloud Platform

⑤RS485 interface

⑥Auxiliary Power supply interface:DC12V/24V;AC/DC 220V

Connection

AWT100 - wiring - 3

Outline and Dimension

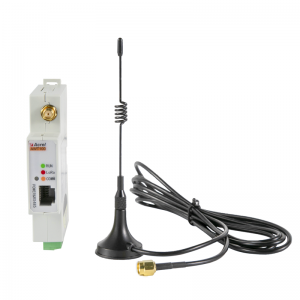

AWT100-4GHW - dimension - 1
AWT100-4GHW - dimension - 2

Benefits of  AWT100-WiFi Wireless Communication Gateway

• 1 size

• DC 12-24V

• RS485 modbus-RTU

• TCP / IP protocol

• Transparent transmission, MQTT

• WiFi

Wireless Communication Applications

The applicable industries are as follows:

• Wireless meter reading

• Building automation and security

• Robot control

• Power distribution network monitoring, power load monitoring

• Intelligent lighting control

• Automated data collection

• Industrial remote control telemetry

• Expressway, railway data transmission

• Other power and industrial control industries

wireless-communication-applications

AWT100 Series Wireless Communication Terminal FAQs

Whats is a communication terminal?

It is a new wireless data acquisition device which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment.

How many types wireles communication terminal support?

Communication data conversion includes 2G, 4G, NB, LoRa, LoRaWAN, GPS, WiFi, CE, DP and other communication methods.

How many downlink device can connect with one wireless communciation terminal?

Supports data collection of up to 30 MODBUS RTU devices.

Which procotol support with a wireless communciation terminal?

Support transparent transmission protocol, general mode (active round copy, regular report), MQTT protocol, smart power wireless protocol, prepaid wireless protocol It can be customized and developed.


  • Previous:
  • Next:

  • Acrel AWT100 Series IoT Smart Gateway

    Technical Parameters

    Parameter Name AWT100-GPS
    AWT100-WiFi
    AWT100-CE
    AWT100-DP
    Work Positioning accuracy: 2.5-5m support 2.4G frequency band
    WiFi rate: 115200bps
    Ethernet rate 10/100M adaptive
    Profibus address: 1~125. (Note)
    Downlink
    RS485 Communication
    Uplink
    GPS positioning WiFi wireless
    Ethernet communication
    Profibus communication
    Working current
    Static power consumption: ≤1W, transient power consumption: ≤3W
    Static power consumption: ≤0.5W,
    transient power consumption: ≤1W
    interface
    50Ω/SMA(Faucet)
    RJ45
    DP9
    Serial port type
    RS-485 Communication
    Baud rate
    4800bps、9600bps、19200bps、38400bps(Default 9600bps)
    Operating Voltage
    DC24V or AC/DC220V①
    Operating temperature
    -10℃~55℃
    Storage temperature
    -40℃~85℃
    Humidity range
    0~95% Non-condensing
    Parameter Name AWT100-4G AWT100-NB AWT100-2G AWT100-LoRa
    AWT100-LW
    Working frequency LTE-FDD B1 B3 B5 B8
    LTE-TDD B34 B38 B39 B40 B41
    CDMA B1 B5 B8
    GSM 900/1800M
    H-FDD B1 B3 B8 B5 B20 GSM 850
    EGSM 900
    DCS 1800
    PCS 1900
    LoRa 460 510MHz
    Transmission rate LTE-FDD
    Maximum downlink rate 150Mbps
    Maximum uplink rate 50Mbps
    LTE-TDD
    Maximum downlink rate130Mbps
    Maximum uplink rate 35Mbps
    CDMA
    Maximum downlink rate 3.1Mbps
    Maximum uplink rate 1.8Mbps
    GSM
    Maximum downlink rate 107Kbps
    Maximum uplink rate 85.6Kbps
    Maximum downlink rate 25.2Kbps
    Maximum uplink rate 15.62Kbps
    GPRS
    Maximum downlink rate 85.6kbps
    Maximum uplink rate 85.6kbps
    LoRa 62.5kbps
    Downlink RS485 Communication
    Uplink 4G Communication NB-IoT Communication 2G Communication LoRa Communication
    SIM card voltage 3V, 1.8V /
    Working current Static power: ≤1W, Transient power consumption: ≤3W Static power: ≤0.5W,
    Transient power consumption: ≤1W
    Antenna interface 50Ω/SMA(Faucet)
    Serial port type RS-485
    Baud rate 4800bps、9600bps、19200bps、38400bps(default 9600bps)
    Operating Voltage DC24V or AC/DC220V
    Operating temperature -10℃~55℃
    Storage temperature -40℃~85℃
    Humidity range 0~95% Non-condensing



    Type AWT100-LoRa AWT100-LW AWT100-LW868 AWT100-LW923 AWT100-LORAHW
    Working frequency 460~510MHz 470MHZ 863-870MHZ 920-928MHZ 860-935MHZ
    Transmission rate LoRa 62.5kbps
    Downlink RS485 Communication
    Uplink LoRa Communication
    Working current Static power:≤0.5W, Transient power consumption:≤1W
    Antenna interface 50O/SMA(Faucet)
    Serial port type RS-485
    Baud rate 4800bps、9600bps、19200bps、38400bps(default 9600bps)
    Operating Voltage DC24V or AC/DC220V
    Operating temperature -10℃~55℃
