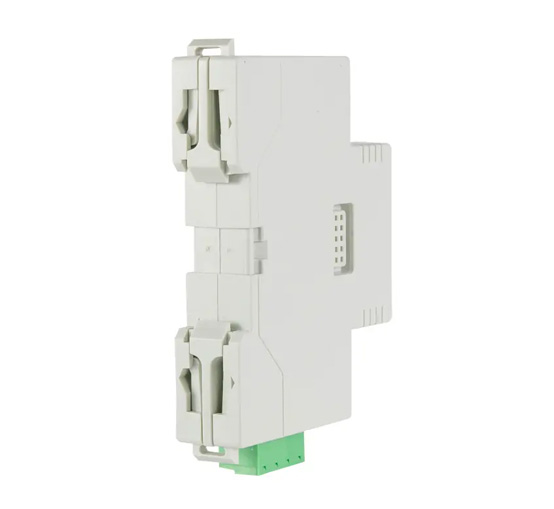

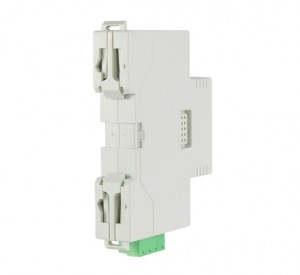

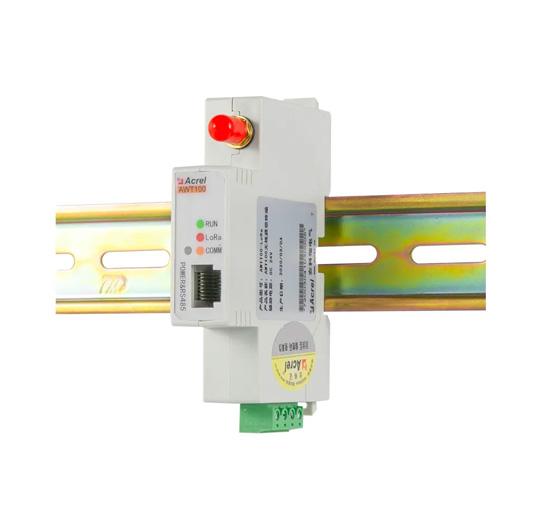

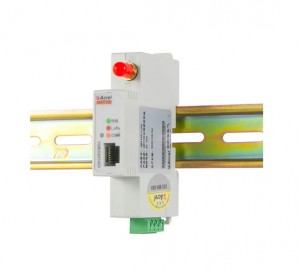

Acrel AWT100-4GHW IoT Smart 4G Gateway
Acrel AWT100-4GHW Wireless Communication Gateway
General
AWT100 wireless communication terminal is a new wireless data acquisition device launched by Acrel. The up link communication includes 2G, 4G, NB, LoRa, LoRaWAN and other communication modes. The down link interface provides a standard RS485 data interface, which can easily connect power meters and RTUs, PLC, industrial computers and other equipment, only need to complete the initial configuration, you can complete the data acquisition of MODBUS equipment; at the same time AWT100 series wireless communication terminal uses a powerful micro-processing chip, with built-in watchdog technology, reliable performance stable.
Features
Panel
PIN Overview
Wiring Diagram
Wiring Diagram of AWT100-4GHW (24Vdc Power Supply via default Configuration)
Wiring Diagram of AWT100-4GHW (85~265Vac Power Supply via AWT100-POW Power Moduel)
RS485 to 4G Solution Structure
RS485 to 4G Solution Installation
LoRa to 4G Solution Structure
LoRa to 4G Solution Installation
Outline and Dimension
Benefits of AWT100-4GHW Wireless Communication Gateway
• 1 size
• DC 12-24V
• RS485 modbus-RTU
• TCP / IP protocol
• Transparent transmission, MQTT
• 4G Global
Acrel AWT100-4GHW IoT Smart 4G Gateway
Technical Parameters
| Parameter Name | AWT100-GPS |
AWT100-WiFi
|
AWT100-CE
|
AWT100-DP
|
| Work | Positioning accuracy: 2.5-5m | support 2.4G frequency band WiFi rate: 115200bps |
Ethernet rate 10/100M adaptive
|
Profibus address: 1~125. (Note) |
|
Downlink
|
RS485 Communication | |||
|
Uplink
|
GPS positioning | WiFi wireless |
Ethernet communication
|
Profibus communication |
|
Working current
|
Static power consumption: ≤1W, transient power consumption: ≤3W
|
Static power consumption: ≤0.5W, transient power consumption: ≤1W |
||
|
interface
|
50Ω/SMA（Faucet） |
RJ45
|
DP9 | |
|
Serial port type
|
RS-485 Communication
|
|||
|
Baud rate
|
4800bps、9600bps、19200bps、38400bps（Default 9600bps）
|
|||
|
Operating Voltage
|
DC24V or AC/DC220V①
|
|||
|
Operating temperature
|
-10℃～55℃
|
|||
|
Storage temperature
|
-40℃～85℃
|
|||
|
Humidity range
|
0～95% Non-condensing
|
|||
| Parameter Name | AWT100-4G | AWT100-NB | AWT100-2G | AWT100-LoRa AWT100-LW |
| Working frequency | LTE-FDD B1 B3 B5 B8 LTE-TDD B34 B38 B39 B40 B41 CDMA B1 B5 B8 GSM 900/1800M |
H-FDD B1 B3 B8 B5 B20 | GSM 850 EGSM 900 DCS 1800 PCS 1900 |
LoRa 460 510MHz |
| Transmission rate | LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps |
Maximum downlink rate 25.2Kbps Maximum uplink rate 15.62Kbps |
GPRS Maximum downlink rate 85.6kbps Maximum uplink rate 85.6kbps |
LoRa 62.5kbps |
| Downlink | RS485 Communication | |||
| Uplink | 4G Communication | NB-IoT Communication | 2G Communication | LoRa Communication |
| SIM card voltage | 3V, 1.8V | / | ||
| Working current | Static power: ≤1W, Transient power consumption: ≤3W | Static power: ≤0.5W， Transient power consumption: ≤1W |
||
| Antenna interface | 50Ω/SMA（Faucet） | |||
| Serial port type | RS-485 | |||
| Baud rate | 4800bps、9600bps、19200bps、38400bps（default 9600bps） | |||
| Operating Voltage | DC24V or AC/DC220V | |||
| Operating temperature | -10℃～55℃ | |||
| Storage temperature | -40℃～85℃ | |||
| Humidity range | 0～95% Non-condensing | |||
