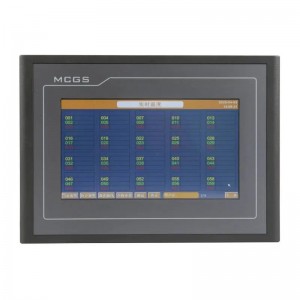

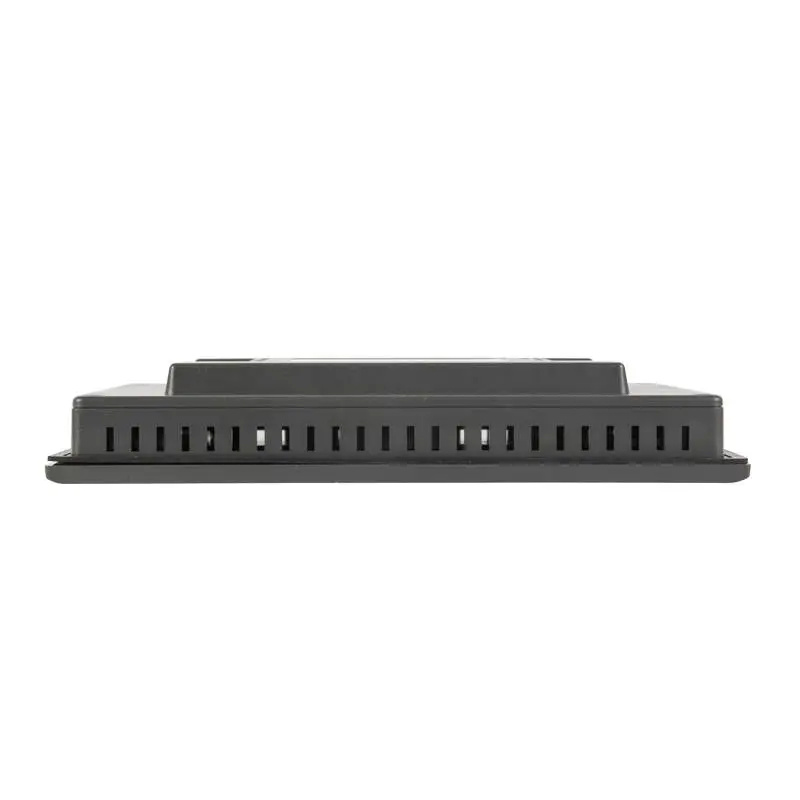

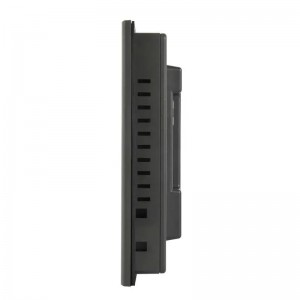

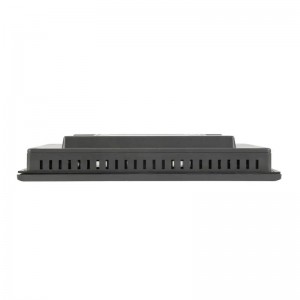

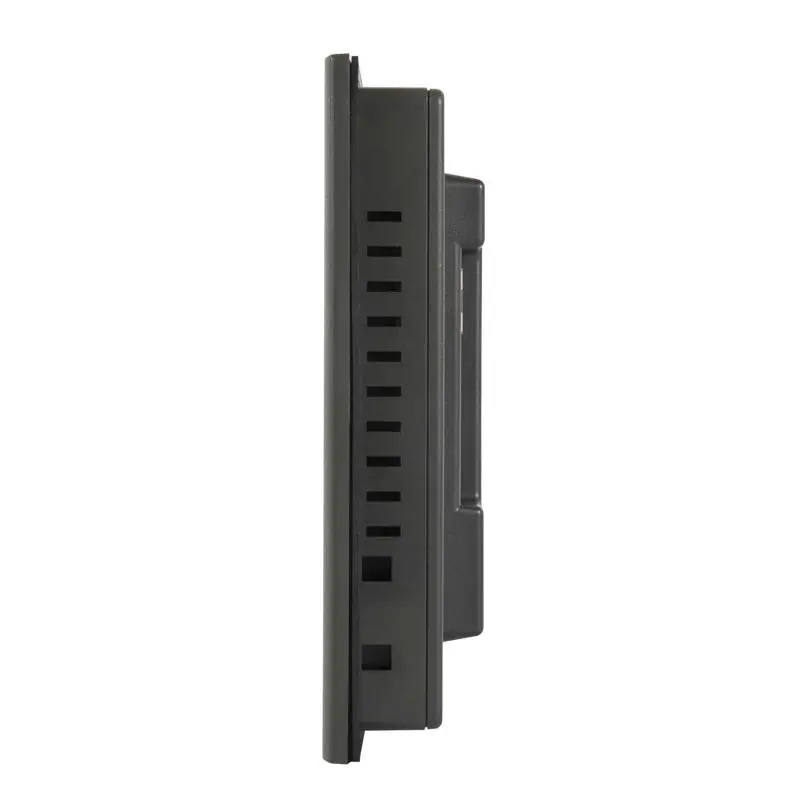

Acrel ATP Series Remote Temperature Data Display Touchscreen
Features
Real-time Temperature Measuring Data Display
● Display Data of up to 240 Temperature Measuring Nodes

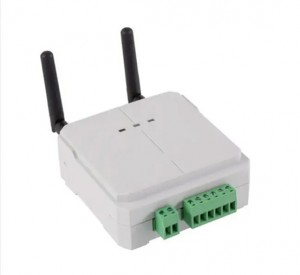

● Paired with ATC600 Transceiver
● Regionalized Temperature Data Display

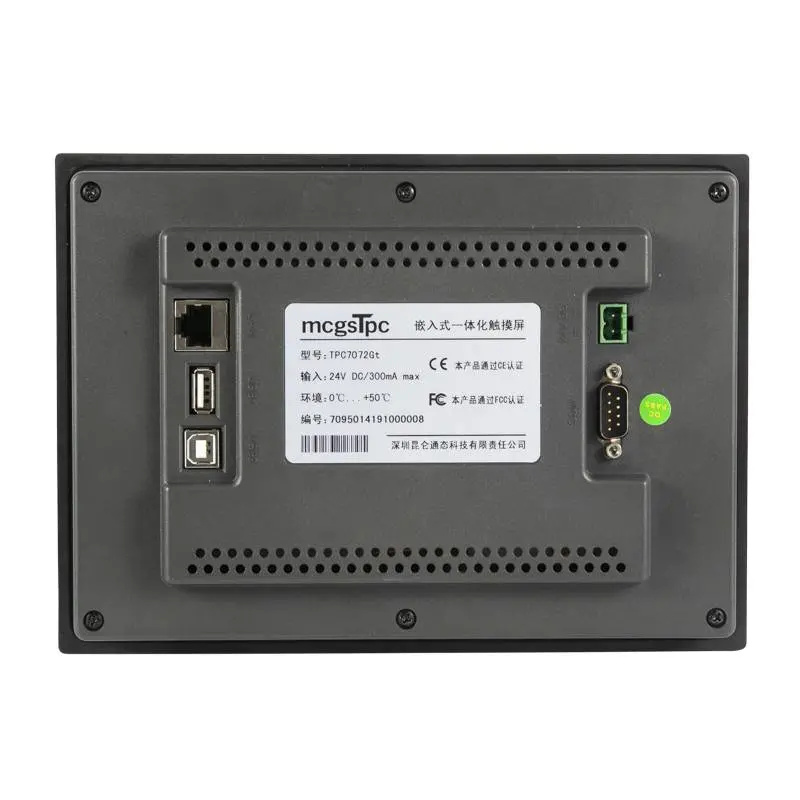

Dual Communication Interface
● 2 RS485 Interface (both upstream and downstream with MODBUS-RTU)
● 1 Ethernet Interface (upstream with MODBUS-TCP)
LCD Display
● 7 Inch
● 10 Inch
Touch Screen Control
● Temperature Monitoring Data Display
● Parameter Setting
● Temperature Sensors Binding Adjustment
● Alarm Display
Display
Typical Connection
Installation
Acrel ATP Series Remote Temperature Data Display Touchscreen
Technical Parameters
| Items |
Features
|
||
|
Type of touch screen
|
ATP007,ATP010
|
||
|
Power source
|
DC 24V（±10%），15W
|
||
|
Points of temperature
|
240 points
|
||
|
Range of temperature
|
-50℃~125℃
|
||
|
Precision
|
±1℃
|
||
|
Battery life
|
≥5 years
|
||
|
Communication
|
Interface
|
RS485/Ethernet
|
|
|
Protocol
|
Modbus-RTU/Modbus-TCP
|
||
|
Environment
|
Temperature
|
0℃~50℃
|
|
|
Humidity
|
≤95%
|
||
|
Altitude
|
≤3000m
|
||
|
Active wired
temperature sensor
|
Active sensor type
|
ATE100M、ATE100、ATE200
|
|
|
Wireless frequency
|
470MHz
|
||
|
Communication distance
|
150m in open area
|
||
|
Sampling frequency
|
25s
|
||
|
Transmission frequency
|
25s-5min
|
||
|
Power source
|
battery
|
||
|
Installation
|
Magnetic / bolted /Belt
|
||
|
Range of temperature
|
-50℃~+125℃
|
||
|
Precision
|
±1℃
|
||
|
Application
|
Joints in high or low voltage switchgears
|
||
|
Battery life
|
≥5 years
|
||
|
Passive wireless
temperature sensor
|
Passive sensor type
|
ATE400
|
|
|
Wireless frequency
|
470MHz
|
||
|
Communication distance
|
150m in open area
|
||
|
Sampling frequency
|
15s
|
||
|
Transmitting frequency
|
15s
|
||
|
Power source
|
CT-powered, starting current≥5A
|
||
|
Installation
|
alloy chip fixing
|
||
|
Sensor probe
|
Alloy base
|
||
|
Range of temperature
|
50℃~125℃
|
||
|
Precision
|
±1℃
|
||
|
Application
|
Joints in high or low voltage switchgears
|
||
|
Outdoor wireless
temperature sensor
|
Active sensor type
|
ATE100P、ATE200P
|
|
|
Wireless frequency
|
470MHz
|
||
|
Communication distance
|
150m in open area
|
||
|
Sampling frequency
|
25s
|
||
|
Transmitting frequency
|
25s-5min
|
||
|
Power source
|
Battery
|
||
|
Installation
|
bolted/Belt
|
||
|
Range of temperature
|
-50℃~+150℃
|
||
|
Precision
|
±0.5℃
|
||
|
Application
|
Voltage switchgears
|
||
|
Battery life
|
≥5 years
|
||
|
Protection level
|
IP68
|
||
