Acrel ATC600 Wireless Temperature Transmitter

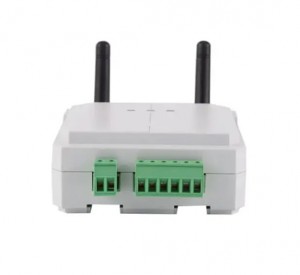

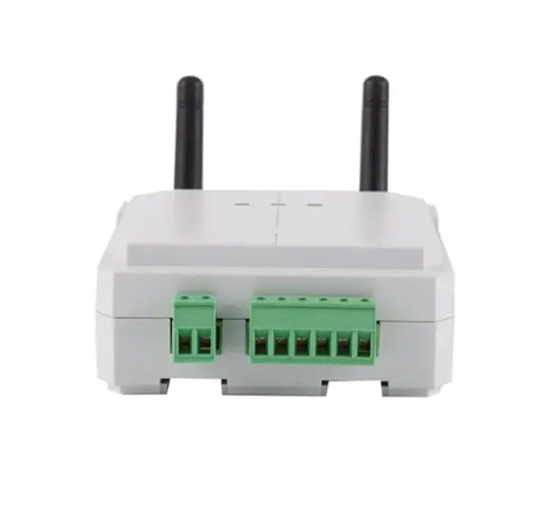

Acrel ATC600 Wireless Temperature Transmitter Featured Image
  • Acrel ATC600 Wireless Temperature Transmitter
  • Acrel ATC600 Wireless Temperature Transmitter
  • Acrel ATC600 Wireless Temperature Transmitter
  • Acrel ATC600 Wireless Temperature Transmitter

Acrel ATC600 Wireless Temperature Transmitter

● Receive Temperature Data: From up to 240 ATE Series Temperature Sensors
● Communication Methods: GFSK (with Temperature Sensors)
● Communication Distance: 1000m in open Area & 100m in Building
● Extra RS485 Communication: MODBUS-RTU
● DO Function: 2 Relay Output
● Dimension: 90*38*90mm (L*W*H)
● Installation: 35mm DIN Rail
● Power Supply: 85~265V AC/DC

Product Detail

Technical Parameters

Download

Product Tags

Acrel ATC600 Wireless Temperature Transmitter

General

ATC600 wireless transceiver is used with ARTM wireless temperature measurement system. It can be used in 3~35kV indoor switch cabinets, including central cabinets, handcart cabinets, fixed cabinets, ring network cabinets and other switch cabinets, and can also be used in 0.4kV low-voltage cabinets , including fixed cabinets, drawer cabinets, etc., using wireless data transmission technology, the monitoring data can be sent in real time, the temperature can be displayed on the spot, or remote intelligent monitoring can be realized.

Features

ATC600 - function - 1_副本

Remotely Receive Temp. Data from up to 240 ATE Series Wireless

● Communication Distance: 1000m in open area (with ATC600-Z relay)

● Communication Distance: 150m in open area (without ACT600-Z relay)

● Receive Temperature Measuring Data from: up to 240 ATE Series Temp. Sensors

ATC600 - feature - 1

DO Function

● 2 Passive Relay Output

● Capacity: 5A/AC 250V, 5A/DC 30V

ATC600 - feature - 2

Extra RS485 Communication

● Can be connected with ATP Temp. Display Device

● Protocol: MODBUS-RTU

● Communication Distance: 400m (in practical)

ATC600 - feature - 3

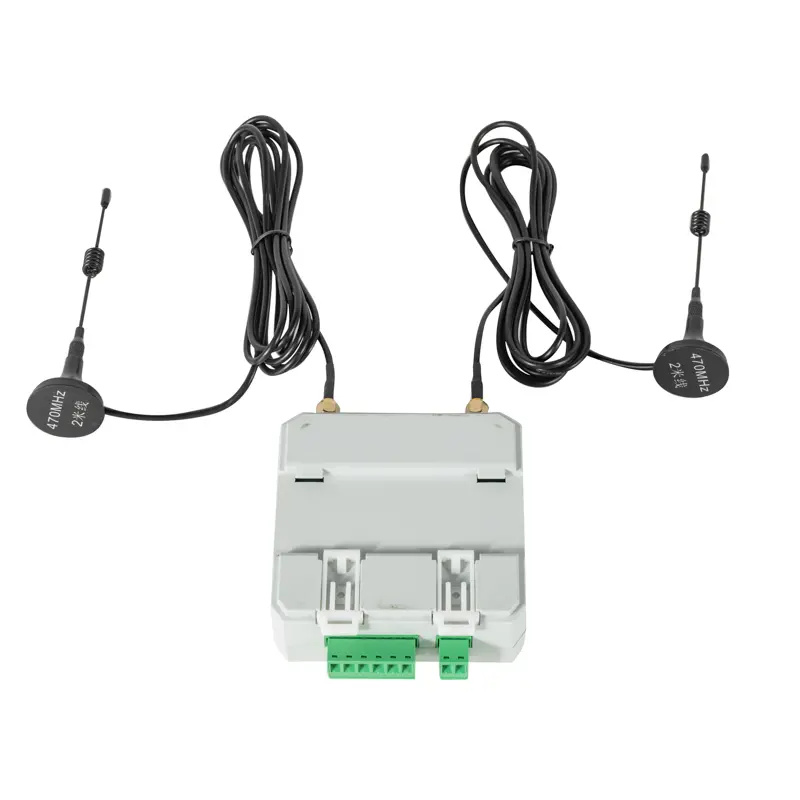

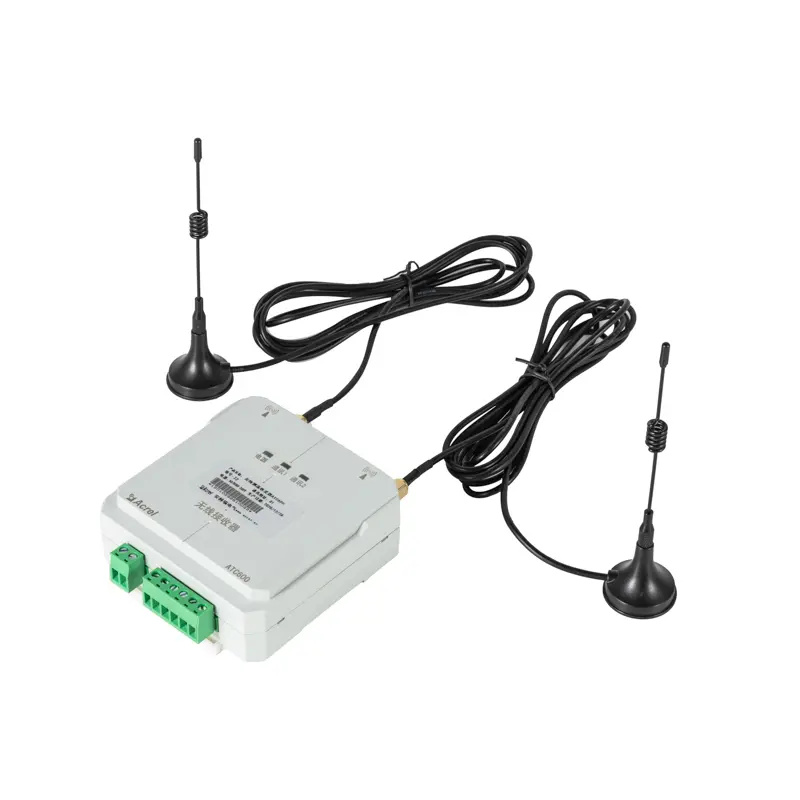

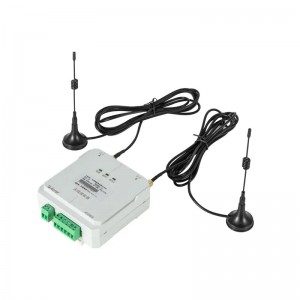

Optional Antenna Shape

● Chuck Antenna

● Baton Antenna

ATC600 - feature - 4

Wiring

ATC600 - Wiring - 1_副本

Cloud+Local Solution

ATC600 - networking - 1

Local Only Solution

ATC600 - networking - 2

Outline and Dimension

diagram-of-atc600-wireless-temperature-transmit

Benefits of  ATC600 Wireless Temperature Transmitter

• Wireless transmit,470MHz

• Wireless distance, Receiver sensor 150m (in open area), Relay distance 1Km (in open area)

• Measuring 240 points

• Power supply, AC/DC100~256V

• Relay output, 2 passive output, capacity 5A/AC250V, 5A/DC30V

• RS485(MODBUS-RTU)

  • Previous:
  • Next:

    • Acrel ATC600 Wireless Temperature Transmitter

    Technical Parameters

    Items
    Features
    ATC600 Transceiver
    Power source
    AC/DC100~265V
    Power Consumption
    ≤2W
    points
    No more than 240 points
    Resolution
    0.1℃
    Range of temperature
    -50℃~+125℃
    Precision
    ±1℃
    Wireless frequency
    470MHz
    Wireless distance
    Receiver sensor 150m (in open area)，Relay distance 1Km (in open area)
    Communication
    RS485
    Protocol
    MODBUS-RTU
    Baud rate (bps)
    2400、4800、9600、19200
    Relay output
    2 passive output，capacity 5A/AC250V，5A/DC30V
    Environment
    Temperature:-20 ℃～+55 ℃；Humidity:≤95%
