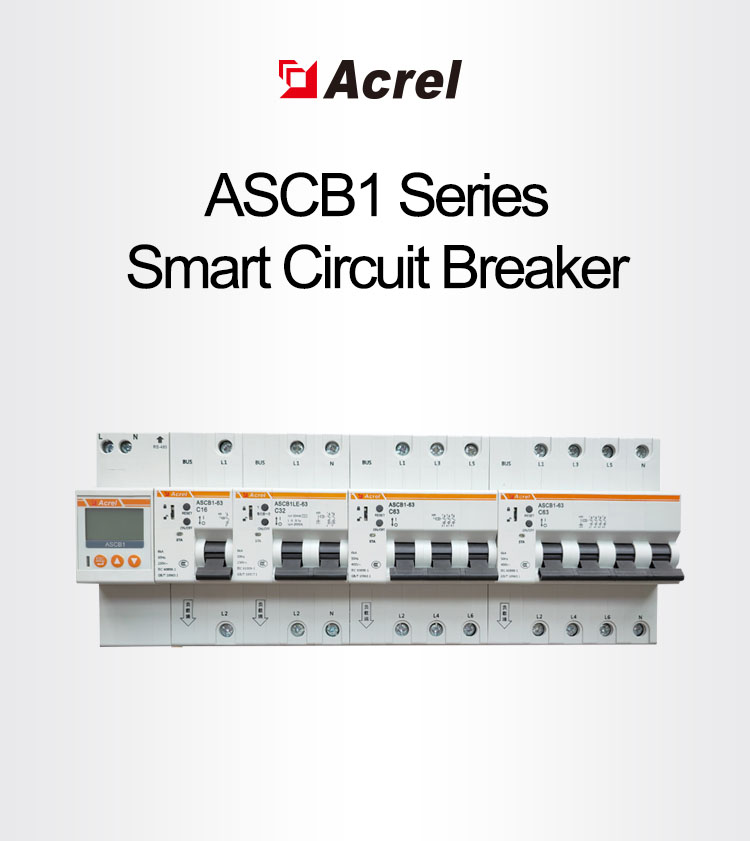

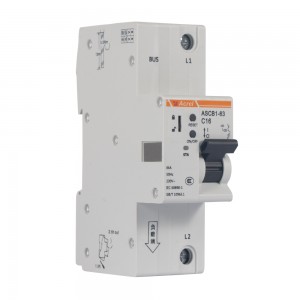

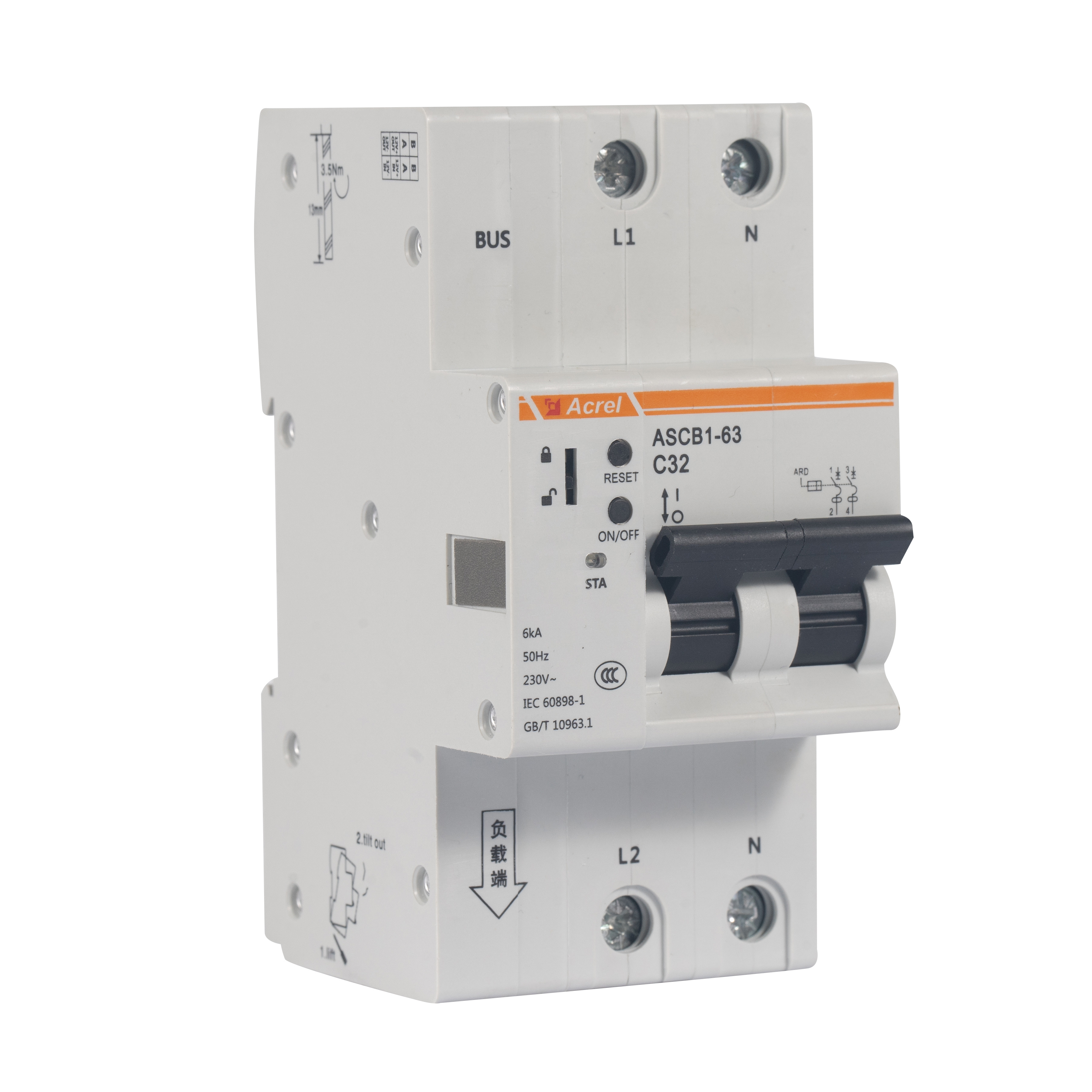

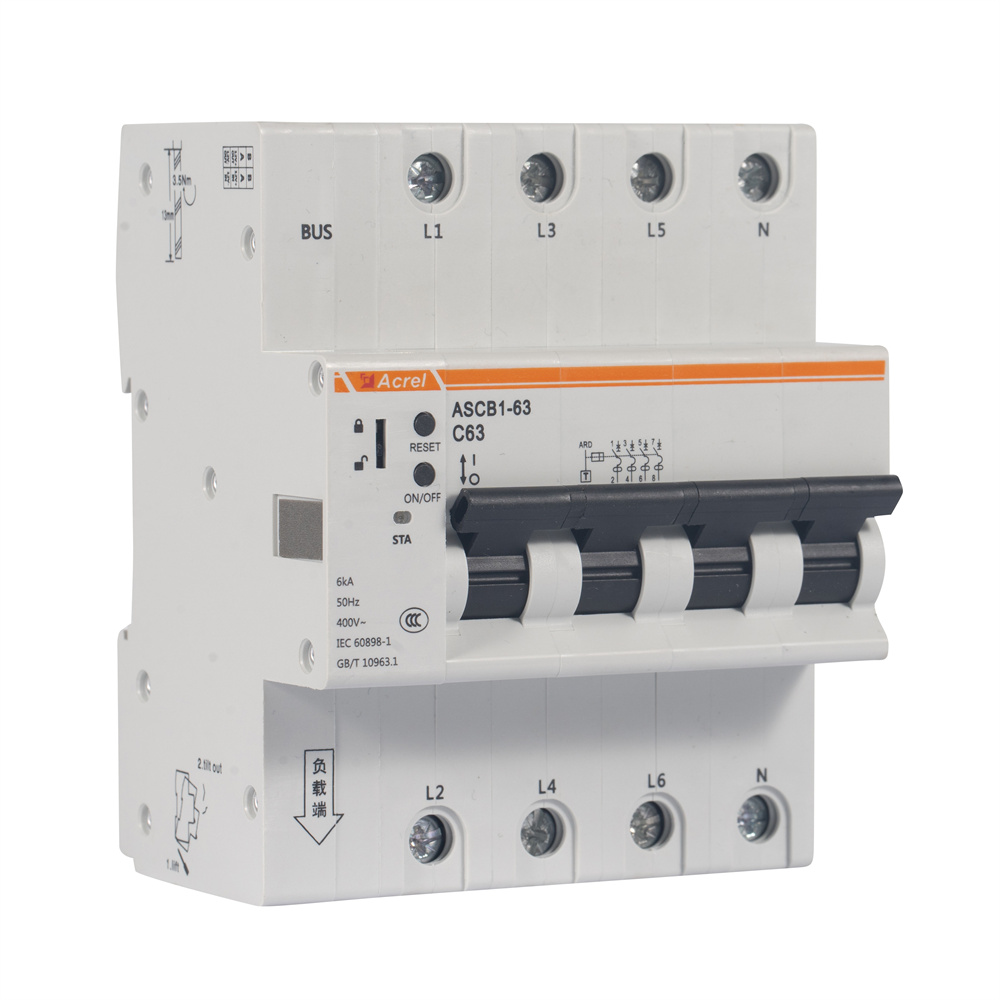

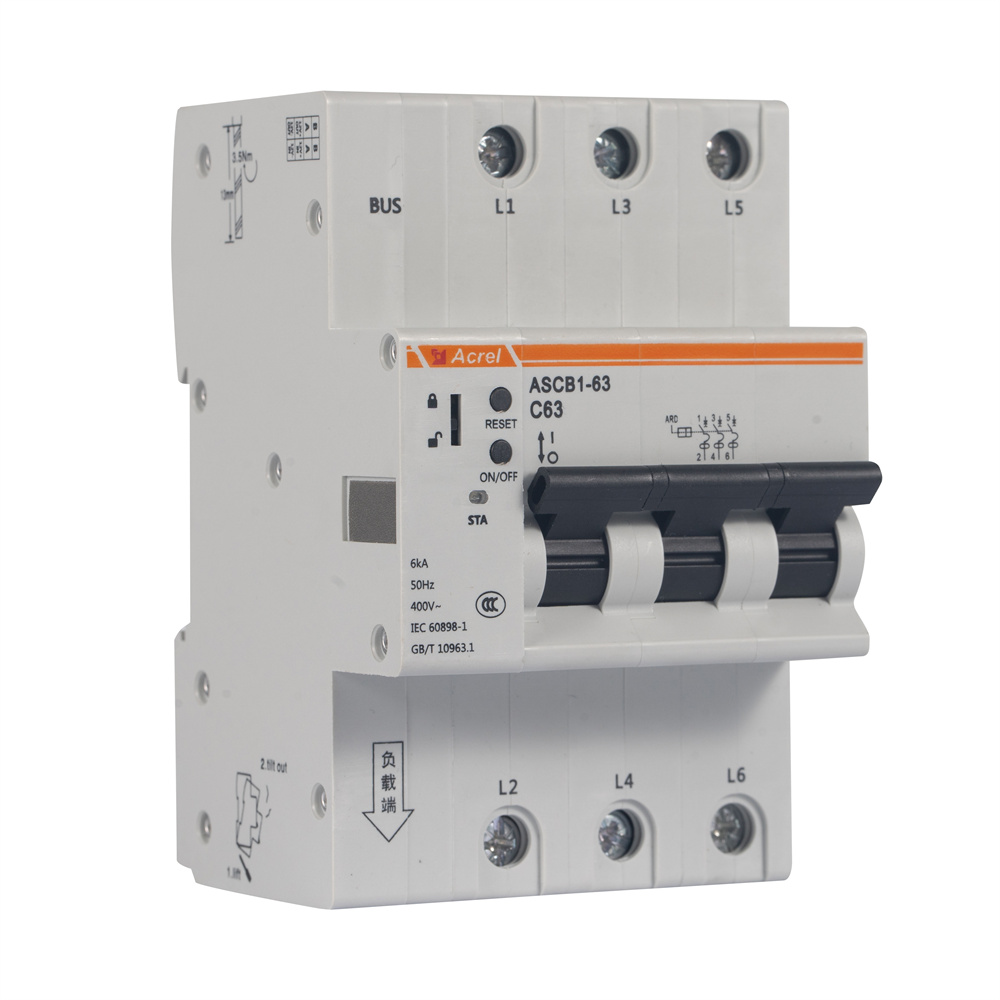

Acrel ASCB1 Series Intelligent MCB for Lighting Management
Acrel ASCB1 Series Intelligent MCB for Lighting Management
General
Acrel smart MCB monitors key electrical factors such as voltage, current, power, temperature, leakage, energy consumption, etc. in real-time in the control of the electrical circuit. It has functions such as remote control, early warning protection, short circuit protection, energy statistics, fault location, etc. Its time control and astronomical clock control functions can achieve timed automatic opening and closing.
Solution Structure of Acrel ASCB1 Series Intelligent MCB for Lighting Management
Benefits of Acrel-2000ES Energy Storage Management System (EMS)
Measurement function
ASCB1 series smart MCB can measure the basic electrical parameters, such as current, voltage, power, energy, etc. as well as the cable temperature.
Protection function
ASCB1 series smart MCB has the protection function of over-current, over-voltage, over-power, over-temperature, under-current, under-voltage, leakage, phase-loss, etc. as well as maintanence.
Alarm information
ASCB1 series smart MCB has the alarm information and can inform users via message, e-mail, WEB or APP.
Remote and local control
ASCB1 series smart MCB can not only controlled locally, but also remotely controlled via Acrel EIOT cloud platform or APP.
Astronomical clock function and timing control
ASCB1 series smart MCB supports setting up by astronomical clock ( sunrise or sunset ) or timing, realizing the automation of turning on/off.
Software Overview of Acrel ASCB1 Series Intelligent MCB for Lighting Management
System
MCB monitoring is a section of Acrel EIOT cloud platform, in which all MCBs can be shown with basic information, such as online/offline, MCB name, line name, project name, current, voltage, etc. There's also batch operation options for turning on/off.
Measurement and control
Inside the page, users can adjust functions and view the real-time data of electrical and non-electrical parameters. Alarm information details are also can be seen here.
Installation of Acrel ASCB1 Series Intelligent MCB
Step1: Use the communication cable provided with the gateway to connect the RS-485 port on the gateway to the BUS port of the circuit breaker.
Step2: Insert the barbed side of the connecting wire of the circuit breaker into the external terminal of the previous circuit breaker toward the outside of the terminal, and the colors should be in one-to-one correspondence.
Step3: Follow steps 1 and 2, and the network connection will be successful.
Wiring of Acrel ASCB1 Series Intelligent MCB
Front view
Top view
On-site Pictures
Acrel ASCB1 Series Intelligent MCB for Lighting Management
Intelligent MCB Technical Parameters
|
Model
|
ASCB1-63
|
ASCB1LE-63
|
|
| Number of poles |
2P/3P/4P/5P
|
3P/5P
|
|
|
Grade of Shell
|
63A
|
||
|
Rated Voltage
|
230V（2P/3P）、400V(4P/5P)
|
||
|
Rated Current
|
6A,10A,16A,20A,25A,32A,40A,50A,63A
|
||
|
Instantaneous Unbuckle Type
|
C/D
|
||
|
Rated Short-circuit Breaking Capacity
|
6000A
|
||
|
Protect
|
Over-current Protection
|
Default 100% rated current alert，
110% Rated current trip with adjustable threshold
|
|
|
Short-circuit Protection
|
C：5-10 Rated current for 0.04 seconds for circuit break protection
D：10-14 Rated current for 0.04 seconds for circuit break protection
|
||
|
Overload Protection
|
Default 100% rated power alert，110% Rated power trip with adjustable threshold
|
||
|
Over-voltage Protection
|
Default 110% rated voltage alert，120% rated voltage trip with adjustable threshold
|
||
|
Under-voltage Protection
|
Default 90% rated voltage alert，80% rated voltage trip with adjustable threshold
|
||
|
Over-temperature Protection
|
Default 80℃ alert，100℃ trip, the threshold is adjustable
|
||
|
Leakage Protection
|
No
|
Manual button self-inspection
|
|
|
Mechanical Life
|
20000 times
|
||
|
Electrical Life
|
6000 times
|
||
|
Levels of Protection
|
IP20
|
||
|
Connection Capacity
|
1-35mm²
|
||
| Altitude |
2000m
|
||
|
Temperature
|
-10℃～55℃，the average temperature at 24h was no higher than 40℃
|
||
|
Environmental
|
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
|
||
|
Relative Humidity
|
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
|
||
|
Storage Temperature
|
-20℃-70℃
|
||
|
Class of Pollution
|
Ⅱ
|
||
|
Installation Type
|
Ⅲ
|
||
|
Way to Installation
|
Standard 35mm guide rail installation
|
||
Gateway Technical Parameters
| Product Model |
ASCB1-MS-4GUE / ASCB1-MS-4G
|
ASCB1-MS-WF
|
ASCB1-MS-CE
|
ASCB1-MS
|
|
Power Supply
|
AC 220V
|
|||
|
Consumption
|
≤30W | |||
|
Communication
|
4G
|
Wi-Fi
|
Ethernet
|
RS485
|
|
Display
|
LCD dot-matrix
|
|||
|
Incident Record
|
Up to 20 alarm, fault and action records each
|
|||
|
Protocol
|
Modbus、MQTT and so on
|
|||
|
Altitude
|
2000m
|
|||
|
Temperature
|
-10℃-45℃，24h the average temperature is not higher than 35℃
|
|||
|
Environmental
Requirements
|
No explosion hazard, no conductive dust, no sufficient corrosion of metal and damaged insulation, no significant vibration
|
|||
|
Relative Humidity
|
At + 40℃, the relative humidity of the air is 50% and can have high relative humidity at lower temperatures
|
|||
|
Storage Temperature
|
-20℃-70℃
|
|||
|
Levels of Protection
|
IP20
|
|||
|
Installation
|
Standard 35mm guide rail installation
|
|||
