Acrel ARTM-Pn Temperature Data Display Device

Acrel ARTM-Pn Temperature Data Display Device

● Receive&Display Temperature Data: From up to 60 ATE Temperature Sensors

● Communication Methods: GFSK (with ATE Temperature Sensor)

● Communication Distance: 150m in open Area & 15m in Building

● Extra RS485 Communication: MODBUS-RTU

● DO/DI Function: 2 Over-temp Alarm Relay Outputs & 4 Digital Inputs

● Dimension: 96*82*96mm (L*W*H)

● Installation: Panel Mounted (Cut-out Dimension–92*92mm)

● Electric Parameter Measurement: U,I,P,Q,F,kWh,kVarh (Optional)

● Standard&Certificate: CE

Send email to us

Product Detail

Technical Parameters

Download

Product Tags

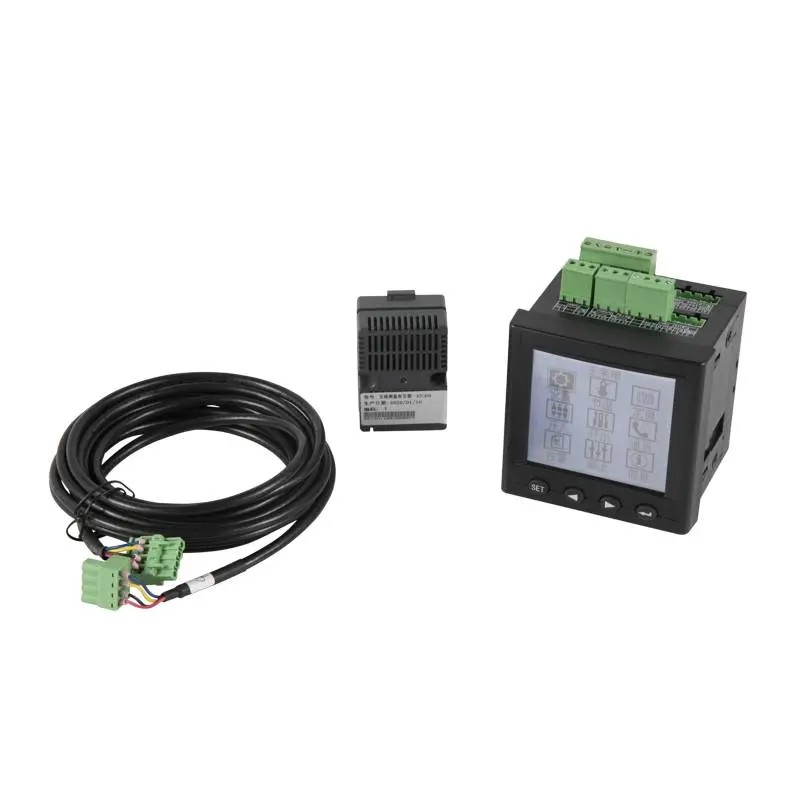

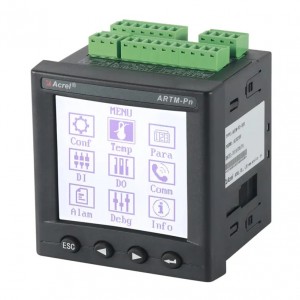

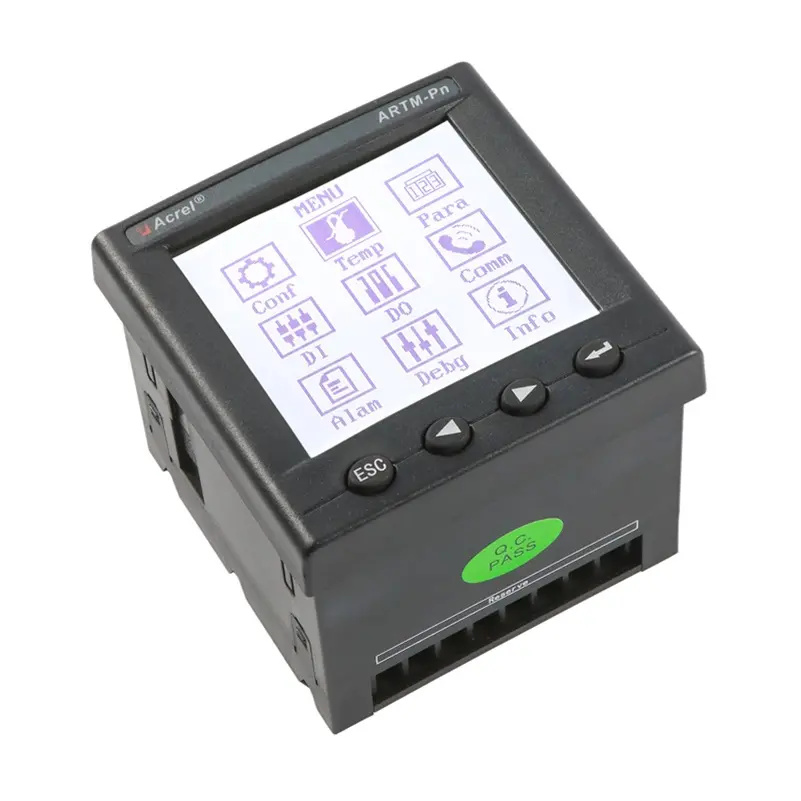

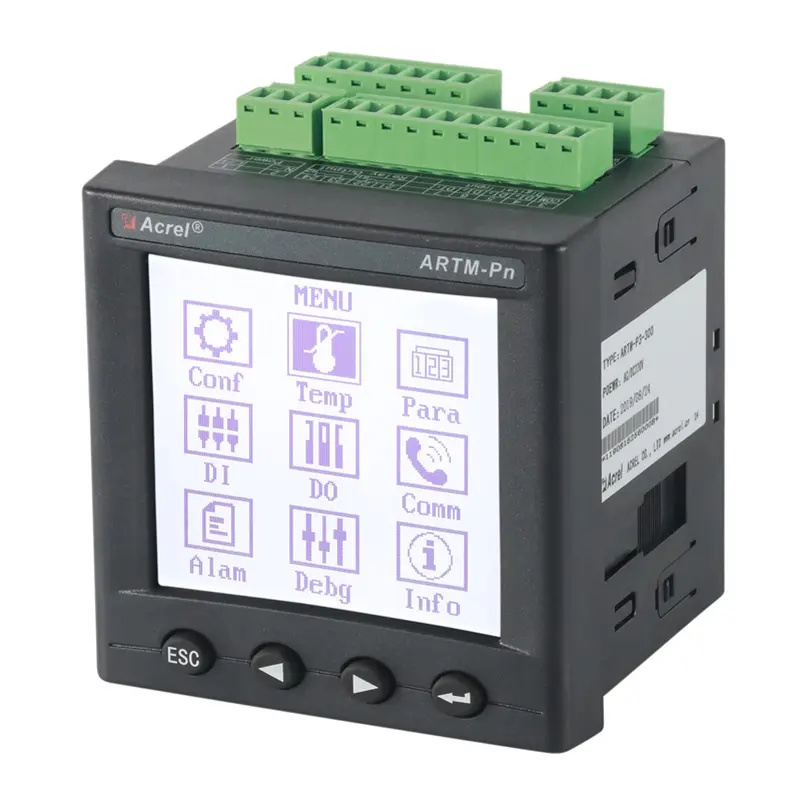

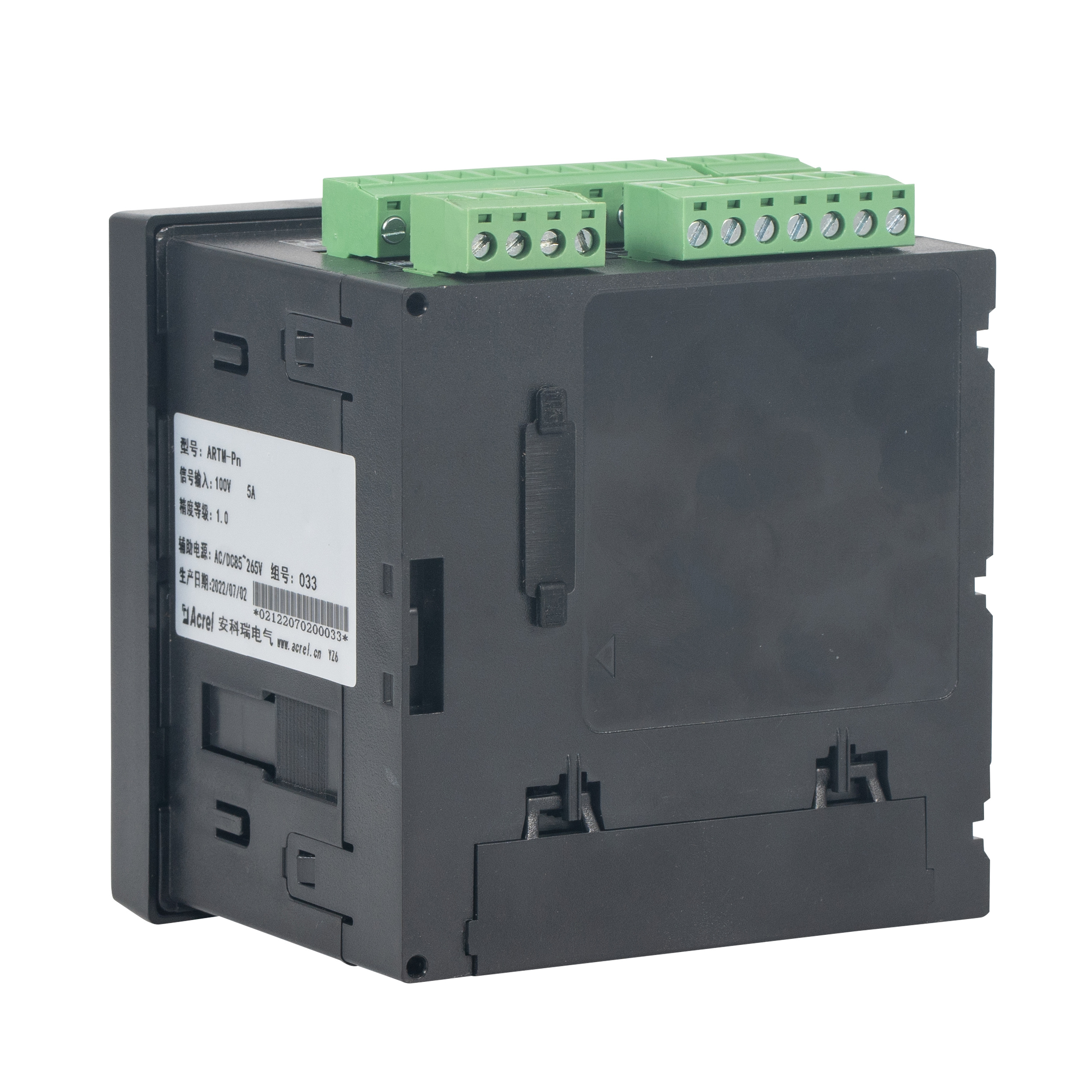

Acrel ARTM-Pn Temperature Data Display Device

General

ARTM-Pn wireless temperature measuring equipment has been developed in compliance with specification for Wireless Temperature Measuring equipment, NB/T 42086-2016.

It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears.

It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears.

Features

Real-time Temperature Monitoring Data Display

● Display Data of up to 60 ATE Series Temperature Sensors

● Paired with ATC450 built-in Transceiver

● Regionalized Temperature Data Display

DO/DI Function

● 2 DO (high temperature alarm& over temperature alarm)

● 4 DI (built-in 12V power source)

Keypads for Programming

●Temperature Monitoring Data Display

● Parameter Setting

● Temperature Sensors Binding Adjustment

● Alarm Display

Optional Electric Parameters Measuring Function

● U (Voltage)

● I (Current)

● P (Power)

● Q (Reactive power)

● F (Frequency)

● kWh (phase positive Kilowatt-hours)

● kVarh (Kilovar-hours)

Display

Cloud+Local Solution

Local Only Solution

Installation

ACE100 wireless temperature and current compounding transformer uses snap-in installation method. When installing, the sensor shall be tightly attached to the cable to be tested, and the CT snap shall be fully fastened. When the current inside the cable is less than the start-up current for the transformer, it uses battery inside to operate, if the current is greater than the start-up current of the transformer, it will sense the power to save battery power.

Benefits of ARTM-Pn Temperature Data Display Device

• Wireless temperature measurement, maximum measuring 60 points

• 4 digital inputs

• 2 alarm relays

• LCD display

• Auxiliary power supply adapts with AC220V, DC220V, DC110V, AC110V

• 1 RS485 serial communication, Modbus-RTU

Previous: Acrel ACE100-29 Wireless Temperature Measuring Sensor

Next: Acrel ATP Series Remote Temperature Data Display Touchscreen

Acrel ARTM-Pn Temperature Data Display Device

Technical Parameters

Items		Features
Rated input	Wiring mode	3P3L or3P4L
	Voltage	100V/400V
	Current	5A
	frequency	50Hz
Accuracy rating	Current、Voltage	0.5 class
	Active power	0.5 class
	Reactive power	0.5 class
	Energy	0.5 class
Power Source		AC85~265V，DC100~300V
Power Consumption		8W
Communication	Protocol	Modbus-RTU
	Baud rate (bps)	2400、4800、9600、19200
Environment	Temperature	-20℃~55℃
	Humidity	≤95%
	Atmospheric pressure	86kPa~106kPa
MTBF		≥50000 h
Active wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s~5min
	Power source	Battery
	Installation	Magnetic /Belt
	Range of temperature	-50℃~+125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
	Battery life	≥5 years
Passive wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	15s
	Transmission frequency	15s
	Power source	CT-powered, starting current≥5A
	Installation	Alloy chip fixing
	Sensor probe	Alloy bottom
	Range of temperature	-50℃~125℃
	Precision	±1℃
	Application	Joints in high or low voltage switchgears
Outdoor wireless temperature sensor	Wireless frequency	470MHz
	Communication distance	150m in open area
	Sampling frequency	25s
	Transmitting frequency	25s~5min
	Power source	Battery
	Installation	Belt
	Range of temperature	-50℃~+150℃
	Precision	±0.5℃
	Application	Outdoor voltage switchgears
	Battery life	≥5 years
	Protection level	IP68
