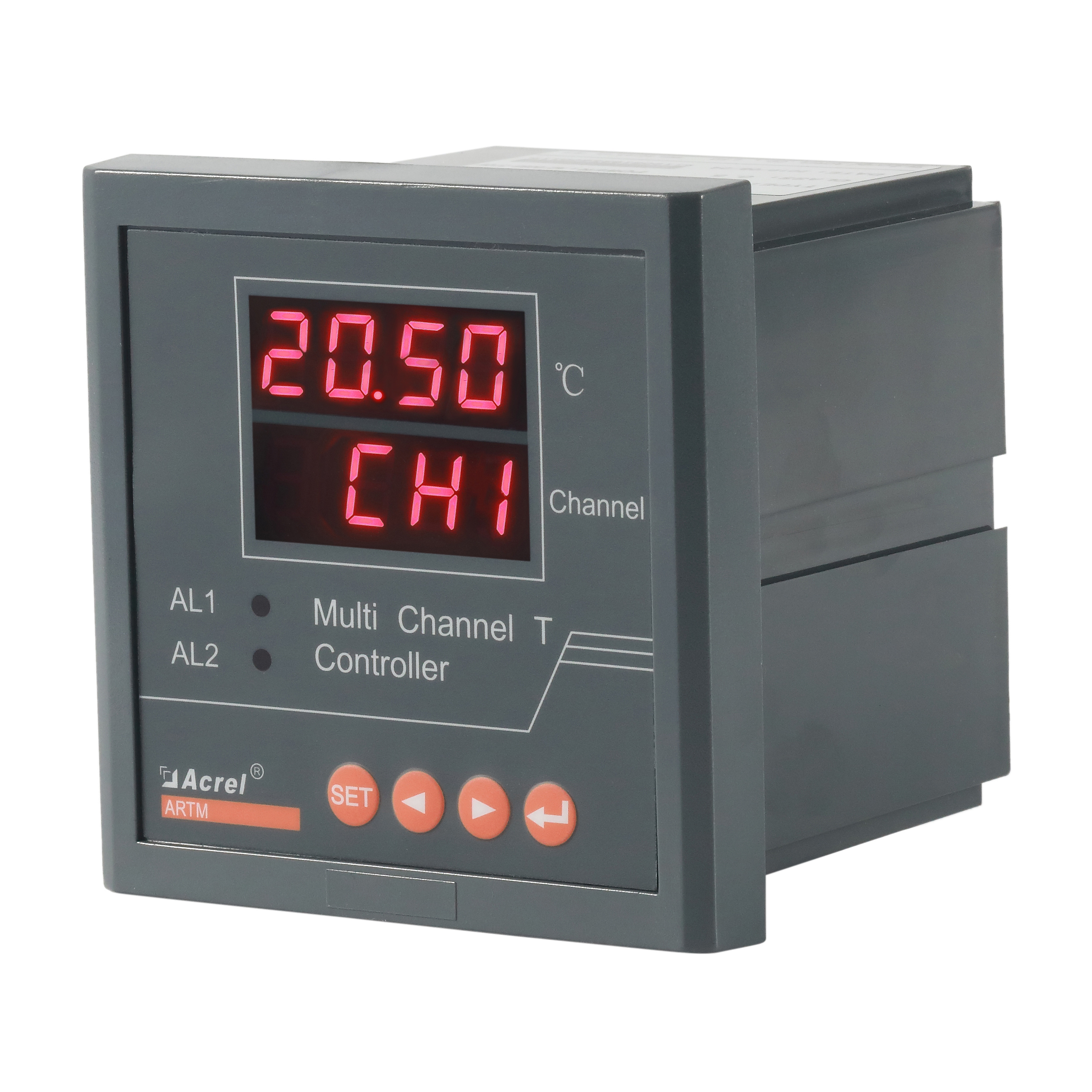

Acrel ARTM-8 PT100 Input Temperature Monitor In Cabinet
Acrel ARTM-8 PT100 Input Temperature Monitor In Cabinet
General
ARTM-8/24 series multi-input temperature controller can measure and control multi temperature signals.
It is mainly applied to temperature survey and control in thermal power plant and water power plant.

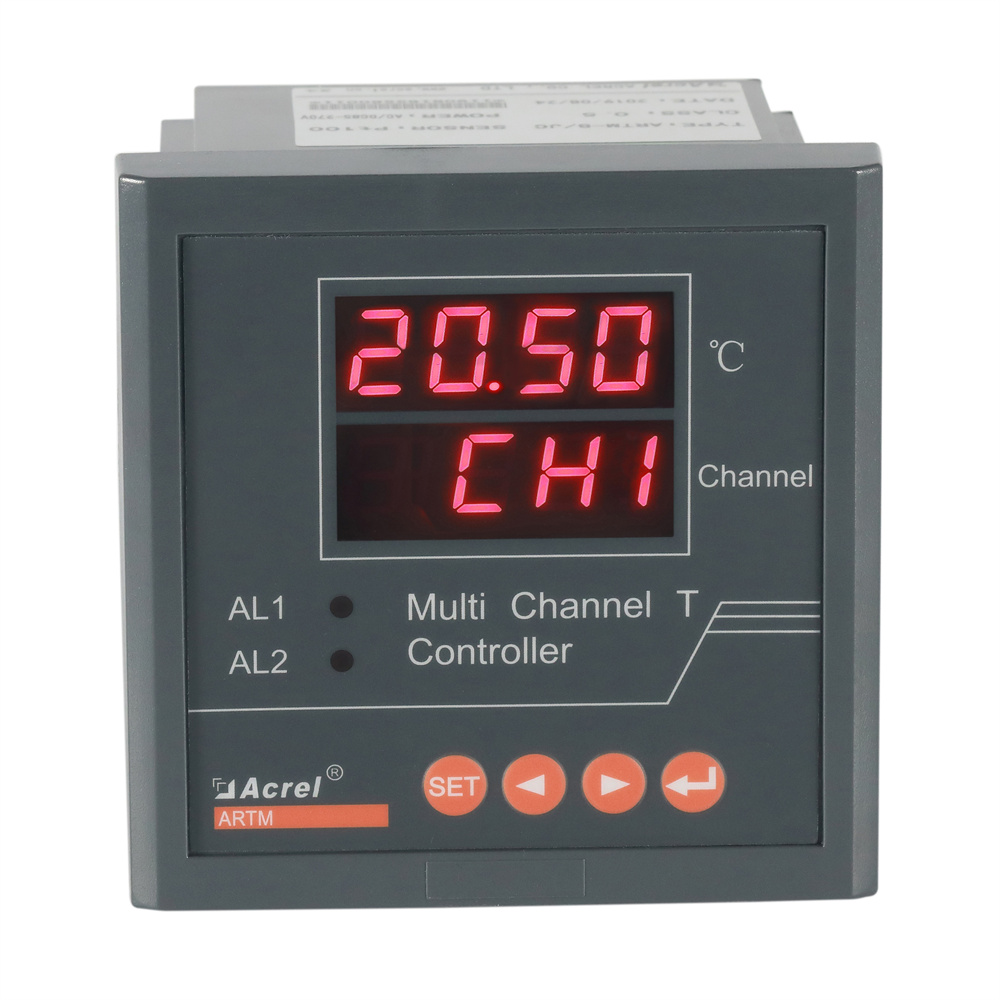

Display

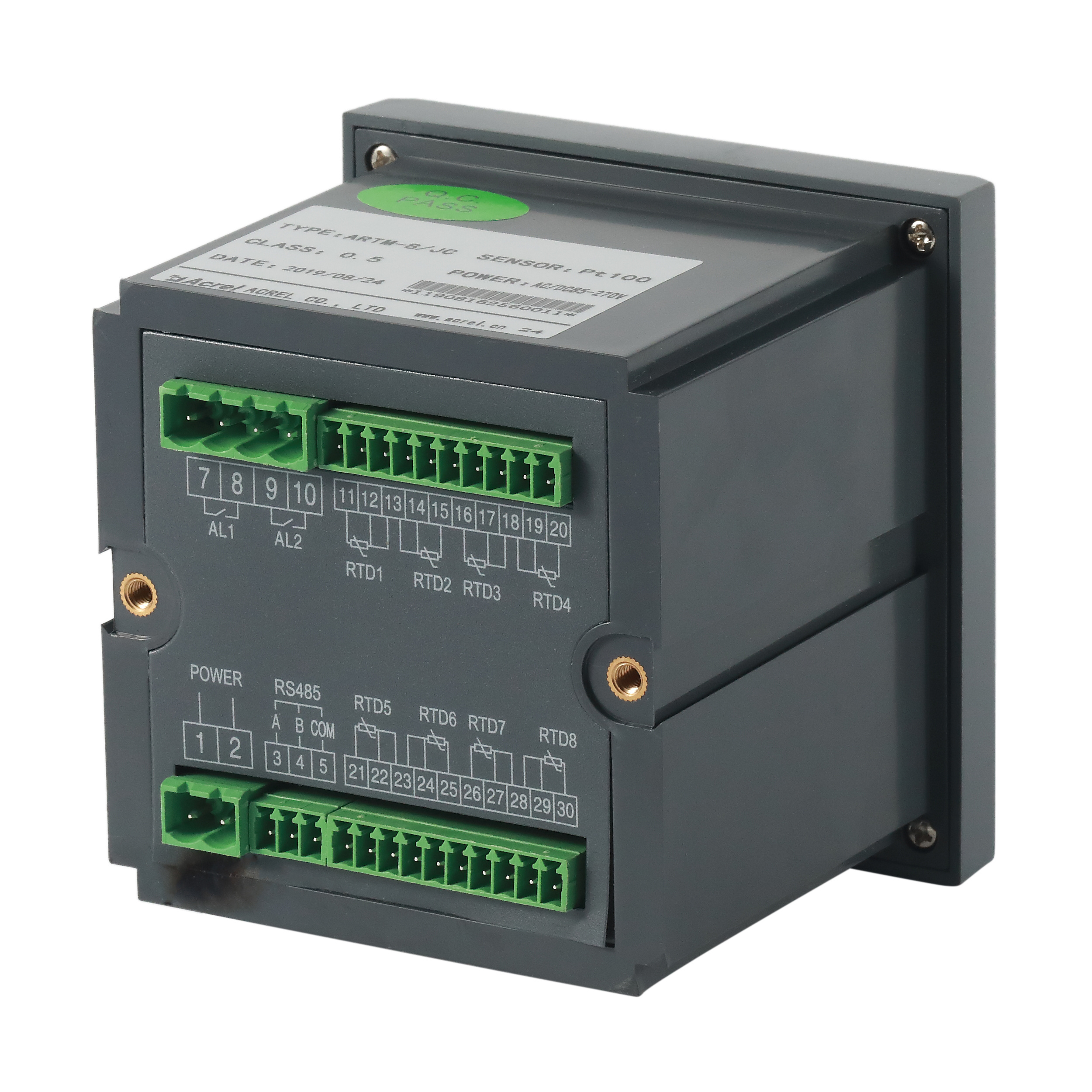

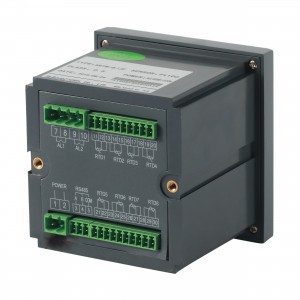

Typical Connection
Outline and Dimension
Benefits of ARTM-8 PT100 Input Temperature Monitor In Cabinet
• 8 PT100 measurement
• 2 Alarm relays
• LED display
• Auxiliary power supply adapts with AC220V, DC220V, DC110V
• 1 RS485 serial communication, Modbus-RTU
Acrel ARTM-8 PT100 Input Temperature Monitor In Cabinet
Technical Parameters
| Model | ARTM-8 | ARTM-24 | |
|
Channels
|
8
|
24
|
|
|
Inputs
|
Thermal resistance: Pt100
|
||
| Accuracy | 0.5S | ||
| Alarm | 2 groups normally open, Capacity AC250V/5A, DC30V/5A | ||
| Auxiliary power supply | AC85-265V, DC100-350V | ||
| Power consumption | ≤2W | ||
| Capacity | AC250V/5A; DC30V/5A | ||
| Baud rate(bps) | 1200, 2400, 4800, 9600,19200 | ||
| Isolation | 2kV/1min AC effective value | ||
| Communication | RS485 MODBUS-RTU | ||
| Cut-out | 88*88mm | ||
| Temperature | Working: -10℃~+55℃, Storage: -25℃~+70℃ | ||
| Humidity | ≤95%(no condensation) | ||
| Altitude | <2000m | ||
