Acrel ARD3 Motor Protect Controller
Acrel ARD3 Motor Protection Controller
General

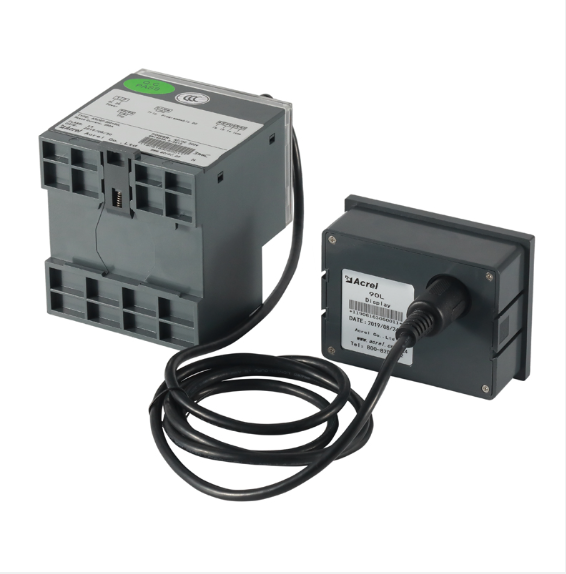

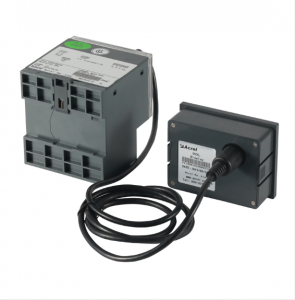

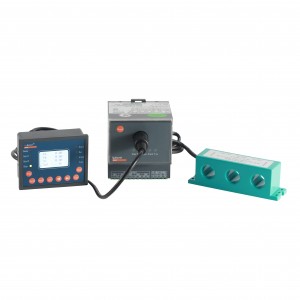

ARD3 smart motor protectors can protect motors from many faults during the motor running and display the running state clearly and intuitively through LCD. The protector has RS485 remote communication interface and DC4-20mA analog output, which is convenient to form a network system together with control machines like PLC and PC.
Functions
Accuracy
U, I: Class 1.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC85V-265V/DC100V-350V
SOE event recorder
Record 8 fault messages
Installation:
Main body: DIN 35mm
Display unit: Panel mounted
Dimension(L*W*H)：
81.5mm*86mm*90mm
Installation dimension of transformer
Network
Benefits of ARD3 Motor Protection Controller
• U, I, P, S, PF, F, EP, Leakage, PTC/NTC
• 16 protect function
• Start control function
• 9 programmable DI
• 5 programmable DO
• Modbus-RTU or Profibus-DP communication
• 1 DC4-20mA analog output
• 20 fault record
• Anti-shaking function
Outline and Dimension
Applications
Acrel ARD3 Motor Protect Controller
Technical Parameters
|
Technical parameters
|
Index | |
| Protector auxiliary power supply | AC85-265V/DC100-350V, power comsumption 15VA | |
| Rated working voltage of the motor | AC380V / 660V, 50Hz / 60Hz | |
| Rated operating current of the motor | 1 (0.1A-5000A) | Small special current transformers |
| 5 (0.1A-5000A) | ||
| 25（6.3A-25A） | ||
| 100（25A-100A） | ||
| 250（63A-250A） | Special current transformers | |
| 800（250A-800A） | ||
| Relay output contact capacity | Impedance load | AC250V、10A |
| Relay output contactor | 5 channels,AC 250V 6A | |
| rated negative capacity | ||
| Switching input | 9 channels, opto-coupler isolation | |
| Communication | RS485 Modbus_RTU, Profibus_DP | |
| Environment | Working temperature | -10ºC～55ºC |
| Storage temperature | -25ºC～70ºC | |
| Relative humidity | ≤95﹪No condensation, no corrosive gas | |
| Altitude | ≤2000m | |
| Pollution levels | Class 2 | |
| Protection grade | Main body IP20, split display module IP54 (installed on the cabinet panel) | |
| Installation category | Level III | |
1. Manual for Acrel ARD3 Motor Protect Controller
2. Installation and Use for Acrel ARD3 Motor Protect Controller
3. Debugging Software for Acrel ARD3 Motor Protect Controller
