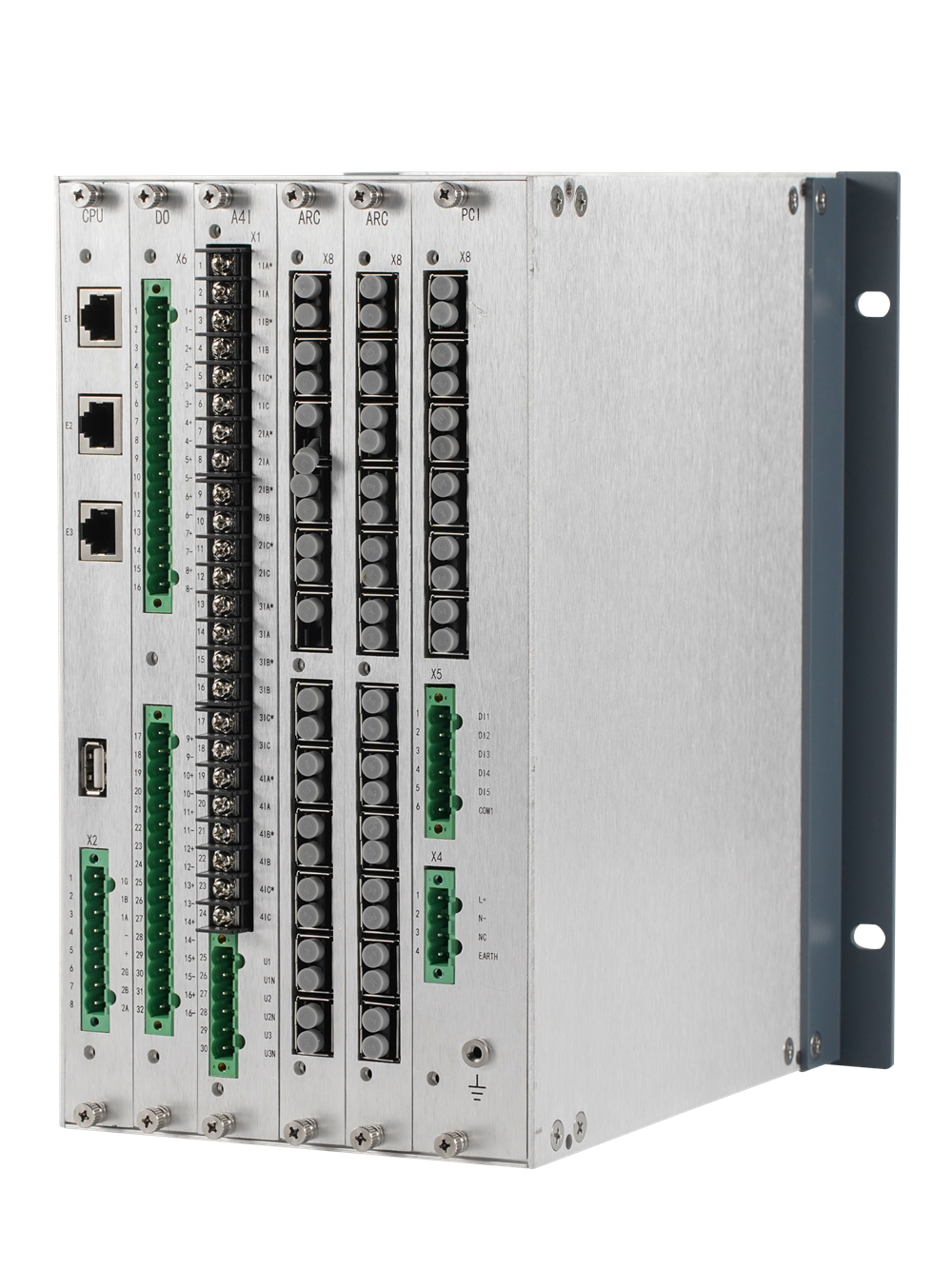

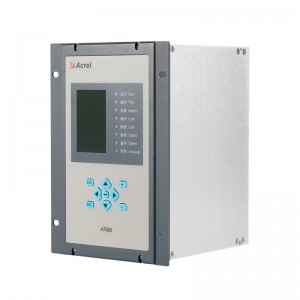

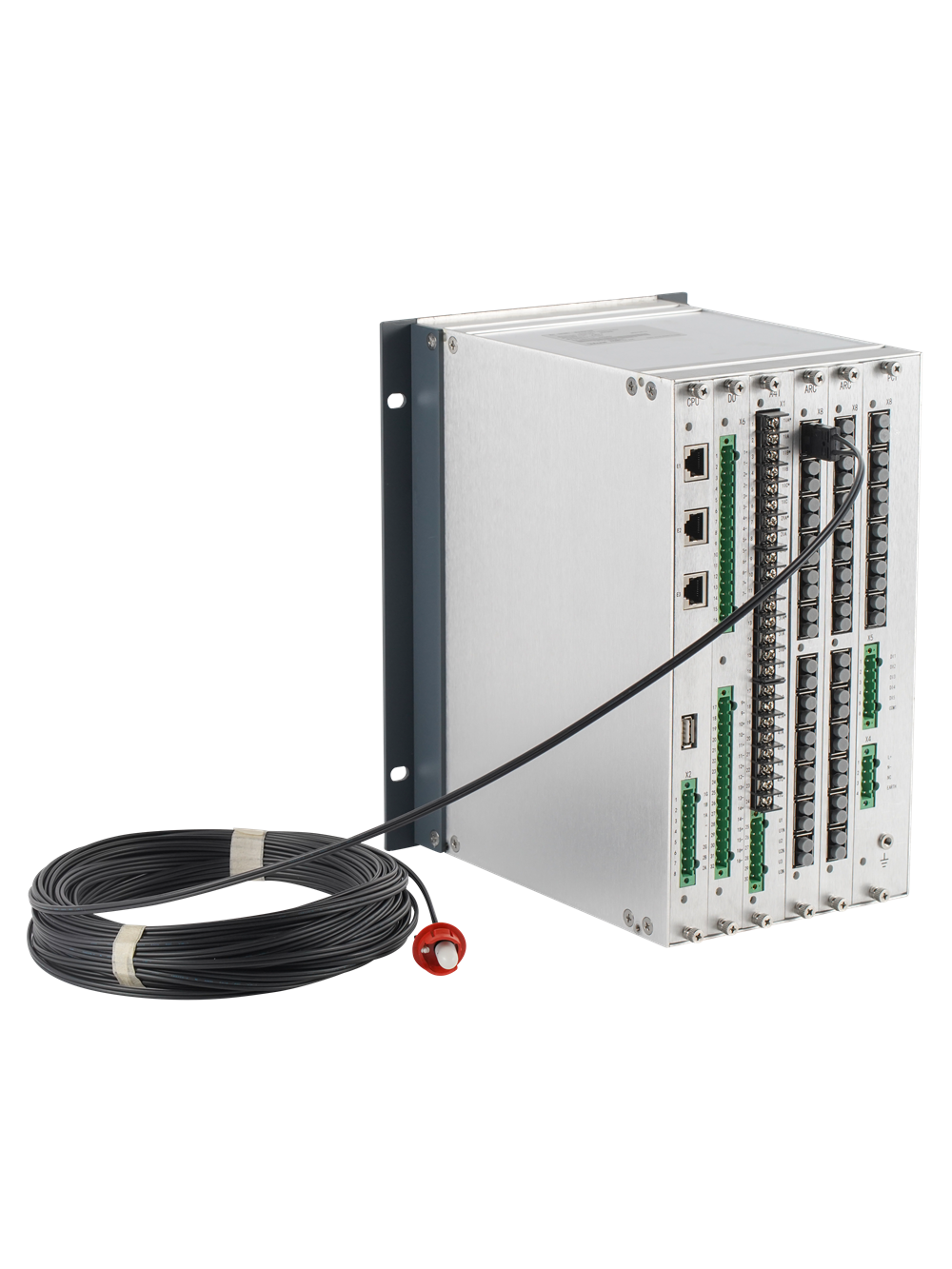

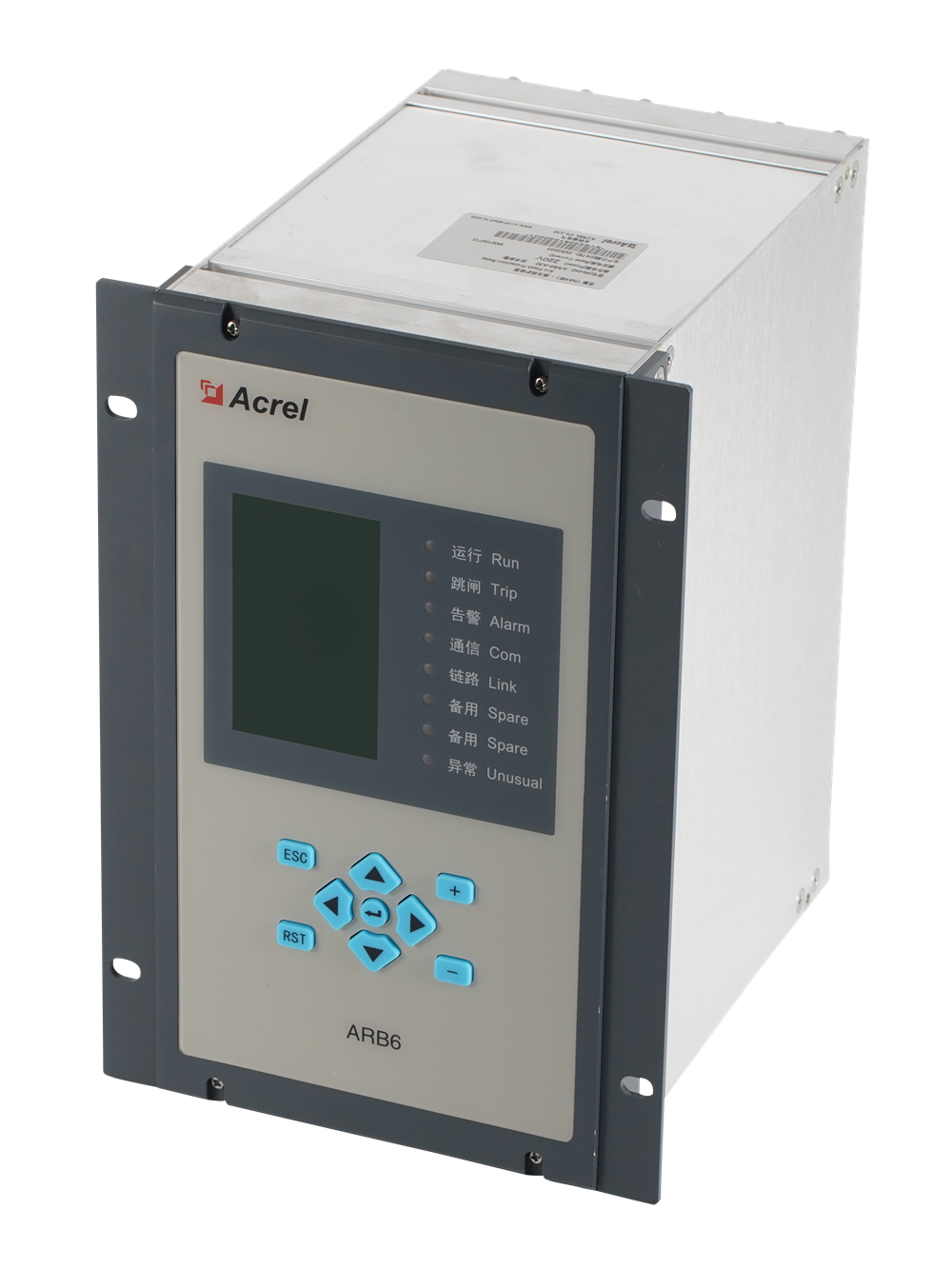

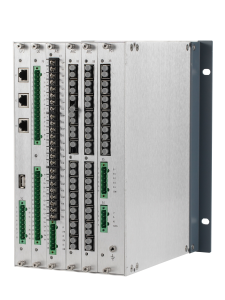

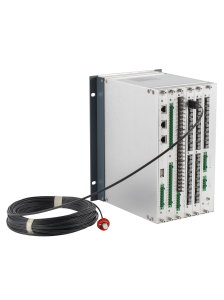

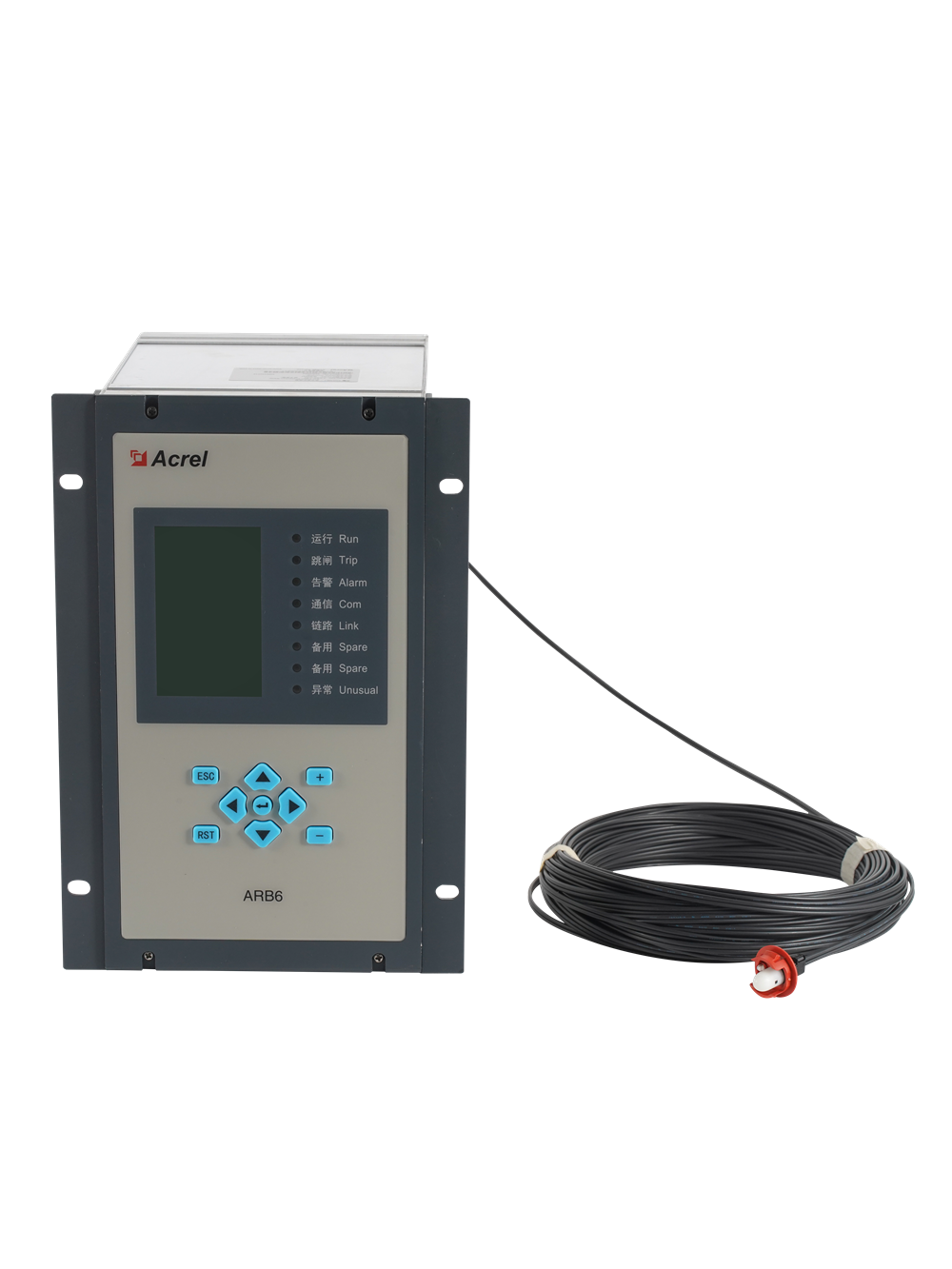

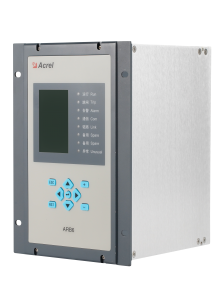

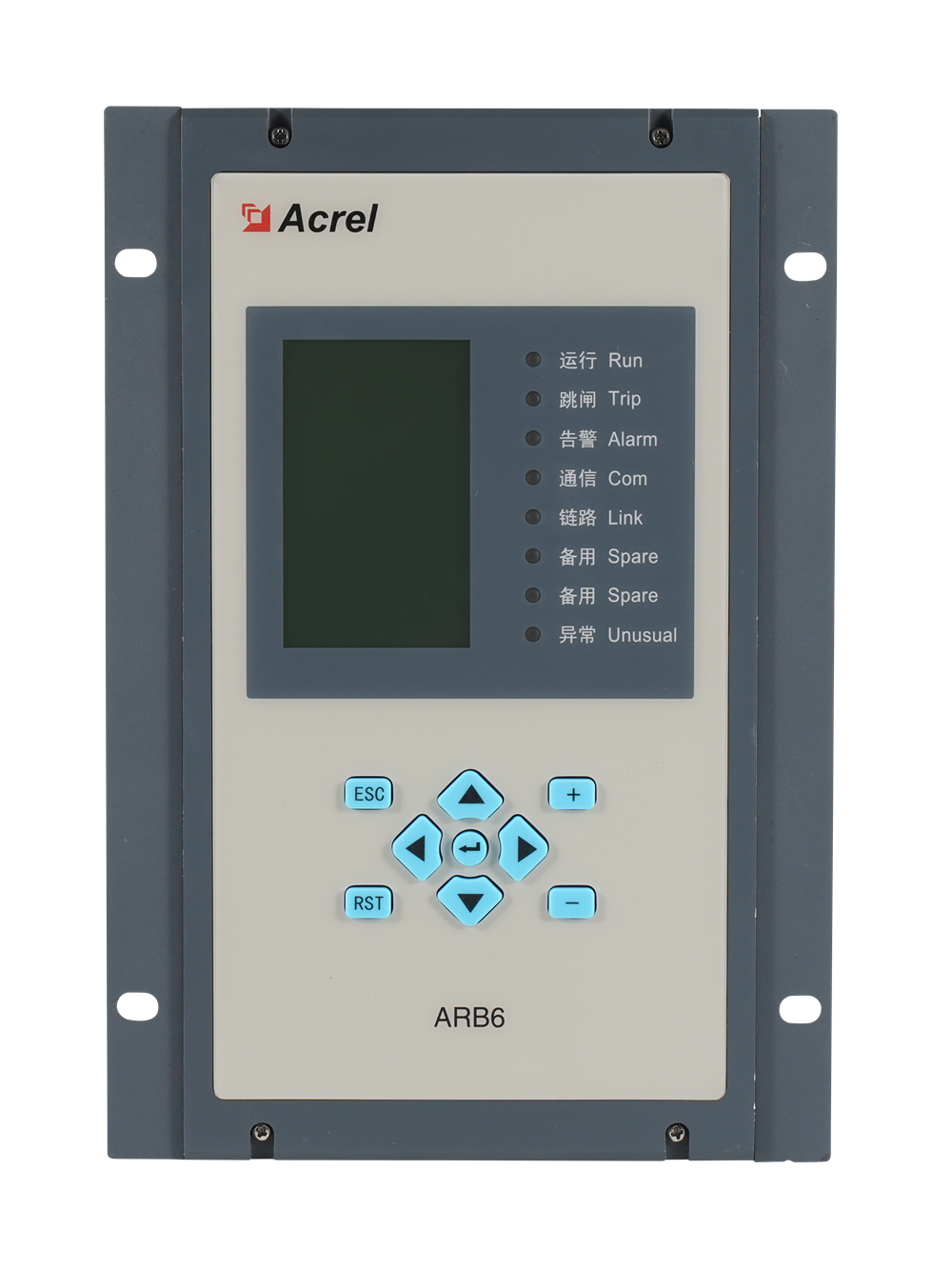

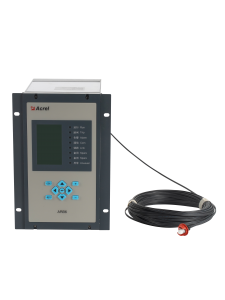

Acrel ARB6 Arc Flash Protection Relay
Acrel ARB6 Arc Flash Protection Relay
General
Acrel ARB6 series arc protection device adopts a modular design (including power module, CPU module, arc acquisition module, analog acquisition module, input/output module, communication module, human-machine interface module, etc.), integrating multiple functions such as protection, measurement, monitoring, control, communication, fault recording, event recording, etc., to monitor arc signals, protection current or voltage signals in real time, Implement arc protection function for 0.4kV~35kV medium and low voltage distribution systems. The device software is equipped with specialized protection algorithms, which have strong anti-interference performance, high reliability, flexible protection implementation methods, and can be used in conjunction with the Acrel-2000 power monitoring system, providing guarantees for the safe and reliable operation of the power system.
Typical Connection
Features
• Customize multiple groups of arc protection logic
• Arc light fault point localization
• Real time self inspection of arc probe and fiber optic link
• The arc action value can be freely adjusted
• 4 sets of failure protection
• 4 sets of non battery protection
• CT disconnection alarm
• 4 sets of current circuit TA monitoring
• Device fault alarm
• Maintenance status lock
• Supports Modbus RTU/Modbus TCP/IEC103
Detection range:
• Angle ≥ 180 °
• Radius ≥ 0.5m
• Sensitivity type: visible light/ultraviolet light
Features:
• Equipped with filtering function
• Passive arc light sensor
• Real time self inspection of probes and fiber optic links
• Arc optical fiber: double stranded, flame retardant
• No metal parts, no electrical safety hazards
Installation
Outline and Dimension
On-site Pictures
Acrel ARB6 Arc Flash Protection Relay
Models
| Model / Function |
ARB6-A6 |
ARB6-A12 |
ARB6-A18 |
ARB6-A24 |
ARB6-A30 |
||
|
Hardware |
Arc sensor signal acquisition |
6 |
12 |
18 |
24 |
30 |
|
|
Current collection |
4 sets of 3-phase currents, a total of 12 current channels |
||||||
|
Voltage acquisition |
3 zero sequence voltages, a total of 3 voltage channels |
||||||
|
Digital Input |
5 |
22 |
5 |
22 |
5 |
||
|
Digital Output |
14 normally open exits (including 4 High speed relay outlet) and 2 normally closed exits |
||||||
|
2 485 interface |
√ |
||||||
|
1 Ethernet interface |
√ |
||||||
|
3 Ethernet interface |
■ |
||||||
|
GPS timing interface |
√ |
||||||
|
USB interface |
√ |
||||||
|
Function |
Arc protection |
Arc criterion |
√ |
||||
|
Arc&Current criterion |
√ | ||||||
|
Arc&Voltage criterion |
√ |
||||||
|
Arc monitoring and fault location |
√ |
||||||
|
Real time self inspection of arc sensors and fiber optic links |
√ |
||||||
|
failure protection |
√ |
||||||
|
CT disconnection monitoring |
√ |
||||||
|
non-electricity protection |
√ |
||||||
|
Device abnormal alarm |
√ |
||||||
|
Maintenance status lock |
√ |
||||||
|
Fault recording |
√ |
||||||
|
Protocol |
Modbus |
√ |
|||||
|
IEC101 |
√ |
||||||
|
IEC103 |
√ |
||||||
|
IRIG-B |
√ |
||||||
|
LoopBack |
√ |
||||||
Electromagnetic compatibility performance
|
Test item |
Requirement |
|
|
1 |
Radiation emission limit test |
Meet the requirements of IEC 60255-26:2013 |
|
2 |
Conduction emission limit test |
Meet the requirements of IEC 60255-26:2013 |
|
3 |
Radio-frequency electromagnetic field radiation immunity |
Meet the requirements of IEC 60255-26:2013, severity is 10V/m. |
|
4 |
Electrostatic discharge immunity |
Meet the requirements of IEC 60255-26:2013, severity is IV level. |
|
5 |
Disturbance immunity of RF Field Induction conduction |
Meet the requirements of IEC 60255-26:2013, severe grade disturbance level is 10V. |
|
6 |
Immunity of electric fast transient pulse group |
Meet the requirements of IEC 60255-26:2013, severity is A level. |
|
7 |
Slow-damped oscillation wave immunity |
Meet the requirements of IEC 60255-26:2013, the common mode is 2.5 and the difference module is 1. |
|
8 |
Surge immunity |
Meet the requirements of IEC 60255-26:2013, severity is IV level. |
|
9 |
Effect test of AC and DC voltage sag interruption |
Meet the requirements of IEC 60255-26:2013 |
|
10 |
Power frequency magnetic field immunity |
Meet the requirements of IEC 60255-26:2013, severity is IV level. |
