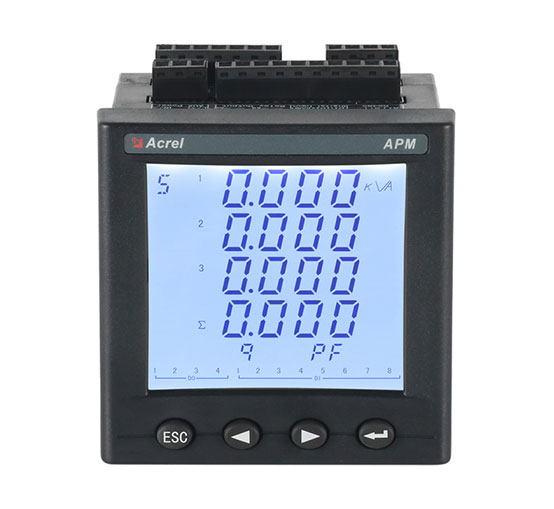

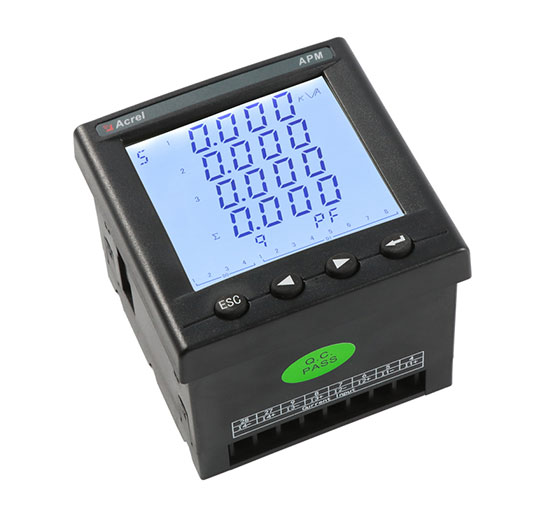

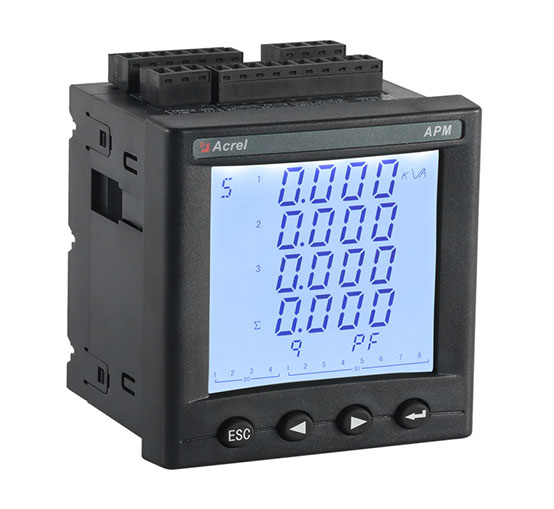

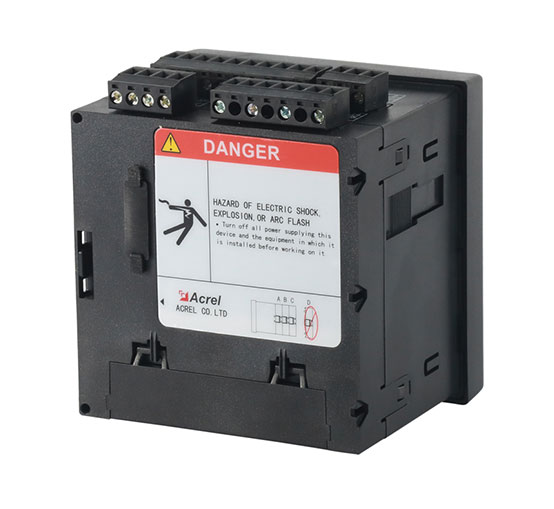

Acrel APM8XX Three Phase Multifunction Power Meter

Acrel APM8XX Three Phase Multifunction Power Meter



● Measurement: 3-phase kWh, kVarh, kW, I, U, Hz, Cosφ, Current&Voltage Unbalance, 2~63rd Harmonic, Real-time&Max Demand, Zero-sequence Current, 4-quadrant Energy and etc
● Current Rating: -/5A AC; -/1A AC (According to CTs)
● Voltage Rating: 100V, 110V, 400V, 690V AC
 Frequency: 45~65Hz
● Accuracy: Up to 0.2S (Optional)
● Communication (Main Body): RS485 (MODBUS-RTU)
● Communication (Expanded): PROFIBUS-DP; Ethernet; Secondary RS485
● Extra Function: 8DI/2DO; 8AI/4AO; SOE (with standard 4GB SD Card); Multi-rate
● Display: LCD Display
● Dimension: 96*96*90mm (L*W*H)
● Installation: Panel Embedded (Cut-out –92*92mm)
● Power Supply: 85~265V AC/DC; 115~415V AC/DC
● Standard&Certificate: CE

Product Detail

Technical Parameters

Download

Product Tags

Acrel APM8XX Three Phase Multifunction Power Meter

General

APM series network power meters are designed according to IEC standards, with functions such as full power measurement, power statistics, power quality analysis and network communication. They are mainly used for comprehensive monitoring and diagnosis of power supply quality and power management. This series of instruments adopts a modular design. When customers need to add switch input and output, analog input and output, SD card recording, and Ethernet communication, they only need to insert the corresponding module on the back.

This series of meters adopt the modular design, when the customer needs to increase the switching input and output, analog input and output, SD card record, Ethernet communication, just insert the corresponding module in the back

Features

APM8XX 3P - 1_副本

Full Electric Parameters Measurement

● 3-phase (I, U, kW, kVar, kWh, Hz, cosφ)

● Current&Voltage Unbalance

● Harmonic (THD & 2~63rd)

● Real-time&Max Demand

● Extremum of this month&last month

● Zero-sequence Current

● 4-quadrant Energy

APM8XX feature - 1

Diverse Extra Function Module

● Modular Design (Easy for Function Expansion)

● Support up to 3 Expanded Module at same time

APM8XX feature - 2

DO/DI Switch Function Module ---MD82

● 2 DO Relay Output

● 8 DI Digital Input

● Save up to 128 pcs DO/DI Data in Main Body

● Paired with MLOG to save more DO/DI Records

APM8XX feature - 3

SD Card Data Storage Module ---MLOG

● Expand Number of SOE Storage

● Support Storage of SD Cards up to 32GB (standard 4GB)

APM8XX feature - 4

AO/AI Analog Function Module ---MA84

● 4 AO Analog Output (Class 0.5)

● 8 AI Analog Input (Class 0.5)

Extra RS485 Communication Module ---MCM

● Interface: RS485 Interface

● Protocol: MODBUS-RTU

● Support Salve&Master Mode

APM8XX feature - 5

Ethernet Communication Module ---MCME

● Interface: RJ45 Interface

● Protocol: MODBUS-TCP/HTTP/DHCP/SMTP

● Could Serve as Serial Server

● Plus 1 Extra RS485 Interface

APM8XX feature - 6

PROFIBUS-DP Communication Module ---MCMP

● Interface: PROFIBUS-DP Interface

● Protocol: PROFIBUS-DP

● Plus 1 Extra RS485 Interface

APM8XX feature - 7

SOE Function (Main Body)

● Alarm Record (128 pcs records of 66 kinds&13 categories)

● DO/DI Record (128 pcs DO/DI records)

● Transient Record (800 pcs transient waveform records)

● Max Records pcs above could be expanded by SD Card

APM8XX feature - 8

Multi-rate/Multi-tariff

● 4 Time zone

● 4 Tariff rate (Spike, Peak, Flat, Valley)

● 2 Time period list

● 14 Time period by day

APM8XX feature - 9

Local Configuration

● Keypads HMI for Programming

● Setting through Adjustment Software

● Setting through WEB

● Setting through MODBUS communication

APM8XX feature - 10

Wiring

APM8XX 3P - 3P4W

3-phase 4-wire connection via 3 extra CTs

APM8XX 3P - 3P3W

3-phase 3-wire connection via 2 extra CTs & 2 extra PTs

Front Panel

APM8XX button_副本

Network

AMC96L-E4-KC network

Installation

Installation__of_APM800_Three_Phase_Multifunction_Power_Meter

Details

APM8XX 细节_副本

FAQ of APM8XX Series Three Phase Multifunction Power Meter

What’s the storage capacity, storage format and data storage interval of SD card?

The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)

How should I select the expanded modules of APM8xx?

Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random.

The features of APM8xx?

Except for wave record and SD card storage function, 0.2S measuring accuracy can also be a option. Besides, APM8xx can serve as reverse display meter (which means 3-phase electrical parameters measuring plus 8-channel reverse display) Also, users can measure the data through browser by using Ethernet auto WEB.

What is the auxiliary power supply of APM8xx?

AC/DC 85~265V or 115~415V is both optional. Also, 380V  line voltage can also serve as power supply.

Benefits of APM8XX Series Three Phase Multifunction Power Meter

0.5S High precision, CE certification

Diverse functions, full electric parameter measurement

Modular design, various optioned functions

Can realize wireless communication with gateway module

Application of APM8XX Series Three Phase Multifunction Power Meter

Electric power monitoring in industrial and mining enterprises

Energy consumption monitoring in petrochemical industry

Electric power monitoring of municipal works

Hotel apartment, education and medical electrical safety monitoring


  • Previous:
  • Next:

  • Acrel APM8XX Three Phase Multifunction Power Meter

    Type Description

    Function
    APM800
    (class 0.5s)
    APM801

    (class 0.2s)
    APM810
    (class 0.5s)
    Measured parameters
    Total electrical measurement
    Four-quadrant energy
     √
    Pulse output of energy
    Pulse output of active/reactive energy
     √
    Demand
    Three-phase current, active power, reactive power,
    real-time demand of apparent power, and maximum
    demand (including time stamp)
    Extreme value statistics
    Extremum of current, line voltage, phase voltage, active
    power, reactive power, apparent power, power factor,
    frequency, total harmonic of current, total harmonic of
    voltage in this month and last month (including time stamp)
    Power quality
    Unbalance of current, line voltage, phase voltage
    Voltage phase angle, current phase angle
    Total (odd, even) harmonic content of voltage and current
    ×
    ×
    Harmonic content of voltage and current (2-63 times)①
    ×
    ×
    Voltage crest factor
    ×
    ×
    Telephone waveform factor
    ×
    ×
    Current K-factor
    ×
    ×
    Alarm records
    A total of 66 kinds of alarm types, each type can record the
    most recent 16 alarm records, support extended records by TF card
    Event log
    Record the most recent 128 event records, support extended records by TF card
    Communication
    Modbus protocol
    I/O
    2 digital inputs + 2 digital outputs (2DI+2DO)
    Extensions
    MD82
    8 digital inputs + 2 digital outputs with changeover contacts (8DI+2DO)
    MLOG
    TF card storage (alarm records, event records,
    electrical parameters and energy timing records, etc.)
    MA84
    8 analog inputs (class 0.5) + 4 analog outputs (class 0.5) (8AI+4AO)
    MCM
    1 RS485/Modbus-RTU, support master mode or slave mode
    MCP
    1 Profibus-DP
    MCE
    1 Ethernet, support Modbus-TCP, http, SMTP, DHCP protocol
    Note ①: Accuracy of 2~42 times harmonic measurement in the frequency range of 45~65Hz is 1%, accuracy of 43~63 times
    harmonic measurement in frequency 50Hz is 2%.



    Technical Parameters

    Technical parameter
    Value
    Signal
    Electrical network
    Three-phase three-wire, three-phase four-wire, see the wiring diagram
    Frequency
    45~65Hz
    Voltage
    Rated value:AC 100V、110V、400V、690V
    Overload: 1.2 times rated value(continuous); 2 times rated value /1 second
    Power consumption: < 0.5VA (per channel)
    Current
    Rated value: AC 1A, 5A, support 4 mm2 line access
    Overload: 1.2 times rated value(continuous); 10 times rated value/1 second
    Power consumption: < 0.5VA (per channel)
    Measurement accuracy
    Voltage、current and power
    class 0.5s/class 0.2s (APM800、APM810/APM801)
    Active power
    class 0.5s/class 0.2s (APM800、APM810/APM801)
    Reactive power
    class 2
    Harmonic
    1%(2rd~42nd)、2%(43rd~63rd)
    Switch inputs
    Dry contact inputs, built-in power supply;
    Relay outputs
    Contact type: open contact in main part, changeover contact in module;
    Contact capacity:AC 250V/3A DC 30V/3A
    Pulse output of energy
    Output mode: Optocoupler pulse with open collector;
    Pulse constant:4000(5A)、8000(1A) imp/kWh
    Analog outputs
    DC 0mA~20mA、4mA~20mA、0V~5V、1V~5V output, accuracy class 0.5%, load resistance ≤ 500Ω
    Analog inputs
    DC 0mA~20mA、4mA~20mA、0V~5V、1V~5V iutput, accuracy class 0.5%
    Storage card
    Standard Capacity:4G,TF Card Up to 32G Capacity
    Communication
    RS485 interface/Modbus-RTU protocol and DLT645 protocol
    Profibus-DP interface/Profibus-DP protocol;
    RJ45 interface (Ethernet) / Modbus-TCP, http, DHCP and other protocols
    Power supply
    Working range: AC/DC 85V~265V or AC/DC 115~415V(P2);
    Power consumption: Power consumption of the main part ≤ 15VA
    Safety
    Power
    frequency
    withstand
    voltage
    The power frequency withstand voltage between the shell and the auxiliary power supply, each input and output terminal group is AC 4kV/1min;
    The power frequency withstand voltage between the auxiliary power supply and each input and each output terminal group is AC 2kV/1min;
    The power frequency withstand voltage between the voltage input and other input/output terminal groups is AC 2kV/1min;
    The power frequency withstand voltage between the current input and other input/output terminal groups is AC 2kV/1min;
    The power frequency withstand voltage between the relay output and other input/output terminal groups is AC 2kV/1min;
    The power frequency withstand voltage between each terminal group of switch input, communication, analog output and pulse output is AC 1kV/1min
    Insulation
    resistance
    Inputs、outputs to the shell>100MΩ
    Electromagnetic compatibility
    Meet IEC 61000 standard (Level 4)
    Protection level
    Display panel IP52
    Environment
    Operating temperature: -20 °C ~ +65 °C;
    Storage temperature: -20°C~+70°C;
    Relative humidity: ≤95% without condensation;
    Altitude: ≤2500m
    Standards
    IEC 60068-2-1
    IEC 60068-2-2
    IEC 60068-2-30
    Environmental Testing-Part 2-1:Tests Test A:Cold IDA
    Part 2-1:Tests Test B:Dry heat
    Part 2-30:Tests Test Db:Damp heat,cyclic(12+12h)
    IEC 61000-4
    Electromagnetic compatibility-Testing and measurement techniques
    IEC 61557-12
    Electrical safety in low voltage distribution system up to 1000V a.c.
    and1500V d.c –Equipment for testing,measuring or monitoring of
    protective measures- Part12:
    Performances measuring and monitoring devices(PMD)
    IEC 62053-22
    Electricity metering equipment (a.c.)-Particular requirements -
    Part22:Static meter for active energy(class 0.2s and 0.5s)
