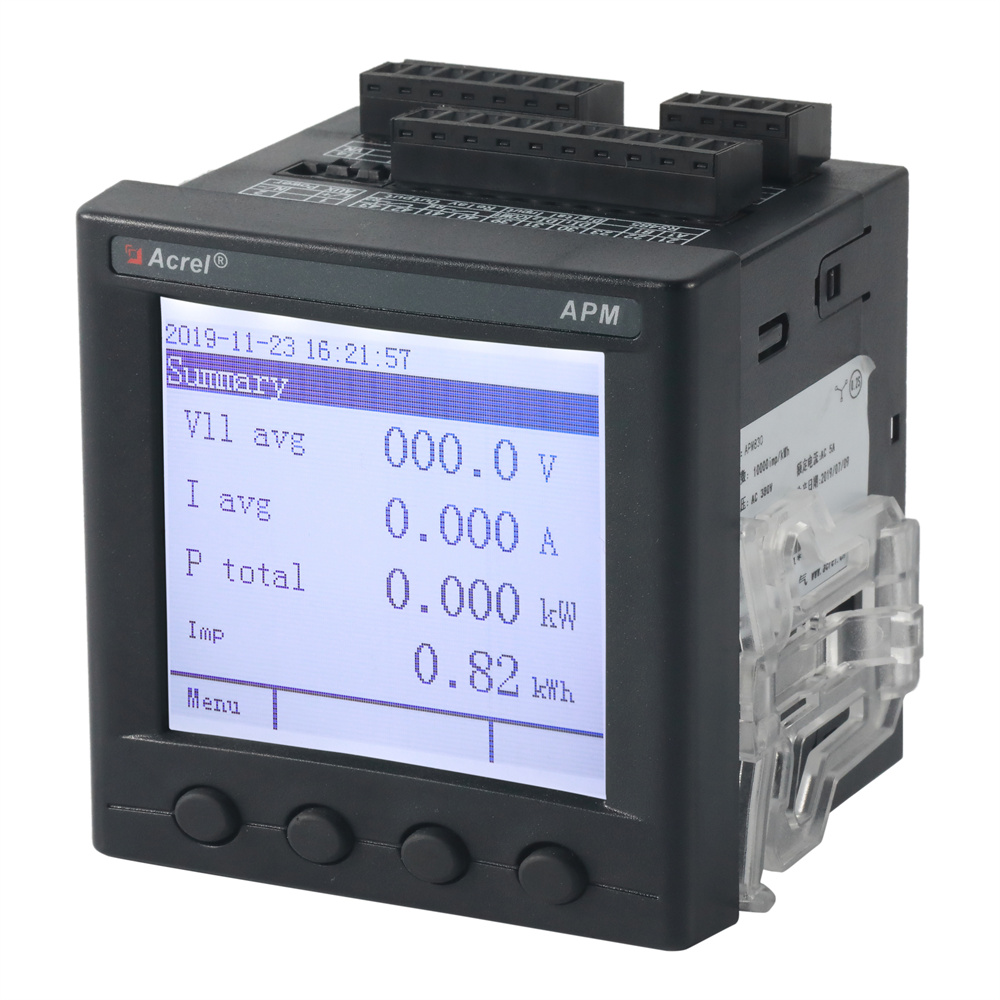

Acrel APM830 Three Phase Multifunction Power Meter
Acrel APM830 Three Phase Multifunction Power Meter
General
Acrel APM830 has passed the third party certification of the World High Precision Standard with Class 0.2s precision, and has the functions of total electricity measurement, power statistics, power quality analysis and network communication. It is mainly used for comprehensive monitoring and diagnosis of power supply quality and power management. The modular, adaptive design can flexibly respond to the rapidly changing power grid requirements in the IoT era and is programmable to respond to changes in the power system at any time.
With the high-precision measurement function, it can provide safe, reliable, and efficient solutions to ensure the intelligent analysis of power quality and compliance of system operation, and reduce potential operation and maintenance risks by improving preventive maintenance to ensure the continuous and stable operation of the power system.

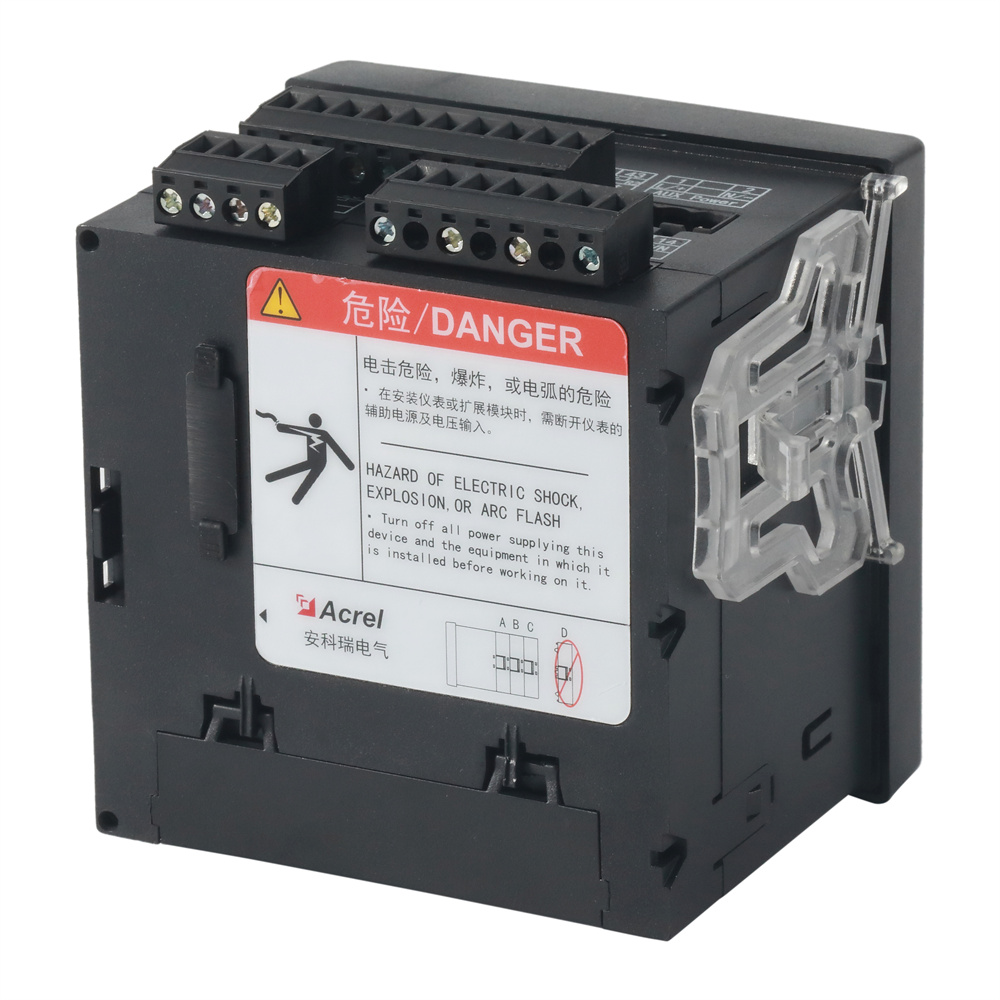

Diagram of APM830 Three Phase Multifunction Power Meter

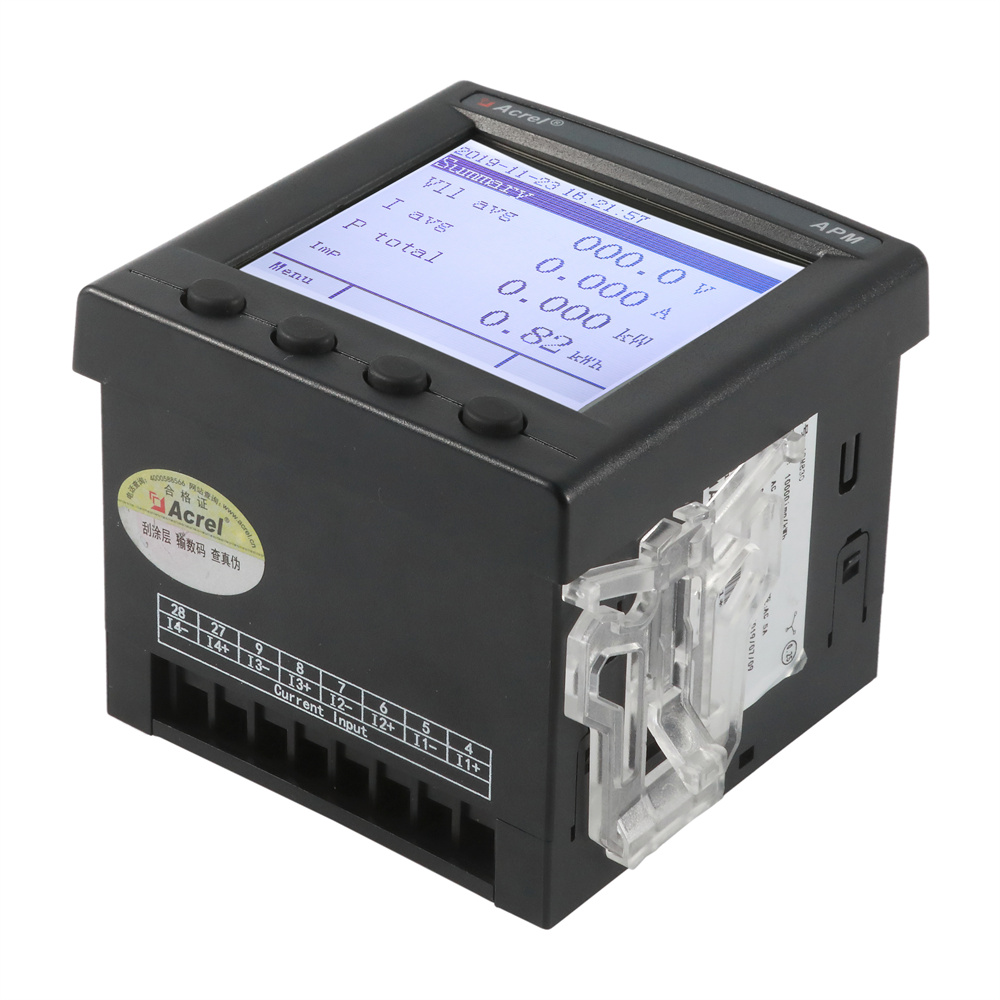

APM830 Three Phase Multifunction Power Meter is secondary current access and panel mounted installation. The overall size of the meter is L*W*H: 92*92*65mm, the front panel has the LCD screen, including Type of parameters, Load value, Total Power, DI/DO status, Data display, Navbar, Buttons etc. Its istallation as follows: Cut out a 92mm*92mm hole on the panel, unleash all the static, move off installation terminal, put in the panel, fixed the meter on panel by using the incidental brackets wiht buckle, installation complete.
Features
Full Electric Parameters Measurement
● 3-phase (I, U, kW, kVar, kWh, Hz, cosφ)
● Current&Voltage Unbalance
● Harmonic (THD & 2~63rd)
● Real-time&Max Demand
● Extremum of this month&last month
● Zero-sequence Current
● 4-quadrant Energy
Diverse Extra Function Module
● Modular Design (Easy for Function Expansion)
● Support up to 3 Expanded Module at same time
DO/DI Switch Function Module ---MD82
● 2 DO Relay Output
● 8 DI Digital Input
● Save up to 128 pcs DO/DI Data in Main Body
● Paired with MLOG to save more DO/DI Records
SD Card Data Storage Module ---MLOG
● Expand Number of SOE Storage
● Support Storage of SD Cards up to 32GB (standard 4GB)
AO/AI Analog Function Module ---MA84
● 4 AO Analog Output (Class 0.5)
● 8 AI Analog Input (Class 0.5)
Extra RS485 Communication Module ---MCM
● Interface: RS485 Interface
● Protocol: MODBUS-RTU
● Support Salve&Master Mode
Ethernet Communication Module ---MCME
● Interface: RJ45 Interface
● Protocol: MODBUS-TCP/HTTP/DHCP/SMTP
● Could Serve as Serial Server
● Plus 1 Extra RS485 Interface
PROFIBUS-DP Communication Module ---MCMP
● Interface: PROFIBUS-DP Interface
● Protocol: PROFIBUS-DP
● Plus 1 Extra RS485 Interface
SOE Function (Main Body)
● Alarm Record (128 pcs records of 66 kinds&13 categories)
● DO/DI Record (128 pcs DO/DI records)
● Transient Record (800 pcs transient waveform records)
● Max Records pcs above could be expanded by SD Card
Multi-rate/Multi-tariff
● 4 Time zone
● 4 Tariff rate (Spike, Peak, Flat, Valley)
● 2 Time period list
● 14 Time period by day
Local Configuration
● Keypads HMI for Programming
● Setting through Adjustment Software
● Setting through WEB
● Setting through MODBUS communication
Wiring
3-phase 4-wire connection via 3 extra CTs
3-phase 3-wire connection via 2 extra CTs & 2 extra PTs

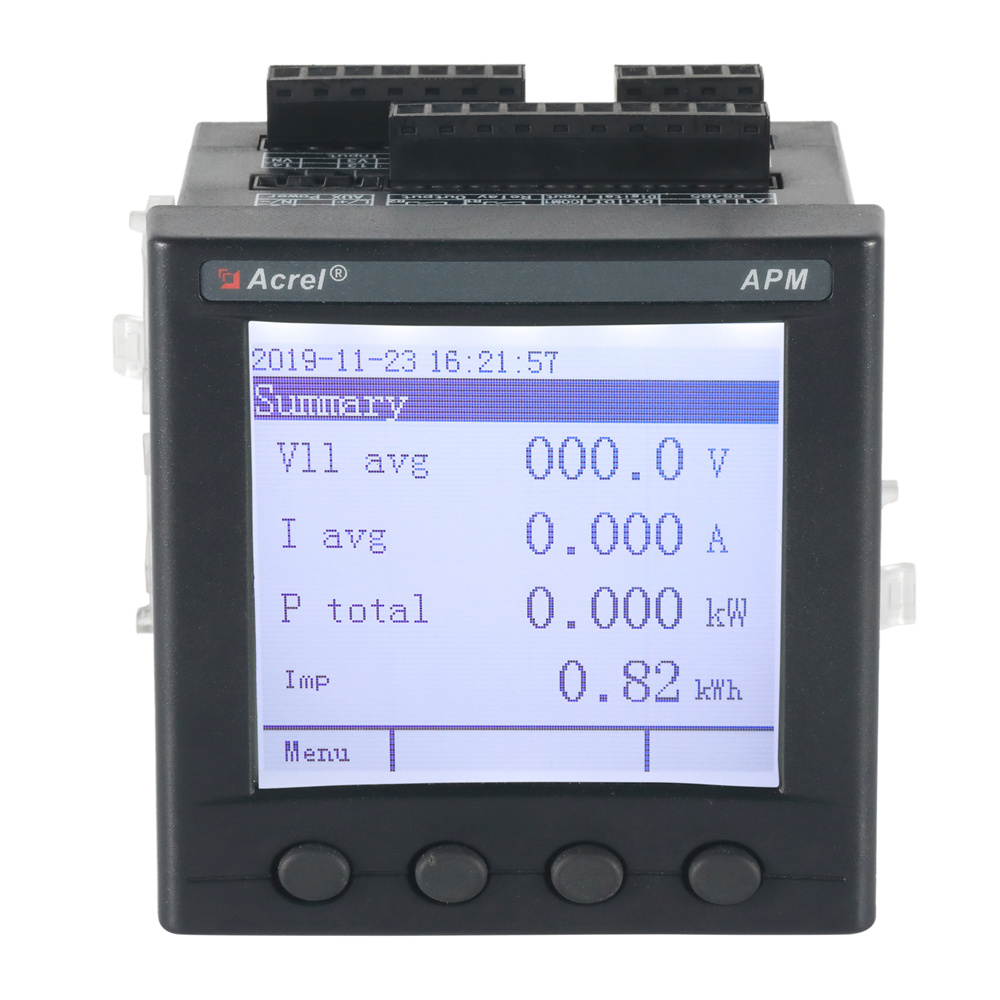

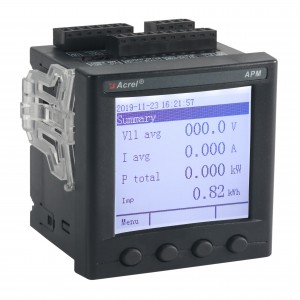

Front Panel
Network
FAQ of APM8XX Series Three Phase Multifunction Power Meter
The meter is equiped with standard 4G SD card while saving the data of electrical parameter, energy, event, SOE, alarm. Also, the setting of storage interval could be changed. (1 min interval for electrical parameter and 1 hour interval for energy)
Our users can select 3 of the optional modules at will even repeatly except for communication module. Also, the order of module installation could be random.
Except for wave record and SD card storage function, 0.2S measuring accuracy can also be a option. Besides, APM8xx can serve as reverse display meter (which means 3-phase electrical parameters measuring plus 8-channel reverse display) Also, users can measure the data through browser by using Ethernet auto WEB.
AC/DC 85~265V or 115~415V is both optional. Also, 380V line voltage can also serve as power supply.
Benefits of APM8XX Series Three Phase Multifunction Power Meter
• High precision, CE certification
• Diverse functions, full electric parameter measurement
• Modular design, various optioned functions
• Can realize wireless communication with gateway module
Application of APM8XX Series Three Phase Multifunction Power Meter
• Electric power monitoring in industrial and mining enterprises
• Energy consumption monitoring in petrochemical industry
• Electric power monitoring of municipal works
• Hotel apartment, education and medical electrical safety monitoring
Acrel APM830 Three Phase Multifunction Power Meter
Type Description
|
Type
|
APM830
|
|
|
Measured parameters
|
Total electrical measurement
|
|
| Four-quadrant energy | ||
|
Complex rate electric energy
|
||
|
Internal temperature measurement of instrument
|
||
|
Pulse output of energy
|
Total active power, total reactive power, total apparent power pulse output, second pulse, etc
|
|
|
Demand
|
Three-phase current, active power, reactive power, real-time demand of apparent power, and maximum demand (including time stamp)
|
|
|
Extreme value statistics
|
Extremum of current, line voltage, phase voltage, active power, reactive power, apparent power, power factor,
frequency, total harmonic of current, total harmonic of voltage in this month and last month (including time stamp)
|
|
|
Power quality
|
Unbalance of current, line voltage, phase voltage
|
|
|
Voltage phase angle, current phase angle
|
||
|
Total (odd, even) harmonic content of voltage and current
|
||
|
Harmonic content of voltage and current (2-63 times)
|
||
|
Voltage crest factor
|
||
|
Telephone waveform factor
|
||
|
Current K-factor
|
||
|

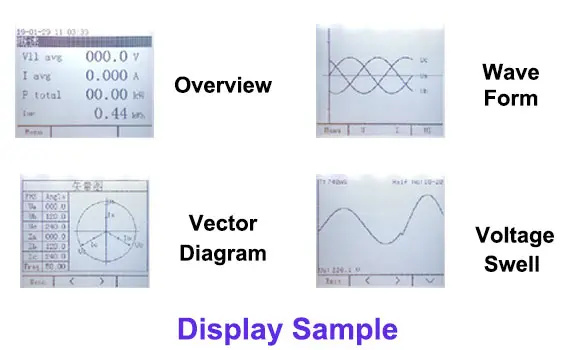

Vector
|
||
|
Voltage and current waveform
|
||
|
Fundamental voltage and current
|
||
|
Event log
|
Record the most recent 128 event records, support extended records by TF card
|
|
|
A total of 13 alarm records, including 66 alarm types, each of which can record 128 recent alarm records,
supporting the expansion of TF card
|
||
|
Transient record, record up to 800 transient waveform records, support TF card expansion record
|
||
|
Communication
|
Modbus – RTU protocol
|
|
|
DL / T 645 – 2007 protocol (support freeze function)
|
||
|
I/O
|
2 digital inputs + 2 digital outputs (2DI+2DO)
|
|
|
Multiple rate
|
The multi-rate energy statistics include total, sharp, peak, flat, valley and near-month multi-rate electricity
|
|
|
Extensions
|
MD82
|
8 digital inputs + 2 digital outputs with changeover contacts (8DI+2DO)
|
|
MLOG
|
TF card storage (alarm records, event records, electrical parameters and energy timing records, etc.)
|
|
|
MA84
|
8 analog inputs (class 0.5) + 4 analog outputs (class 0.5) (8AI+4AO)
|
|
|
MCM
|
1 RS485/Modbus-RTU, support master mode or slave mode
|
|
|
MCP
|
1 Profibus-DP，Configure this function to give MCM function, referred to as MCMP for short.
|
|
|
MCE
|
1 Ethernet, support Modbus-TCP, http, SMTP, DHCP protocol，Configure this function to give MCM
function, referred to as: MCME
|
|
|
Note:When selecting the extended function, the meter can take up to 3 modules. The modules can be the same or different, but
MCPMCEMLOG cannot select multiple identical modules combined, MCP and MCE only Can choose one. The installation sequence
can be arbitrary. If Ethernet or Profibus function is recommended for installation, it is recommended to install it near the A of the main
body. For the location of A, please refer to 3.3 Assembly.
|
||
Technical Parameters
|
Technical parameter
|
Value
|
|
|
display
|
Display method
|
Dot matrix LCD
|
|
Resolution
|
192 * 160
|
|
|
Backlight
|
White LED
|
|
|
Visible area
|
69mm*62mm(2.8Inch / 6.66inch)
|
|
|
Signal
|
Electrical network
|
Three-phase three-wire, three-phase four-wire, see the wiring diagram
|
|
Frequency
|
45～65Hz
|
|
|
Voltage
|
Rated value：AC 3*57.7/100V、AC 3*63.5/110V、AC 3*230/400V、AC
3*400/690V；690V direct connection on voltage input terminal（L-L）
|
|
|
Overload ： 1.2 times rated value(continuous); 2 times rated value /1 second
|
||
|
Power consumption: < 0.5VA (per channel)
|
||
|
Current
|
Rated value：AC 3x 1 (1.2) A、AC 3×5(6)A， support 4 mm2 line access
|
|
|
Overload： 1.2 times rated value(continuous); 10 times rated value/1 second
|
||
|
Power consumption: < 0.5VA (per channel)
|
||
|
Measurement
accuracy
|
Voltage、current
|
IEC 61557-12 class 0.2
|
|
Voltage imbalance
|
IEC 61557-12 class 0.2
|
|
|
Voltage harmonics,
current harmonics
|
IEC 61557-12 class 2 （Note 1）
|
|
|
frequency
|
IEC 61557-12 class 0.2s
|
|
|
Active power
|
IEC 61557-12 class 0.2s
|
|
|
Reactive power
|
IEC 61557-12 class 1s
|
|
|
inspecting power
|
IEC 61557-12 class 0.2
|
|
|
Active energy
|
IEC 62053-22 – Active energy0.2S
|
|
|
Reactive energy
|
IEC 62053-24 – Reactive energy0.5S
|
|
|
Power Quality
|
Recording wave
|
20 waveforms, 10 waves before and after
|
|
Waveform capture
|
Each waveform is stored at 128 cycle points; the TF card is supported to
expand the recorded data, and the customer needs to manually pull the line chart through Excel.
|
|
|
Switch inputs
|
Dry contact inputs, built-in power supply;
Response time: less than 300ms
|
|
|
Relay outputs
|
Contact type: open contact in main part, changeover contact in module;
Contact capacity：AC 250V/3A DC 30V/3A
|
|
|
Pulse output of energy
|
Output mode: Optocoupler pulse with open collector;
Pulse constant：10000imp/kWh（default），For details, see 6.2 Input Settings
|
|
|
Analog outputs
|
DC 0～20mA、4～20mA、0～5V、1～5V Output, accuracy grade 0.5%, load resistance ≤500Ω at current
output, load resistance ≥2KΩ at voltage output; overload: 1.2 times rated value (continuous)
|
|
|
Analog inputs
|
DC 0～20mA, 4～20mA, 0～5V, 1～5V input, accuracy grade 0.5; overload: 1.2 times rated value (continuous)
|
|
|
TF Storage card
|
Standard TF card with 8G capacity, maximum support for TF card with 32G capacity
|
|
|
Communication
|
RS485 interface/Modbus-RTU protocol and DLT645 protocol
Profibus-DP interface/Profibus-DP protocol;
RJ45 interface (Ethernet) / Modbus-TCP, http, DHCP and other protocols
|
|
|
Power supply
|
Working range: AC/DC 85V～265V or AC/DC 115～415V(P2);
Power consumption: Power consumption of the main part ≤ 15VA
|
|
|
Safety
|
Power
frequency
withstand
voltage
|
The power frequency withstand voltage between the shell and the auxiliary power supply, each
input and output terminal group is AC 4kV/1min;
The power frequency withstand voltage between the auxiliary power supply and each input and
each output terminal group is AC 2kV/1min;
The power frequency withstand voltage between the voltage input and other input/output terminal
groups is AC 2kV/1min;
The power frequency withstand voltage between the current input and other input/output terminal
groups is AC 2kV/1min;
The power frequency withstand voltage between the relay output and other input/output terminal
groups is AC 2kV/1min;
The power frequency withstand voltage between each terminal group of switch input,
communication, analog output and pulse output is AC 1kV/1min;
|
|
Insulation
resistance
|
Inputs、outputs to the shell>100MΩ
|
|
|
Electromagnetic
compatibility
|
Meet IEC 61000 standard (Level 4)
|
|
|
Environment
|
Operating temperature：-25℃～+70℃；
Storage temperature：-40℃～+85℃；
Relative humidity：≤75% without condensation；
Altitude：≤2000m
|
|
|
Protection Level
|
Display panel IP54, with gasket
|
|
|
Standards
|
IEC 60068-2-1
|
Environmental Testing-Part 2-1:Tests Test A:Cold IDA
|
|
IEC 60068-2-2
IEC 60068-2-30
|
Environmental Testing Part 2-2:Tests Test B:Dry heat
Environmental Testing Part 2-30:Tests Test Db:Damp hea, cyclic (12+12h)
|
|
|
IEC 61000-4
|
Electromagnetic compatibility-Testing and measurement techniques
|
|
|
IEC 61557-12
|
Electrical safety in low voltage distribution systems up to 1 000V a.c. and
1 500V d.c –Equipment for testing ， measuring or monitoring of
protective measures — Part 12: Performances measuring and monitoring devices(PMD)
|
|
|
IEC 62053-22
|
Electricity metering equipment (a.c.)-Particular requirements -
Part22:Static meter for active energy(class 0.2S and 0.5S)
|
|
|
IEC 62053-24
|
Electricity metering equipment (a.c.)-Particular requirements -
Part24:Static meter for reactive energy at fundamental frequency (classes 0.5S 1S and 1)
|
|
|
Note 1: Harmonic measurement 2~45 times in the range of frequency 45~65Hz, the error is ±1%, harmonic
measurement 46~63 times at frequency 50Hz, the error is ±2%.
|
||
