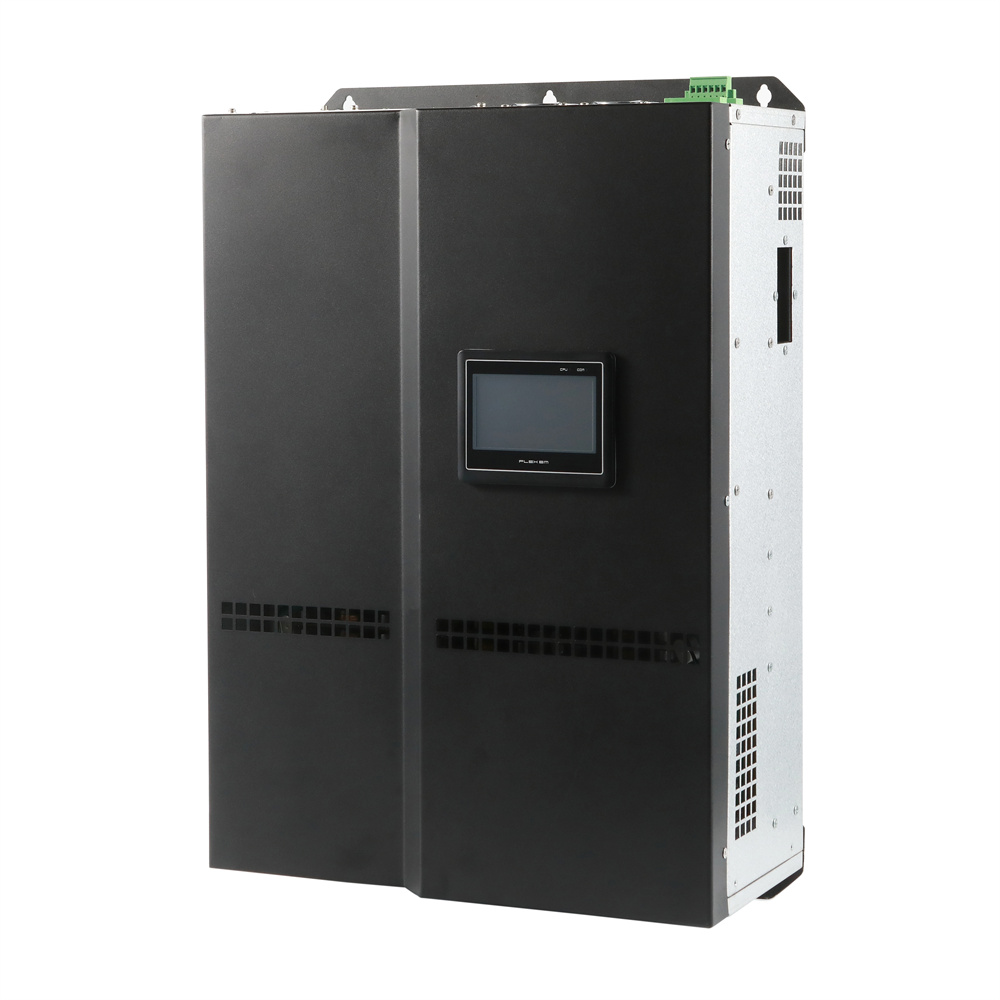

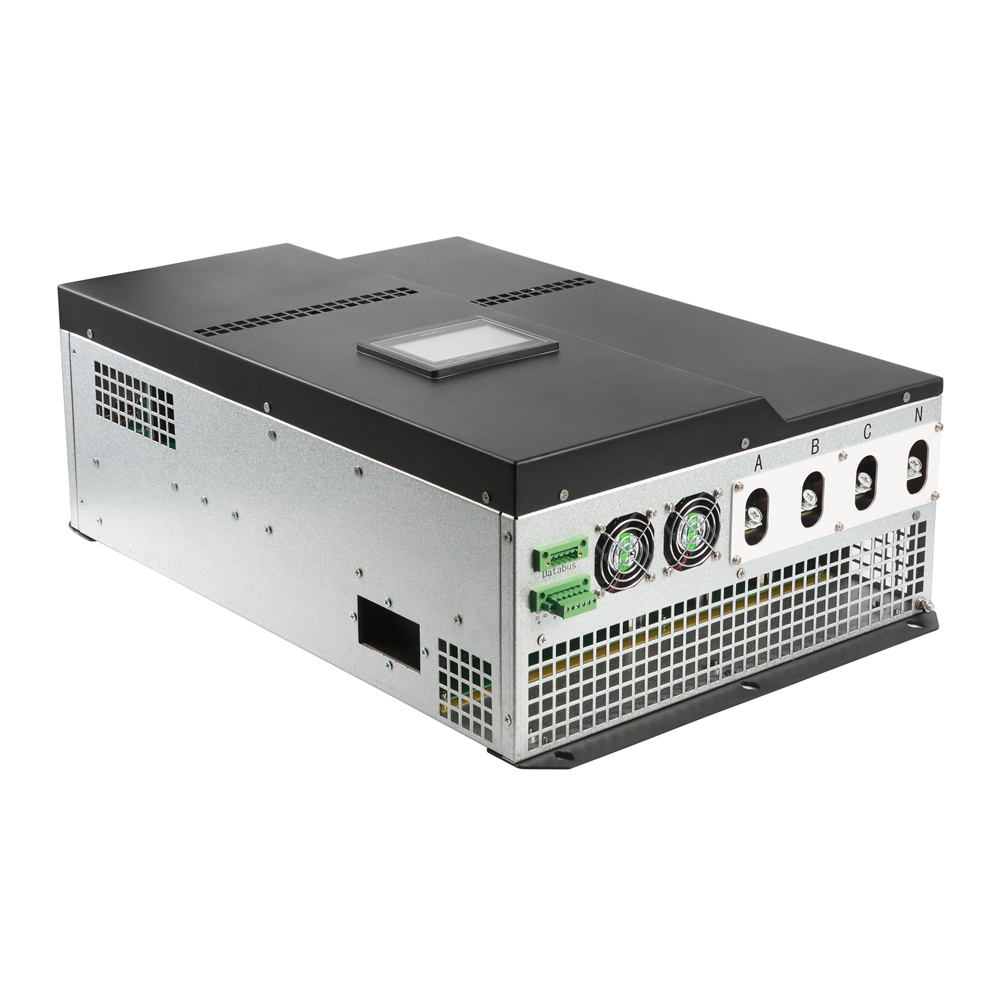

Acrel ANSVG Static Var Generator
Acrel ANSVG Static Var Generator
General
Acrel power quality device is mainly used for power supply and distribution equipment at the user end, and provides power quality improvement equipment (such as active filters, reactive power compensation equipment, etc.) to help improve user power quality and make users more economical, safe and reliable.
Acrel ANSVG series of reactive power and harmonic hybrid compensation devices are connected in parallel in the entire power supply system, collect signals through transformers, and control the internal reactive power compensation module and active filter module according to the changes of load power factor and harmonic content in the power grid. power compensation and active filtering.
Features
1）Flexible compensation method：Compensating for reactive power from the load，filter out harmonics within 5th, 7th, 9th, 11th, and 13th;
2）Ability of managing three-phase imbalance;
3）Linear compensation，Response time ≤ 5ms;
4）Humanized human-computer interaction interface, which displays real-time power quality information of the system and the ontology. This interface has the ability to control the device remotely and easy to operate;
5）Adopt imported IGBT which has high power density and high reliability;
6）Using DSP digital control system for high speed detection and calculation;
7）With remote communication interface, real-time monitoring through PC;
8）Standard modular design which reduces lead times and increases reliability and maintainability.
Response time
Full response time≤5ms，Instantaneous response time≤100μs
Total harmonic compensation rate
≥0.99，Compensates for capacitive reactive and inductive reactive
Self-loss
≤2%
Efficiency
≥98%
Switching frequency
20KHz
Interface
Wiring
Networking of AANSVG Static Var Generator
Benefits of ANSVG Static Var Generator
• 380V±15%,50Hz±2%
• Full response time ≤ 5ms
• 30kVA, 50kVA, 75kVA or 100kVA
• RS485(Modbus-RTU）or Ethernet(Modbus-TCP)
• Frozen data
What Is Power Quality Device Used For?
Why Is Good Power Quality Necessary?

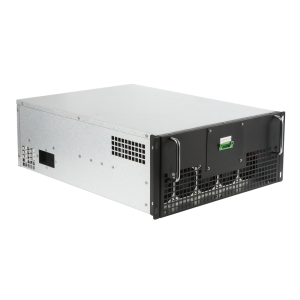

Acrel ANSVG Static Var Generator
Technical Parameters
| Wiring |
3P3W or 3P4W
|
| Voltage Input |
380V
|
| Frequency | 50Hz |
| Reactive power compensation | The target power factor can be set arbitrarily |
| Numbers of Harmonic Compensation | 2-31st harmonics |
| Communication | RS485 Modbus-RTU |
| Protection level | IP30 customizable |
| Color | RAL7035 customizable |
| Installation | Indoor installation, fixed method and cable entry method are optional |
| Working temperature | -10℃-+45℃ |
| Working humidity | 40℃：≤50%RH，20℃：≤90%RH |
| Altitude | ＜2000m |
