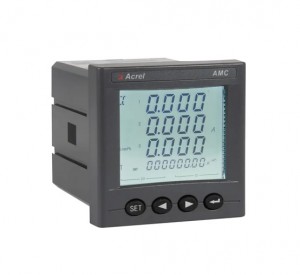

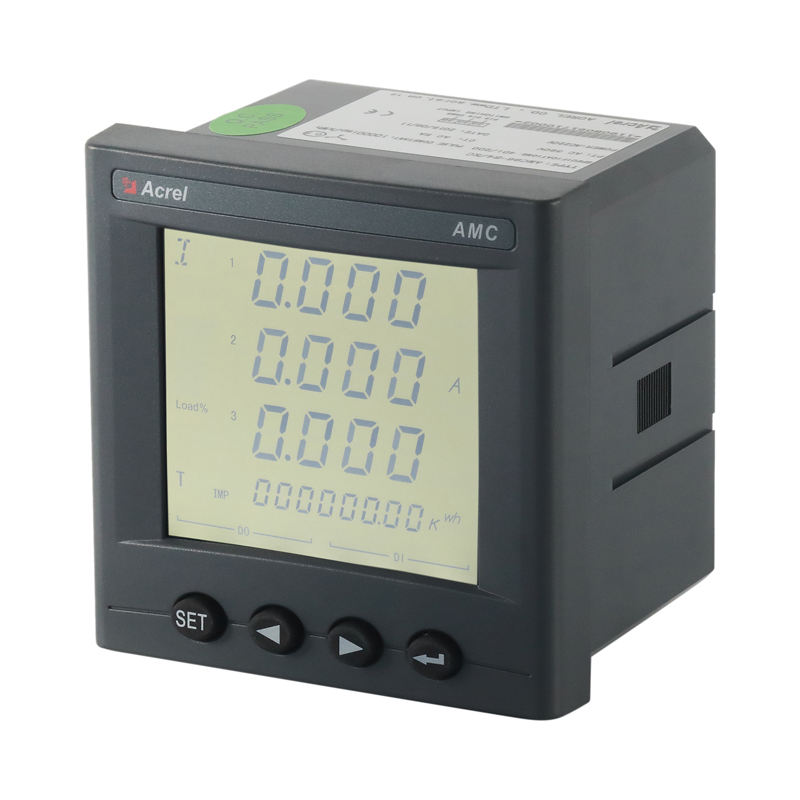

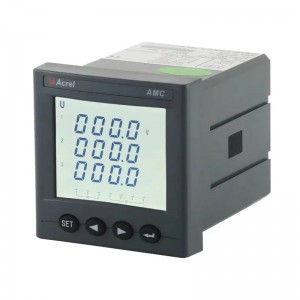

Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
General
Acrel AMC series programmable intelligent electrical measuring instrument integrates the measurement of all power parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor, etc.), multi-rate energy measurement, Four-quadrant power metering, harmonic analysis, and power monitoring and assessment management. A variety of peripheral interface functions, using LCD display interface, through the panel keys to achieve parameter setting and control, very suitable for real-time power monitoring system.
Functions
Accuracy
Active energy: Class 0.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85~265V
Pulse output
1600-160000imp/kWh
Consumption
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
Installation
Panel mounted
Dimension(L*W*H)
Panel size (L×W): 96*96mm
Cutout (L×W): 92*92mm
Housing (L×W×H): 90*90*77.8mm
Relay
DC 30V/3A AC 220V/3A
Consumption
0.2%

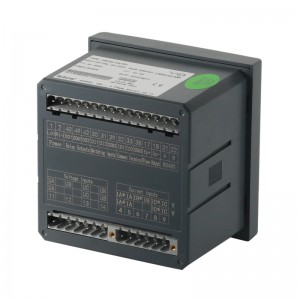

Wiring
AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (400V or 660V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)

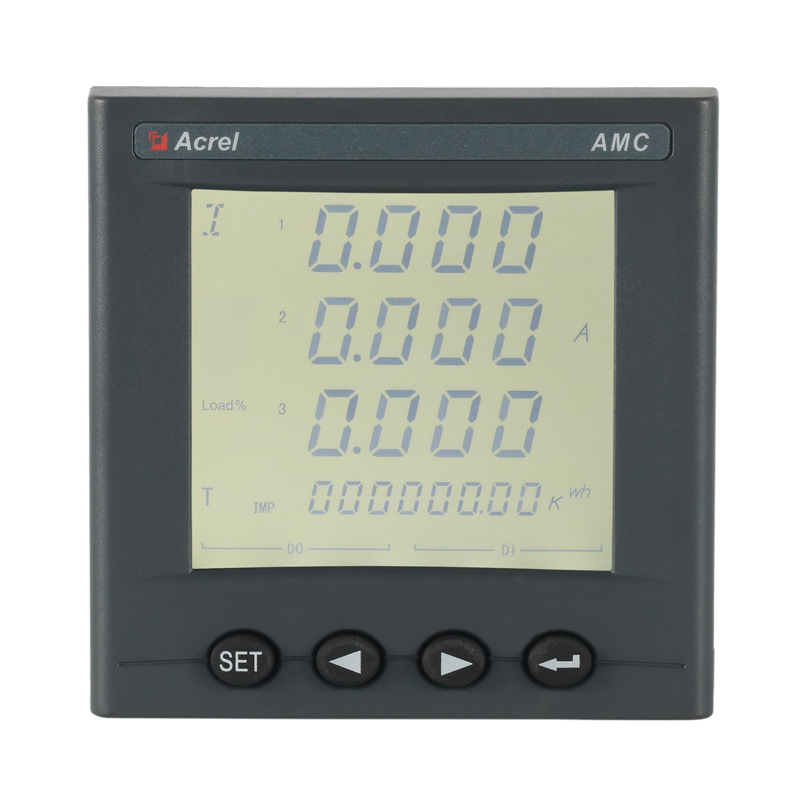

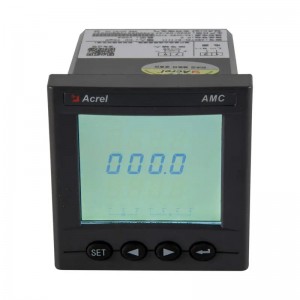

Front Panel
Network
Installation
Outline and Dimension
Application
• Full power monitoring of incoming, bus or critical feeders
• Monitoring of automation devices and intelligent terminal systems in low-voltage cabinets
• Substation, building or factory automation systems
• Distribution Automation System in Industrial Enterprises
• Factory power system automation and load control
• Energy and Energy Efficiency Management System
• Power Plant Electrical Energy Management System

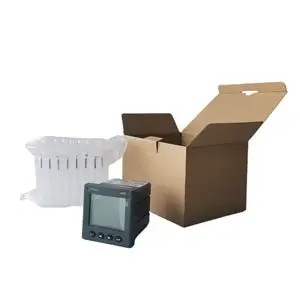

Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pcs Products
Dimension: 280mm*245mm*200mm |
Total N.W. (1 pcs) 0.74 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 36 pcs Products
Dimension: 535mm*525mm*475mm |
Total N.W. (36 pcs) 13.82 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
Technical Parameters
| Technical parameter | Value | ||
| Input |
Rated value | AC voltage:Three phase AC 100V,400V,660VAC current: AC1A,5A; | |
| Overload | Voltage: 1.2 times rated value(continuous); 2 times rated value /1 secondCurrent:1.2 times rated value(continuous); 10 times rated value /1 second | ||
| Frequency | 45Hz～65Hz | ||
| Power consumption | Power consumption of each voltage,current input circuit is less than 0.5VA | ||
| Accuracy | 0.5 Class | ||
| Function | Display | LED or LCD | |
| Communication | RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity)Baud Rate 2400/4800/9600/19200 bps etc. | ||
| Alarm | 1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC,Used for high,low,unbalance alarm etc. | ||
| Analog | DC4~20mA,( load<500Ω)(note:Shielded wire is specially selected for the above signal input and output) | ||
| switching | Input | 4 channel or 2 channel dry contact Input,built in power supply | |
| Output | 2 channel switching output,NO relay contact,capacity: 3A/30VDC,3A/250VAC | ||
| Auxiliary supply | Voltage range | AC/DC 85-265V | |
| Power consumption | <5VA | ||
| Power frequency withstand voltage | Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS)Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV | ||
| Environment | Temperature | Operation: -10℃～+55℃Storage: -25°C ~+70°C | |
| Humidity | ≤95%RH,no condensation,without corrosive gas | ||
| Altitude | ≤ 2500m | ||
Power Meter AMC96L CE-EMC Certificate DSS_SHEM2410006516Ver_CE_SH
