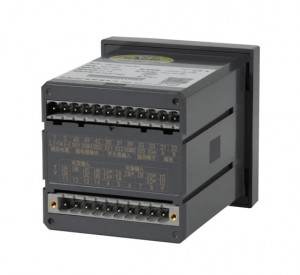

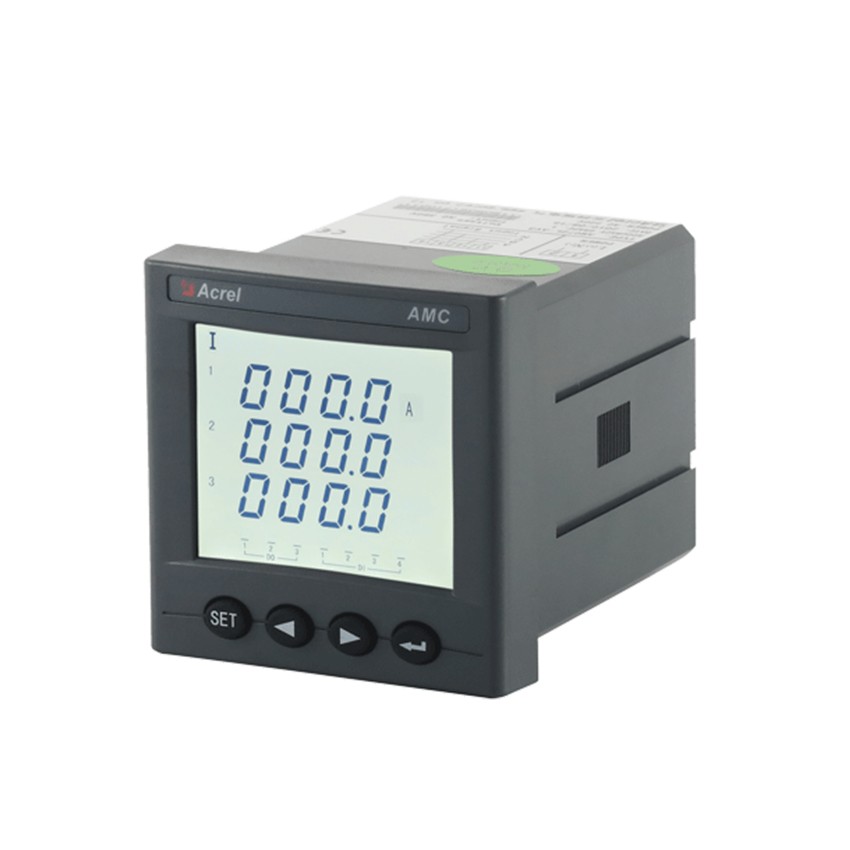

Acrel AMC72L-E4/KC Three Phase Multifunction AC Power Meter
Acrel AMC72L-E4/KC Three Phase Multifunction AC Power Meter
Acrel AMC72L-E4/KC Three Phase Multifunction AC Power Meter
General
Acrel AMC series meters adopt AC sampling technology, which can measure the current ,voltage,power, power factor and electric energy parameters in the power grid separately. It can set the magnification through the panel membrane switch. The meters have RS485 communication interface, adopt Modbus protocol; also can convert the power signal into a standard DC analog signal.
Acrel AMC72L-E4/KC Three Phase Multifunction AC Power Meter can measure 3-phase AC kWh, kVarh, I, U, kW, kVar, Hz, cosφ and etc,2~31st & total Harmonic Measurement,with Event&Demand&Extremum Record and DI/DO&AI/AO function.
Functions
Accuracy
Active energy: Class 0.5
Frequency
Range: 45-65Hz
Auxiliary power supply
AC/DC 85~265V
Pulse output
1600-160000imp/kWh
Consumption
Voltage: Power consumption <0.5VA;
Current: Power consumption< 0.5VA;
Auxiliary power supply:power consumption≤10VA
Installation
Panel mounted
Dimension(L*W*H)
Panel size (L×W): 75*75mm
Cutout (L×W): 67*67mm
Depth(H): 94.3mm
Relay
DC 30V/3A AC 220V/3A
Consumption
0.2%
Application of AMC72L-E4/KC Three Phase Multifunction AC Power Meter
• Full power monitoring of incoming, bus or critical feeders
• Monitoring of automation devices and intelligent terminal systems in low-voltage cabinets
• Substation, building or factory automation systems
• Distribution Automation System in Industrial Enterprises
• Factory power system automation and load control
• Energy and Energy Efficiency Management System
• Power Plant Electrical Energy Management System
Wiring
AC Voltage Signal (400V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (400V AC L-L) Input via direct Connection & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 4-wire)
AC Voltage Signal (100V AC L-L) Input via -/100V AC PTs & AC Current Signal (5A or 1A AC) input via -/5A AC or -/1A AC CTs (3-phase 3-wire)
Front Panel
Network
Benefits of AMC72L-E4 / KC Three Phase Multifunction AC Power Meter
• True RMS Measurements
• THD with 2-31st Harmonics
• Max/Min Log with Timestamp
• Internal Optional 4DI&2DO or 2DI&2DO&2AO
• Standard one Energy Pulse Output
Installation
Outline and Dimension
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Minimum Package Contain 1 pcs Products
Dimension: 230mm*145mm*120mm
|
Total N.W. (1 pcs) 0.68 KG |
| Packing Dimension and Weight(Large) | Large Package Contain 48 pcs Products
Dimension: Total N.W. (1 pcs)0.68 KG
|
Total N.W. (36 pcs) 13.82 KG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301400 | |
| Country of Origin | China | |
Acrel AMC96L-E4/KC Three Phase Multifunction AC Power Meter
Technical Parameters
| Technical parameter | Value | ||
| Input |
Rated value | AC voltage:Three phase AC 100V,400V,660VAC current: AC1A,5A; | |
| Overload | Voltage: 1.2 times rated value(continuous); 2 times rated value /1 secondCurrent:1.2 times rated value(continuous); 10 times rated value /1 second | ||
| Frequency | 45Hz～65Hz | ||
| Power consumption | Power consumption of each voltage,current input circuit is less than 0.5VA | ||
| Accuracy | 0.5 Class | ||
| Function | Display | LED or LCD | |
| Communication | RS485,Modbus-RTU protocol;(1 start bit,8 data bit,1 stop bit,no parity)Baud Rate 2400/4800/9600/19200 bps etc. | ||
| Alarm | 1 channel passive relay,contact capacity 3A/30VDC,3A/250VAC,Used for high,low,unbalance alarm etc. | ||
| Analog | DC4~20mA,( load<500Ω)(note:Shielded wire is specially selected for the above signal input and output) | ||
| switching | Input | 4 channel or 2 channel dry contact Input,built in power supply | |
| Output | 2 channel switching output,NO relay contact,capacity: 3A/30VDC,3A/250VAC | ||
| Auxiliary supply | Voltage range | AC/DC 85-265V | |
| Power consumption | <5VA | ||
| Power frequency withstand voltage | Between power supply set of terminals and signal input,output set of terminals 2kV/1min (RMS)Between the shell and all set of terminals(except the set of terminals reference voltage less than 40V) AC 4kV | ||
| Environment | Temperature | Operation: -10℃～+55℃Storage: -25°C ~+70°C | |
| Humidity | ≤95%RH,no condensation,without corrosive gas | ||
| Altitude | ≤ 2500m | ||
