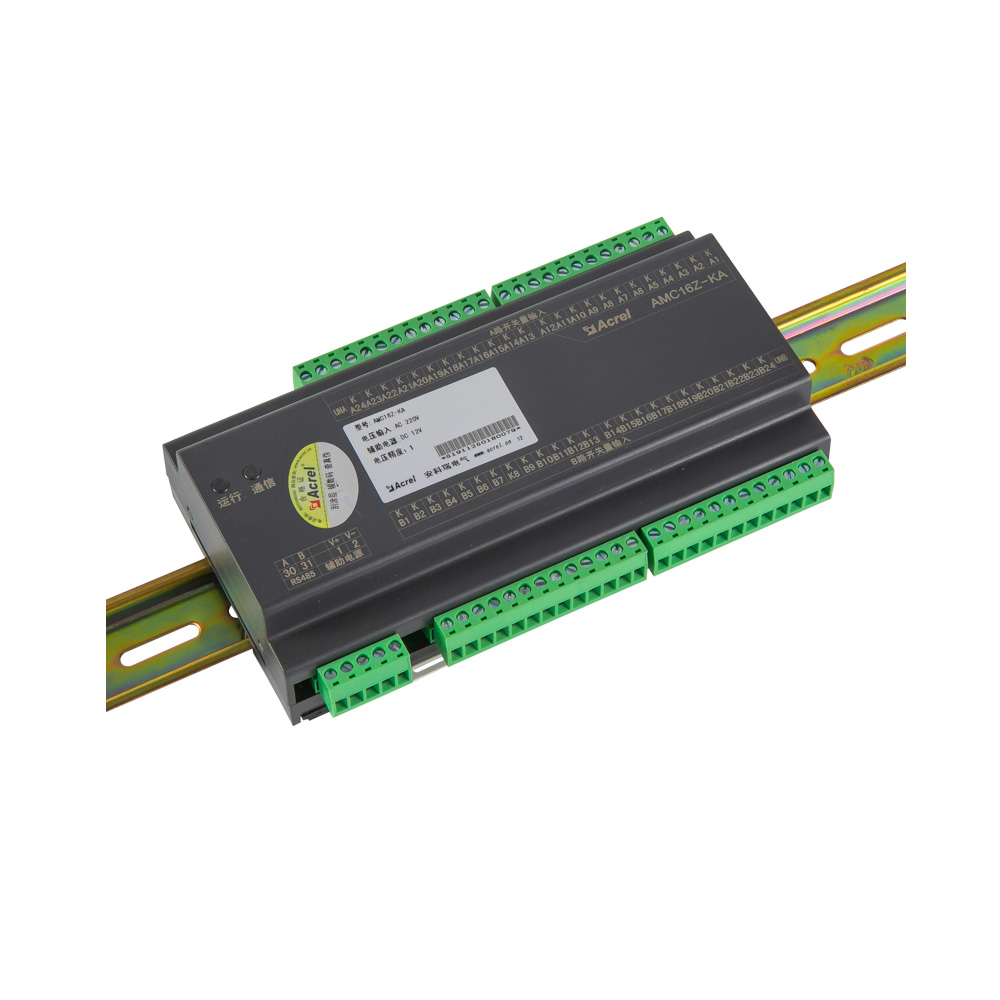

Acrel AMC16Z-KD Precision Power Distribution Monitoring Device

General

Acrel AMC16Z-KD Precision Power Distribution Monitoring Device is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round intelligent monitoring of terminal distribution equipment.

Functions

A+B independent 2 way unilateral 24 passive switch state

48-way dry contact

1 RS485 communication

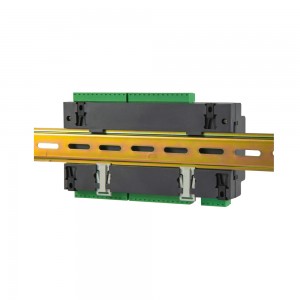

Installation:

DIN rail 35mm

Frequency:

Range: 45-65Hz

Dimension (L*W*H):

180*94.3*45mm

Auxiliary Power Supply:

electric signal power supply

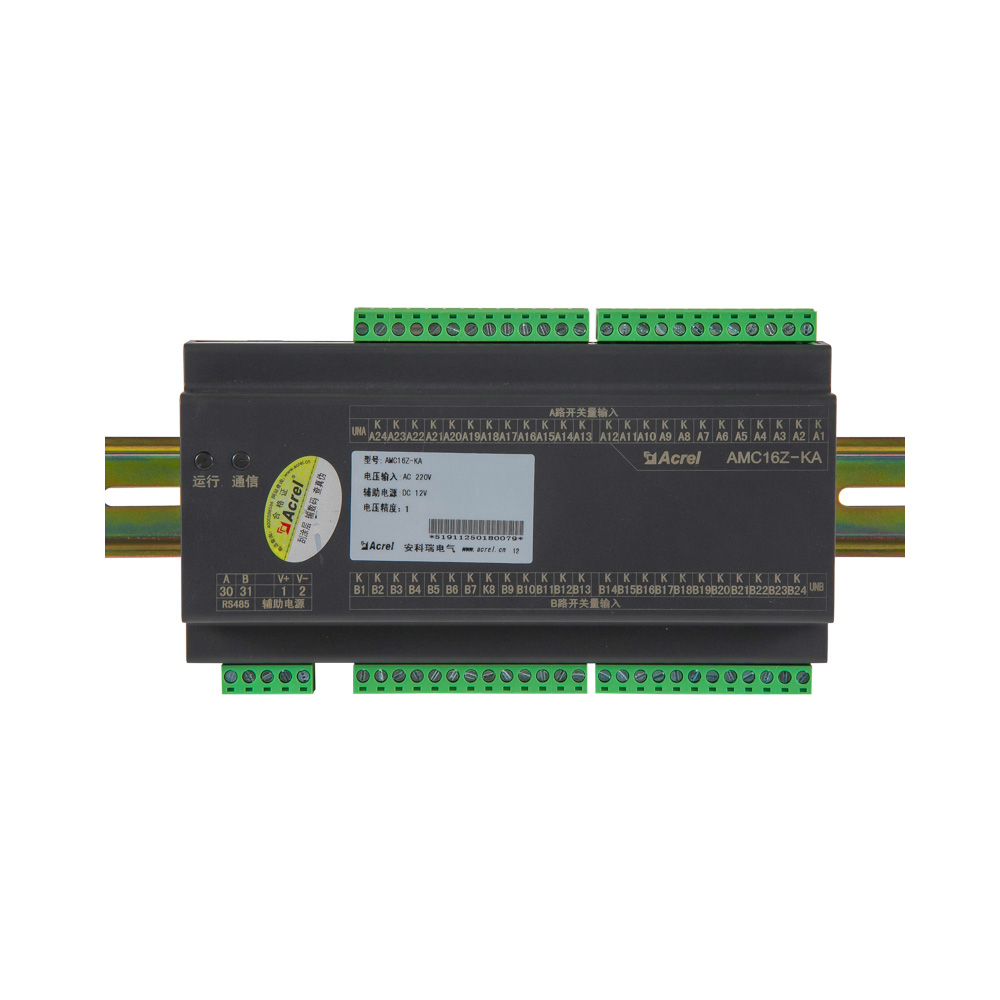

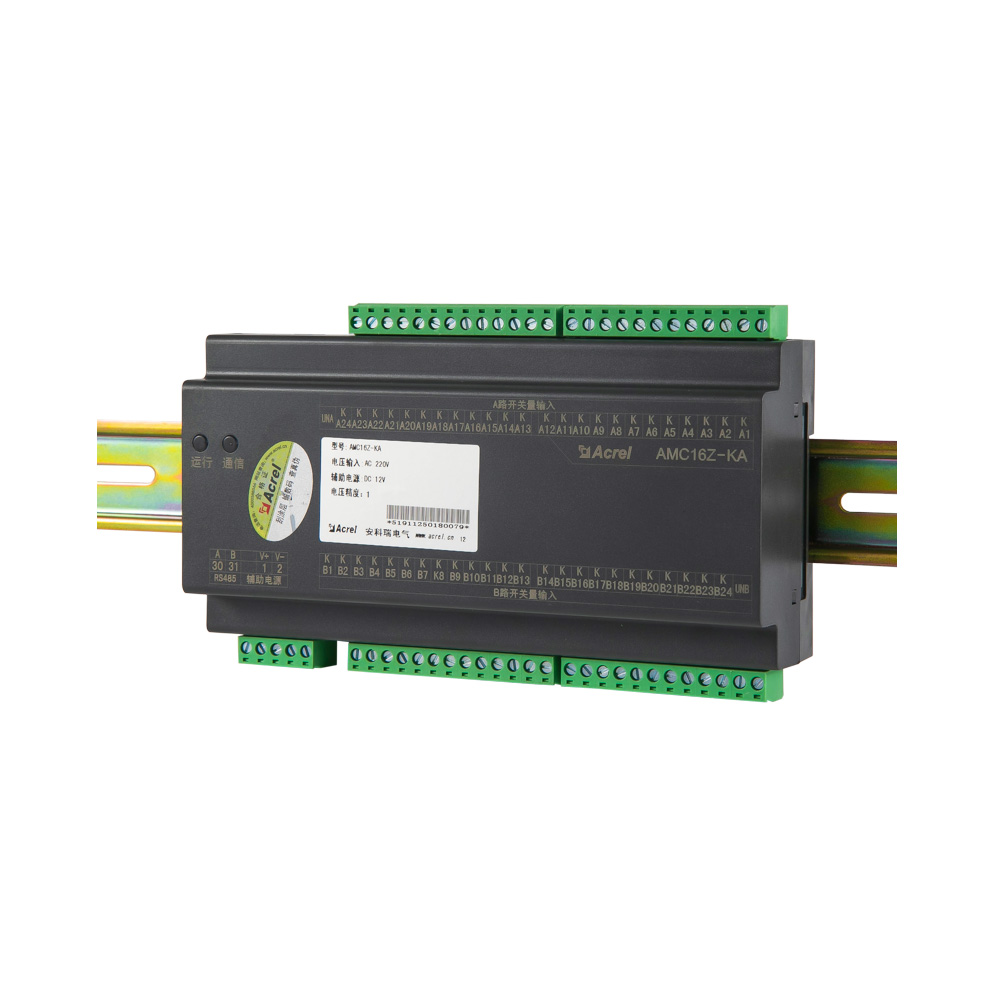

Front Panel

①A Switching input

②B Switching input

③RS485

④Auxiliary power

Application of AMC16Z-KD Precision Power Distribution Monitoring Device

Wiring

Typical Connection

①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line

②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line

③RS485 communication line

④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA

⑤AKH-0.66/30I Tpye ct

⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen

On-site Picture

Packaging

Packaging Overview(Minimum)
Packing Dimension and Weight(Minimum)	Package dimensions(1 PC) 22017090mm	Package Weight(1 PC) 0.35Kg
Packing Dimension and Weight(Large)	Package dimensions(24 PC) 615480395mm	Package Weight(24PC)8.4Kg
Average Lead Time	Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)	Shipment: 8~9 days(World Wide Shipment)
Product HS Code	9028301400
Country of Origin	China

Previous: Acrel AMC16Z-ZD DC Multi Channel Energy Meter

Next: Acrel AMC16Z-FAK24 AC Multi Circuits Energy Meter

Acrel AMC16Z-KD Precision Power Distribution Monitoring Device

Product Models

AMC16Z-ZD(-P24)	Monitor the full power parameters of the A+B dual DC incoming circuit, monitor the status of 6 switches, 2 alarm outputs, 1 temperature and humidity detection, 1 RS485 communication, ±12V output (Only power supply to incoming module matching Hall sensor), DC24V independent auxiliary power supply.
AMC16Z-FD	Monitor the full power parameters of 24 branches of A+B dual-channel DC outlet, and 1 channel of RS485 communication.
AMC16Z-FDK24	Monitor the full power parameters and switch status of the 24 branches of the A+B dual DC out going line, and 1 channel of RS485 communication.
AMC16Z-FDK48	Monitor the full power parameters and switch status of the 48 shunts of the A+B dual DC outgoing lines, and 1 channel of RS485 communication.
AMC16Z-KA	Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
AMC16Z-KD	Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
AMC16Z-AC220V	AC220V extended power supply, and use when the monitoring circuit is beyond 96 branches of A+B

Technical Parameters

Technical parameters		AMC16Z-KD
Frequency		45～60HZ
Auxiliary power supply		Powered by AMC16Z-ZD, DC 12-24V when used alone
Insulation resistance		100MΩ
Environment	Temperature	Working: -15°C~55°C Storage: -25°C~70°C
	Humidity	Relative humidity ≤ 93%
	Altitude	≤2500m
Switching input		48-way trunk node
Communication		RS485/Modbus-RTU
Installation method		DIN35mm rail or wall mount
Protection level		IP20
Pollution level		2
Security	Insulation	The insulation resistance between all terminals and the conductive parts of the housing is not less than 100MΩ
	Withstand pressure	A switch input signal B switch input signal other ports meet AC2kV 1min between two, leakage current should be less than 2mA, no breakdown or flashover phenomenon.
Electromagnetic compatibility	Anti-static interference	Level 4
	Resistant to RF electromagnetic field radiation	Level 3
