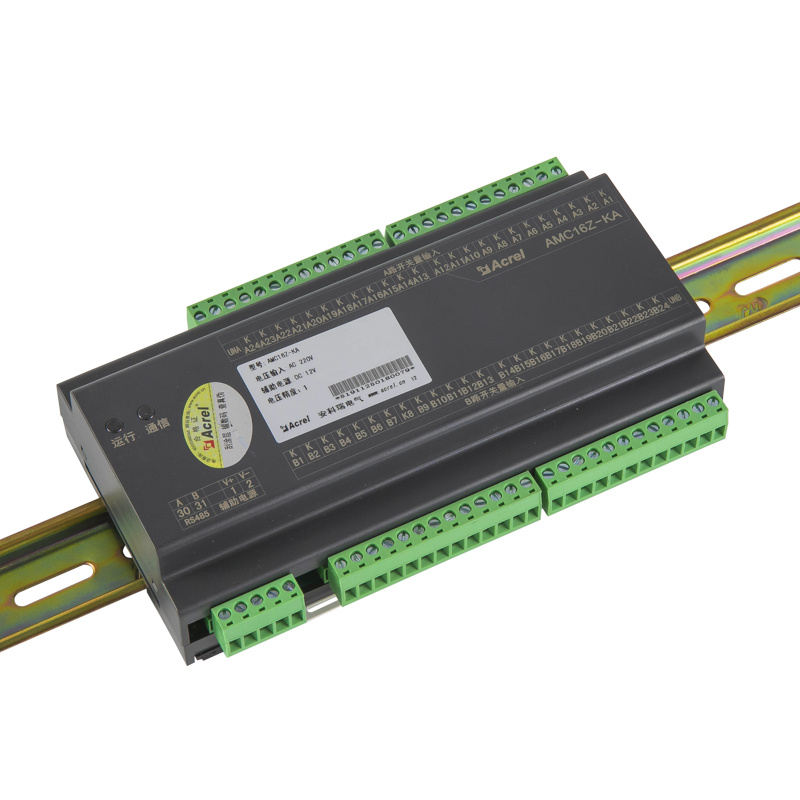

Acrel AMC16Z-KA AC Multi Channel Energy Meter
Acrel AMC16Z-KA AC Multi Channel Energy Meter
General
AMC16Z series AC precision power distribution monitoring device is specially designed for data center server power management. The device designed exquisite, can provide A + B 2 incoming and 96 outgoing's electrical parameters, the input and output switch and the state of lightning protection device with real-time monitoring. All alarm threshold of measurement channels can be set in separate. Over-outgoing triggers system acoustooptic warning immediately. Highly integrated monitoring loop is realized in the volume of traditional instruments.
Acrel AMC16Z-KA AC multi channel energy meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round intelligent monitoring of terminal distribution equipment.
Functions
A+B independent 2 way unilateral 24passive switch state
1 RS485 communication
Installation:

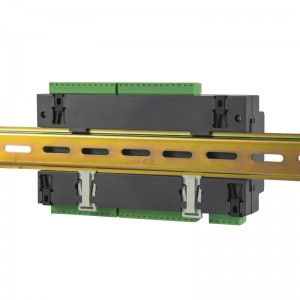

DIN rail 35mm
Frequency:
Range: 45-65Hz
Dimension (L*W*H):
180*94.3*45mm
Auxiliary Power Supply:
electric signal power supply

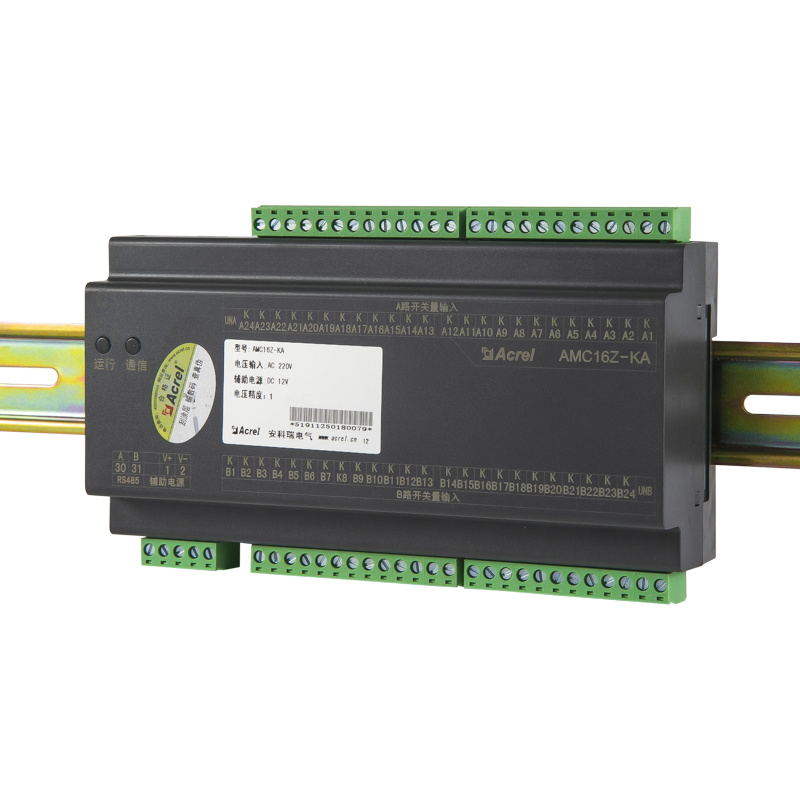

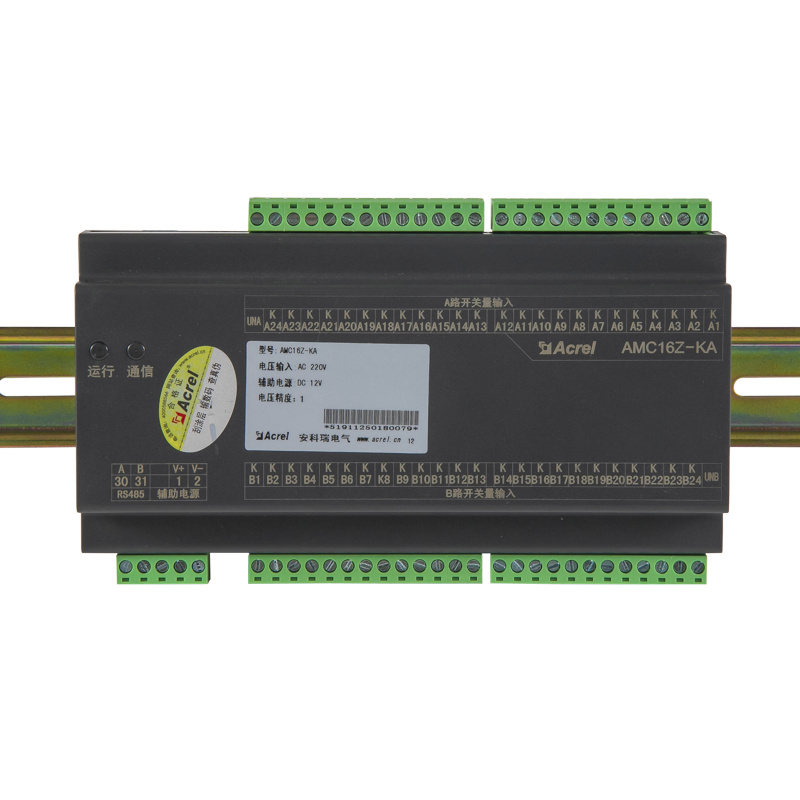

Front Panel
①A Switching input
②B Switching input
③RS485
④Auxiliary power
Application of AMC16Z-KA AC Multi Channel Energy Meter
Wiring
Typical Connection
①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line
②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line
③RS485 communication line
④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA
⑤AKH-0.66/30I Tpye ct
⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen
On-site Picture
Packaging
| Packaging Overview(Minimum) |  |
 |
 |
 |
| Packing Dimension and Weight(Minimum) | Package dimensions(1 PC)
220*170*90mm |
Package Weight(1 PC)
0.35Kg |
||
| Packing Dimension and Weight(Large) | Package dimensions(24 PC)
615*480*395mm |
Package Weight(24PC)8.4Kg | ||
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shipment: 8~9 days(World Wide Shipment) | ||
| Product HS Code | 9028301400 | |||
| Country of Origin | China | |||
Acrel AMC16Z-KA AC Multi Channel Energy Meter
Product Models
|
AMC16Z-ZA
|
Monitor the full power parameters of A+B double-way three-phase AC incoming circuit, 6-way switch state monitoring,
2-way alarm output, 2-way leakage monitoring, 1-way temperature and humidity detection, 1-way RS485
communication, and phase-sequence detection.
|
|
AMC16Z-FA
|
Monitor the full power parameters of 24 branches of A+B double-way AC
outgoing line, 1-way RS485 communication and phase adjustment.
|
|
AMC16Z-FAK24
|
Monitor the full power parameters and switch state of 24 branches of A+B
double-way AC outgoing line, 1-way RS485 communication and phase adjustment.
|
|
AMC16Z-FAK48
|
Monitor the full power parameters and switch state of 48 branches of A+B
double-way AC outgoing line, 1-way RS485 communication and phase adjustment.
|
|
AMC16Z-KA
|
Wet contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
|
|
AMC16Z-KD
|
Dry contact, monitoring A+B total 48 branch switch state, 1-way RS485 communication.
|
|
AMC16Z-AC220V
|
AC220V extended power supply, and use when the monitoring circuit is beyond 96 branches of A+B
|
Technical Parameters
|
Technical parameters
|
AMC16Z-KA
|
|
|
Measured parameters
|
45-60Hz
|
|
|
Auxiliary power supply
|
Power supply by AMC16Z-ZA
|
|
|
Environment
|
Temperature
|
Work: -15 ℃ ～ 55 ℃ Storage: -25 ℃ ～ 70 ℃
|
|
Humidity
|
Relative humidity ≤93%
|
|
|
Altitude
|
≤2500m
|
|
|
Switch input
|
48-way wet contact
|
|
|
Communication
|
RS485/Modbus-RTU
|
|
|
Installation method
|
DIN35mm din rail or bottom plate mounting
|
|
|
IP grade
|
IP20
|
|
|
Class of pollution
|
2
|
|
|
Safety
|
Insulation
|
All terminals and the insulation resistance between the conductive pieces not below 100 m Ω
|
|
Withstand voltage
|
A-channel Switch input signal // B-channel Switch input signal // other ports
meet AC2kV 1min between pairs, leakage current should be less than 2mA,
no breakdown or flashover phenomenon
|
|
|
Electromagnetic
compatibility
|
Anti-static
interference
|
Level 4
|
|
Resistance to
radiation of
radio frequency
|
Level 3
|
|
