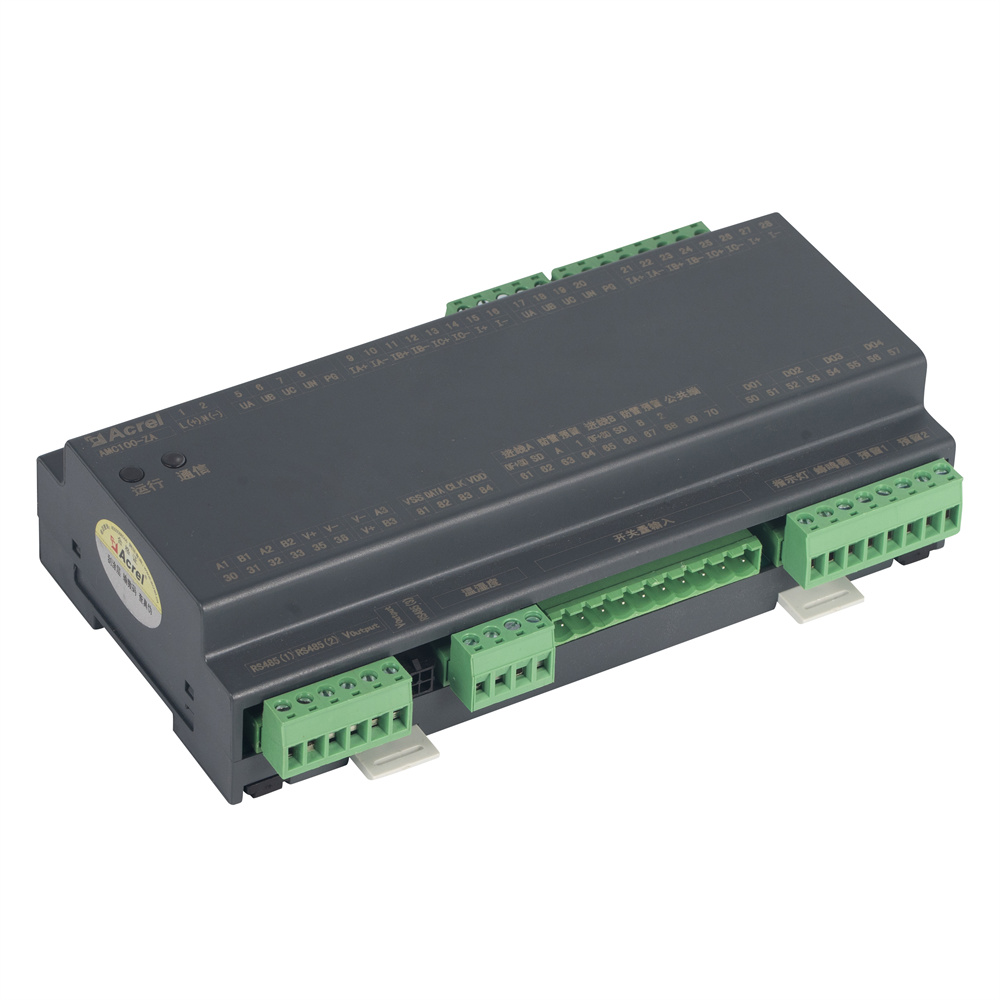

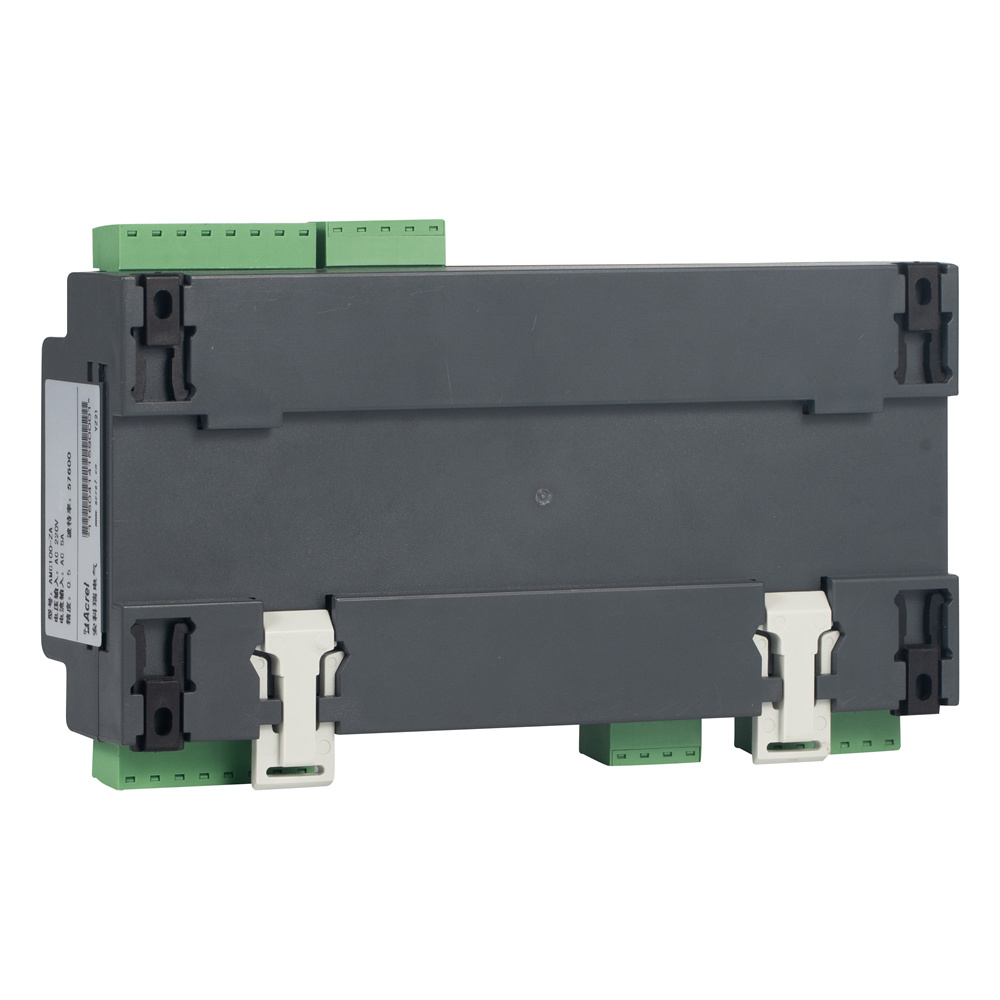

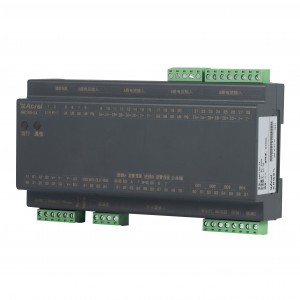

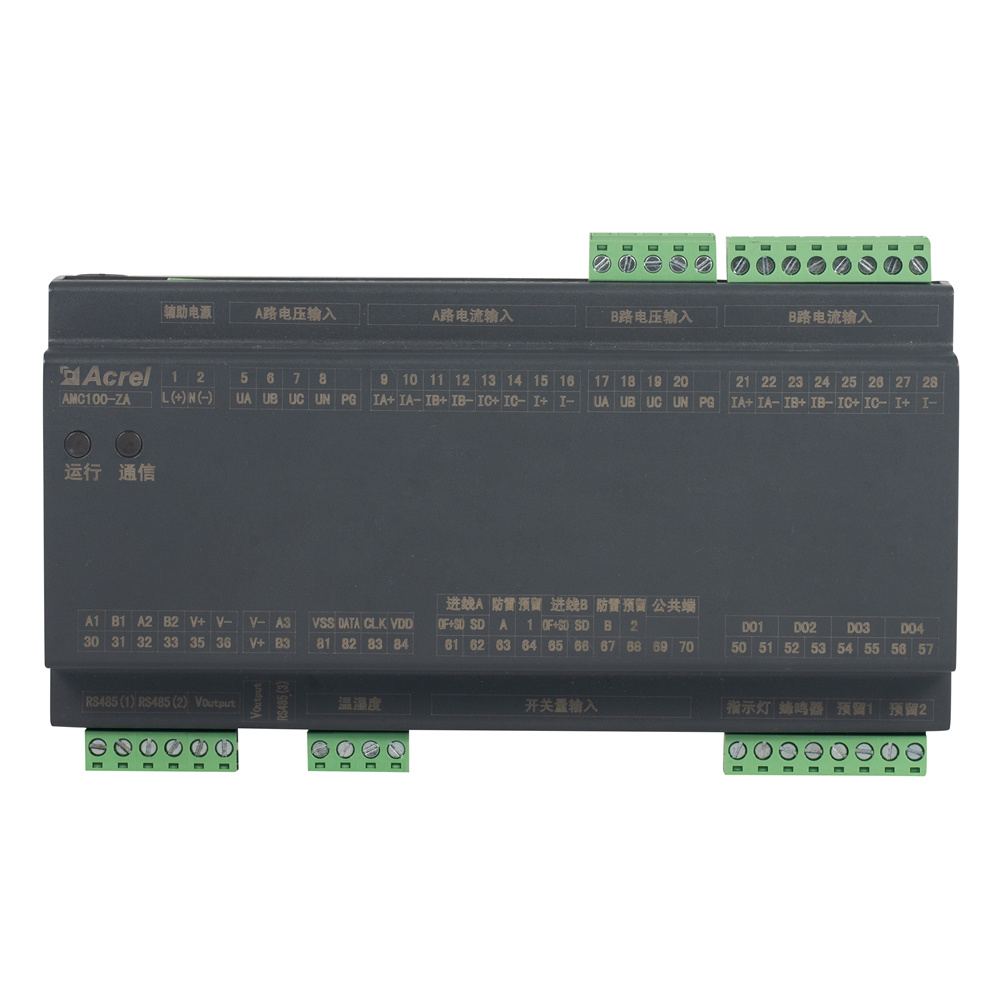

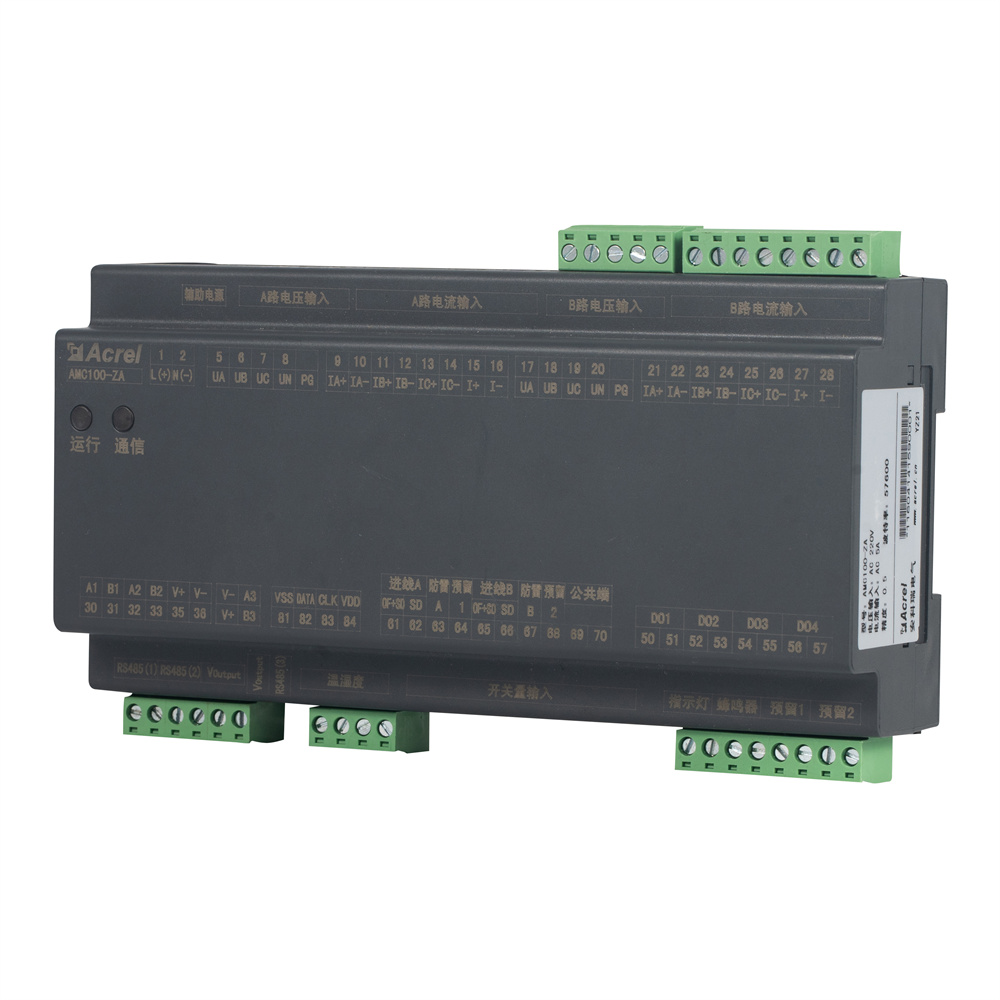

Acrel AMC100-ZA AC Precision Power Distribution Monitoring Device

General

Acrel AMC100 series AC precision power distribution monitoring device is a measuring device designed specifically for power management of data center servers. The device is compact in design and can monitor the full electrical parameters, input and output switches and the status of the lightning arrester of A+B two incoming lines and 192 outgoing lines in real time.

Functions

● Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, , total power parameter measurement

●180mm width

●Zero-to-ground voltage, leakage current and zero sequence current,2-63 harmonics

●8DI4DO+1 channel temperature and humidity

●Ethernet (optional)

●3 RS485 channels (2 uplink touch screen and moving ring, 1 downlink sub-module)

Application of AMC100-ZA AC Precision Power Distribution Monitoring Device

Wiring

Typical Connection

①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line

②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line

③RS485 communication line

④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA

⑤AKH-0.66/30I Tpye ct

⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen

Matched Current Transformer

AKH-0.66-EMS

AMC16Z-FAK24 matched current transformer - 3

AMC16Z-FAK24 matched current transformer - 4

AKH-0.66-9N-HB

AKH-0.66-12N-HB

AKH-0.66-20-HB

AKH-0.66-30N-HB

Dimension and Installation

On-site Picture

Packaging

Packaging Overview(Minimum)
Packing Dimension and Weight(Minimum)	Package dimensions(1 PC) 22017090mm	Package Weight(1 PC) 0.35Kg
Packing Dimension and Weight(Large)	Package dimensions(24 PC) 615480395mm	Package Weight(24PC)8.4Kg
Average Lead Time	Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)	Shipment: 8~9 days(World Wide Shipment)
Product HS Code	9028301400
Country of Origin	China

Previous: Acrel AMC16Z-FDK48 DC Multi Circuits Energy Meter

Next: Acrel AMC100-FA30 AC Precision Power Distribution Monitoring Device

Acrel AMC100-ZA AC Precision Power Distribution Monitoring Device

Product Models

AMC100-ZA	Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs, 4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications
AMC100-FAK30	Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FAK48	Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FA30	Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-FA48	Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
AMC100-KA30	Wet contact,monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KA48	Wet contact,monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-KD30	Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KD48	Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-FT30	1 wayRS485 communication, 30 way temperature measurement
AMC100-FT48	1 wayRS485 communication, 48 way temperature measurement

Technical Parameters

Technical parameters		AMC100-ZA
Measurement parameters		Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, Zero-to-ground voltage, leakage current and zero sequence current, total harmonic content (THD), 2-63 harmonics, current and voltage unbalance, ambient temperature and humidity
Bus voltage	Rated	220VAC
	Measuring range	±20%
	Overload	Instantaneous voltage 2 times/sec
Current incoming circuit	Rated	Secondary 5A
	Range	0～6A
	Overload	Continuous 1.2 times, instantaneous 10 times/sec
Temperature and humidity	Temperature Range	-40℃～+99℃
Temperature and humidity	Humidity Range	20%～90%
Input frequency		AC45～65Hz
Measurement accuracy	Incoming line	Voltage/current level 0.2, active power/energy level 0.5, reactive power/energy level 1
	Temperature	±1℃
	Humidity	±5%
Auxiliary power		AMC100-ZA: signal to take power (≤15W) AMC100-ZA-P220: 220V independent power supply AMC100-ZA-P24: DC 12-24V independent power supply
Environment	Temperature	Work: -20℃～150℃ Storage: -25℃～70℃
	Humidity	Relative humidity≤93%
	Altitude	≤2500m
Switch output		4 channels 3A 250VAC/3A 30VDC
Communication		1 isolated RS485/Modbus-RTU to the background system 1 RS485/Modbus-RTU to touch screen 1 RS485/Modbus-RTU connection downstream module Optional 1-channel Ethernet communication function
Installation Method		DIN35mm rail or bottom plate installation
Protection level		IP20
Pollution level		2
Security	Insulation	The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ
Security	Withstand voltage	A voltage and current signal//B voltage and current signal//switch output//isolated communication port//between other ports meet AC2kV 1min, switch input and other ports should meet AC0.5kV 1min, leakage current Should be less than 2mA, no breakdown or flashover phenomenon
Electromagnetic compatibility	Anti-static interference	Level 4
	Anti-electric fast transient burst	Level 3
	Anti-surge interference	Level 4
	Resistance to radio frequency electromagnetic field radiation	Level 3
