Acrel AMC16Z-FAK24 AC Multi Circuits Energy Meter
Acrel AMC16Z-FAK24 AC Multi Circuits Energy Meter
General
Acrel AMC16Z-FAK24 monitor the full power parameters and switch state of 24 branches of double-channel AC outlet, 1-channel RS485 communication and phase adjustment. AMC16Z-FAK24 are commonly used in the Acrel AMC Precision Distribution Management System.
Functions
12 channels of each circuit of A+B
independent 2 circuits the outgoing current
active power, active power, reactive power
2-31st harmonic, 48DI
1 RS485 communication

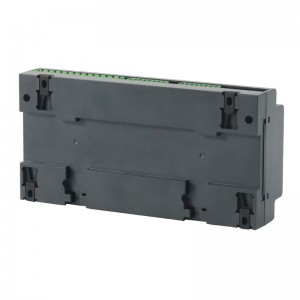

Installation:
DIN rail 35mm
Frequency:
Range: 45-65Hz
Dimension (L*W*H):
180*94.3*45mm
Auxiliary Power Supply:
DC 12V/24V

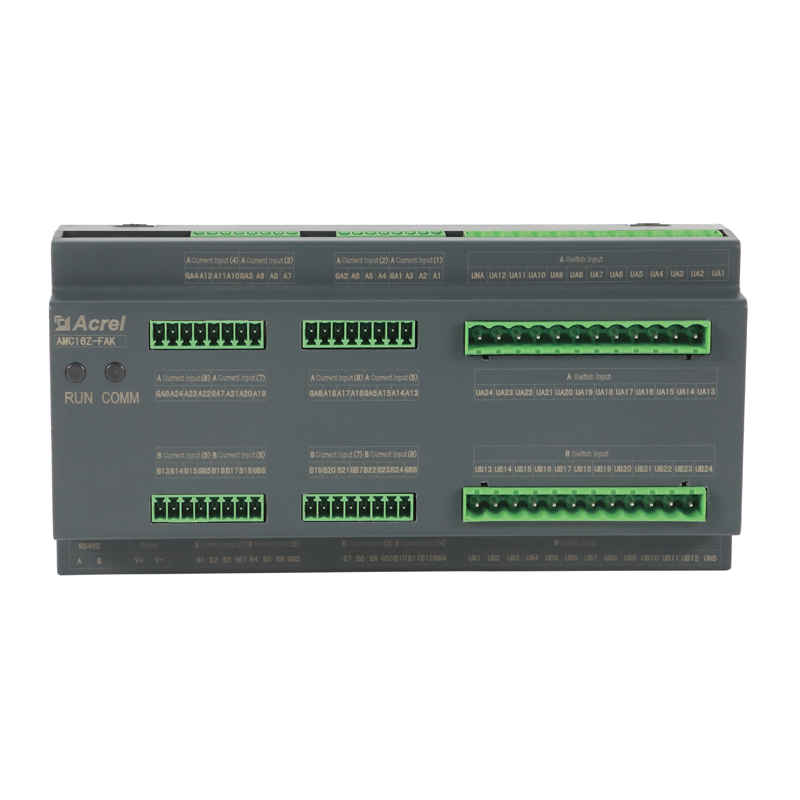

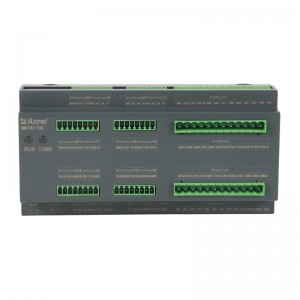

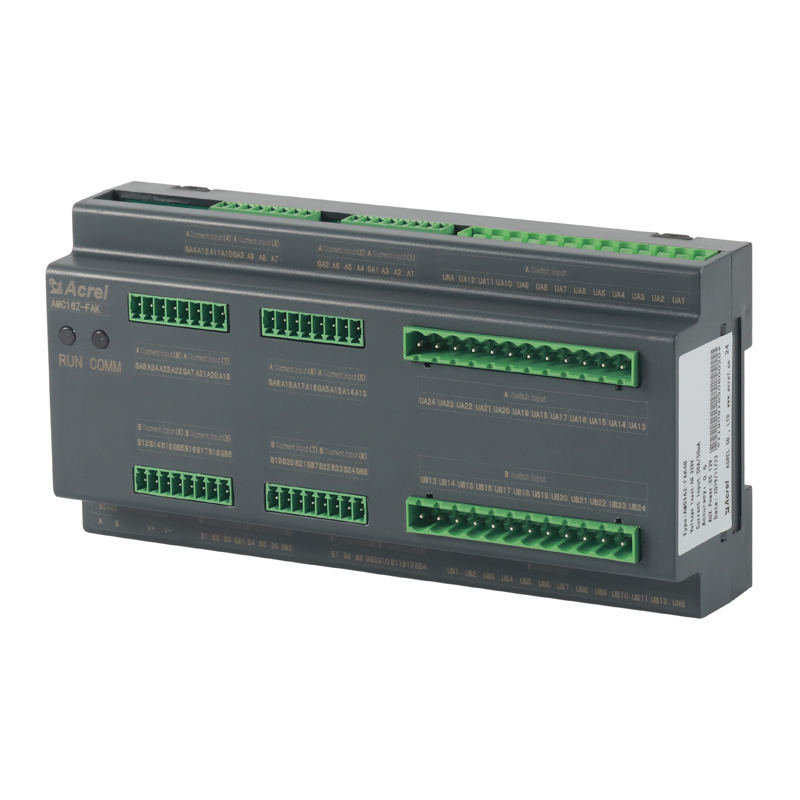

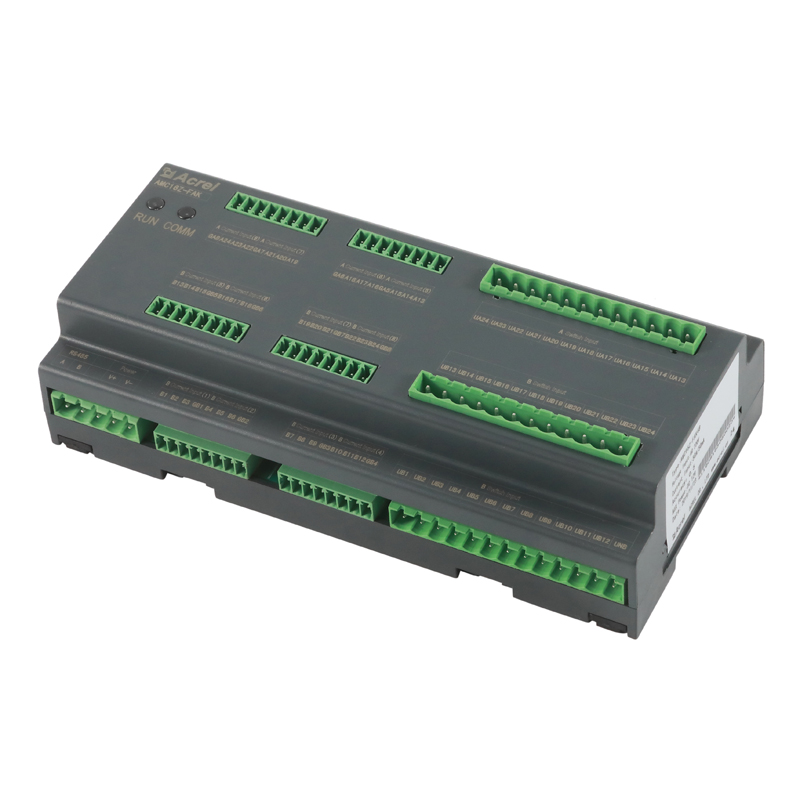

Front Panel
①first channel current input
②first channel voltage input
③RS485
④DC12V/24V Power input
⑤Second channel current input
⑥Second channel voltage input
Application of AMC16Z-FAK24 AC Multi Circuits Energy Meter
Wiring
Typical Connection
①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line
②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line
③RS485 communication line
④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA
⑤AKH-0.66/30I Tpye ct
⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen
Matched Current Transformer
AKH-0.66-EMS
AKH-0.66-9N-HB
AKH-0.66-12N-HB
AKH-0.66-20-HB
AKH-0.66-30N-HB
On-site Picture
Packaging
| Packaging Overview(Minimum) |  |
 |
 |
 |
| Packing Dimension and Weight(Minimum) | Package dimensions(1 PC)
220*170*90mm |
Package Weight(1 PC)
0.35Kg |
||
| Packing Dimension and Weight(Large) | Package dimensions(24 PC)
615*480*395mm |
Package Weight(24PC)8.4Kg | ||
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shipment: 8~9 days(World Wide Shipment) | ||
| Product HS Code | 9028301400 | |||
| Country of Origin | China | |||
Acrel AMC16Z-FAK24 AC Multi Circuits Energy Meter
Product Models
|
AMC16Z-ZA(-P24)
|
Monitor the full power parameters of A+B double-way three-phase AC input circuit,status of 6-way
switch monitoring, 2-way alarm output, 2-way electric leakage monitoring, 1-way temperature
and humidity detection, 1-way R3485 communication, phase sequence detection,DC24V independent auxiliary power supply.
|
|
AMC16Z-FA
|
Monitor the full power parameters of A+B double-way AC output of 24 shunt circuits,1-way RS485 communication, phase adjustment
|
|
AMC16Z-FAK24
|
Monitor the full power parameters and switch status of A+B double-way AC output of 24 shunt circuits,1-way RS485 communication, phase adjustment.
|
|
AMC16Z-FAK48
|
Monitor the full power parameters and switch status of A+B double-way AC output of 48 shunt circuits,1-way RS485 communication, phase adjustment.
|
|
AMC16Z-KA
|
Wet contact, monitor the switch status of A+B total 48 shunt circuits,1-way RS485 communication.
|
|
AMC16Z-KD
|
Dry contact, monitor the switch status of A+B total 48 shunt circuits,1-way RS485 communication.
|
Technical Parameters
|
Technical parameters
|
AMC16Z-FAK24
|
AMC16Z-FAK48
|
|
|
Measurement parameters
|
Voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, switch status
|
||
|
2-31 harmonics
|
|||
| Busbar voltage | Rated |
220VAC
|
|
|
Measurement
range
|
±20%
|
||
| Overload |
Instant voltage 2 times/s
|
||
|
Current
output circuit
|
Rated
|
50mA
|
|
|
Range
|
0.125～60mA
|
||
|
Overload
|
Duration 1.2 times, instantaneous 10 times/s
|
||
|
Input Frequency
|
45～60Hz
|
||
|
Measurement
|
Inlet wire
|
Voltage/current, active power/electric energy 0.5 Class, reactive power/electric energy 1 Class
|
|
|
Auxiliary power supply
|
Powered by AMC16Z-ZA, DC 12-24V when used alone
|
||
|
Environment
|
Temperature
|
Work：-15℃～55℃
Storage：-25℃～70℃
|
|
|
Humidity
|
Relative humidity≤93%
|
||
|
Altitude
|
≤2500m
|
||
|
Communication
|
RS485/Modbus-RTU
|
||
|
Installation method
|
DIN35mm guide rail or base plate installation
|
||
|
Protection degree
|
IP20
|
||
|
Pollution degree
|
2 | ||
|
Safety
|
Insulation
|
Insulation resistance between all the terminals and shell conductive parts not less than 100MΩ
|
|
|
Withstand
voltage
|
Circuit A voltage current signal,Circuit B voltage current signal, between other two terminals
meeting AC2kV 1min, leakage current should be less than 2mA, no breakdown orflashover
|
||
|
Electromagnetic
compatibility
|
Static
interference
immunity
|
Level 4
|
|
|
RF
electromagnetic
field radiation
immunity
|
Level 3
|
||
