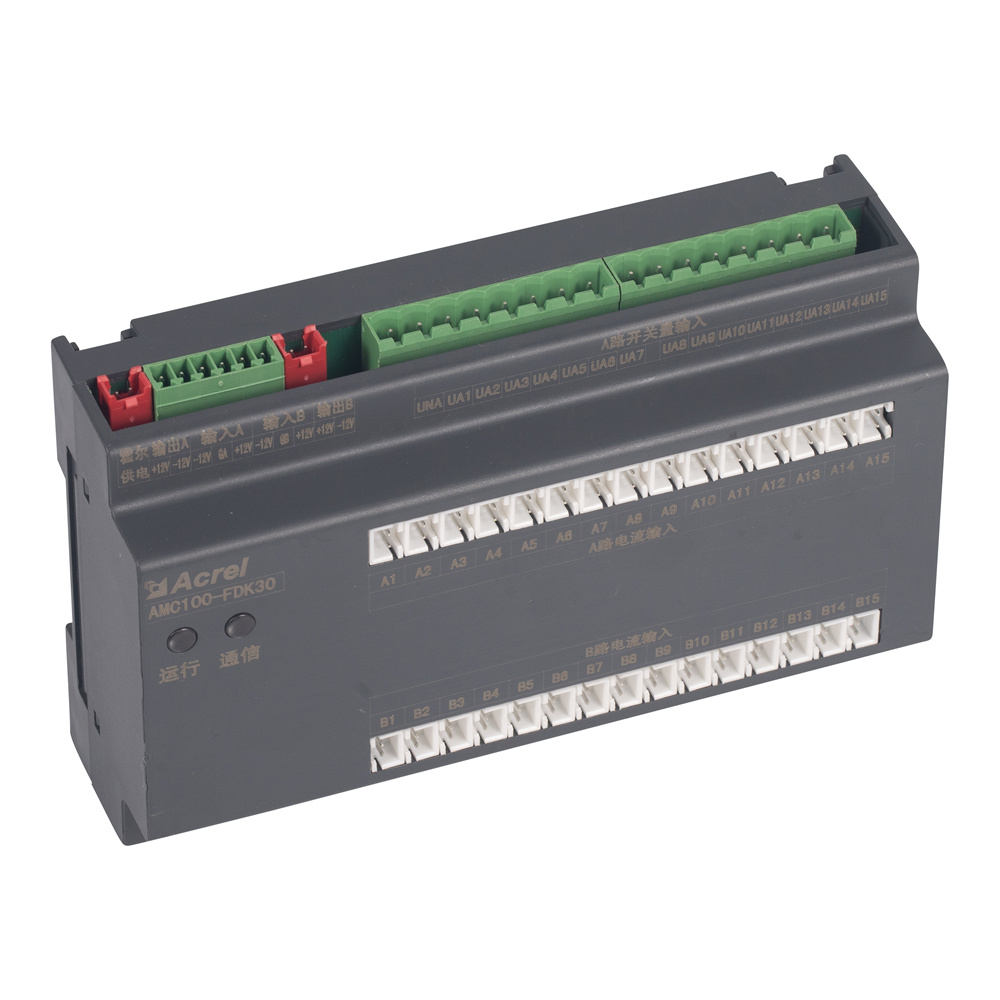

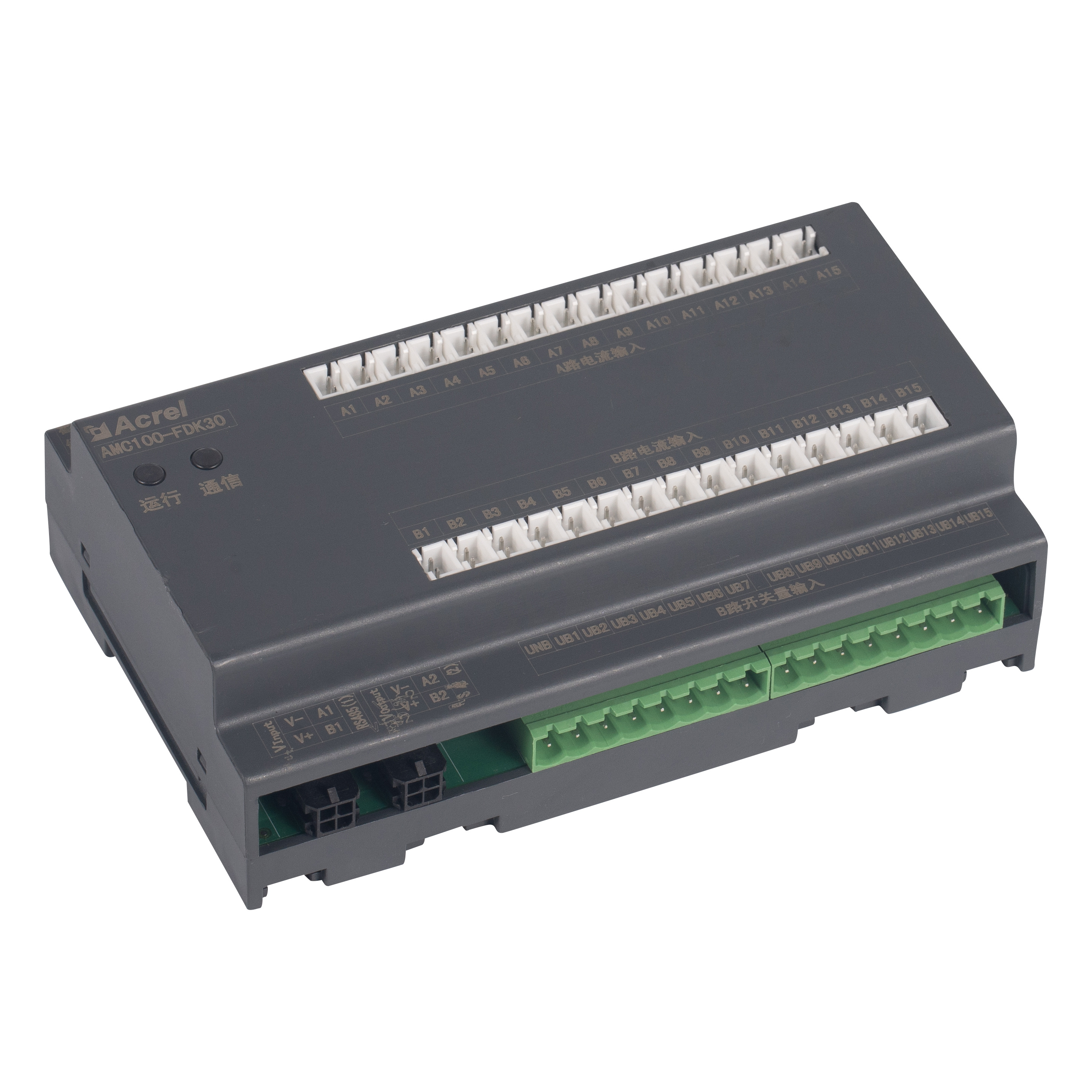

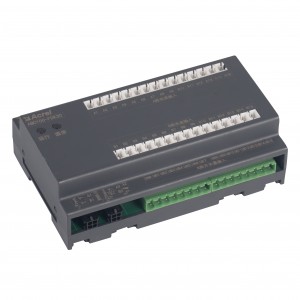

Acrel AMC100-FDK30 DC Precision Power Distribution Monitoring Device

Acrel AMC100-FDK30 DC Precision Power Distribution Monitoring Device

● Designed specifically for the power supply management of server in the data center

● A+B independent 15 circuits（30 in total）

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-31st Harmonic

● kWh Class 0.5

● DIN 35 mm

Send email to us

Product Detail

Technical Parameters

Download

Product Tags

Acrel AMC100-FDK30 DC Precision Power Distribution Monitoring Device

General

Acrel AMC100 series DC precision power distribution monitor is a measurement device designed specifically for power management of data center servers. The device design exquisite, can for A + B two into line and 192 road for electrical parameters, the input and output parameters of the switch state and the lightning protection device such as real-time monitoring, all alarm threshold measurement channels can be set in A separate, to qualify the limit event trigger system sound and light alarm, immediately on the volume in the traditional instrument, the height of the monitoring circuit integration.

Functions

● Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, , total power parameter measurement

●180mm/144mm width

●Two channel 15 circuits,total 30 circuits

●30DI wet nodes

●1 RS485 communication

Application of AMC100-FDK48 DC Precision Power Distribution Monitoring Device

Wiring

Typical Connection

①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line

②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line

③RS485 communication line

④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA

⑤AKH-0.66/30I Tpye ct

⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen

Matched Current Transformer

AKH-0.66-EMS

AMC16Z-FAK24 matched current transformer - 3

AMC16Z-FAK24 matched current transformer - 4

AKH-0.66-9N-HB

AKH-0.66-12N-HB

AKH-0.66-20-HB

AKH-0.66-30N-HB

Dimension and Installation

On-site Picture

Packaging

Packaging Overview(Minimum)
Packing Dimension and Weight(Minimum)	Package dimensions(1 PC) 22017090mm	Package Weight(1 PC) 0.35Kg
Packing Dimension and Weight(Large)	Package dimensions(24 PC) 615480395mm	Package Weight(24PC)8.4Kg
Average Lead Time	Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)	Shipment: 8~9 days(World Wide Shipment)
Product HS Code	9028301400
Country of Origin	China

Previous: Acrel AMC100-FDK48 DC Precision Power Distribution Monitoring Device

Next: Acrel AMC16-DETT Multi-Circuits DC Energy Meter for Base Station 4G/5G Tower

Acrel AMC100-FDK30 DC Precision Power Distribution Monitoring Device

Product Models

AMC100-ZD	Monitor the voltage, current, power, and electric energy of 2 independent incoming lines A+B,8 switching input, 4 switching output , 1 temperature and humidity detection, and 3 RS485 communications
AMC100-FDK30	Monitor the full power parameters and switching status(active) of A+B dual DCoutlet 30 branches,and 1 RS485 communication
AMC100-FDK48	Monitor the full power parameters and switching status(active) of A+B dual DCoutlet 48 branches, and1 RS485 communication
AMC100-FD30	Monitor the full power parameters of A+B dual DC outgoing lines in A total of 30 branches, and 1RS485 communication
AMC100-FD48	Monitor the full power parameters of A+B dual DC outgoing linesin A total of 48 branches, and 1RS485 communication
AMC100-KA30	Wet contact,monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KA48	Wet contact,monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-KD30	Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication
AMC100-KD48	Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication
AMC100-FT30	1 wayRS485 communication, 30 way temperature measurement
AMC100-FT48	1 wayRS485 communication, 48 way temperature measurement

Technical Parameters

Technical parameters		AMC100-FDK30	AMC100-FDK48
Measurement parameters		Voltage, Current, Power, Electric energy
Bus voltage	Rated	48VDC,240VDC,336VDC
	Measuring range	±20%
	Overload	Instantaneous voltage 2 times per second
Current incoming circuit	Rated	5V (Hall sensor, need external power supply ±12V or ±15V)
	Range
	Overload	Duration is 1.2 times, instantaneous 10 times/second
Measuring accuracy	coil out	Voltage/current level 0.5, power/electric energy level 1
Auxiliary supply		Powered by AMC100-ZD; DC 12-24V powersupply when used alone
Environment	Temperature	Operation：-15℃～55℃ Storage：-25℃～70℃
	Humidity	Relative humidity≤93%
	Altitude	≤2500m
Communication		RS485/Modbus-RTU
Installation		Method DIN35mm rail or bottom plate installation
Protection level		IP20
Pollution level		2
Security	Insulation	The insulation resistance between all terminals and the conductive parts on the shell must be at least 100MΩ
	Withstand voltage	Voltage and current signal of line A // Voltage and current signal of line B // The two of other ports meet AC2kV for 1min, the leakage current should be less than 2mA, and no breakdown or flashover phenomenon.
Electromagnetic compatibility	Anti-static interference	Level 4
	Radio frequency electromagnetic radiation	Level 3

Note: The input voltage of the secondary side of AMC100-FDK module is 5V, and the default value of the primary side current is 100A. If the hall sensor is different, customers can set the ratio through the touch screen according to the actual use.
