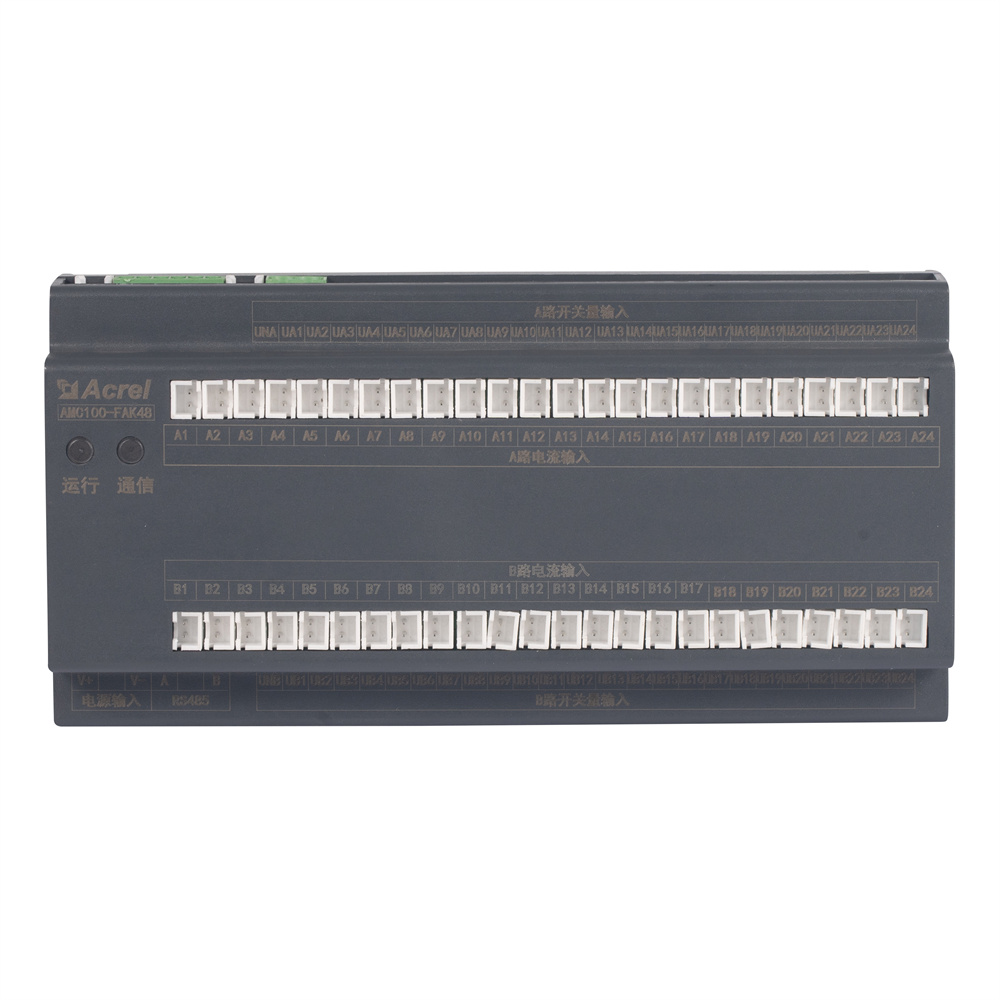

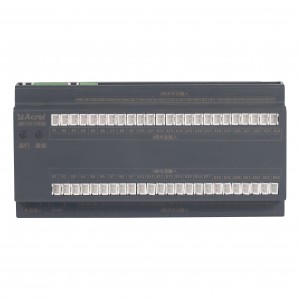

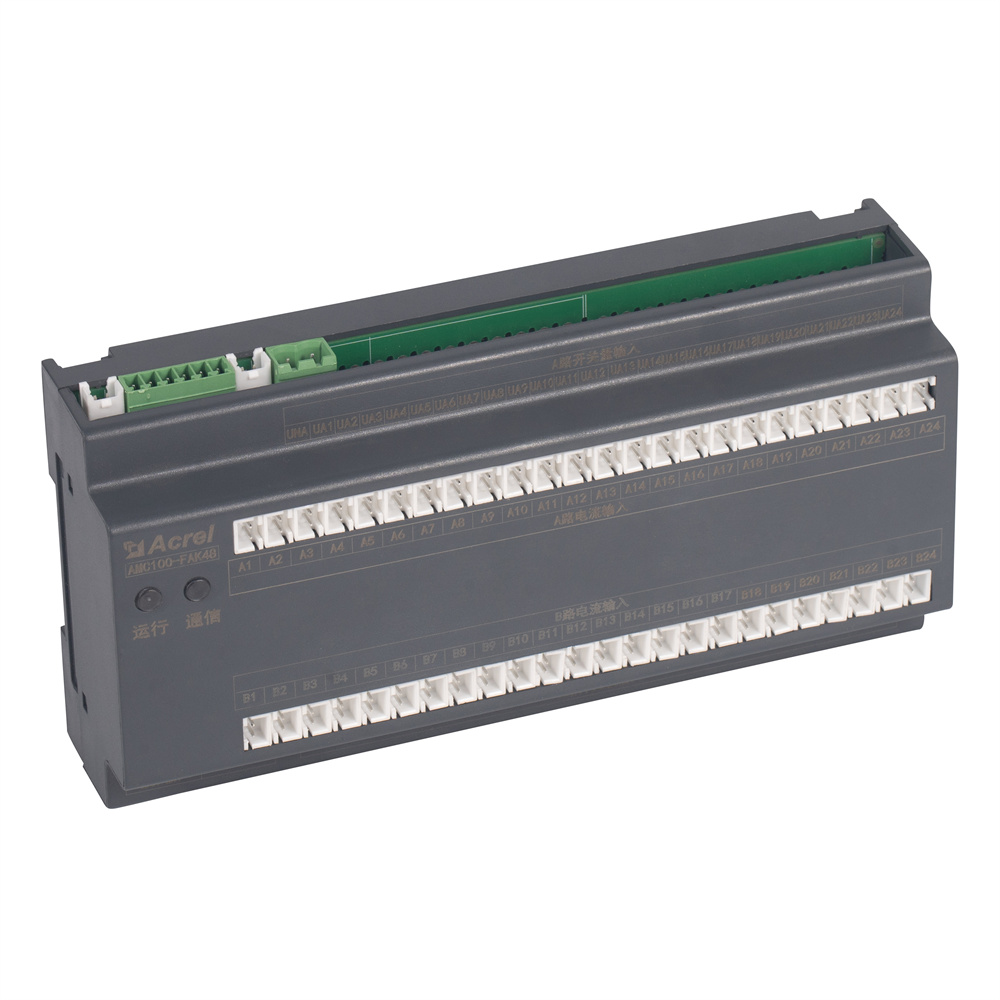

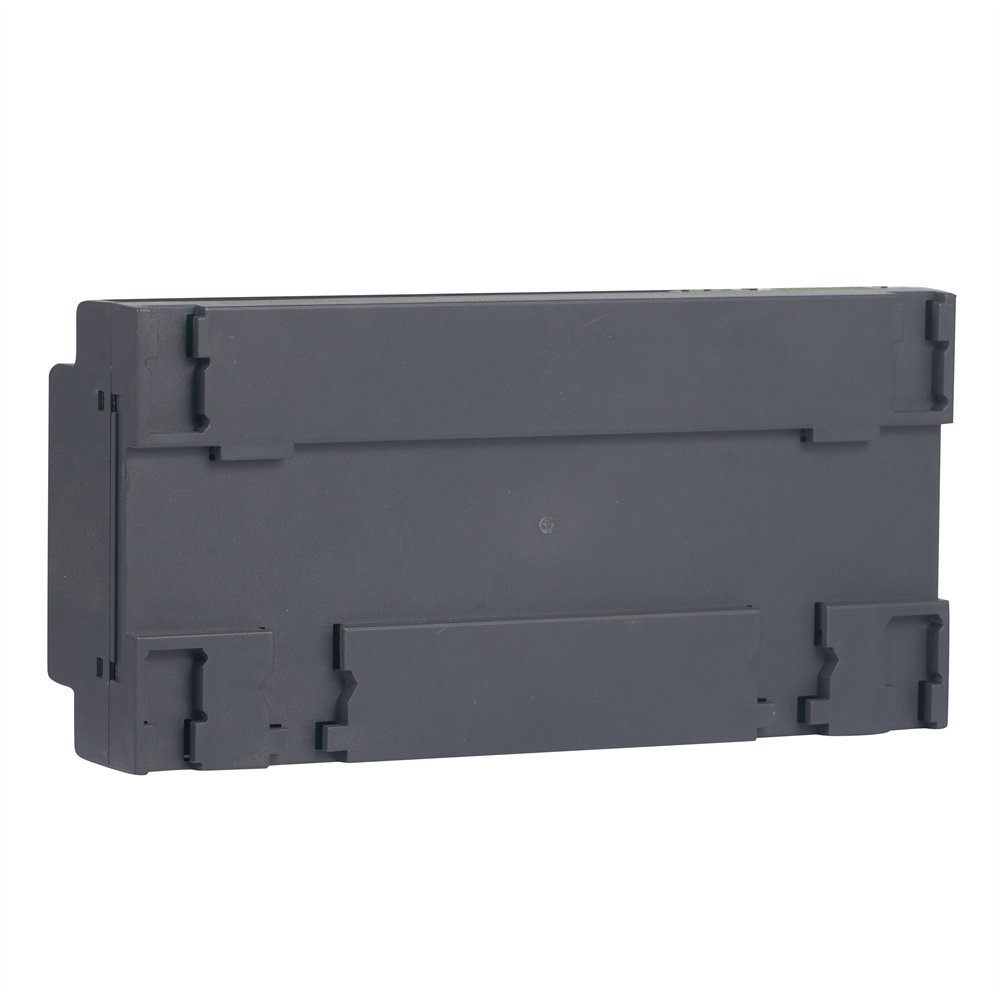

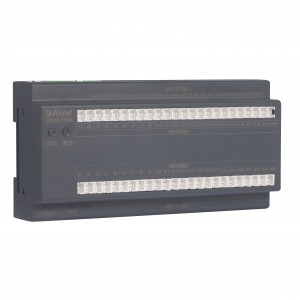

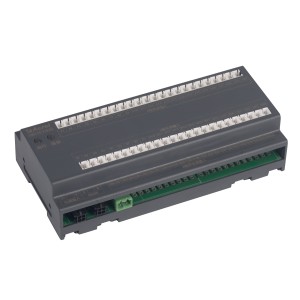

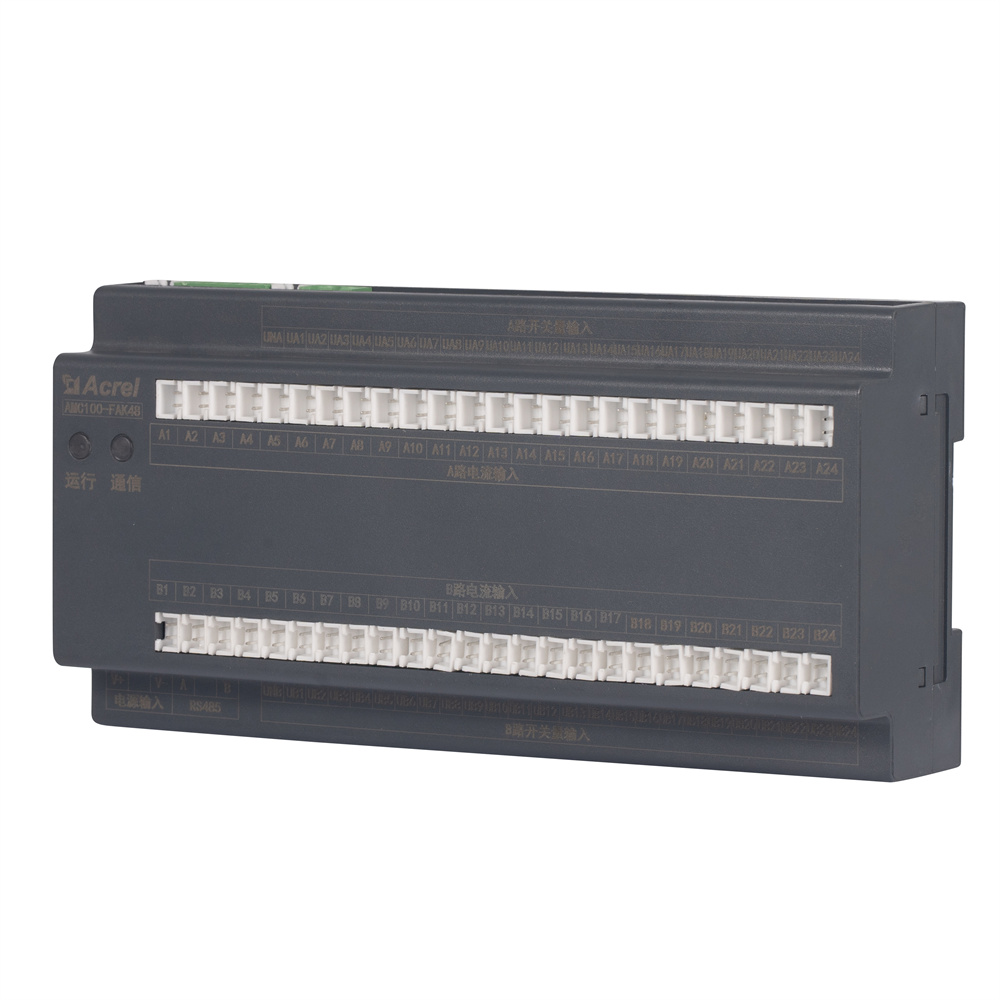

Acrel AMC100-FAK48 AC Precision Power Distribution Monitoring Device
Acrel AMC100-FAK48 AC Precision Power Distribution Monitoring Device
General
Acrel AMC100 series AC precision power distribution monitoring device is a measuring device designed specifically for power management of data center servers. The device is compact in design and can monitor the full electrical parameters, input and output switches and the status of the lightning arrester of A+B two incoming lines and 192 outgoing lines in real time.
Functions
● Voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy, , total power parameter measurement
●180mm/144mm width
●Two channel 24 circuits,total 48 circuits
●48DI wet nodes
●1 RS485 communication
Application of AMC100-FAK48 AC Precision Power Distribution Monitoring Device
Wiring
Typical Connection

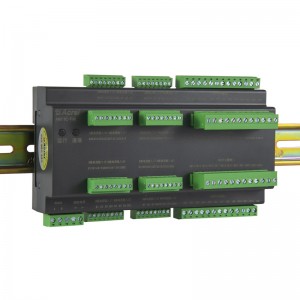

①AMC16Z-FAK24/48 Measure 24/48 channels of each circuit of A+B out line
②AMC16Z-ZA Measure A+B independent 2 circuits three-phase main into line
③RS485 communication line
④AKH-0.66W Type ct or AKH-0.66-EMS type (50,100,200400A)/50mA
⑤AKH-0.66/30I Tpye ct
⑥ATP007kt 7-inch Touch screen or ATP010kt 10-inch Touch screen
Matched Current Transformer
AKH-0.66-EMS
AKH-0.66-9N-HB
AKH-0.66-12N-HB
AKH-0.66-20-HB
AKH-0.66-30N-HB
Dimension and Installation
On-site Picture
Packaging
| Packaging Overview(Minimum) |  |
 |
 |
 |
| Packing Dimension and Weight(Minimum) | Package dimensions(1 PC)
220*170*90mm |
Package Weight(1 PC)
0.35Kg |
||
| Packing Dimension and Weight(Large) | Package dimensions(24 PC)
615*480*395mm |
Package Weight(24PC)8.4Kg | ||
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment) | Shipment: 8~9 days(World Wide Shipment) | ||
| Product HS Code | 9028301400 | |||
| Country of Origin | China | |||
Acrel AMC100-FAK48 AC Precision Power Distribution Monitoring Device
Product Models
|
AMC100-ZA
|
Monitoring the full power parameters of the A+B dual three-phase AC incoming circuit, 8 switching status inputs,
4 switching status outputs, 2 leakage monitoring, 1 temperature and humidity detection, 3 RS485 communications
|
|
AMC100-FAK30
|
Monitor the full power parameters and switch status of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
|
|
AMC100-FAK48
|
Monitor the full power parameters and switch status of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
|
|
AMC100-FA30
|
Monitor the full power parameters of a total of 30 branches of A+B dual AC outlets, and 1 RS485 communication
|
|
AMC100-FA48
|
Monitor the full power parameters of a total of 48 branches of A+B dual AC outlets, and 1 RS485 communication
|
|
AMC100-KA30
|
Wet contact,monitor the switching status of 30 branches A+B, 1 RS485 communication
|
|
AMC100-KA48
|
Wet contact,monitor the switching status of 48 branches A+B, 1 RS485 communication
|
|
AMC100-KD30
|
Dry contact, monitor the switching status of 30 branches A+B, 1 RS485 communication
|
|
AMC100-KD48
|
Dry contact, monitor the switching status of 48 branches A+B, 1 RS485 communication
|
|
AMC100-FT30
|
1 wayRS485 communication, 30 way temperature measurement
|
|
AMC100-FT48
|
1 wayRS485 communication, 48 way temperature measurement
|
Technical Parameters
|
Technical parameters
|
AMC100-FAK30
|
AMC100-FAK48
|
|
|
Measurement parameters
|
Voltage, current, frequency, active power, reactive power, power factor, active
energy, reactive energy, 2-31 times total current harmonic content
|
||
|
Bus voltage
|
Rated
|
220VAC
|
|
|
Measuring range
|
±20%
|
||
|
Overload
|
Instantaneous voltage 2 times/sec
|
||
|
Current outlet loop
|
Rated
|
50mA
|
|
|
Range
|
0.125～60mA
|
||
|
Overload
|
Continuous 1.2 times, instantaneous 10 times/sec
|
||
|
Input frequency
|
AC45～65Hz
|
||
|
Measure
|
Outlet
|
Voltage/current/active power/active energy level 0.5, reactive power/reactive energy level 1
|
|
|
Auxiliary power
|
Powered by AMC100-ZA; DC 12-24V powersupply when used alone
|
||
|
Environment
|
Temperature
|
Work: -15℃～55℃ Storage: -25℃～70℃
|
|
|
Humidity
|
Relative humidity≤93%
|
||
|
Altitude
|
≤2500m
|
||
|
Communication
|
RS485/Modbus-RTU
|
||
|
Installation Method
|
DIN35mm rail or bottom plate installation
|
||
|
Protection level
|
IP20
|
||
|
Pollution level
|
2
|
||
|
Security
|
Insulation
|
The insulation resistance between all terminals and the conductive parts of the shell is not less than 100MΩ
|
|
|
Withstand voltage
|
The voltage and current signals of circuit A//the voltage and current signals of circuit B//other ports meet AC2kV for 1min, the leakage current should be less than 2mA, and there is no breakdown or flashover.
|
||
|
Electromagnetic
compatibility
|
Anti-static interference
|
Level 4
|
|
|
Resistance to radio
frequency
electromagnetic field
radiation
|
Level 3
|
||
