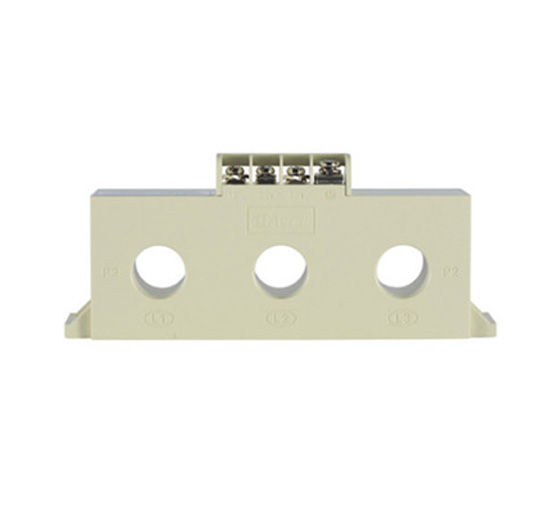

Acrel AKH-0.66/Z Three Phase Current Transformer
Acrel AKH-0.66/Z Three Phase Current Transformer
● Measure three phase cables
● Easy installation and saving space
● High accuracy Class 0.2/0.5
● Varies dimension optional
● Certificate: CE
Acrel AKH-0.66/Z Three Phase Current Transformer
General
Acrel AKH-0.66/Z Three Phase Current Transformer has beautiful appearance and convenient wiring. The shell material is flame retardant PC/ABS alloy, which is used as ac current signal acquisition element.
Generally, Acrel AKH-0.66/Z Three Phase Current Transformer is used together with AMC16, which can reduce the installation space of the current transformer and the complexity of wiring, and reduce the cost for users.

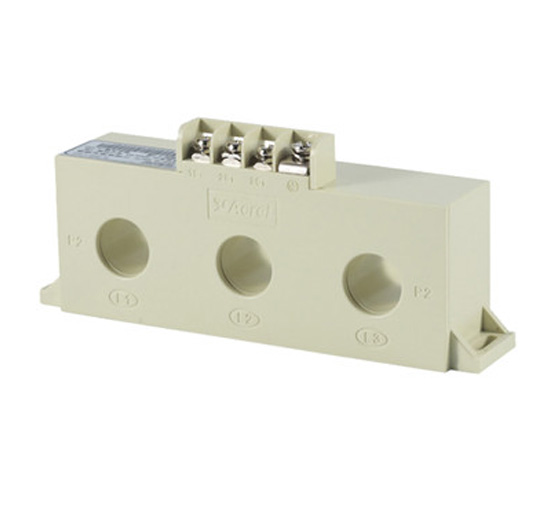

Diagram of AKH-0.66/Z Three Phase Current Transformer
AKH-0.66/Z Series Combined current transformer is also called the three-phase current transformer. As current signal acquisition device, it is generally matched with multi-loop current monitoring device (AMC16), PZ300, moulded case circuit breaker and other products. It can save installation space, reduc the cumbersome wiring, be convenient to use and effectively reduce the cost.
Installation of AKH-0.66/Z Three Phase Current Transformer
Benefits
• Measure three phase cables
• Easy installation and saving space
• High accuracy Class 0.2/0.5
• Varies dimension optional
Applications
• Used for small space like communications cabinet
• Measure 5-1250A primary current in the power distribution room
• Convert the large current at the primary side to 5A or 1A, connect to energy meter
• When using a current transformer, the secondary open circuit is not allowed, and the secondary outlet S2 should be grounded
On-site Picture
Acrel AKH-0.66/Z Three Phase Current Transformer
Technical Parameters
| Type | Ratio(A) | Class & Burden (VA/Ω) | Dia.(mm) | ||
|
Class 0.2
|
Class 0.5
|
Class 1.0 | |||
| Z-3*Φ20 | 5-100/5 | 1.5 | Φ20 | ||
| 150/5 | 1.5 | ||||
| 200/5 | 2.5 | ||||
| Z-3*Φ20 | 5-100/1 | 5 | 1.5 | Φ20 | |
| 150/1 | 10 | ||||
| 200/1 | 10 | ||||
| 5-200/0.05 | 10 | ||||
| Z-3*Φ15 | 5-100/0.02 | 10 | 10 | Φ15 | |
| Z-3*Φ10 | 50/0.025 | 10 | Φ10 | ||
| Z-3*Φ35 | 100-150/5 | Φ35 | |||
| 200/5 | |||||
| 250/5 | |||||
| 300-450/5 | |||||
| 500/5 | |||||
| 600-800/5 | |||||
| 1000-1250/5 | |||||
| Z-3*Φ35 | 100-150/1 | ||||
| 200/1 | |||||
| 250/1 | |||||
| 300-450/1 | |||||
| 500/1 | |||||
| 600-800/1 | |||||
| 1000-1250/1 | |||||
AKH-0.66 CT and Hall Effect Sensor CE-LVD Certificate AT78251SC205023
