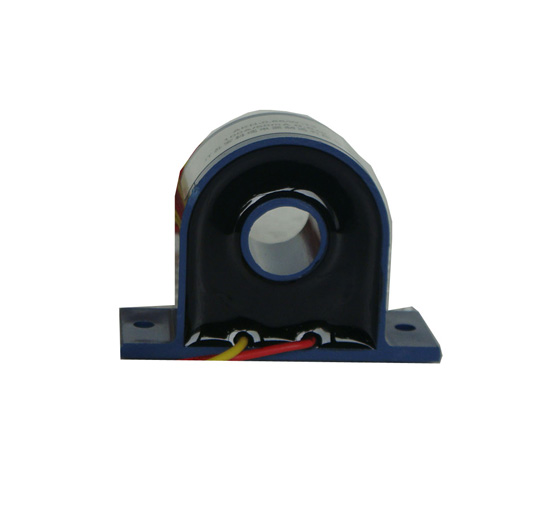

Acrel AKH-0.66/W Series Mini Current Transformer
Acrel AKH-0.66/W Series Mini Current Transformer
● Small size
● High accuracy
● Strong-load capacity
● Easy installation
● Certificate: CE
Acrel AKH-0.66/W Series Mini Current Transformer
General
Acrel AKH-0.66/W Series Mini Current Transformer is round and the output is small current signal such as 4-20mA. It is matched with multi-channels energy meter(AMC16).
Acrel AKH-0.66/W Series Mini Current Transformer has the advantages of small size, high accuracy, strong load capacity, easy installation, etc., and can save cost to realizing multi-channels monitoring for users.
Diagram of AKH-0.66/W Series Mini Current Transformer
When wiring the current transformer, the ends with the same name must be consistent, scilicet P1, S1; P2, S2.
When the current transformer is in normal operation, it must not be opened for the secondary circuit to prevent the generation of high voltage and affect the safety of personnel and equipment.
Installation of AKH-0.66/W Series Mini Current Transformer
Applications
• Used for measuring the current of main bus
• Suitable for data center and column head cabinet
• High accuracy designed for small volume space place
• When using a current transformer, the secondary open circuit is not allowed, and the secondary outlet S2 should be grounded
On-site Picture
Acrel AKH-0.66/W Series Mini Current Transformer
Technical Parameters
| Type | Ratio(A) | Class&Burden(VA/Ω) | Turns | Dia(mm) | ||
| 0.2 | 0.5 | 1 | ||||
| W-7 | 5-15A/5mA | 10 | 1 |
Φ7
|
||
| 10-30A/10mA | 10 | 1 | ||||
| 5A/20mA | 10 | 2 | ||||
| 10-15A/20mA | 10 | 1 | ||||
| 20-60A/20mA | 10 | 1 | ||||
| 50A/25mA | 10 | 1 | ||||
| W-8 | 5-15A/5mA | 10 | 1 | Φ8 | ||
| 10-30A/10mA | 10 | 1 | ||||
| 5A/20mA | 10 | 2 | ||||
| 5A/20mA | 10 | 4 | ||||
| 10-15A/20mA | 10 | 1 | ||||
| 20-60A/20mA | 10 | 1 | ||||
| 60A/60mA | 10 | 1 | ||||
| W-12 | 5A/20mA | 10 | 4 | Φ12 | ||
| 10-15A/20mA | 10 | 2 | ||||
| 20-100A/20mA | 10 | 1 | ||||
| 10-50A/10mA | 10 | 1 | ||||

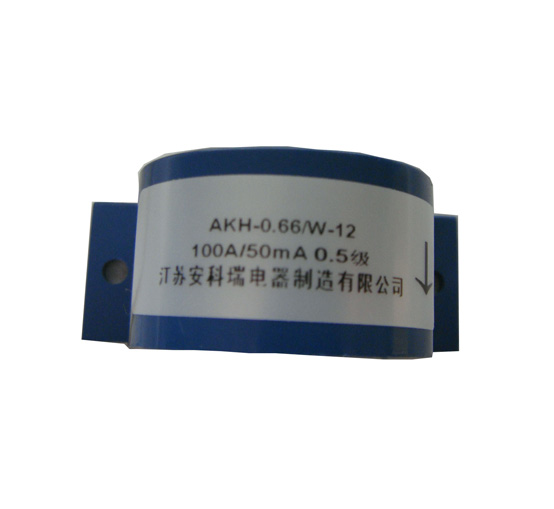

| W-12N | 100A/50mA | 10 | 1 | Φ12 | ||
| W-20 | 5A/20mA | 10 | 4 | Φ20 | ||
| 10-15A/20mA | 10 | 2 | ||||
| 30A/10mA | 10 | 1 | ||||
| 30-200A/20mA | 10 | 1 | ||||
| W-20N | 50-100A/50mA | 10 | 1 | 20*10/1 | ||
| W-30N | 200-400A/50mA | 10 | 1 | 31×13 | ||
AKH-0.66 CT and Hall Effect Sensor CE-LVD Certificate AT78251SC205023
