General
Acrel AKH-0.66/L series residual current transformers are dedicated to acquire low-voltage residual current signals. They can be used with ARCM series electrical fire monitors, ARD series motor protectors and ASJ series residual current relays.
Acrel AKH-0.66/L series has the secondary output of 0-5 (2) mA or 0-1V. It has the round-hole type and the square-hole type for your selection.
Primary Wiring of AKH-0.66/L Series Residual Current Transformer
Dimension and Technical Parameters of AKH-0.66/L Series Residual Current Transformers
Type 1
Type 2
Type 3
Type 4
Benefits

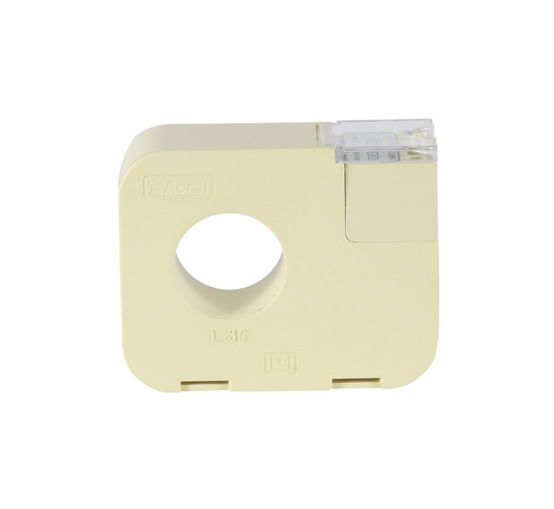

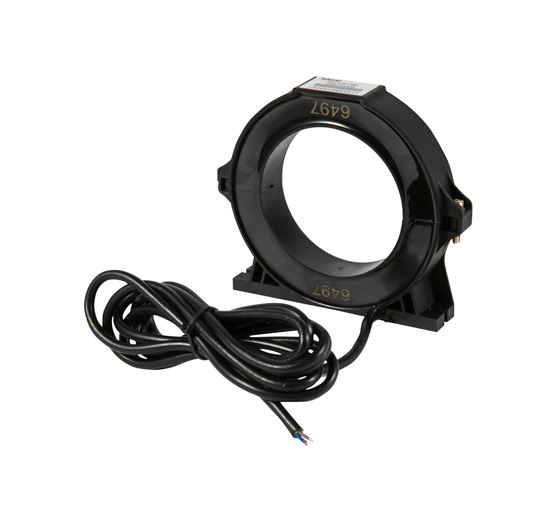

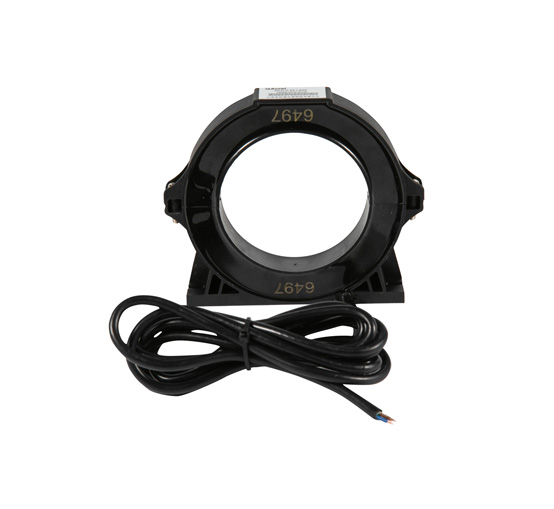

• Round-hole type

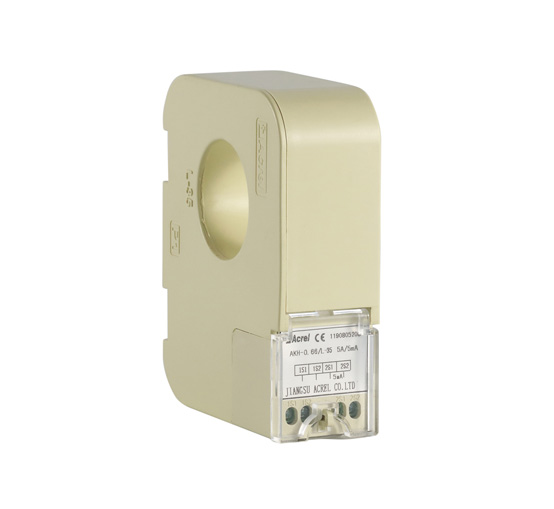

• Square-hole type
• 0-5mA or 0-1V output
• Varies dimension optional
Applications
• Used with residual current relay
• Used with motor protector relay
• High accuracy to measure residual current
• Varies type suitable for different installation place
On-site Picture
