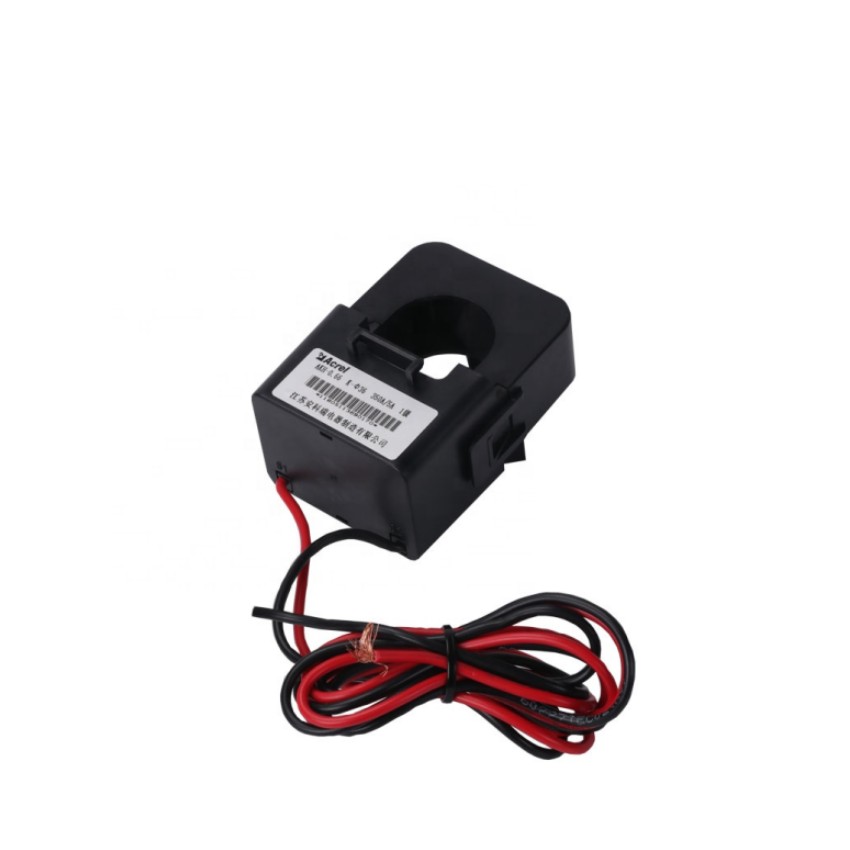

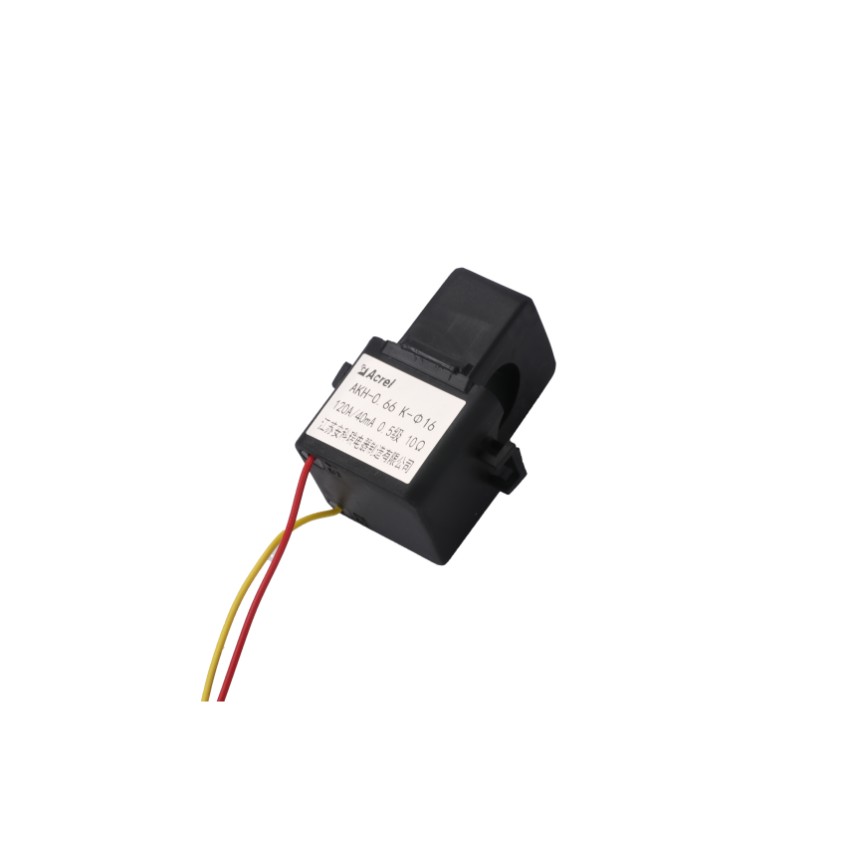

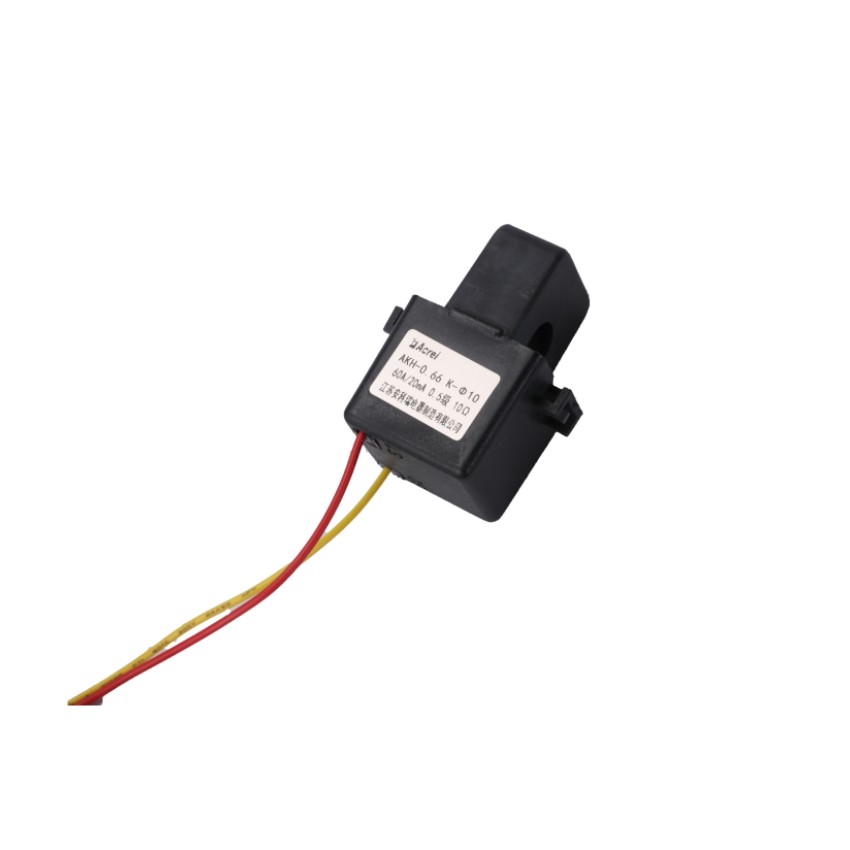

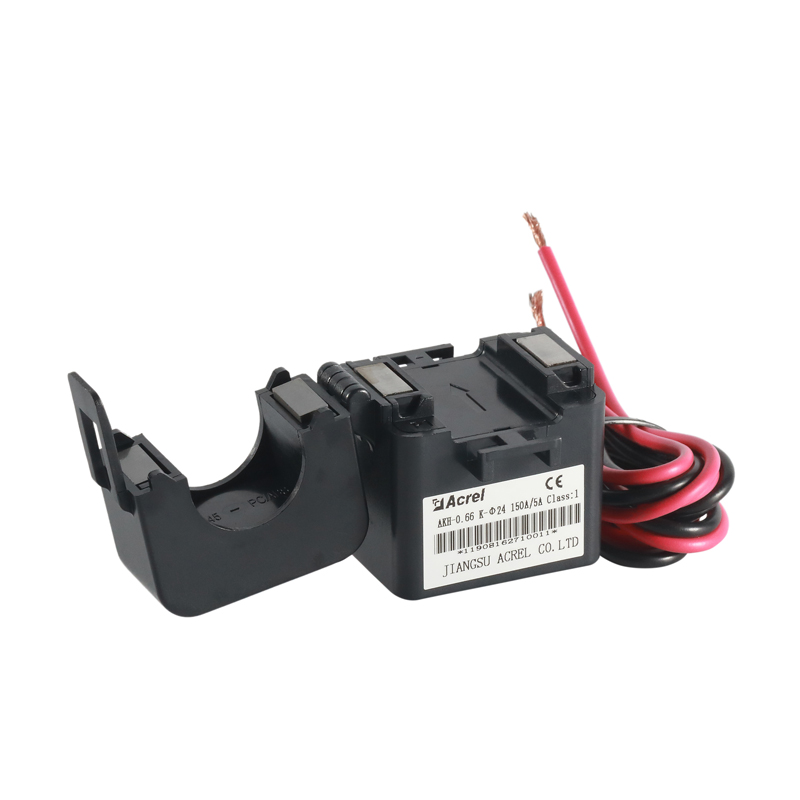

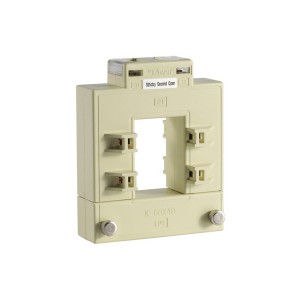

Acrel AKH-0.66/K-Φ Series Split Core Current Transformer
Acrel AKH-0.66/K-Φ Series Split Core Current Transformer
Acrel AKH-0.66/K-Φ Series Split Core Current Transformer
General
Acrel AKH-0.66 series current transformer has beautiful appearance, convenient installation and wiring. It is mainly used for power operation and maintenance and power transformation projects. Generally, the output is AC 5A, 1A or mA and other signals. It has the advantages of small size, high precision, strong load capacity, and convenient installation. , save manpower, material resources and financial resources for users' transformation projects and improve efficiency.
AKH-0.66/K-Φ Split Core Current Transformer have several types like 1A/5A, mA, mV output can be choose, it's input range can be from 5A-1000A, the aperture size can choose 10mm, 16mm, 24mm, 36mm, 50mm suitable for all kinds of cables and easy installation without need power off operation.
Specification of AKH-0.66/K-Φ Series Split Core Current Transformer
Installation of AKH-0.66/K-Φ Series Split Core Current Transformer
When using the current transformer, the secondary circuit must not be opened, and the secondary outlet S2 must be grounded! Note that the current direction is consistent with the transformer identification.
Dimension of AKH-0.66/K-Φ Series Split Core Current Transformer
Applications
• Used in reconstructing projects of urban
• Suitable for rural power grids reconstruct
• Mounted easily without removal of primary bus
• Can be operated with electricity, which prevents the normal utilization of electricity
On-site Picture

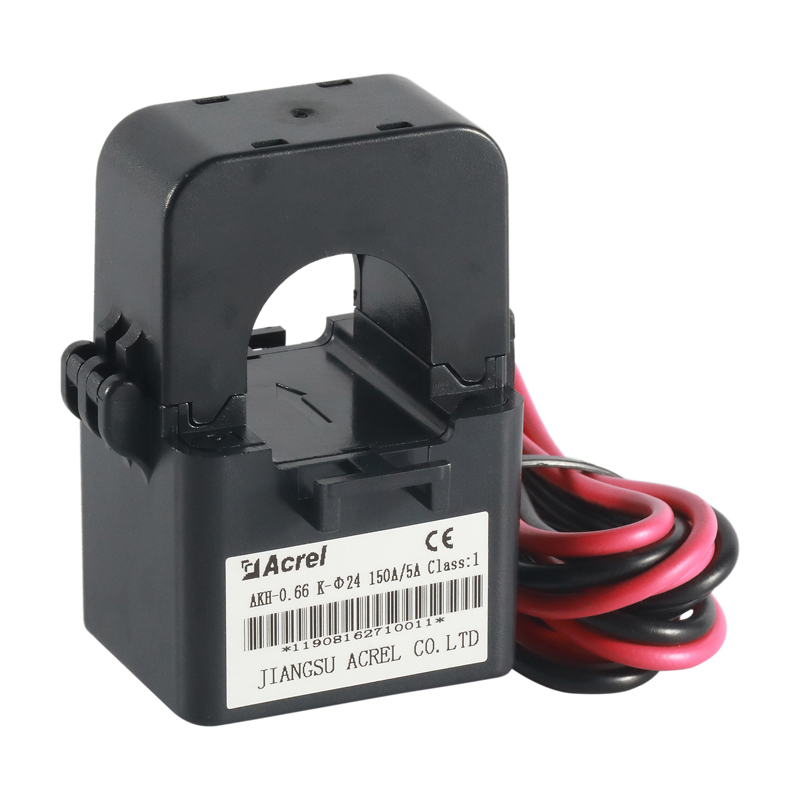

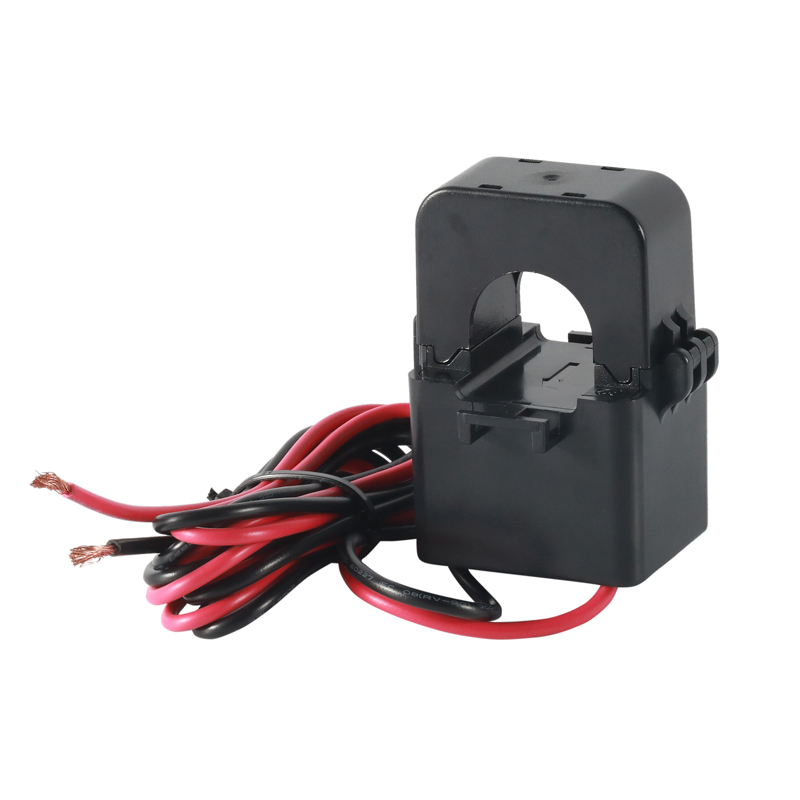

Acrel AKH-0.66/K-φ Split Core Current Transformer
| AKH-0.66K-Φ Split Core Current Transformer For Cable | |||||
| Type | Ratio(A) |
Class&Burden(VA/Ω)
|
Turns | Dia(mm) | |
|
Class 0.5
|
Class 1
|
||||
|
K-Φ10
|
5A/1.67mA |
10
|
1
|
Φ10
|
|
| 5A/2.5mA |
10
|
1
|
Φ10 | ||
| 10A/5mA |
10
|
1
|
Φ10 | ||
| 40-50A/20mA |
10
|
1
|
Φ10 | ||
| 80A/26.7mA | 10 | 1 | Φ10 | ||
| K-Φ16 | 120A/40mA | 10 | 1 | Φ16 | |
| 40-100A/20mA | 10 | 1 | Φ16 | ||
| 80A/32mA | 10 | 1 | Φ16 | ||
| K-Φ24 | 60-200A/20mA | 10 | 1 | Φ24 | |
| 200A/40mA | 10 | 1 | Φ24 | ||
| K-Φ36 | 400A/50mA | 10 | 1 | Φ36 | |
| 400A/40mA | 10 | 1 | Φ36 | ||
| 600A/75mA | 10 | 1 | Φ36 | ||
| 200-400A/20mA | 10 | 1 | Φ36 | ||
| K-Φ24 | 150-200/5(1) | 1 | 1 | Φ24 | |
| 250-300/5(1) | 1.5 | 1 | Φ24 | ||
| K-Φ36 | 300-400/5(1) | 1.5 | 1 | Φ36 | |
| 500-600/5(1) | 1.5 | 1 | Φ36 | ||
| K-Φ50 | 600-700/5(1) | 2.5 | 1 | Φ50 | |
| 800-900/5(1) | 5 | 1 | Φ50 | ||
| 1000/5(1) | 10 | 1 | Φ50 | ||
| K-Φ16 | 100A/333mV | 10 | 1 | Φ16 | |
| K-Φ24 | 200A/333mV | 10 | 1 | Φ24 | |
| 300A/333mV | 10 | 1 | Φ24 | ||
| 400A/333mV | 10 | 1 | Φ24 | ||
| K-Φ36 | 300A/333mV | 10 | 1 | Φ36 | |
| 400A/333mV | 10 | 1 | Φ36 | ||
| 500A/333mV | 10 | 1 | Φ36 | ||
| 600A/333mV | 10 | 1 | Φ36 | ||
