General
Acrel AIM-M300 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M300 is designed to support insulation fault location.AIM-M300 series medical intelligent monitoring device adopts advanced micro-controller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is suitable for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.
Wiring

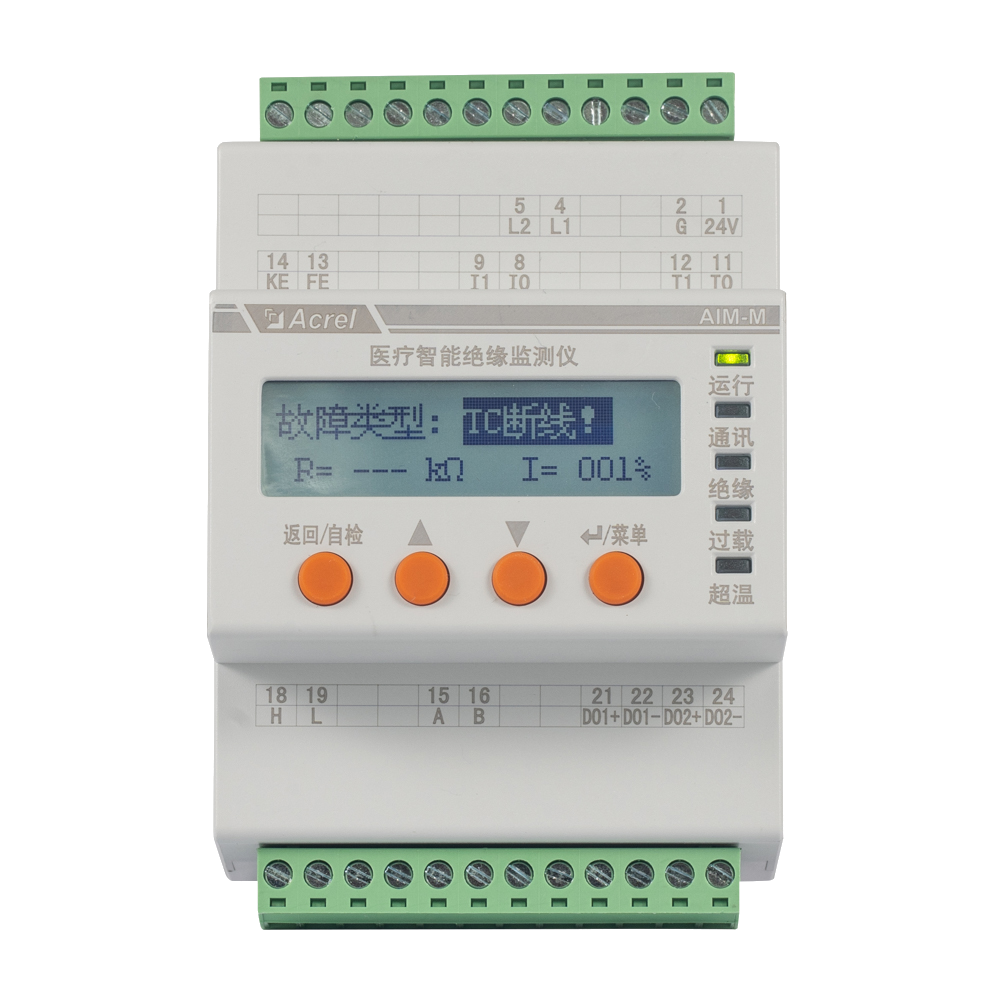

24V, G for the auxiliary power supply, and L1, L2 are connected to the IT system (which can be connected to the two output terminals of isolation transformer). I0, I1 for the current transformer signal input, and T0, T1 as the temperature sensor signal input. KE, FE are the functional grounding wires, which should be connected to the on-site equipotential terminals by two independent wires.
Typical Connection
Outline and Dimension
Functions of Acrel AIM-M300 Medical Intelligent Insulation Monitor
• Functions of real-time monitoring and fault alarming of the grounding insulation resistance,transformer load current and transformer winding temperature of the monitored IT system;
• Locating current injector for insulation fault location systems;
• Real-time monitor the line disconnection fault, current sensor disconnection,temperature sensor disconnection fault and the functional grounding line disconnection fault of the monitored system, and give the alarm indication within 2s after the fault occurs. when the fault occurs;
• Relay alarm output, LED alarm indication and other faults indication functions;
• Two kinds of fieldbus communication technology, which are used for centralized alarm and display device, insulation fault locator and upper computer management software communications, and monitoring the operation status of IT system in real time.
• Events logging function, which can record alarm occurrence time and fault type and is convenient for operation personnel to analyze the operation conditions of system and promptly eliminate the faults.
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.

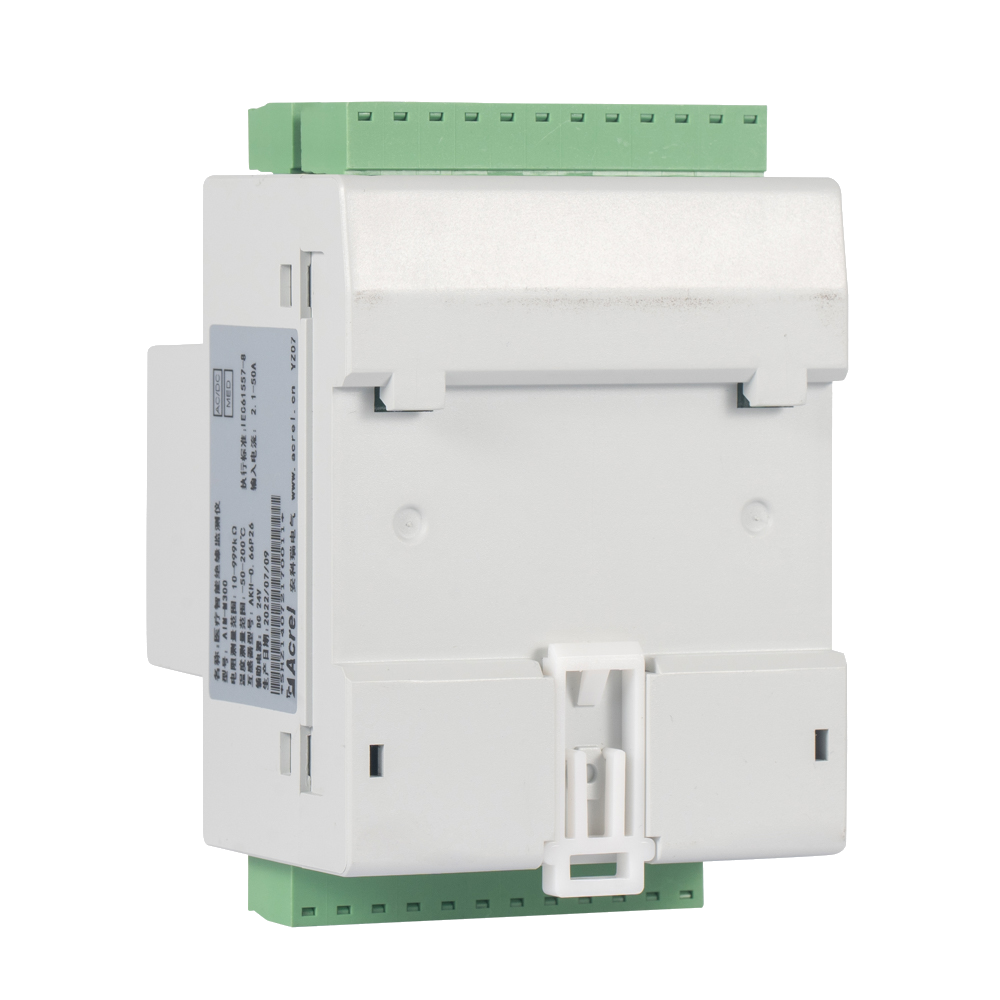

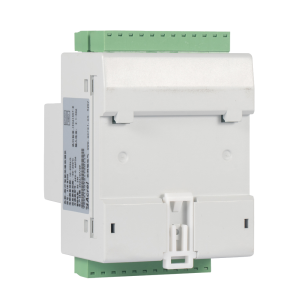

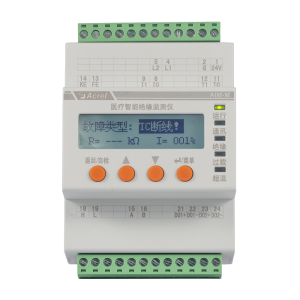

Acrel AIM-M300 Medical Intelligent Insulation Monitor
Technical Parameters
| AUX Power | Voltage | DC 18…36V |
| Power consumption | ≤6W | |
| Insulation Monitoring | Resistance measuring range | 15…999kΩ |
| Response value | 50…999kΩ | |
| Relative uncertainty | ±10%,±10K | |
| Response time | ≤3s | |
| Permissible system leakage capacitance Ce | ≤5uF | |
| Measuring voltage Um | ≤12V | |
| Measuring current Im | ≤50uA | |
| Impedance Zi | ≥200kΩ | |
| Internal DC resistance Ri | ≥240kΩ | |
| Permissible extraneous DC voltage Ufg | ≤DC280V | |
| Temperature monitoring | Thermal resistor | 2 Pt100 |
| Measuring range | -50~+200℃ | |
| Alarm value range | 0~+200℃ | |
| Current Monitoring | Alarm Value | 5…60A |
| Measuring accuracy | ±5% |
