Acrel ASG200 Test Signal Generator
Acrel ASG200 Test Signal Generator
General

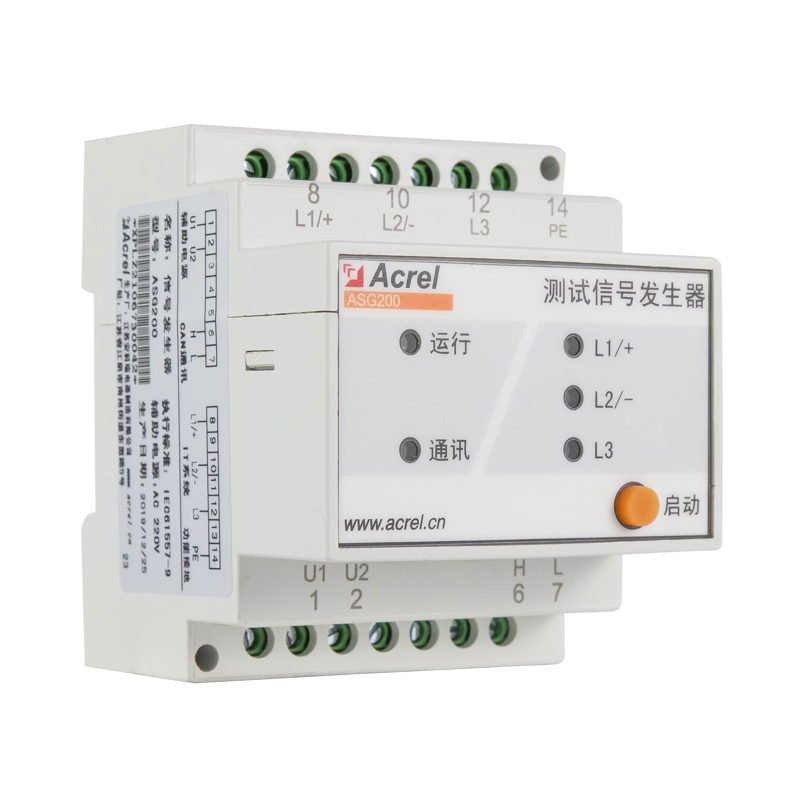

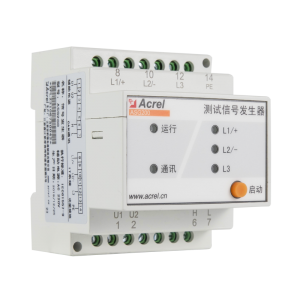

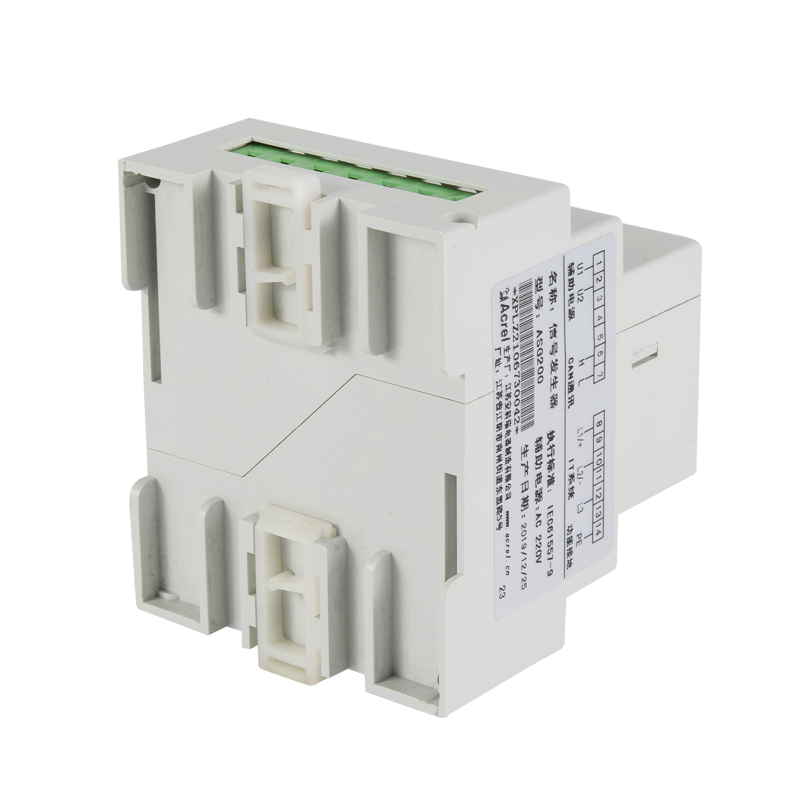

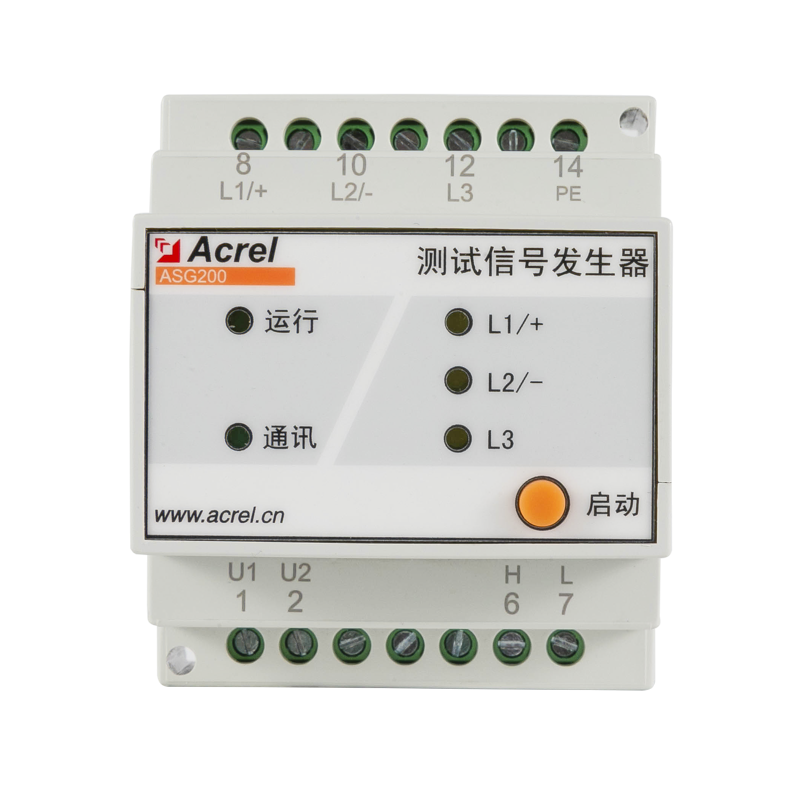

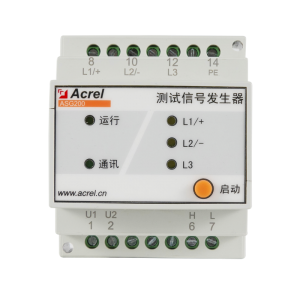

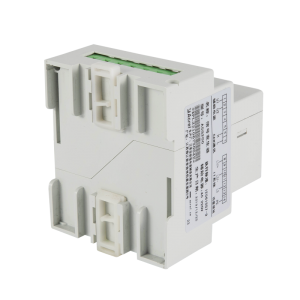

Acrel ASG200 test signal generator, combined with AIM-T500L insulation monitoring instrument and AIL200-12 insulation fault locator, forms an insulation fault location system, which is suitable for monitoring insulation faults and fault location in AC ungrounded systems in industrial fields such as mines, glass factories, electric furnaces and testing equipment, metallurgical plants, chemical plants, explosion hazardous areas, computer centers, and emergency power supplies.
Application of Industrial IT Isolated Power System
Industrial IT isolated power system is specially developed by ACREL for IT power distribution systems in industrial occasions such as mines, glass plants, electric furnaces and test equipment, ships, metallurgical plants, chemical plants, explosion-hazardous places, computer centers and emergency power supplies. The system has rich functions, including insulation resistance monitoring, insulation fault early warning, insulation fault alarm, event recording, parameter setting, communication networking, etc. When the system has a ground fault, it can alarm in time, and accurately locate the specific circuit where the fault occurs, so as to Remind the relevant personnel to troubleshoot the fault in time.
Acrel Industrial IT Isolated Power System FAQs
With the development of industrial science and technology, residual current poses a great threat to industrial production safety. In order to improve the continuity and reliability of power supply, many important production sites adopt IT distribution system (ungrounded system).
Mine, glass factory, electric furnace and test equipment, ship, metallurgical plant, chemical plant, explosion hazard site, computer center and emergency power supply.
Real-time monitoring of the ground insulation resistance of the IT system, and start the fault warning or alarm function when the resistance exceeds the limit.
Insulation monitoring and fault determination of power distribution system, providing safe, reliable and continuous power distribution.
Acrel ASG200 Test Signal Generator
Technical Parameters
| Auxiliary Power | Voltage | DC 18~36V |
| Power consumption |
<7W
|
|
| Monitored IT system | System voltage | Single phase AC 220V, three-phase AC 0~690V, DC 0~800V |
| Fault location | Response time |
<5s
|
| Location voltage |
20V/5Hz
|
|
| Location current |
<20mA
|
|
| Environment | Working temperature |
-20~+60℃
|
1. Manual for Acrel ASG200 Test Signal Generator
2. Installation and Use for Acrel ASG200 Test Signal Generator
3. Debugging Software for Acrel ASG200 Test Signal Generator
