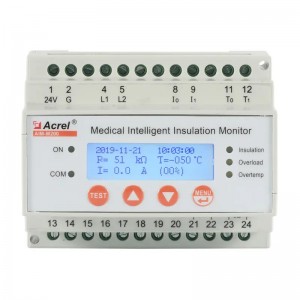

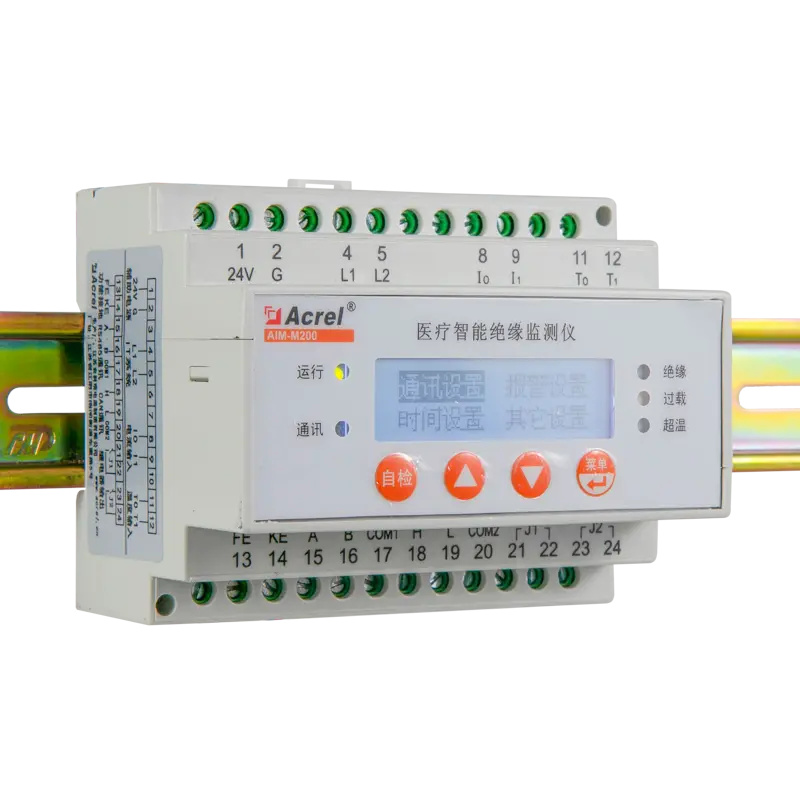

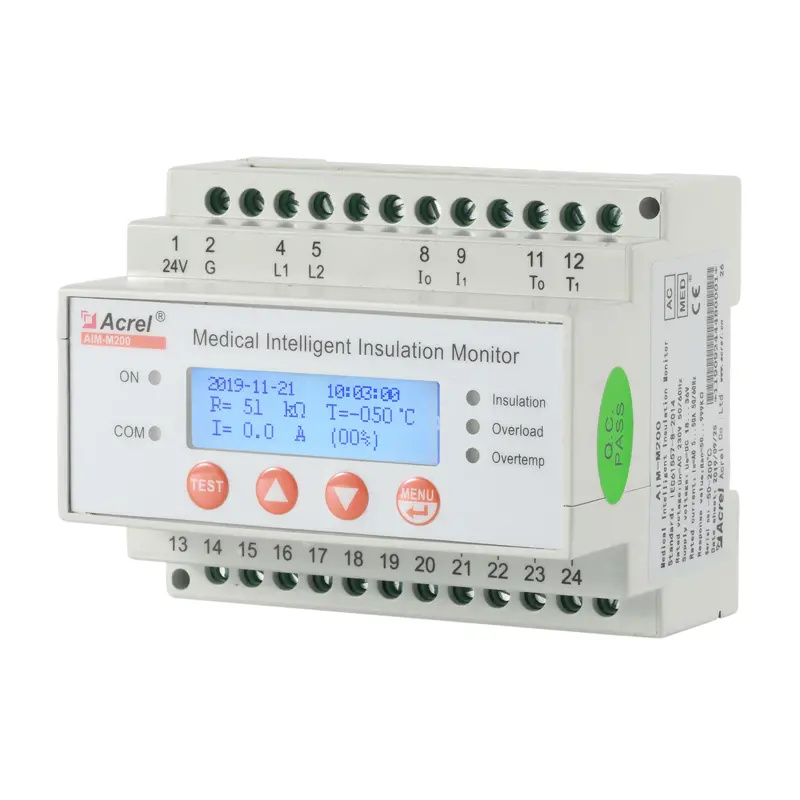

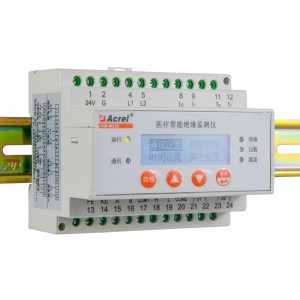

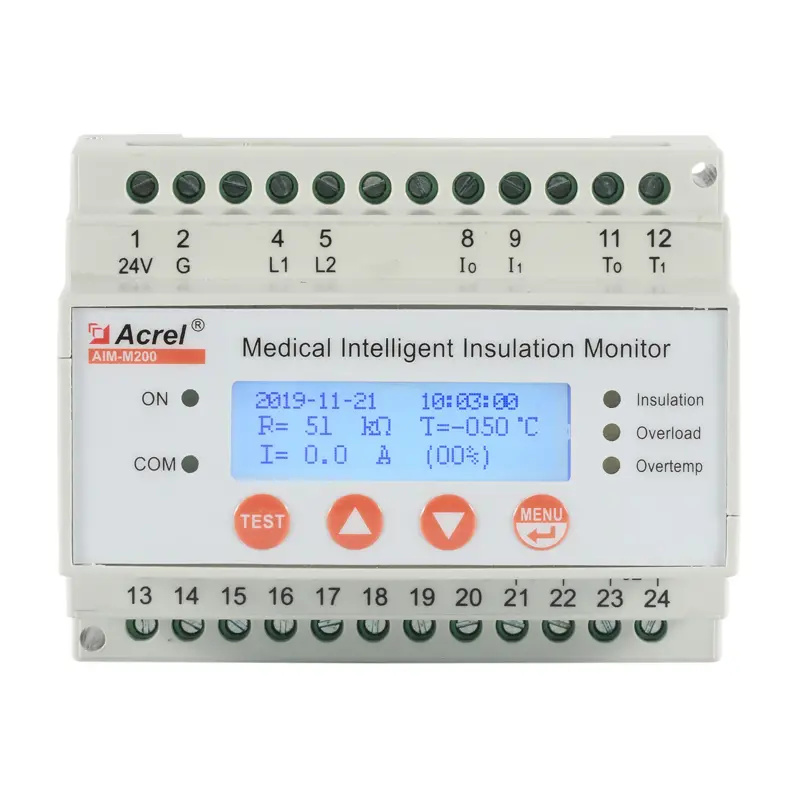

Acrel AIM-M200 Medical Intelligent Insulation Monitor
Acrel AIM-M200 Medical Intelligent Insulation Monitor
General
Acrel AIM-M200 medical intelligent insulation monitor the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers, the AIM-M200 is designed to support insulation fault location.
Panel Specification
Typical Connection
Application: ICU/CCU
Application: Operating Room
Outline and Dimension
Advantages of AIM-M200 IMD Insulation Monitoring Device
• Insulation, load and transformer temperature monitoring for IT system
• Real-time monitoring disconnection fault of L1/L2, temperature sensor and FK. This isolated power supply system will automatically alarm when these faults occur
• Relay alarm output and L ED alarm output
• Real-time monitor the status of operating by data exchange with
• AID series or centralized monitoring software via field bus
• With SOE function
• AIM-M200 hospital isolated power systems are designed with the insulation fault-locating function
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
Acrel AIM-M200 Medical Intelligent Insulation Monitor
Technical Parameters
| Type | AIM-M200 | |
| AUX Power | Voltage | DC 18~36V |
| Power consumption | ≤3W | |
| Insulation monitoring | Resistance measuring range | 15~999kΩ |
| Response value | 50~999kΩ | |
| Relative uncertainty | ±10%,±10K | |
| Response time | ≤3s | |
| Permissible system leakage capacitance Ce | ≤5uF | |
| Measuring voltage Um | ≤12V | |
| Measuring current Im | ≤50uA | |
| Impedance Zi | ≥200kΩ | |
| Internal DC resistance Ri | ≥240kΩ | |
| Permissible extraneous DC voltage Ufg | ≤DC280V | |
| Load current monitoring | Measuring Value | 2.1~50A |
| Alarm Value | 5~50A | |
| Measuring accuracy | ±5% | |
| Temperature monitoring | Thermal resistor | Pt100 |
| Measuring range | -50~+200℃ | |
| Alarm value range | 0~+200℃ | |
| Alarm output | Output mode | 2-route relay output(not programmable) |
| Contact rating | AC 250V/3A | |
| DC 30V/3A | ||
| Environment | Operating temperature | -10~+55℃ |
| Transport temperature | -25~+70℃ | |
| Storage temperature | -25~+70℃ | |
| Relative humidity | 5~95%,No condensation | |
| Altitude | ≤2500m | |
| IP degree | IP30 | |
| Rated impulse voltage/ pollution degree | 4KV/Ⅲ | |
| EMC/EMR | IEC 61326-2-4 | |
| Communication protocol | 1 channel CAN, customize | |
| 1 channel RS485, Modbus-RTU | ||
