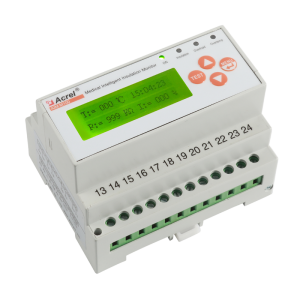

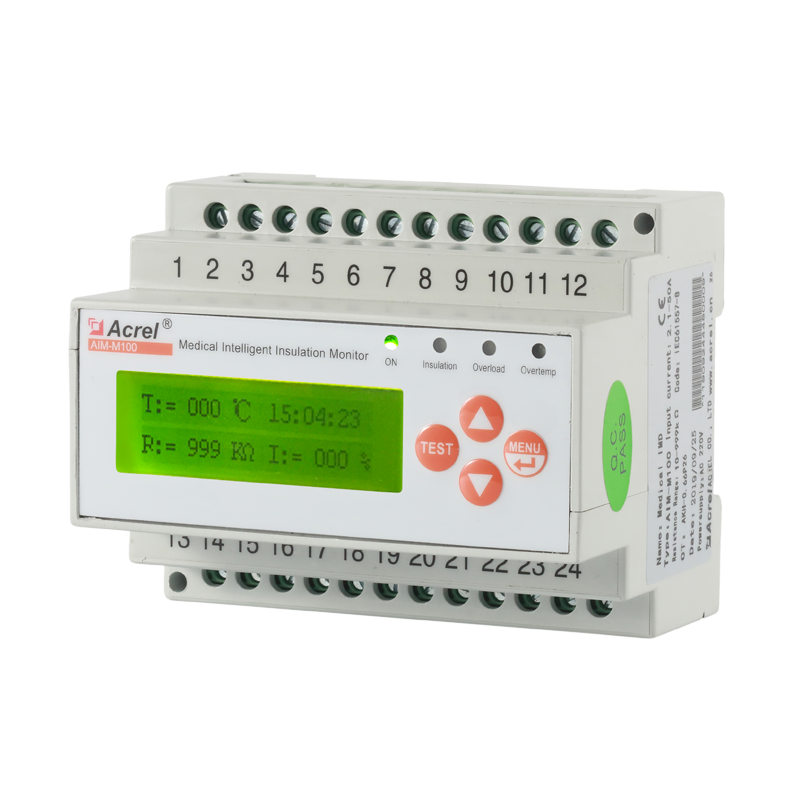

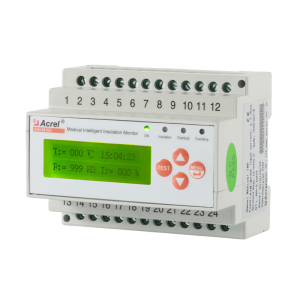

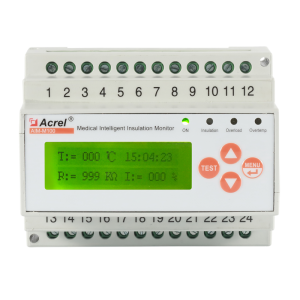

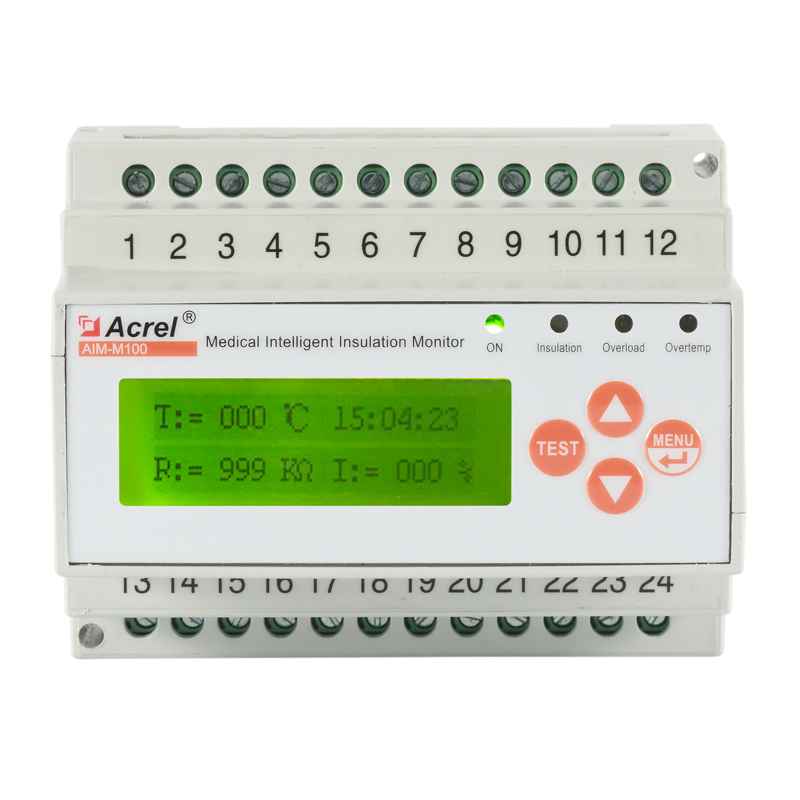

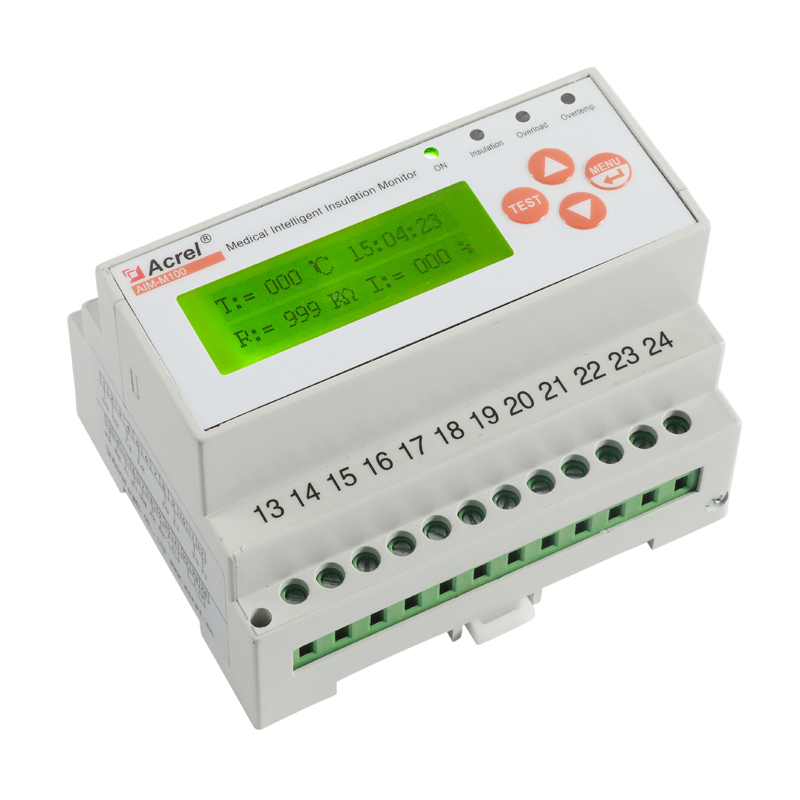

Acrel AIM-M100 Medical Intelligent Insulation Monitor
Acrel AIM-M100 Medical Intelligent Insulation Monitor
General
Acrel AIM-M100 medical isolated meter the insulation resistance of medical IT system, At the same time, the load current and temperature of the IT system transformer is monitored. In combination with ASG100, AIL100 series insulation fault locators and the appropriate measuring current transformers.
Wiring
1,2(U1,U2): Power supply
4,5(L1,L2): IT system connector
8,9(I0,I1): Load current connector
11,12(T0,T1): Temperature sensor connector
13,14(FE,KE): Functional earthing
15,16(A1,B1): RS485 communication port1
18,19(A2,B2): RS485 communication port2
20,21(J1+,J1-): Relay output1
22,24(J2+,J2-): Relay output2
Typical Connection
Outline and Dimension
Advantages of AIM-M100 Medical Intelligent Insulation Monitor
• Insulation monitoring for medical IT systems
• Load and temperature monitoring of isolation transformer
• Device disconnection monitoring
• LED indicators: On, Insulation, Overload, Overtemp
• Alarm relay output
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
Acrel AIM-M100 Medical Intelligent Insulation Monitor
Technical Parameters
| AUX Power | Voltage | AC220V±10% |
| Power consumption | ≤5VA | |
| Insulation Monitoring | Resistance measuring range | 10~999kΩ |
| Response value | 50~999kΩ | |
| Relative uncertainty | ±10% | |
| Response time | ≤3s | |
| Permissible system leakage capacitance Ce | ≤5uF | |
| Measuring voltage Um | ≤12V | |
| Measuring current Im | ≤50uA | |
| Impedance Zi | ≥200kΩ | |
| Internal DC resistance Ri | ≥240kΩ | |
| Permissible extraneous DC voltage Ufg | ≤DC280V | |
| Load Current Monitoring | Measuring Value | 2.1~50A |
| Alarm Value | 5~50A | |
| Temperature monitoring | Thermal resistor | 2 Pt100 |
| Measuring range | -50~+200℃ | |
| Alarm value range | 0~+200℃ | |
| Alarm | Output mode | 1 Relay |
| Output | Contact rating | AC 250V/3A |
| DC 30V/3A | ||
| Environment | Operating temperature | -10~+55℃ |
| Transport temperature | -25~+70℃ | |
| Storage temperature | -25~+70℃ | |
| Relative humidity | 5%-95%, No condensation | |
| Altitude | ≤2500m | |
| IP degree | IP30 | |
| Rated impulse voltage/pollution degree | 4KV/Ⅲ | |
| EMC | IEC 61326-2-4 | |
| Communication | RS485(Modbus-RTU) | |
