General

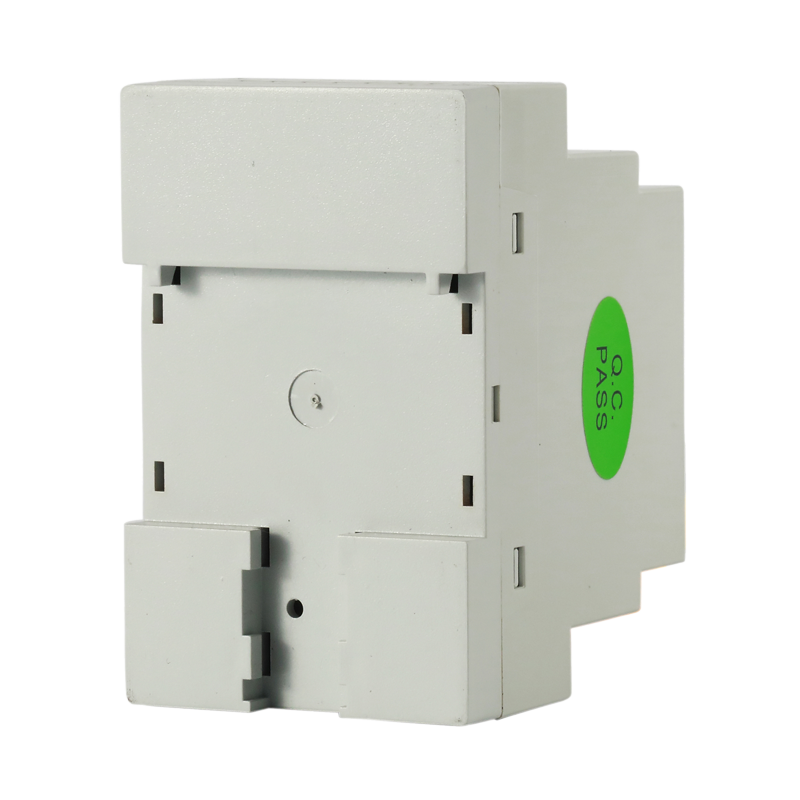

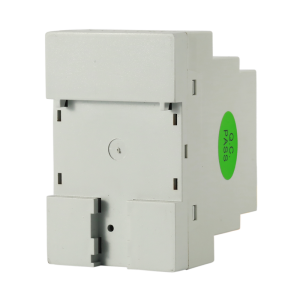

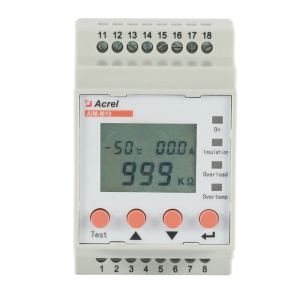

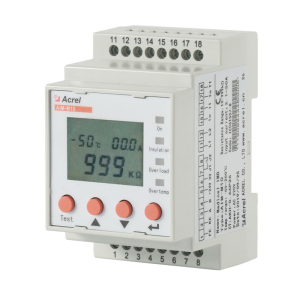

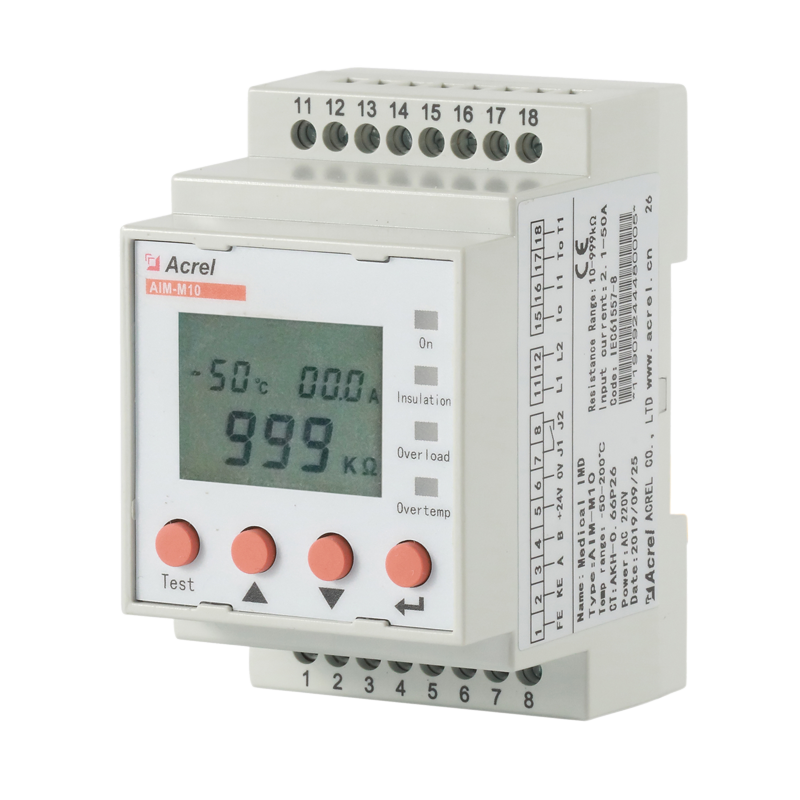

Acrel AIM-M10 medical insulation device instrument adopts advanced microcontroller technology, which has high integration, compact size, convenient installation and integrates intelligence, digitalization and networking in one. It is ideal selection for insulation monitoring of isolation power system in Class 2 medical locations such as operating room and intensive care unit.
Wiring
1,2(FE,KE): Functional earthing
3,4(A,B): RS485 communication port
5,6(+24V,0V): DC power supply output
7,8(J1,J2): Relay output
11,12(L1,L2): IT system connector
15,16(I0,I1): Load current connector
17,18(T0,T1): Temperature sensor connector
Typical Connection
Outline and Dimension
Acrel Medica/Hospital Isolated Power Systems FAQs
It is an isolated power supply system that conducts insulation monitoring and fault determination of the power distribution system, to further provide safe, reliable and continuous power distribution.
Real-time monitoring of the insulation, load and isolation transformer temperature of the IT system, with functions such as system insulation fault circuit location and centralized monitoring of multiple systems.
The medical isolated power supply system consists of a medical isolation transformer, medical intelligent insulation monitoring instrument, current transformer, insulation fault locator, test signal generator, power module and centralized alarm and display instrument.
You can find medical isolation panels in operating rooms, ICU/CCU intensive care units, premature infant care units, delivery rooms, hemodialysis centres, emergency rooms and other important medical places.
Acrel AIM-M10 Medical Insulation Monitor
Technical Parameters
| AUX Power | Voltage | AC220V±10% |
| Power consumption | ≤5VA | |
| Insulation Monitoring | Resistance measuring range | 10~999kΩ |
| Response value | 50~999kΩ | |
| Relative uncertainty | ±10% | |
| Response time | ≤3s | |
| Permissible system leakage capacitance Ce | ≤5uF | |
| Measuring voltage Um | ≤12V | |
| Measuring current Im | ≤50uA | |
| Impedance Zi | ≥200kΩ | |
| Internal DC resistance Ri | ≥240kΩ | |
| Permissible extraneous DC voltage Ufg | ≤DC280V | |
| Load Current Monitoring | Measuring Value | 2.1~50A |
| Alarm Value | 5~50A | |
| Temperature monitoring | Thermal resistor | 2 Pt100 |
| Measuring range | -50~+200℃ | |
| Alarm value range | 0~+200℃ | |
| Alarm | Output mode | 1 Relay |
| Output | Contact rating | AC 250V/3A |
| DC 30V/3A | ||
| Environment | Operating temperature | -10~+55℃ |
| Transport temperature | -25~+70℃ | |
| Storage temperature | -25~+70℃ | |
| Relative humidity | 5%-95%, No condensation | |
| Altitude | ≤2500m | |
| IP degree | IP30 | |
| Rated impulse voltage/pollution degree | 4KV/Ⅲ | |
| EMC | IEC 61326-2-4 | |
| Communication | RS485(Modbus-RTU) | |
1. Manual for Acrel AIM-M10 Medical Insulation Monitor
2. Installation and Use for Acrel AIM-M10 Medical Insulation Monitor
3. Debugging Software for Acrel AIM-M10 Medical Insulation Monitor
