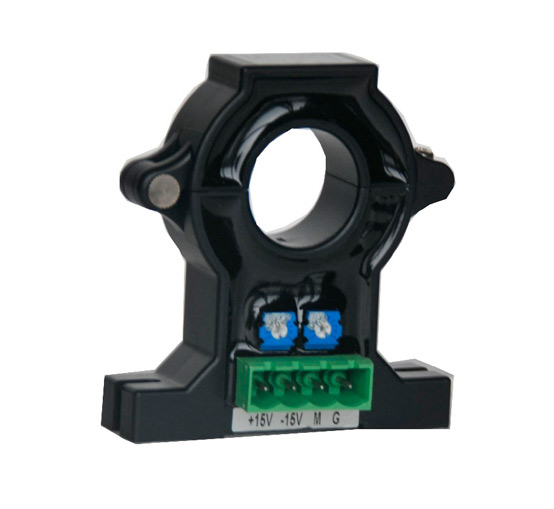

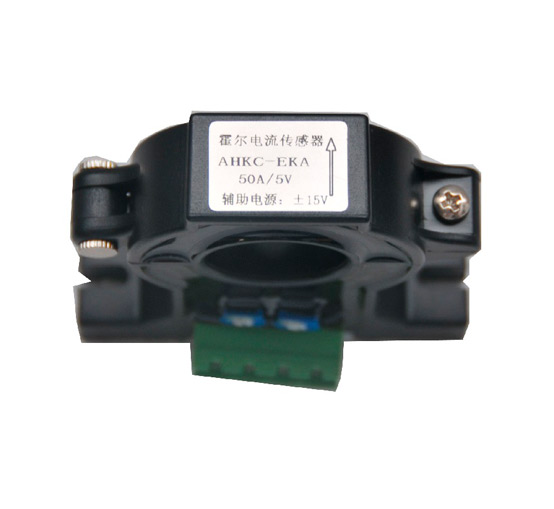

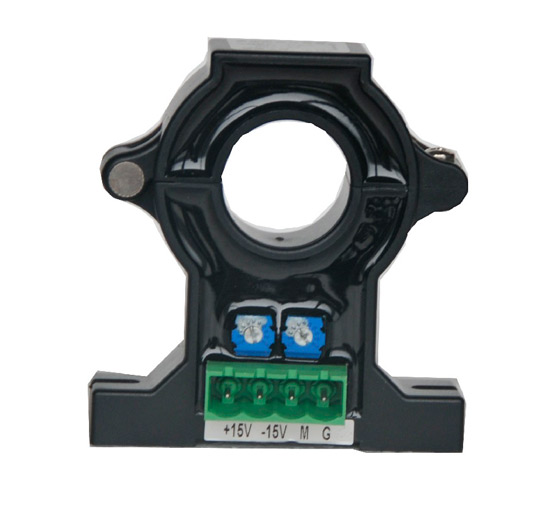

Acrel AHKC-EKA Split Core Hall Effect Current Sensor
Acrel AHKC-EKA Split Core Hall Effect Current Sensor
General
Acrel AHKC series hall effect current sensor is mainly suitable for the isolation conversion of complex signals such as AC, DC, and pulse. Through the Hall effect principle, the converted signal can be directly collected and accepted by various acquisition devices such as AD, DSP, PLC, and secondary instruments, fast response time, wide current measurement range, high precision, strong overload capacity, good linearity, and strong anti-interference ability.
AHKC-EKA Split Core Hall Effect Current Sensor is insulative between the primary and secondary grade, which can be used for measuring direct current, alternating current and pulse current.
Dimension of AHKC-EKA Split Core Hall Effect Current Sensor
Installation of AHKC-EKA Split Core Hall Effect Current Sensor
Precautions of AHKC-EKA Split Core Hall Effect Current Sensor
• When the Hall sensor is used, attention must be paid to the coupling between the primary side coil and assistant side coil in order to get better dynamic characteristics and sensitivity, single conductor that should cram the thread hole of Hall sensor module completely is proposed to use.
• When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.
• When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.
• The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.
• Zero and full scale regulator potentiometer can not be adjusted.
• Auxiliary power supply is required to be deployed voluntarily.
• Power positive and negative poles cannot be inversely connected.
Acrel AHKC-EKA Split Core Open-loop Hall Effect Current Sensor
Technical Parameters
Parameters | Parameters |
Rated Input Current | 0~(50-500)A |
Rated Output Voltage | ±5V/±4V |
Accuracy Class | 1.0 |
Power Voltage | DC ±15V (allowable fluctuation±20%) |
Zero Offset Voltage | ±20mV |
Offset Voltage Drift | ≤±1.0mV/℃ |
Linearity | ≤0.2%FS |
Response Time | ≤5us |
Bandwidth | 0~20kHz |
Isolation Voltage | 3.5kV/50Hz/1min |
Operating Temperature | -40℃~85℃ |
Storage Temperature | -40℃~85℃ |
Consumption | ≤0.5W |
1. Manual for Acrel AHKC-EKA Split Core Open-loop Hall Effect Current Sensor
2. Installation and Use for Acrel AHKC-EKA Split Core Open-loop Hall Effect Current Sensor
3. Debugging Software for Acrel AHKC-EKA Split Core Open-loop Hall Effect Current Sensor
