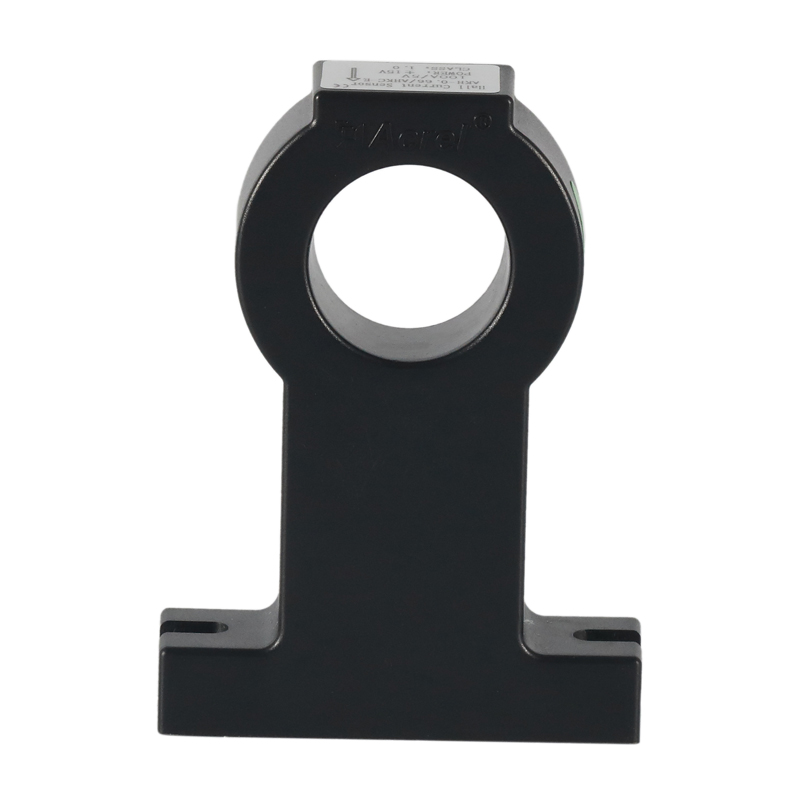

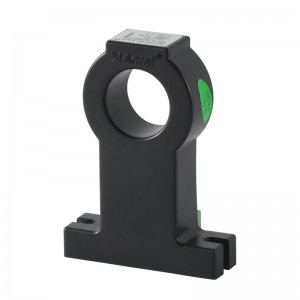

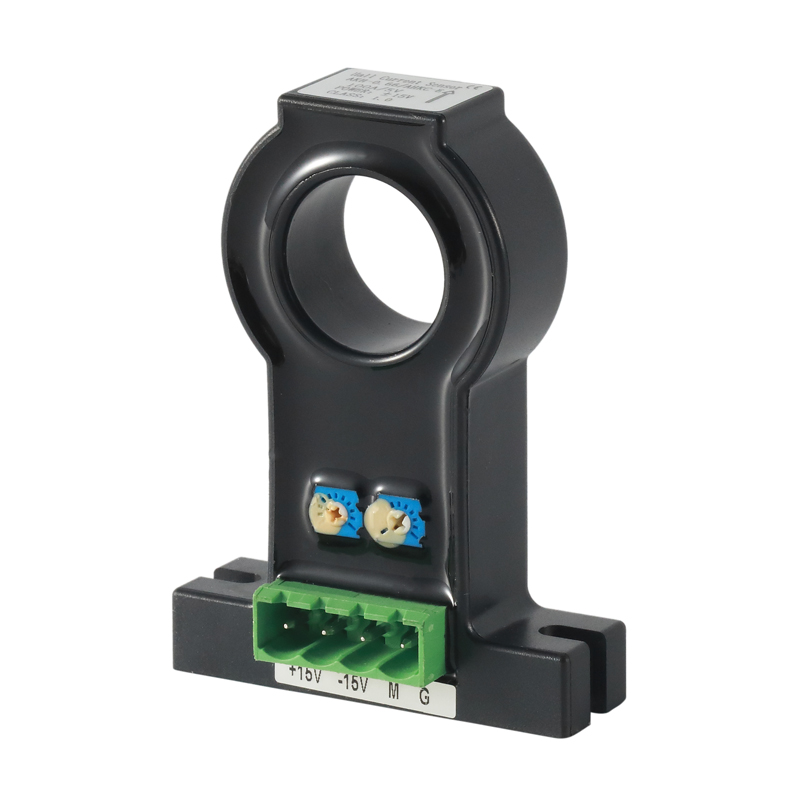

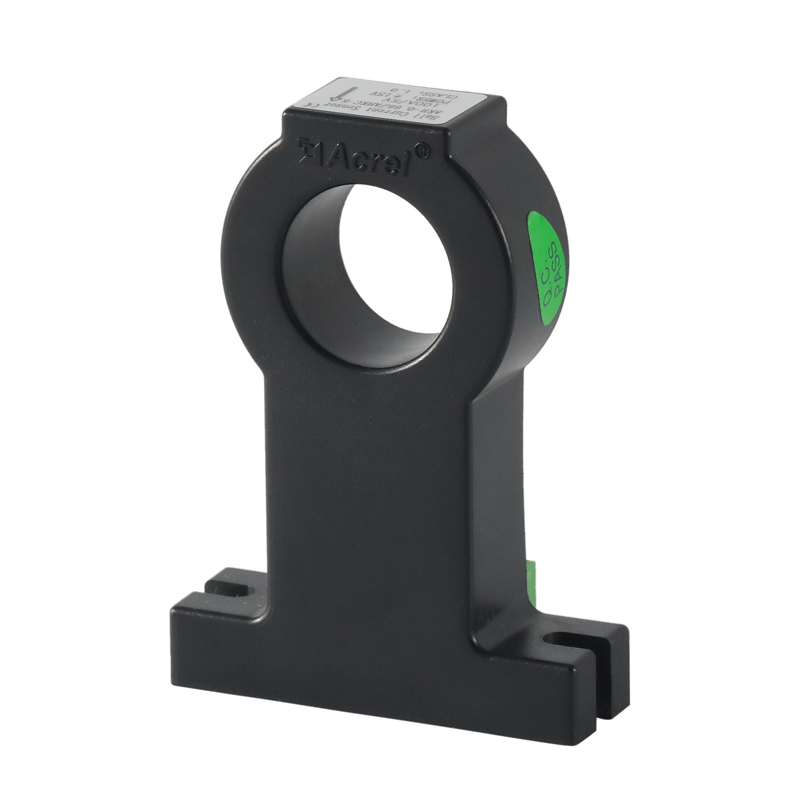

Acrel AHKC-E Closed Hall Effect Current Sensor

Acrel AHKC-E Closed Hall Effect Current Sensor

● Input: AC/DC 0~500A

● Output: DC ±5V/±4V

● Power supply: DC ±15V

● Internal Dimension: φ20mm

Send email to us

Product Detail

Technical Parameters

Download

Product Tags

Acrel AHKC-E Closed Hall Effect Current Sensor

General

Acrel AHKC series hall effect current sensor is mainly suitable for the isolation conversion of complex signals such as AC, DC, and pulse. Through the Hall effect principle, the converted signal can be directly collected and accepted by various acquisition devices such as AD, DSP, PLC, and secondary instruments, fast response time, wide current measurement range, high precision, strong overload capacity, good linearity, and strong anti-interference ability.

AHKC-E Closed Hall Effect Current Sensor According to the principle of Hall magnetic compensation (closed loop), used to measure DC, AC and pulse current in isolation; the output signal is proportional to the change of the measured current and truly reflects the primary current waveform.

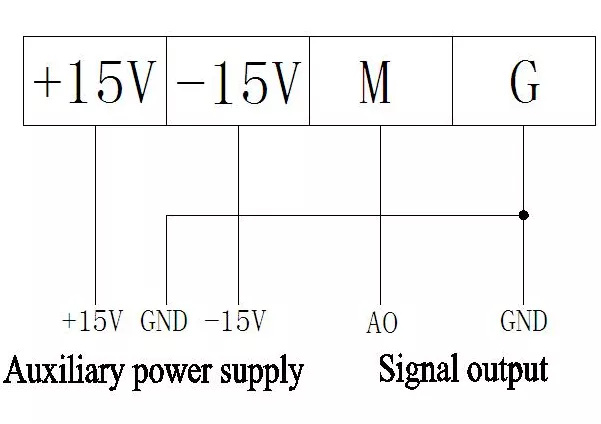

Wiring

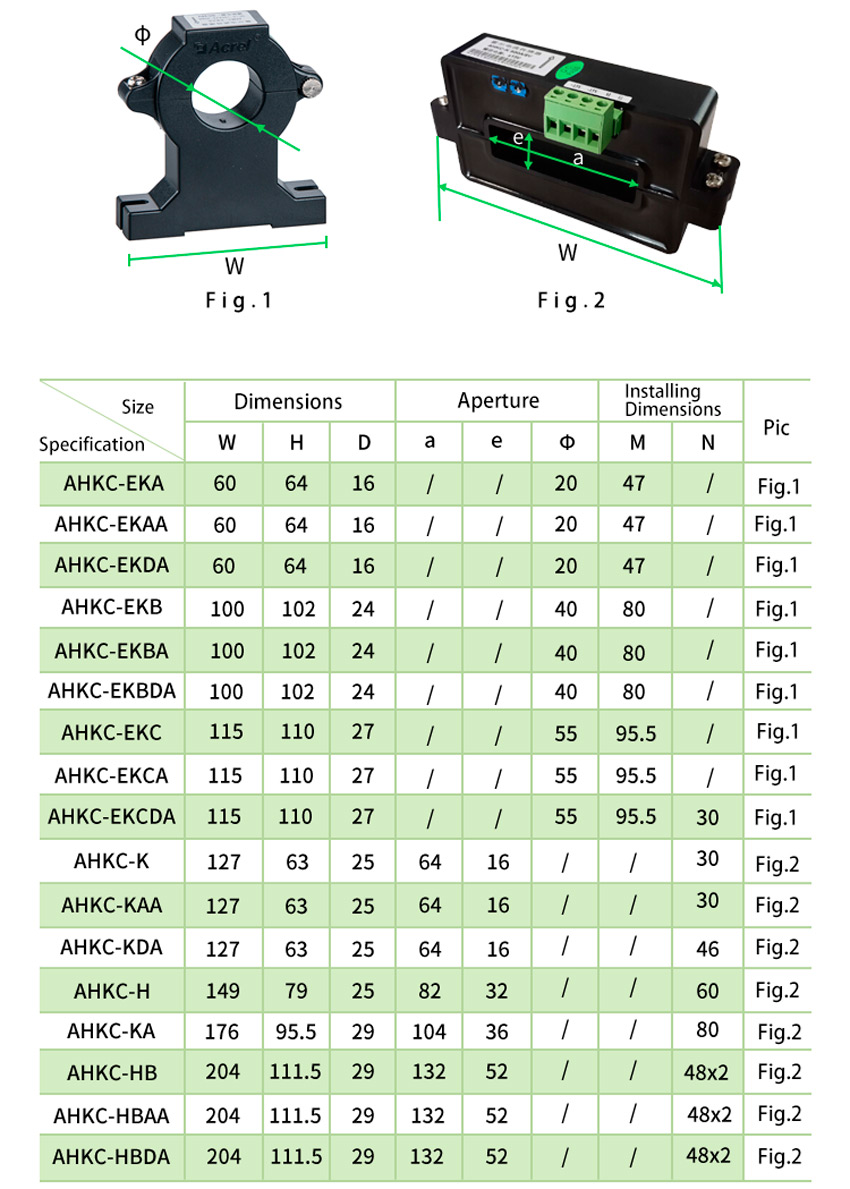

Dimension of AHKC-E Hall Effect Current Sensor

dimension-of-ahkc-e-closed-hall-effect-current-sensor

Installation of AHKC-E Closed Hall Effect Current Sensor

• When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value

• The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use

• Zero and full scale regulator potentiometer can not be adjusted

• Auxiliary power supply is required to be deployed voluntarily

• Power positive and negative poles cannot be inversely connected

installation-of-ahkc-e-closed-hall-effect-current-sensor

Application of AHKC-E Closed Hall Effect Current Sensor

• System control and detection of electrical equipment in electric power

• Petroleum, coal mine, chemical industry

• Railway, communication, building automation industries

• Power supplies for welding application

MINIMUM PACKAGE
MINIMUM PACKAGE	Package dimensions(1 PC)	Package Weight(1 PC)
	1612.57.5cm	0.065Kg
WHOLE BOX PACKAGE	Package dimensions(70 PCS)	Package Weight(70 PCS)
	AHKC-E Closed Hall Effect Current Sensor	5.55kG
PRODUCT HS CODE	9030339000

Previous: Acrel AHKC-BSA Open-Loop Hall Effect Current Sensor

Next: Acrel AHKC-HB Split Core Open-loop Hall Effect Current Sensor

Acrel AHKC-E Closed Hall Effect Current Sensor

Technical Parameters

Parameters	Parameters
Rated Input Current(DC)	0～(50-500)A
Rated Output Voltage(DC)	±5V/±4V
Accuracy Class	1.0
Power Voltage	DC ±15V (allowable fluctuation±20%)
Zero Offset Current	±20mA
Offset Current Drift	≤±1.0mA/℃
Linearity	≤0.2%FS
Response Time	≤5us
Isolation Voltage	3.5kV/50Hz/1min
Operating Temperature	-40℃～85℃
Storage Temperature	-40℃～85℃
Consumption	≤0.5W
