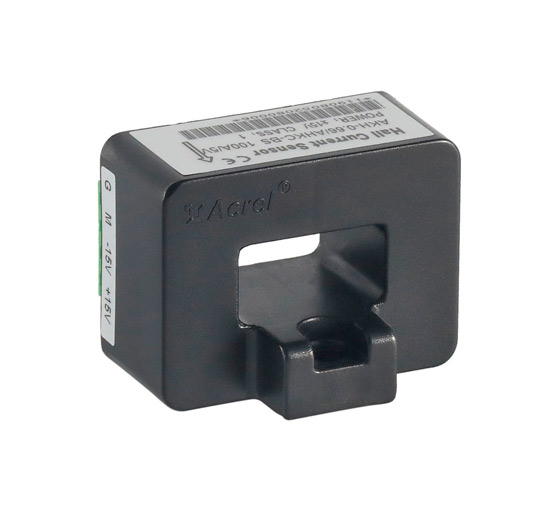

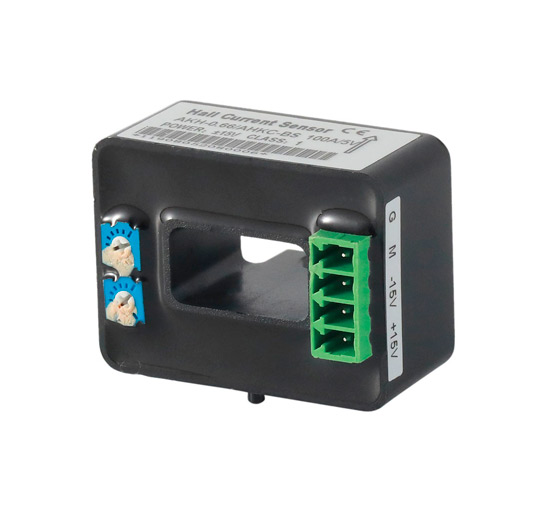

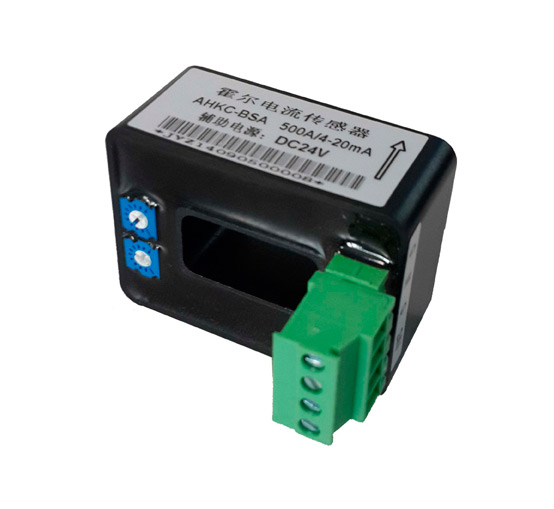

Acrel AHKC-BSA Open-Loop Hall Effect Current Sensor
Acrel AHKC-BSA Open-Loop Hall Effect Current Sensor
General
Acrel AHKC series hall effect current sensor is mainly suitable for the isolation conversion of complex signals such as AC, DC, and pulse. Through the Hall effect principle, the converted signal can be directly collected and accepted by various acquisition devices such as AD, DSP, PLC, and secondary instruments, fast response time, wide current measurement range, high precision, strong overload capacity, good linearity, and strong anti-interference ability.
AHKC-BSA Open-Loop Hall Effect Current Sensor has the characteristics of high accuracy, high linearity, high integration, small size, simple structure, long-term work stability and adaptability to various working environments.
Wiring
Types of AHKC Series Hall Effect Current Sensor
Installation of AHKC-BSA Open-Loop Hall Effect Current Sensor
• When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value
• The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use
• Zero and full scale regulator potentiometer can not be adjusted
• Auxiliary power supply is required to be deployed voluntarily
• Power positive and negative poles cannot be inversely connected
Application of AHKC-BSA Open-Loop Hall Effect Current Sensor
• System control and detection of electrical equipment in electric power
• Petroleum, coal mine, chemical industry
• Railway, communication, building automation industries
• Power supplies for welding application
| MINIMUM PACKAGE |  |
 |
 |
| MINIMUM PACKAGE | Package dimensions(1 PC) | Package Weight(1 PC) | |
| 16*12.5*7.5cm | 0.075Kg | ||
| WHOLE BOX PACKAGE | Package dimensions(240 PCS) | Package Weight(240 PCS) | |
| 45.5*45.5*20cm | 19kG | ||
| PRODUCT HS CODE | 9030339000 | ||
Acrel AHKC-BSA Open-Loop Hall Effect Current Sensor
Technical Parameters
| Parameters | Parameters |
| Rated Input Current(DC) | 0～(20-500)A |
| Rated Output Voltage(DC) | 4-20mA |
| Accuracy Class | 1.0 |
| Power Voltage | DC24V (allowable fluctuation±20%) |
| Zero Offset Current | ±0.05mA |
| Offset Current Drift | ≤±0.01mA/℃ |
| Linearity | ≤0.2%FS |
| Response Time | ≤20us |
| Isolation Voltage | 2.5kV/50Hz/1min |
| Operating Temperature | -40℃～85℃ |
| Storage Temperature | -40℃～85℃ |
| Consumption | ≤1.2W |
| Overloading | Continuance 1.2 |
