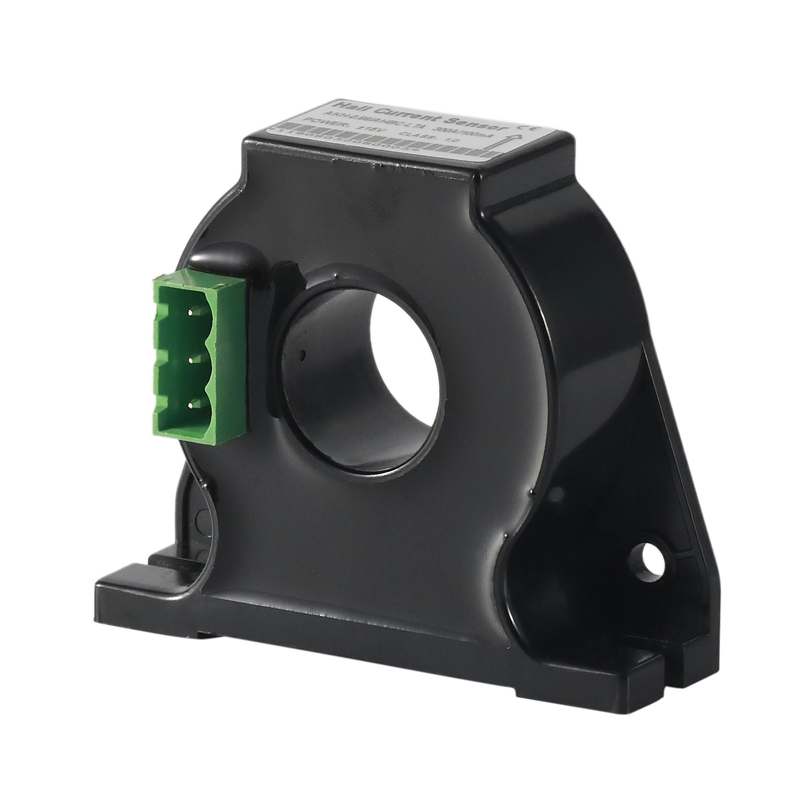

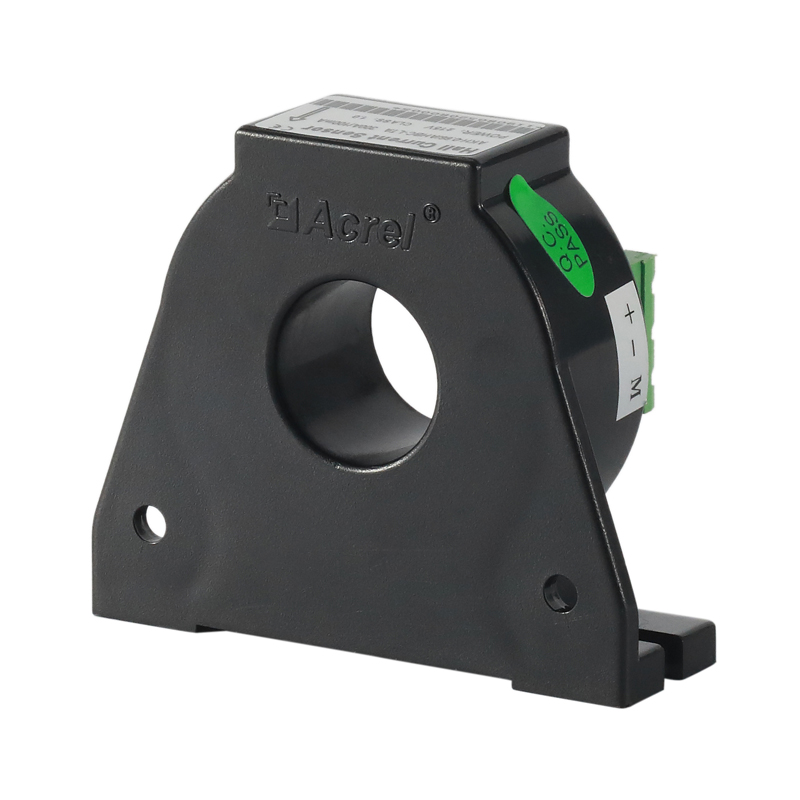

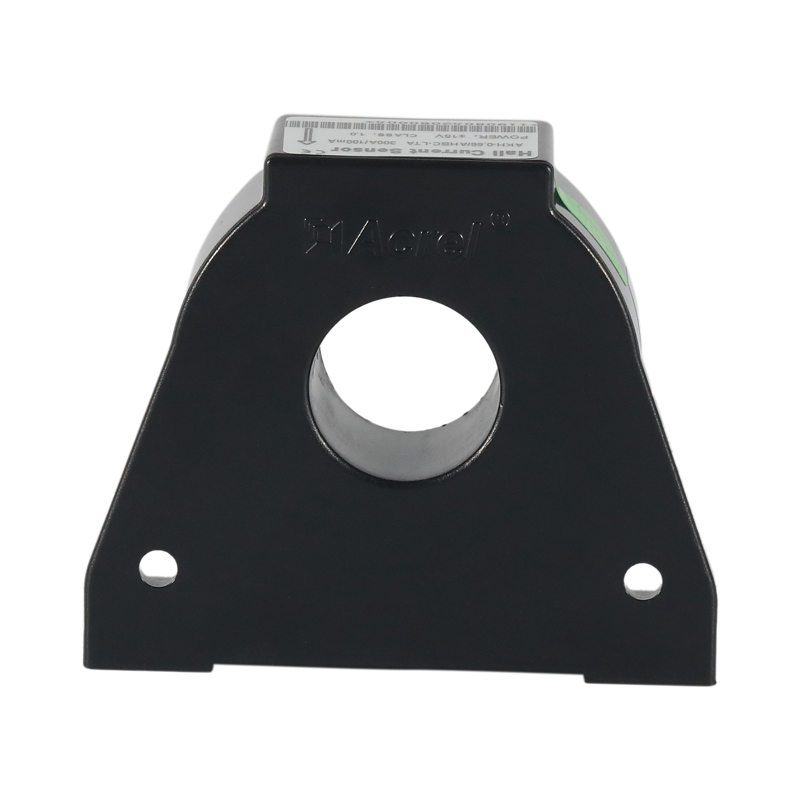

Acrel AHBC-LTA Closed-Loop Hall Effect Current Sensor
Acrel AHBC-LTA Closed-Loop Hall Effect Current Sensor
General
Acrel AHKC series hall effect current sensor is mainly suitable for the isolation conversion of complex signals such as AC, DC, and pulse. Through the Hall effect principle, the converted signal can be directly collected and accepted by various acquisition devices such as AD, DSP, PLC, and secondary instruments, fast response time, wide current measurement range, high precision, strong overload capacity, good linearity, and strong anti-interference ability.
AHBC-LTA Closed-Loop Hall Effect Current Sensor can measure AC, DC, pulse and other complex current signals. It has excellent accuracy, low temperature drift, wide frequency bandwidth, optimized response time.
Installation of AHBC-LTA Closed-Loop Hall Effect Current Sensor
Precautions of AHBC-LTA Closed-Loop Hall Effect Current Sensor
• When the Hall sensor is used, attention must be paid to the coupling between the primary side coil and assistant side coil in order to get better dynamic characteristics and sensitivity, single conductor that should cram the thread hole of Hall sensor module completely is proposed to use.
• When the Hall sensor is used, the best measuring accuracy can be got under rated input current value. When the measured current is much less than the rated value, the primary side can use multi-turns if want to obtain the best accuracy, that is IpNp=rated ampere-turns. In addition, the temperature of the primary side feeder line cannot be more than 80℃.
• When the Hall current sensor is working normally, the auxiliary power supply cannot be more than ±20% of calibration value.
• The Hall Current sensor is strictly prohibited to be fallen from high place (≥1m) during installation and use.
• Zero and full scale regulator potentiometer can not be adjusted.
• Auxiliary power supply is required to be deployed voluntarily.
• Power positive and negative poles cannot be inversely connected.
Application of AHBC-LTA Closed-Loop Hall Effect Current Sensor
• AC variable speed drives
• Battery-supplied applications
• Uninterruptible Power Supplies
• Power supplies for welding application
Acrel AHBC-LTA Closed-Loop Hall Effect Current Sensor
Technical Parameters
| Rated input RMS current |
100
|
200
|
300
|
A
|
|
Measuring current range
|
300（±18V，20Ω）
|
600（±18V，30Ω）
|
900（±18V，20Ω）
|
A
|
|
Turns Ratio
|
1:1000
|
1:2000 | 1:3000 | |
|
Measuring resistance
±12V
|
@±100Amax
80(max)
|
@±200Amax
80(max)
|
@±300Amax
76(max)
|
Ω
|
|
@±200Amax
25(max)
|
@±500Amax
20(max)
|
@±600Amax 22
(max)
|
Ω
|
|
|
±15V
|
@±100Amax
110(max)
|
@±200Amax
120(max)
|
@±300Amax
100(max)
|
Ω
|
|
@±200Amax
40(max)
|
@±500Amax
30(max)
|
@±600Amax
36(max)
|
Ω
|
|
|
Rated output RMS currents
|
50±0.5%
|
100±0.5%
|
100±0.5%
|
mA
|
|
Precision
|
0.5
|
Class
|
||
|
Voltage
|
±15
|
V
|
||
|
Power consumption current
|
20+Is
|
mA
|
||
|
Zero current offset
|
±0.2
|
mA
|
||
|
Response time
|
＜1
|
µs
|
||
|
Linearity
|
≤0.05
|
%FS
|
||
|
Insulation voltage
|
3.5kV/50Hz/1min
|
kV
|
||
|
Bandwidth
|
100
|
kHz
|
||
|
Secondary coil resistance
|
26
|
26 | 56 |
Ω
|
|
Operating temperature
|
-40～85
|
℃
|
||
|
Storage temperature
|
-40～85
|
℃
|
||
