General

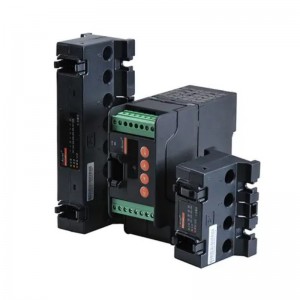

AGF-M Perforation type PV confluence acquisition device is specially designed for smart PV combiner box. It is used for monitoring the running state of solar panels in solar cell arrays, measuring the currents of solar cell, detecting the state of surge protection devices and DC breaker. The device is equipped with RS485(Modbus) communication port for transmitting all the datas to master device.
Acrel AGF-M Solar DC String Monitoring Device measure DC Current up to 24 Circuits (with Hall Sensors); Voltage of Busbar,Paired with PV Combiner Box for DC Multi-circuits Monitoring
Features
Multi-circuits Measurement up to 24 DC Circuits
● Input Channel: up to 24 Circuits
● LED Indicator for Re-flux, Disconnection, Over-current
● Rated Current: 20A
● Accuracy: 0.5 Class
● Voltage Measuring Range: up to 1500V (Busbar)
3-Channel DI Switch Status Monitoring
● DI Status of Lightning Protector and DC CB
● Octocoupler or dry Contact
Temperature Measuring & Over-temperature Alarm Function
● Measuring the inner Temperature of DC PV Junction Box
● Thermistor: NTC
● Range of Measuring: -20℃~+100℃
Keypads HMI for Programming
● Communication(address, baud rate and etc.)
● Over-temp Alarm Threshold
LCD Display
● English Interface
● Data Display
Easy Installation

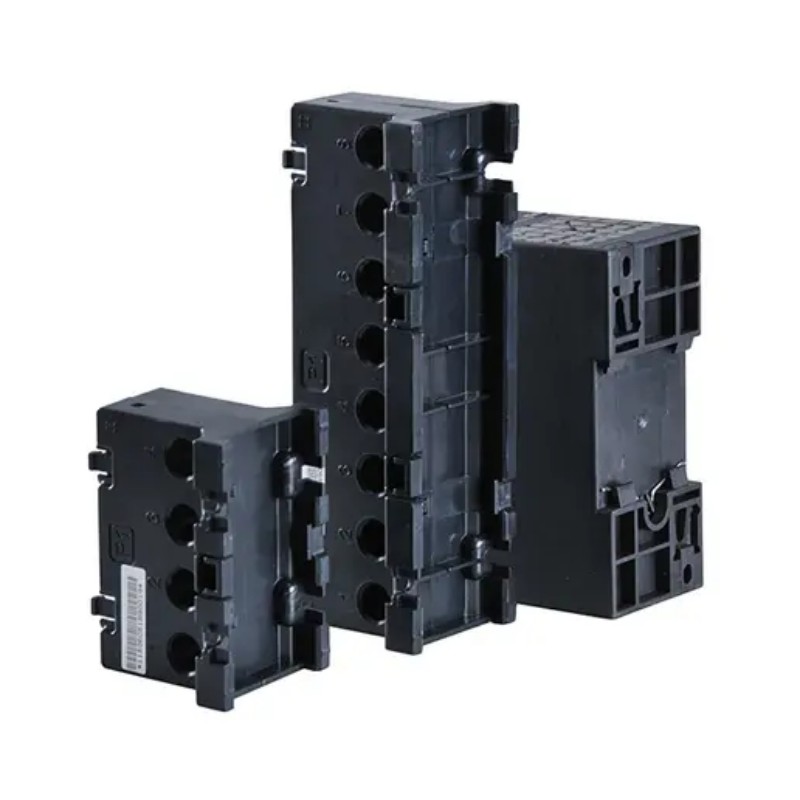

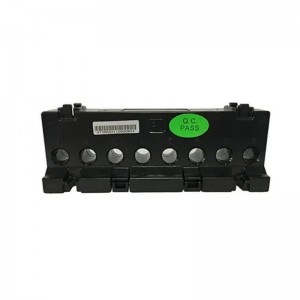

● Perforated Hole for Cable to pass through
● DIN Rail Installation
● Module Connected by Data Line
Wiring
Installation

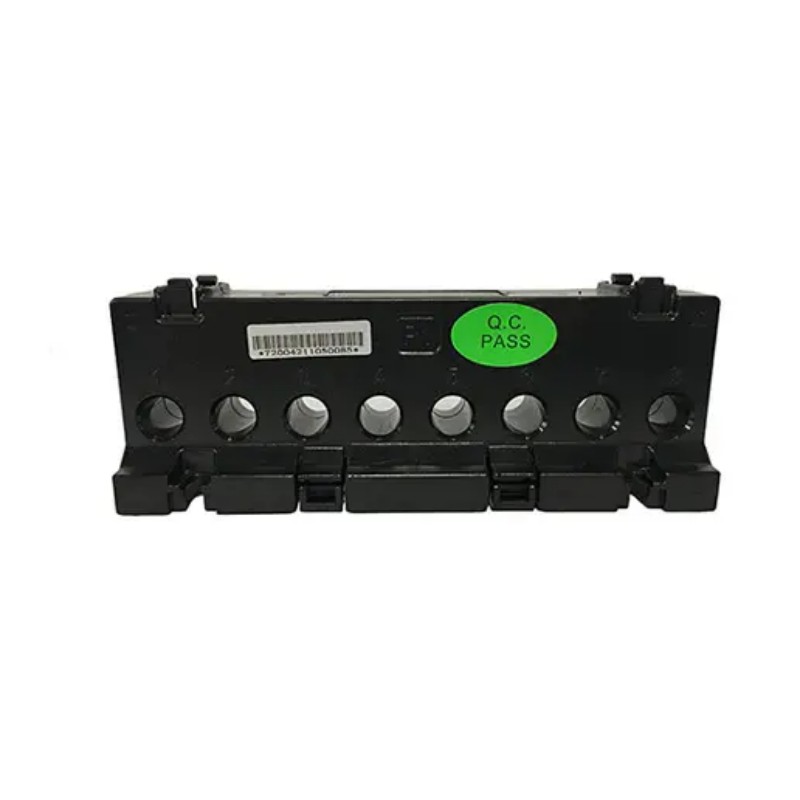

Cable Wiring through Perforation

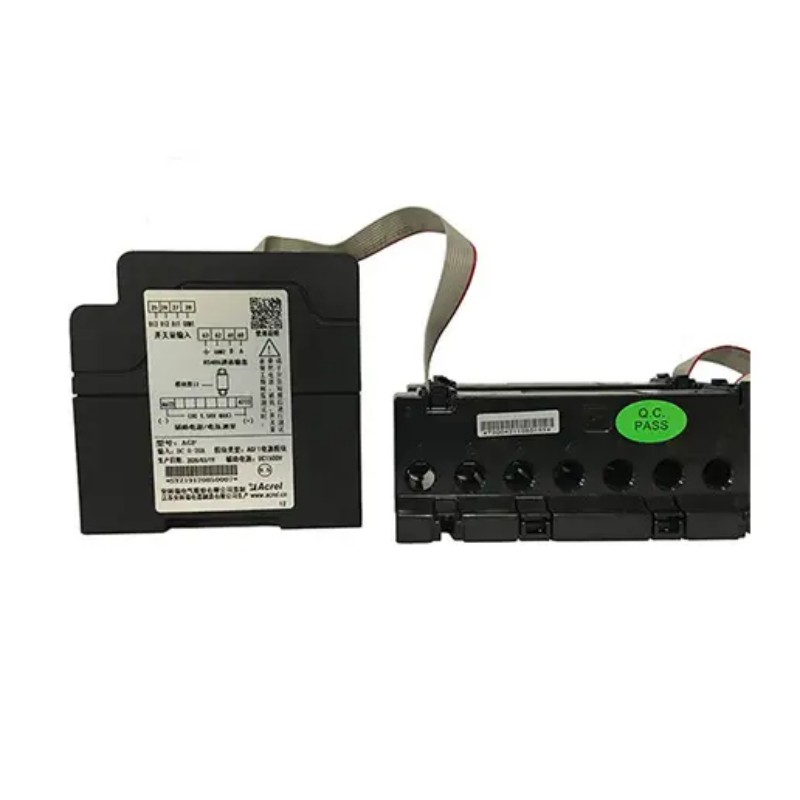

Module Connected by Data Line
Application of AGF-M Solar DC String Monitoring Device
Solar PV Power Distribution Monitoring Solution
Practical Application of AGF-MxxT in PV Combiner Box
APV Smart Solar PV Combiner Box installed under PV Array
Benefits of AGF-M Solar DC String Monitoring Device
• Max isolation measuring DC 20A
• Max voltage measuring for busbar DC1.5KV
• LED display
• RS485 modus RTU
• DIN 35 mm

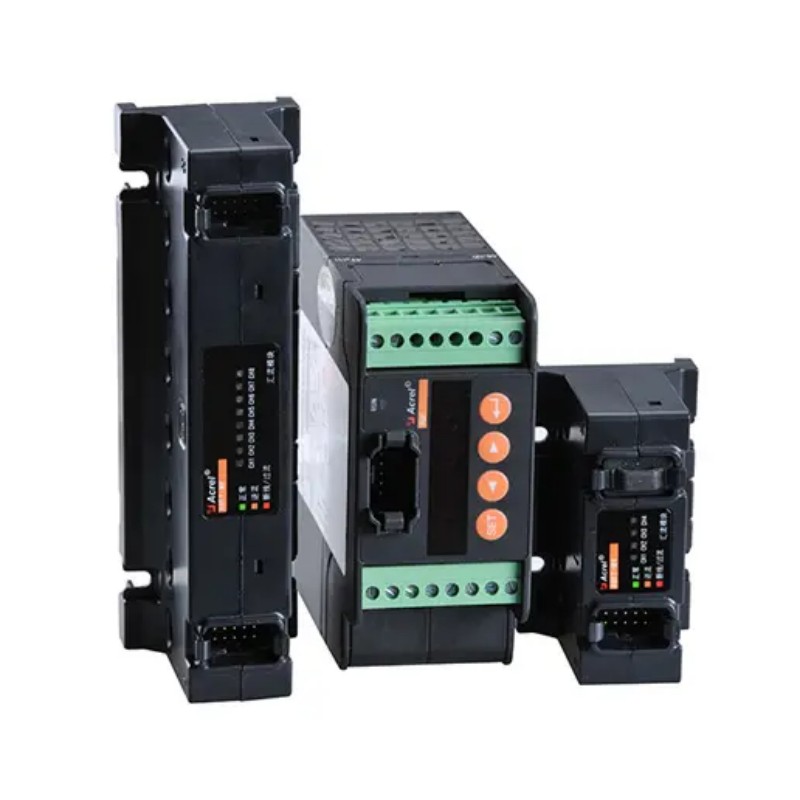

Acrel AGF-M Solar DC String Monitoring Device
Technical Parameters
|
Item
|
AGF-M4T
|
AGF-M8T
|
AGF-M12T
|
AGF-M16T
|
AGF-M20T
|
AGF-M24T
|
|
Input channels
|
4
|
8
|
12 | 16 |
20
|
24
|
|
Rated current
|
DC 0~20A
|
|||||
|
Response time
|
1s
|
|||||
|
Accuracy
|
0.5 class
|
|||||
|
Temperature coefficient
|
400ppm
|
|||||
|
RS485 communication
|
RS485/ModBus-RTU protocol，4800/9600/19200/38400bps
|
|||||
|
Additional function
|
||||||
|
Switch input
|
3-way input(optocoupler or dry contact mode)
|
|||||
|
General technical parameters
|
||||||
|
Temperature/Humidity
|
Working temperature: -35~+65℃， humidity95%,no condensation, no corrosion gas place
*Display module work temperature:-20~+70℃
|
|||||
|
Temperature
measurement
function
|
To measure the inner temperature of box （-20℃～100℃）
|
|||||
|
Altitude
|
≤3000m
|
|||||
|
Insulation resistance
|
≥100MΩ
|
|||||
|
Industrial frequency
withstand voltage
|
power/communication/switching input/cell voltage input–AC 2kV/1min (When the auxiliary power supply is DC1500V, the withstand voltage between the power supply, photocell input and other circuit is AC 2.7kV) Current input/power、cell voltage 、communication、switching state—AC3.5kV/1min
|
|||||
|
EMC
|
GB_T 17626.2-2006；
Electrostatic discharge immunity test 3rd grade, air discharge 8kV, contact discharge 6kV.
|
|||||
|
GB_T 17626.4-2008；
Electrical fast transient immunity test grade 4, common mode 4kV, difference mode 2kV
|
||||||
|
GB_T 17626.5-2008；
Surge(shock) immunity test grade 4, common mode 4kV, difference mode 2kV
|
||||||
|
GB_T 17626.8-2006；
Power frequency magnetic field immunity test grade 4
|
||||||
