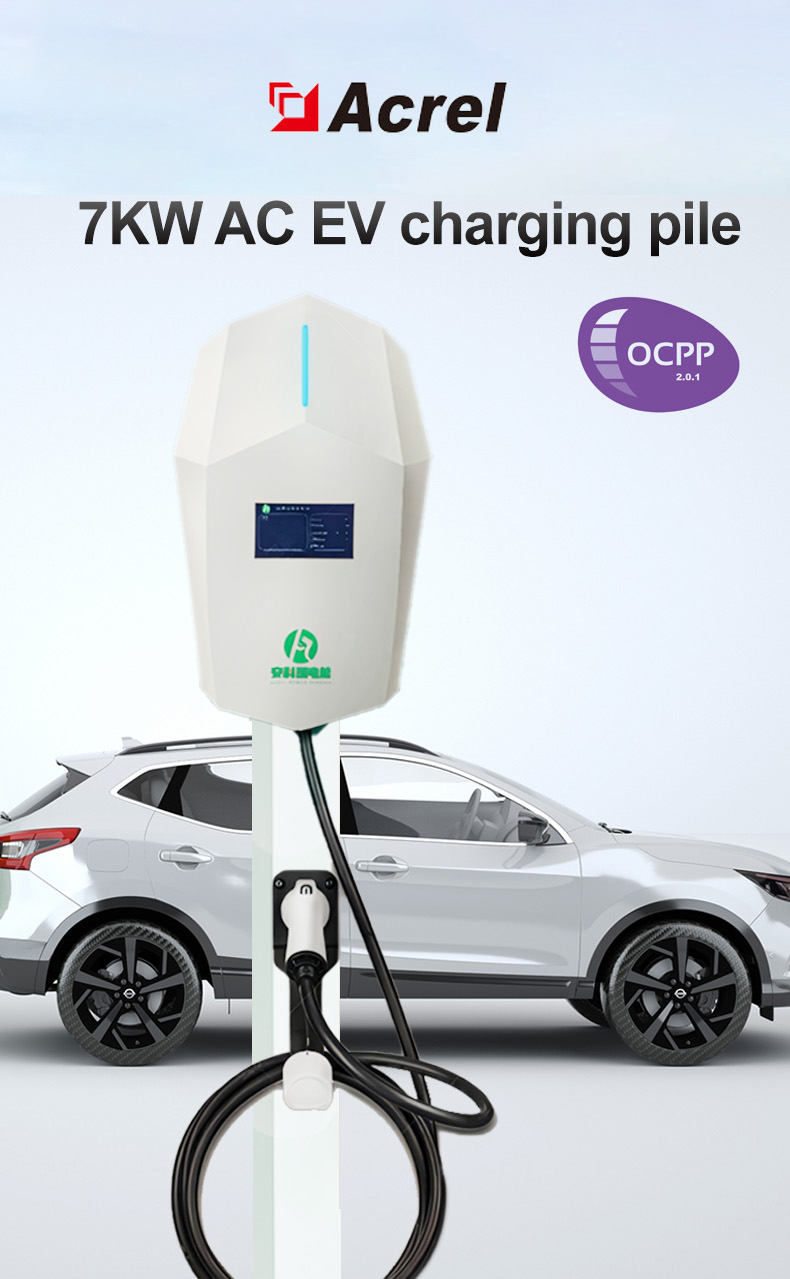

Acrel AEV300-AC007D-EU EV Charging Pile
Acrel AEV300-AC007D-EU EV Charging Pile
General
The EVSE (AEV300-AC007D-EU) is an AC charging station that you can use to supply electricity to an EV. offers tailor-made,intelligent and network charging solutions for your company or home.The EVSE can connect to the internet via GSM,WiFi or LAN.

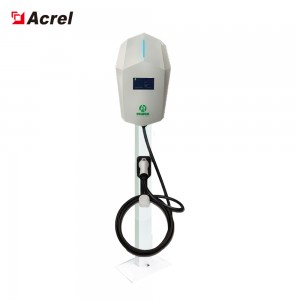

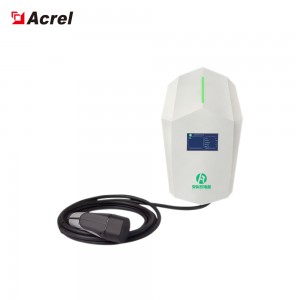

Display
Application
In residential areas: In the home environment, AC charging stations provide convenient charging services for electric vehicles. Many families have their own car parking spaces, and by installing AC charging stations, residents can charge their electric vehicles in their own garages or parking spaces. This method not only facilitates users, avoids the trouble of searching for charging stations outside, but also improves charging efficiency.
In commercial areas： The application of AC charging stations is becoming increasingly widespread. AC charging stations are usually installed in parking lots, shopping centers, hotels, and other places within commercial areas to meet the charging needs of electric vehicle users.
In parking lots: Parking lots: This is one of the important places for charging electric vehicles, and the application of AC charging stations in parking lots is of great significance. Whether it is urban parking lots, corporate parking lots, or residential parking lots, charging services can be provided by setting up AC charging stations.
Parameters of Acrel AEV300-AC007D-EU EV Charging Pile
Dimension
Certificate of Acrel AEV300-AC007D-EU EV Charging Pile
Acrel AEV300-AC007D-EU EV Charging Pile
Technical Parameters
| Type |
AEV300-AC007D-EU | ||
| Installation | Wall-mounted | Column type (optional) | |
| Product specifications | Rated power | 7KW | |
| Input voltage | AC230V | ||
| Input mode | Single-phase three-wire system | ||
| Operating frequency | 50HZ/60HZz | ||
| Output voltage | AC230V | ||
| Output current | 0A~32A | ||
| Output interface | Single shot | ||
| The length of the AC charging cable | 5 meters | ||
| Ingress protection | IP54 | ||
| Material | PCIABS | ||
| Operating ambient temperature | -30℃ -55℃ | ||
| Protection features | Lightning protection, overload protection, shortcircuit protection, leakage protection (optional) | ||
| display | A 4.3-inch display is available as an option | ||
| Communication | Option 1 | 4G with WIFI&BT with LAN with Display | |
| Option 2 | WIFI&BT with LAN with Display | ||
| Option 3 | WIFI&BT with Display | ||
| Option 4 | Only Display | ||
| Option 5 | 4G with WIFI&BT with LAN without Display | ||
| Option 6 | WIFI&BT with LAN without Display | ||
| Option 7 | WIFI&BT without Display | ||
| Option 8 | None | ||
