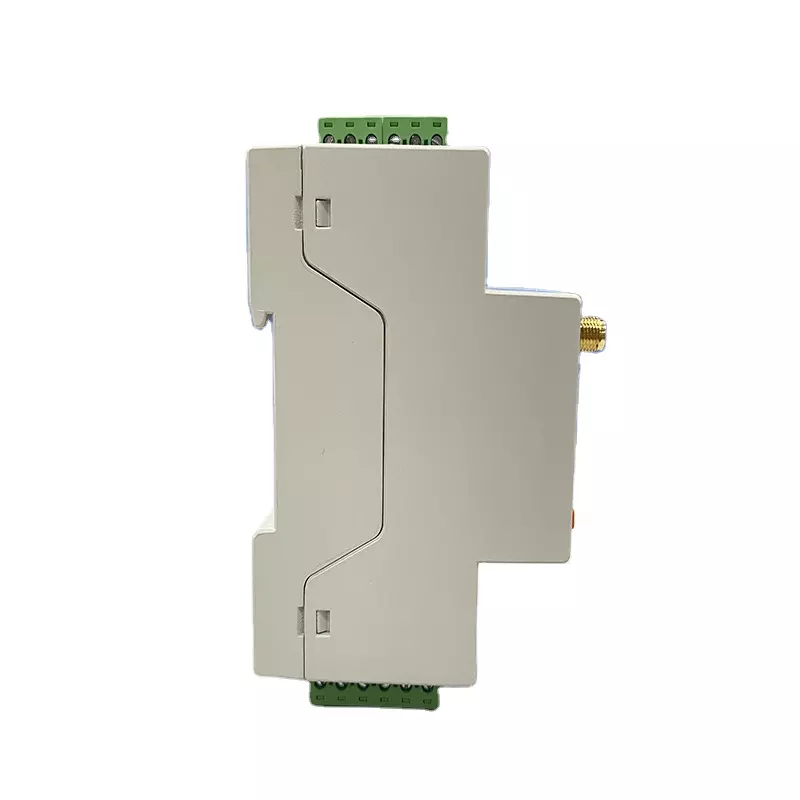

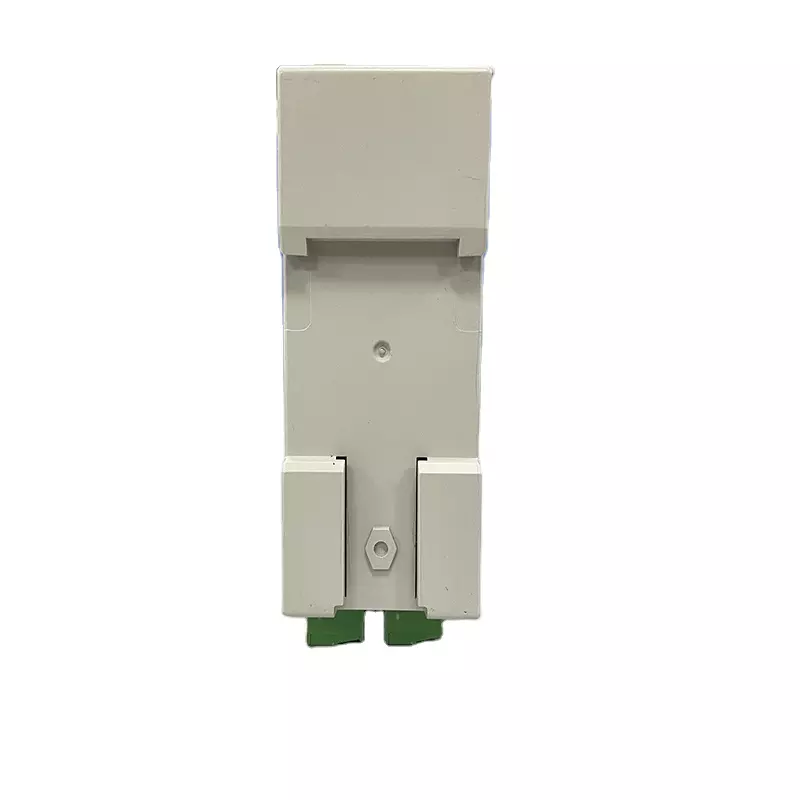

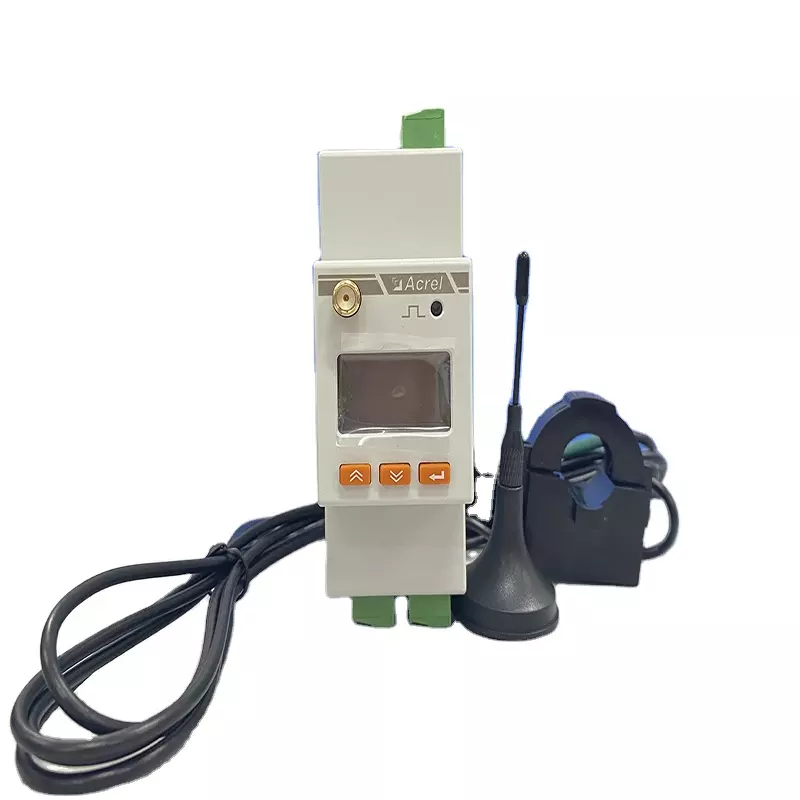

General
Acrel ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods.It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas and different loads.
ADW310 can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions.
Functions
Features

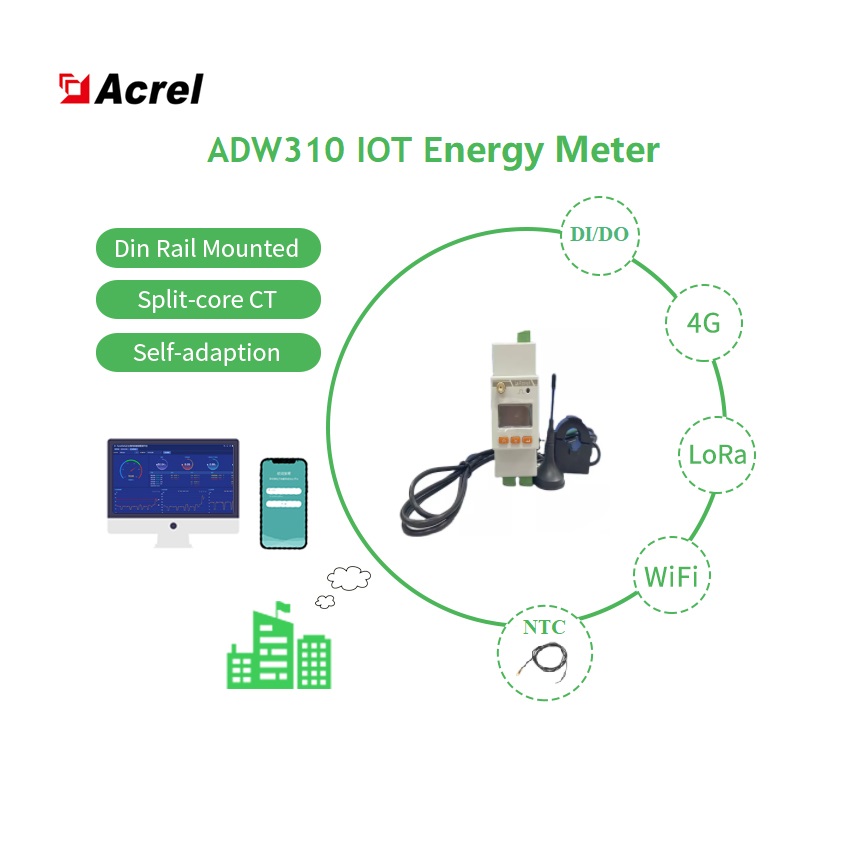

Online&Remote Energy Monitoring
● Paired with Acrel IoT Energy Monitoring System
● PC Access via IoT EMS WEB
● Mobile Phone Access via IoT EMS APP
● 4G Wireless Communication (Global)
● WiFi Wiress Communication (2.4GHz)
● Support MQTT, MODBUS-TCP protocol
● Support standard RS485 interface (MODBUS-RTU)
Multiple Extra Function
● 1-channel DO (Digital Ouput)
● 1-channel DI (Digital Input)
● 2-channel Cable Temperature Monitoring
● Active Pulse Output
Alarm Function
● Over/Under Current
● Over/Under Voltage
● Over/Under Power
PIN Overview
Wiring
Wiring of ADW310 Single-phase IoT Energy Meter
Network
ADW310 4G Wireless Communication Solution
ADW310 WIFI Wireless Communication Solution
Outline and Dimension
CT for ADW310
Packaging
| Packaging Overview(Minimum) |  |
 |
| Packing Dimension and Weight(Minimum) | Package Dimension(1 PC)170*150*130mm
|
Package Weight(1 PC)0.25Kg |
| Packing Dimension and Weight(Large) | Package Dimension(36 PCS)540*530*490mm
|
Package Weight(36 PCS)10.00kG |
| Average Lead Time | Manufacturing: 3~4 days(If paired with system need extra 1~2 days for adjustment)
|
Shippment: 8~9 days(World Wide Shipment) |
| Product HS Code | 9028301300 | |
| Country of Origin | China | |
Acrel ADW310 1-Phase Wireless IoT Energy Meter FAQs
ADW310 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi upstream communication without using extra IoT gateways. For the application scenarios when the meters can't be of centralized installation, ADW310 will usually be the best option for monitor 3-phase circuits that were far from each other.
First, check if the wiring of RS485 communication line was loosen or wired incorrectly.(like reversely wiring the A,B terminal).
Next,inspect if the meter’s setting of address, baud rate, check bit was correct by using keypads on the meter.
Normally, only current input wiring via CT and voltage input wiring via direction connection was necessary for ADW310 to realize basic metering function.
Voltage input of ADW310 also serve as the power supply of ADW310 Seires. Be aware the rated/max voltage input range must be within the range of 85~265Vac L-N.
Acrel ADW310 Single-phase Wireless IoT Energy Meter
Functions
|
Functions
|
function declaration
|
|
Display mode
|
LCD (field type)
|
|
Energy metering
|
Active electric energy metering (positive and reverse)
|
|
Electrical measurement
|
Voltage, current, power factor, frequency, active power, reactive power, dependent power
|
|
Pulse output
|
Active pulse output
|
|
Temperature measurement
|
Two temperature measurements (optional T)
|
|
DI/DO
|
1DI, 1DO (optional K)
|
|
LED display
|
Pulse light indication
|
|
External current transformer
|
External open-type transformer
|
|
Electrical parameter
|
Underpressure, overpressure, undercurrent, overcurrent, underload, overload, etc
|
|
Communication
|
RS485 interface (optional C)
|
|
470MHz Wireless Transmission (LR)
|
|
|
4G Wireless Transmission (4G optional)
|
|
|
WIFI wireless communication (optional WF)
|
Technical Parameters
|
Voltage input
|
rated voltage | 220V |
| reference frequency |
50Hz
|
|
|
power consumption
|
<0.5VA(Each phase) | |
| Current input |
input currenton
|
AC 20(100)A |
|
starting current
|
1‰Ib(0.5S class)，4‰Ib(1 class)
|
|
| power consumption | <1VA(Each phase) | |
| Auxiliary power supply |
voltage
|
AC 85~265V
|
| power consumption |
<2W
|
|
| Measurement performance | standard |
GB/T17215.322-2008，GB/T17215.321-2008
|
|
Accuracy of active power
|
1class
|
|
|
Temperature accuracy
|
±2℃
|
|
|
Impulse
|
pulse length
|
80±20ms
|
|
Pulse constant
|
1600imp/kWh
|
|
|
Communication
|
wireless
|
Transmission on 470MHz and maximum distance in open space is 1km；4G
|
|
interface
|
RS485(A、B)
|
|
|
Connection mode
|
Shielded twisted pair conductors
|
|
|
Protocol
|
MODBUS-RTU、DL/T 645-07
|
Working Environment
|
Temperature range
|
Operating temperature
|
-20℃~55℃
|
|
Storage temperature
|
-40℃~70℃
|
|
|
Humidity
|
≤95% (No condensation)
|
|
|
Altitude
|
<2000m
|
|
